EBPC: Extended Bit-Plane Compression for Deep Neural Network Inference and Training Accelerators

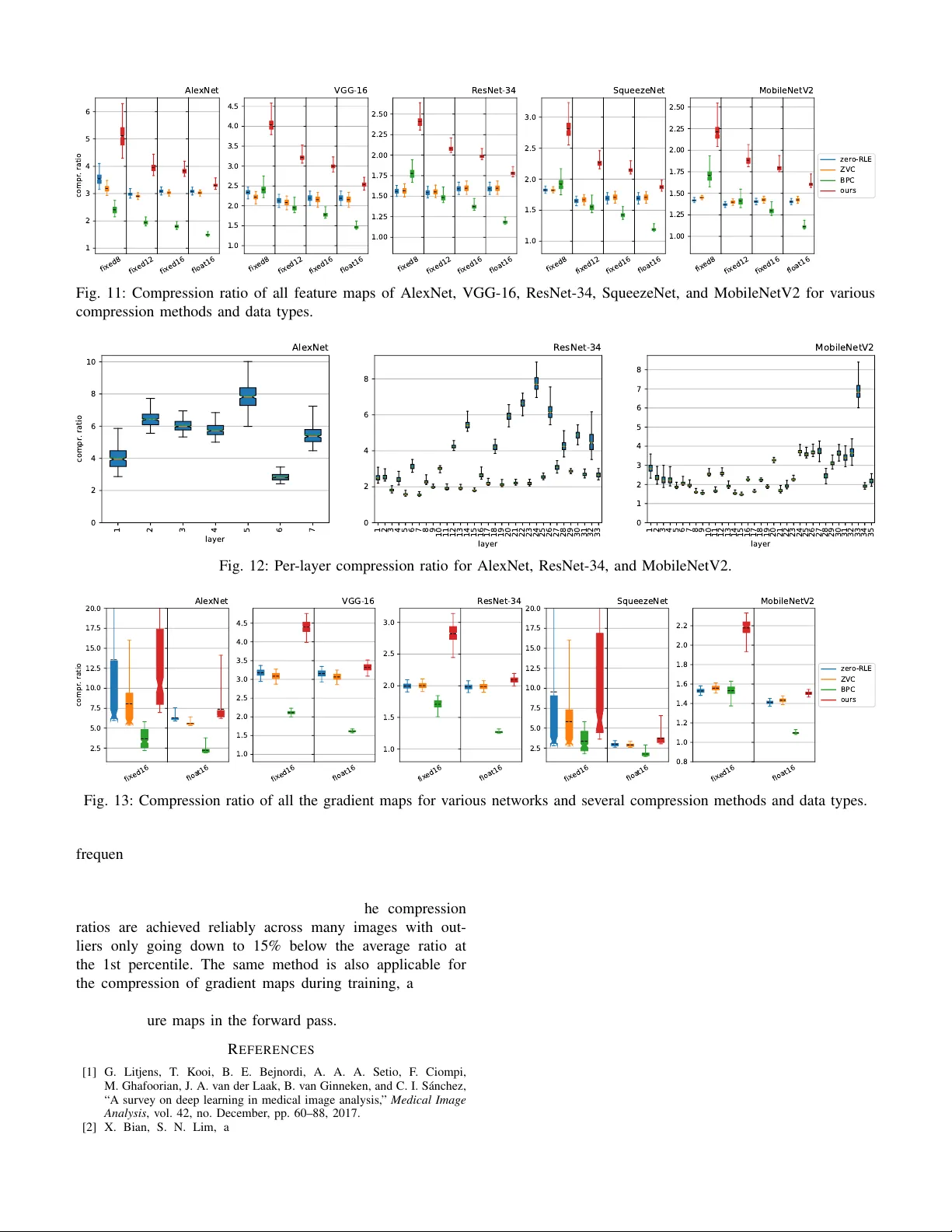

1 EBPC: Extended Bit-Plane Compression for Deep Neural Network Inference and T raining Accelerators Lukas Cavigelli, Member , IEEE , Georg Rutishauser , Student Member , IEEE , Luca Benini, F ellow , IEEE Abstract — In the wake of the success of convolutional neural networks in image classification, object recognition, speech recog- nition, etc., the demand for deploying these compute-intensi ve ML models on embedded and mobile systems with tight power and energy constraints at low cost, as well as f or boosting throughput in data centers, is growing rapidly . This has sparked a surge of r esearch into specialized hardwar e accelerators. Their performance is typically limited by I/O bandwidth, power consumption is dominated by I/O transfers to off-chip memory , and on-chip memories occupy a large part of the silicon area. W e introduce and evaluate a nov el, hardwar e-friendly , and lossless compression scheme for the feature maps present within con volutional neural networks. W e present hard ware ar chitec- tures and synthesis results for the compressor and decompressor in 65 nm. With a throughput of one 8-bit word/cycle at 600 MHz, they fit into 2.8 kGE and 3.0 kGE of silicon area, respectiv ely— together the size of less than sev en 8-bit multiply-add units at the same throughput. W e show that an average compression ratio of 5.1 × for AlexNet, 4 × for V GG-16, 2.4 × for ResNet-34 and 2.2 × f or MobileNetV2 can be achiev ed—a gain of 45–70% o ver existing methods. Our appr oach also works effecti vely for various number formats, has a low frame-to-frame variance on the compression ratio, and achieves compression factors for gradient map com- pression during training that are even better than f or inference. Index T erms —Compression, Deep Learning, Con volutional Neural Networks, Hardware Acceleration I . I N T RO D U C T I O N C OMPUTER vision has ev olved into a key component for automating data analysis ov er a wide range of field applications: medical diagnostics [1], industrial quality assur- ance [2], video surveillance [3], advanced driv er assistance systems [4] and many more. A large number of these appli- cations have only emerged recently due to the tremendous ac- curacy improv ements—ev en beyond human capabilities [5]— associated with the advent of deep learning and in particular con volution neural networks (CNNs, Con vNets). Even though CNN-based solutions often require consider- able computing resources, many of these applications hav e to run in real-time and on embedded and mobile systems. As a result, purpose-built platforms, application-specific hardware accelerators, and optimized algorithms have been engineered Manuscript recei ved January XX, XXXX; revised August YY , YYYY . The authors would like to thank armasuisse Science & T echnology for funding this research. This project was supported in part by the EU’s H2020 programme under grant no. 732631 (OPRECOMP). L. Ca vigelli, G. Rutishauser and L. Benini are with the Integrated Systems Laboratory , ETH Zürich, 8092 Zürich, Switzerland (e-mail: cav- igelli@iis.ee.ethz.ch). L. Benini is also with the Department of Electrical, Electronic and Infor- mation Engineering, University of Bologna, 40136 Bologna, Italy . to reduce the number of arithmetic operations and their pre- cision requirements [6]–[15]. Examining these hardware platforms, the amount of energy required to load and store intermediate results/feature maps (and gradients maps during training) in the of f-chip memory is not only significant but typically dominating the energy consumed during computation and on-chip data b uffering. This energy bottleneck is even more remarkable when considering networks that are engineered to reduce computing energy by quantizing weights to one or two bits or power -of-two values, dispensing with the need for high-precision multiplications and significantly reducing weight storage requirements [16]–[20]. Many compression methods for CNNs have been proposed ov er the last fe w years. Howe ver , many of them are focusing exclusi vely on 1) compressing the parameters/weights, which make up only part of the energy-intensi ve of f-chip communication—especially when intermediate results during the computation of a layer are also stored off-chip [21]–[24], 2) exploiting the sparsity of intermediate results, which is not always present (e.g., in partial results of a conv o- lution layer or otherwise before the activ ation function is applied) and is not optimal in the sense that the non- uniform value distribution is not capitalized [25]–[27], 3) very complex methods requiring large dictionaries, or otherwise not suitable for a small, energy-ef ficient hard- ware implementation—often targeting efficient distribu- tion and storage of trained models to mobile devices or the transmission of intermediate feature maps from/to mobile devices over a costly communication link [23]. In contrast to these, the focus on this paper is on reducing the energy consumption of hardware accelerators for CNN inference and training by cutting down on the dominant power contributor —I/O transfers. These data transfers to and from off-chip memory consist of the netw ork parameters (read-only) and the feature maps (read/write). The latter is the more substantial contributor to the overall transfers as highlighted in T able I. Previous work has further shown that the parameters can even be quantized to ternary representations (1.58 bit/value) with minimal to no accuracy loss [19], [37], although current commercially av ailable solu- tions generally target 8-bit quantized weights and activations. As can be seen in our comparison, there seems to be a clear trend to wards applications working with high-resolution data such as object detection are using more I/O for the feature maps than the parameters. The same can be seen with model size and compute effort-optimized networks, and conv ersely 2 T A B L E I . C O M PA R I S O N O F F E A T U R E M A P S I Z E S A N D P A R A M E T E R C O U N T O F M O D E R N D N N S Network Accuracy Dataset Resolution 1 #MA Cs #params #FM values 2 I/O-ratio FM/parameter 3 [% top-1/top-5] TWN-infer . FP-infer . training Recognition ResNet-50 [28] 77.2 / 93.3 ILSVRC12 224 × 224 4.1 G 25.6 M 11.1 M 9.1 × 0.9 × 27.8 × DenseNet-121 [29] 76.4 / 93.3 ILSVRC12 224 × 224 2.9 G 8.0 M 6.9 M 17.2 × 1.7 × 55.3 × SqueezeNet [30] 57.5 / 80.3 ILSVRC12 224 × 224 355.9 M 1.2 M 2.6 M 42.4 × 4.2 × 134.1 × ShuffleNet2 [31] 69.4 / —– ILSVRC12 224 × 224 150.6 M 2.3 M 2.0 M 17.2 × 1.7 × 54.8 × MobileNet2 [32] 72.0 / —– ILSVRC12 224 × 224 320.2 M 3.5 M 6.7 M 38.4 × 3.8 × 121.9 × MnasNet [33] 75.6 / 92.7 ILSVRC12 224 × 224 330.2 M 4.4 M 5.5 M 25.2 × 2.5 × 79.7 × Detection YOLOv3 [34] 57.9% AP 50 COCO-det. 480 × 640 9.5 G 61.6 M 68.4 M 22.2 × 2.2 × 71.1 × YOLOv3-tin y [34] 33.1% AP 50 COCO-det. 480 × 640 800.0 M 8.7 M 10.7 M 24.2 × 2.4 × 78.4 × OpenPose [35] 65.3% mAP COCO-keyp. 480 × 640 50.4 G 52.3 M 132.5 M 51.5 × 5.1 × 162.1 × MultiPoseNet-50 [36] 64.3% mAP COCO-keyp. 480 × 640 13.3 G 36.7 M 96.0 M 52.5 × 5.2 × 167.4 × MultiPoseNet-101 [36] 62.3% mAP COCO-keyp. 480 × 640 16.8 G 55.6 M 119.9 M 43.4 × 4.3 × 138.0 × 1 This resolution is used to determine the number of multiply-accumulate operations and feature map values. For the detection CNNs, this differs from the one used during training. 2 W e count the number of feature maps values wherev er they are activated (e.g., by a ReLU layer). 3 Feature maps values are assumed to be 16 bit and counted twice since they are written and read (most HW accelerator required multiple reads, though). Modes — TWN-inference : batch size 1, ternary weights; full-pr ecision inference : batch size 1, 16 bit weights; training : batch size 32, 16 bit weights. very deep and parameter -rich networks for image classification benefit less. Altogether , this clearly highlights the requirement for feature map compression for energy-constrained scenarios. There, the feature maps outweigh the parameters by 20–50 × (16 bit to 1.58 bit and 2–5 × more v alues) and the energy share spent on feature map I/O and buf fering is growing even more dominant with the simpler arithmetic operations [16], [17], [20], [38] and further work on model compression. Contributions: W e are extending our work in [39] and make the follo wing main contributions: 1) A comparison of state-of-the-art DNNs regarding band- width and/or memory size requirements for parameters and feature maps, showing the relev ance of feature map compression; 2) An in-depth analysis of the feature and gradient maps’ properties indicating compressibility; 3) The proposal of a novel, state-of-the-art, and hardware- friendly compression scheme; 4) A thorough ev aluation of its capabilities for inference as well as training (compressing gradient maps); 5) A hardware architecture for the compressor and decom- pressor and a detailed analysis of its implementation in 65 nm CMOS technology . This paper is organized as follows: In Section II, we explore previous work on feature map compression in neural networks and the exploitation of feature map sparsity , placing a special focus on hardware suitability . Then, in Section III, we introduce the extended bit-plane compr ession algorithm and its properties. Section IV describes a hardware implementation of the algorithm and discusses the implementation results. In Section V, detailed results for the application of the algorithm to v arious networks are presented and discussed, dra wing com- parisons to other compression methods. Section VI concludes the paper , briefly summarizing our results. I I . R E L A T E D W O R K W e will now introduce some sparsity-based methods for feature map compression which are very hardware friendly and widely used to feed the feature map data in and out of hardware accelerators which use sparsity to reduce to number of compute operations. W e then expand the scope of our re- view to methods targeting model compression and compressed representation learning before taking a more detailed look at a system-level method used to compress feature maps for transfer between GPU and CPU memory . A. Sparsity-based F eatur e Map Compr ession There are sev eral publications in literature describing hard- ware accelerators which exploit feature map sparsity to reduce computation: Cn vlutin [8], SCNN [9], Cambricon-X [10], NullHop [11], Eyeriss [12], EIE [13]. Their focus is on power gating or skipping some of the operations and memory accesses. This entails defining a scheme to feed the data into the system. They all use one of four methods: 1) Zero-RLE (used in SCNN [9]): A simple run-length encoding for the zero values, i.e., a single prefix bit followed by the number of zero-values or the non-zero value. 2) Zero-free neuron array format (ZFNAf) (used in Cn- vlutin [8]): Similarly to the widely-used compressed sparse row (CSR) format, non-zero elements are en- coded with an offset and their value. 3) Compressed column storage (CCS) format (e.g., used in EIE [13]): Similar to ZFN Af, but the offsets are stored in relativ e form, thus requiring fe wer bits to store them. Few bits are suf ficient, and in case they are all e xhausted, a zero-value can be encoded as if it was non-zero. 4) Zero-value compression (ZVC) (first used in this context in NullHop [11], then in cDMA [25]): Saves a fixed- length mask indicating whether a value was zero or non- zero and a variable-length list of the non-zero values. Besides applying these methods directly to the feature maps and using the already present sparsity to skip some of the compute operations, sev eral methods such as DeltaRNNs [40], [41], sigma-delta quantized networks [42], and CBinfer [14], [43] apply temporal differences to further sparsify the feature maps with the same intent. 3 B. Model Compr ession More sophisticated compression methods hav e been pro- posed, particularly for compressing the model size. Most of them are very complex (silicon area) to implement in hardware. One such method, deep compression [23], combines pruning, trained clustering-based quantization, and Huffman coding. Most of these steps cannot be applied to the inter- mediate feature maps, which change for e very inference as opposed to the weights which are static and can be optimized off-line. Furthermore, applying Huffman coding—while being optimal in terms of compression rate and gi ven a specification of input symbols and their statistics—implies storing a very large dictionary: encoding a 16 bit word requires a table with 2 16 = 65 . 5 k entries, b ut ef fectiv ely multiple v alues would have to be encoded jointly in order to exploit their joint distribution (e.g., the smoothness), immediately increasing the dictionary size to 2 2 · 16 = 4 . 29 G ev en for just two values. Similar issues arise when using Lempel-Ziv-W elch (LZW) coding [44], [45] as present in, e.g., the ZIP compression scheme, where the dictionary is encoded in the compressed data stream. This makes it unsuitable for a lightweight and energy-ef ficient VLSI implementation [46], [47]. C. Compressed Representation Learning Few more methods exist which change the CNN’ s structure in order to compress the weights [21], [22] or the feature maps [26], [27], [48]. Howe ver , they require altering the CNN’ s model and retraining it, and they introduce some accurac y loss. Furthermore, they can only be used to compress a few feature maps at specific points within the netw ork and sometimes introduce additional compute ef fort, such as applying a Fourier transform to the feature maps. D. System-level Compression Methods The most directly comparable approach, cDMA [25], re- lies on ZVC as introduced in NullHop [11]. Howe ver , their target application differs in that their main goal is to allow faster temporary of floading of the feature maps from GPU to CPU memory through the PCIe bandwidth bottleneck during training, thereby enabling larger batch sizes and deeper and wider networks without sacrificing performance. They use ZVC in a configuration which takes a block of 32 acti vation values and generates a 32-bit mask where only the bits to the non-zero values are set. The non-zero values are stored and transferred after the masks. This provides the main advantage ov er Zero-RLE that the mask data has a fixed size and can Zero-RLE Buffer + Pac ker Bit-Plane Enco der input 6 = 0 input v alue stream compressed bit-stream if non-zero Fig. 2: T op-level view of the proposed compression scheme. The bit-plane encoder is further illustrated in Fig. 1. easily be accessed even with non-linear access patterns, while this method provides small compression ratio adv antages at the same time. Note that this can be seen as a special case of Zero-RLE with a maximum zero burst length of 1. For this work, we b uild on a method known in the area of texture compression for GPUs, bit-plane compr ession (BPC) [49], fuse it with sparsity-focused compression methods, and ev aluate the resulting compression algorithm on intermediate feature maps and gradient maps to sho w compression ratios of 5.1 × (8 bit AlexNet), 4 × (VGG-16), 2.4 × (ResNet-34), 2.8 × (SqueezeNet), and 2.2 × (MobileNetV2). I I I . C O M P R E S S I O N A L G O R I T H M An overvie w of the proposed algorithm is shown in Fig. 2. W e motiv ate its structure based on the properties we have observed in feature maps (cf. Section V -B): 1) Sparsity: The v alue stream is decomposed into a zero/non-zero stream on which we apply run-length en- coding to compress the zero b urst commonly occurring in the data. 2) Smoothness: Spatially neighboring values are typically highly correlated. W e thus compress the non-zero values using bit-plane compression. The later compresses a fixed number of words n jointly , and the resulting compressed bit-stream is injected immediately after at least n non-zero values hav e been compressed. The resulting algorithm can be vie wed as an extension to bit-plane compression to exploit the sparsity present in most feature maps better . A. Zero/Non-Zer o Encoding with RLE The run-length encoder produces a binary stream that speci- fies for each word of the input stream whether it is zero. Bursts of zeros are encoded by a ’0’ bit followed by a fixed number of bits describing the length of the burst. Non-zero inputs are not run-length encoded, and instead, each non-zero word is represented by a ’1’ bit. If the length of a zero-b urst exceeds Data Blo c k word 0 word 1 word 2 . . . word n –1 (size: m bit) Delta base = word 0 delta 0 = word 1–word 0 delta 1 = word 2–word 1 . . . delta n –2 (size: m +1 bit) Delta-BP (DBP) base = word 0 DBP m ( n –1 bit) DBP m –1 . . . DBP 0 Encoder subtract neighbors view as bit-planes XOR bit-planes BP enco der BP enco der BP enco der BP enco der Zero Run-Length Encoder Buffer + Pac ker code symbol if non-zero Z-RLE code isZero DBP-XOR (DBX) base = word 0 DBP m DBX m –1 . . . DBX1=DBP1 ⊕ DBP2 DBX0=DBP0 ⊕ DBP1 compressed bit-stream input value stream Fig. 1: Overview of the processing steps to apply bit-plane compression. 4 the corresponding maximum burst length, the maximum is encoded, and the remaining bits are encoded independently , i.e., in the next code symbol. B. Bit-Plane Compr ession An overvie w of the bit-plane compressor (BPC) used to compress the non-zero v alues is sho wn in Fig. 1. For BPC a set of n words of m bit, a data block , is compressed by first computing differences between every two consecuti ve words and storing the first word as the base. This exploits that neighboring values are often similar to reduce concentrates the distribution of the compressed values around zero. The data items storing these differences are then vie wed as m + 1 bit-planes of n − 1 bit each (delta bit-planes, DBPs). Neighboring DBPs are XOR-ed, now called DBX , and the DBP of the most significant bit is kept as the base-DBP . The results are fed into bit-plane encoders, which compress the DBX and DBP values to a bit-stream follo wing T able 3a. Most of these encodings are applied independently per DBX symbol. Howe v er , the first can be used to jointly encode multiple consecutiv e bit-planes at once, if the y are all zero. This is where the correlation of neighboring values is best exploited. Note also the importance of the XOR-ing step in order to map two’ s complement negativ e values close to zero also to words consisting mostly of zero-bits. As 1) the bit-plane encoding is a prefix code, 2) both the block size and word width are fixed, and 3) the representation of word 0– ( n − 1) as (base, DBP m , DBX 0– ( m − 1) ) is in vert- ible, the resulting bit-stream of the base (word 0) follo wed by all the encoded symbols can be decompressed into the original data block. W e hav e analyzed the code symbol distribution in Fig. 3b across all ResNet-34 feature maps with 8 bit fixed-point quan- tization. Similar histograms are obtained for 16 bit fixed-point and/or other networks. The 1.25 M blocks result in 11.25 M symbols of which 5.1 M are uncompressed bit-planes, 1.2 M are multi-all-0 DBX symbols encoding 5.4 M all-zero bit- planes, 0.5 M single-1 symbols, 0.2 M symbols for bit-planes with two consecutiv e one-bits. As we are processing a stream of data, transmitting the base can be omitted in fa vor of re-using the last w ord of the previous block. As the compression is loss-less, the last decoded word of the previous block is used as the base for decoding the next block. When starting to transmit a ne w stream of data, either base of the first block can be transmitted, or the base can be initialized to zero. C. Data T ypes The proposed compression method can be applied to inte- gers of v arious word widths and for various block sizes. It also works with floating-point words, in which case the deltas do not need an additional bit and correspondingly there is one less DBP and DBX symbol (cf. Fig. 1). The floating- point subtraction is not exactly (bit-true) in vertible. Hence a minimal and in practice negligible compression loss can be expected. Floating-point numbers are known to be notoriously hard to compress. While the DBX symbols corresponding to the fraction bits are almost equiprobable ‘1’ or ‘0’, those for the exponent and sign bits are often all-zero and thus compressible. Notably , this compression method is capable of handling variable-precision input data types very well. For example, 10 bit v alues can be represented as 16 bit values and fed into a bit-plane compressor for 16 bit values. First, all the benefits coming from sparsity remain. Then, once a data block of such is con verted into the DBX representation, there will now be 6 additional all-zero DBX symbols. These are then in the worst case encoded together into a single multi-all-0 DBX symbol, adding a mere 7 bit to the overall block’ s code stream. In the best case, the additional all-zero DBX symbols can be encoded into an existing adjacent symbol. Similarly , not only reduced bit-widths, but generally reduced value ranges will have a positiv e impact on the length of the compressed bitstream. This can be used to alter the trade-off between accuracy and energy-ef ficiency on-the-fly . While the focus here is on ev aluating the compression rate on feature and gradient maps of CNNs, such a (de-)compressor will be beneficial for any smooth data (images/textures, audio data, spectrograms, biomedical signals, . . . ) and/or sparse data (ev ent streams, activity maps, . . . ). I V . H A R D W A R E A R C H I T E C T U R E & I M P L E M E N TA T I O N The compression scheme’ s elements hav e been selected such that it is particularly suitable for a lightweight hardware implementation: no code-book needs to be stored, just a fe w data words need to be kept in memory . T o verify this claim, we present a hardware architecture in this section from which we obtain implementation results. For both the compressor and decompressor , we chose to target a throughput of ap- proximately 1 word per cycle. W e hav e separate output data streams for the compressed zero/non-zero stream and the bit- plane compressed data, which could optionally be packed into a single compressed bitstream. In the follo wing, we use a block size of 8 and 8 bit fixed-point data words. The implementation is av ailable online 1 . A. Compressor In Fig. 4 we show the hardware architecture of the en- coder . On top, we show the Zero-RLE compressor—a simple comparator to zero (an 8-input NOR block) followed by a counter and a multiplex er which selects a ’1’ in case of a non-zero or the zero count if one or more zeros have been receiv ed. T owards the end of the unit, variable-length symbols are pack ed into 8 bit words for connection to a memory bus: a register is filled with shifted data until at least 8 bits hav e been collected, at which point an 8 bit word is sent out, and the remaining bits in excess of 8 are shifted to the LSB side. At the same time, any non-zero v alues are processed by the Delta and DBP/DBX T ransform block. The first word is written to the base word register , all subsequent words of the block are each subtracted from their pre vious value, and these pushed into a shift-register which is read in parallel once a complete block 1 https://github .com/pulp- platform/stream- ebpc 5 DBX Pattern Length [bit] Code (binary) multi-all-0 DBX 3 + d log 2 ( m ) e 001 & to_bin(runLength-2) all-0 DBX 2 01 all-1 DBX 5 00000 all-0 DBP 5 00001 2-consec 1s 5 + d log 2 ( n − 2) e 00010 & to_bin(posOfFirstOne) single-1 5 + d log 2 ( n − 1) e 00011 & to_bin(posOfOne) uncompressed 1 + ( n − 1) 1 & to_bin(DBX word) (a) Symbol Encoding T able 1 0 1 1 0 2 1 0 3 1 0 4 1 0 5 1 0 6 numBlocks all-1 DBX all-0 DBP all-0 DBX 2-consec 1s single-1 multi-all-0 DBX uncompressed (b) Symbol Histogram and Block Count Fig. 3: DBX and DBP symbol to code symbol mapping. Delta T ransform DBP/DBX Enco der + − reg shift- reg pairw. w ord X OR In termed. Register DBXs single sym b. enc. 0 8 data len DBX DBP P ack er sll srl reg BPC { 0,8 } { 0,. . . ,8 } data len Zero-RLE sll srl ZRLE { 0,8 } { 0,. . . ,8 } ’0’ & counter == 0 1 5 8 8 8 9 7 × 9 DBPs 7 × 9 8 base 7 7 8 15 15 8 8 12 15 Fig. 4: Block diagram of the full compressor without control logic as sho wn in Fig. 1 for block size 8 and a word width of 8 bit. has been aggregated (now interpretable as bit-planes) and the pair-wise XOR of the DBPs is taken to get the DBX symbols (for ease of implementation, the first DBP is XOR-ed with zero, i.e., directly taken as the DBX symbol). The entire block of symbols is then stored in an intermediate buf fer register , such that new input w ords can be accepted while the bit-planes are iterativ ely encoded to allow an average throughput of up to 0.8 words/cycle. The data block is then read by the DBP/DBX encoder to encode each bit-plane as a bit-vector and its length. The resulting variable-length data is then packed with a circuit similar to the packer in the Zer o-RLE block to produce fixed 8 bit length words. Although the throughput of the bit-plane compression part of the circuit is limited to 0.8 word/c ycle, this constitutes a worst-case scenario. When zero-v alues are encountered, the Zero-RLE block handles the workload while the processing of the non-zero words continues in parallel. This way , the compressor can be operated more closely to 1 word/cycle on av erage. B. Decompressor The decompressor sho wn in Fig. 5 re verts the steps of the encoder . After in v erting the Zero-RLE encoding, the bit- plane compressed data stream is read in 8 bit words, and unpacked into v ariable-length data chunks. The Unpac ker always provides 8 v alid data bits to the Symbol Decoder , which decodes the symbol into a DBP or DBX word and feeds the effecti v e symbol length back to the Unpacker . In case of a DBX word, it is XOR-ed with the previous DBP , such that DBP words are emitted to the Buffer unit—or the base word is forwarded in case of the first 8 bits of the block. The Buffer block aggregates the DBPs and the base word, buf fering it for the Delta Reverse unit, which iteratively accumulates the delta symbols and emits the decompressed words. The Buffer unit with its built-in FIFO allows to unpack and decode data (10 cycles/block) while re verting the delta compression (8 c ycles). C. Implementation Results W e have implemented the described architecture for a UMC 65 nm low-leakage process and synthesized the design using the Synopsys Design Compiler 2018.06 and UMC 65 nm low- leakage cell libraries in the typical, 25 ◦ C corner . W e report the area and a per -unit breakdo wn for a block size of 8 (i.e., the optimal case, cf. Section V -C) and 8 bit, 16 bit and 32 bit words and a target frequency of 600 MHz in T able II. For most inference applications, 8 bit feature maps are sufficient, 6 0 1 0 8 8 8 8 Delta Reverse Buffer + shift- reg depth-1 FIFO Symbol Deco der single symb. dec. reg reg Unpack er sll srl reg data { 0,. . . ,8 } Zero-RLE Deco ding { 0,. . . ,8 } ZRLE reg 16 sll 16 1 Control & ’0’ Counter srl 16 0 1 15 15 8 8 base 8 8 8 7 9 × 7 8 9 7 4 15 BPC len DBP Fig. 5: Block diagram of the full decompressor for block size 8 and a word width of 8 bit without control logic. T A B L E I I . A R E A C O S T O F S I L I C O N I M P L E M E N T A T I O N I N U M C 6 5 N M T E C H N O L O G Y F O R 6 0 0 M H Z T A R G E T F R E - Q U E N C Y WW=8 WW=16 WW=32 [µ m 2 ] [GE] a [µ m 2 ] [GE] [µ m 2 ] [GE] Compressor Zero-RLE 685 476 1085 753 1806 1254 Delta & DBX Transf. 1059 735 1940 1347 3832 2661 Depth-1 FIFO 871 605 1563 1085 3157 2192 DBP/DBX Encoder 483 335 928 644 1750 1215 Packer 432 300 808 561 1625 1128 T otal 4079 2833 6880 4778 12611 8792 Decompressor b Unpacker 931 647 1997 1387 4369 3034 Symbol Decoder 450 313 509 353 576 400 Buffer 1597 1109 3056 2122 5940 4125 Delta Reverse 359 249 620 431 1342 932 Zero-RLE 812 564 1491 1035 3127 2172 T otal 4330 3007 7986 5546 15160 10528 a Gate equivalents (GEs): size expressed in terms of area of 2-input N AND gates. 1 GE: 1.44 µ m 2 (umc 65 nm), 0.49 µ m 2 (ST 28 nm FD- SOI), 0.20 µ m 2 (GlobalFoundries 22 nm). b W ithout inv erse Zero-RLE. c The total area deviates from the sum of the blocks as the synthesizer performs optimizations across the blocks and because the top-level blocks contain some logic as well. such that the compressor and decompressor fit onto a mere 4000 µ m 2 and 4330 µ m 2 , respectiv ely . For comparison, the area of both together is a bit less than 7 × that of an 8-bit multiply-add unit 2 at 600 MHz, which requires 842 µ m 2 . Synthesis of the circuit for lo wer frequencies does not reduce area while at 1 GHz and 1.5 GHz the area of the compressor gro ws to 4337 µ m 2 and 5180 µ m 2 , respecti vely . For higher frequencies, timing closure could not be attained, with the longest path passing from the DBX multiplex er’ s control input in the DBP/DBX Encoder to the re gister in the P ack er . Directly scaling up the word size from 8 bit to 16 bit increases the area of the compressor by 70% and 85% for the decompressor . Increasing it further from 16 bit to 32 bit, adds another 83% or 108%, respectiv ely . Increasing the word width does not hav e any effect on the DBP/DBX Encoder , as 2 Using the Synposys DesignW are MAC unit. it works on bit-planes, but it requires more iterations. It might thus be considered using multiple DBP/DBX Encoder units not to bottleneck the throughput and thereby also increasing the size of the P acker and Unpacker to be able to take data from all encoder and feed all the decoders. The size of the P ac ker and Unpacker increases as well with the word width as the register size grows, and so does the number of multiplexers in the barrel shifters. Scaling up the throughput can be achiev ed by doubling the capacity of each unit, reading two words into the compressor, computing the differences both in the same cycle, and increas- ing the size of the input port of the shift register . Similarly , multiple encoders can be used to compress two bit-planes per cycle. This will only have a limited impact on the area in this part of the compressor , which is mostly defined by the size of the shift-register and the FIFO, which do not need to grow . The main impact will be visible within the P acker and later the Unpacker units, where the barrel shifters have to tak e twice as wide w ords and shift twice as far when doubling the throughput, and hence grows quadratically—a problem inherent to packing data of any variable symbol-size compressors. For the decompressor , similarly , there can be multiple symbol decoders and the Delta Rever se unit can be modified to process two words per c ycle. Overall, increasing the throughput this way can be expected to scale belo w linear in area for processing few words in parallel, but once reaching close to full parallelization (i.e., 8 for block size 8 and word width 8 bit), the size of the P acker and Unpacker will take up most of the circuit’ s size. Howe ver , the throughput can be scaled with linear area cost by instantiating multiple complete (de-)compressors to work on individual feature maps in parallel or on separate spatial tiles of the feature maps. D. System Inte gr ation The presented compression scheme can be used to reduce the energy spent on interfaces to e xternal DRAM, on inter -chip or back-plane communication—the corresponding standards specify very efficient power-do wn modes [50], [51]—and to reduce the required bandwidth of such interfaces, lowering 7 the cost of packaging, circuit boards, and additional on-chip circuits (e.g., PLLs, on-chip termination, etc.) [50], [51]. Giv en the limited size, it can also be used to reduce the size of on-chip data transfers, e.g., from large background L2 memories in large DNN inference chips that try to fit all data on chip, such as the one T esla has presented for its next generation of self-driving cars or the hardware by Graphcore [52]. a) Streaming HW Accelerator s: The (de-)compressor could be integrated with an accelerator such as Y odaNN [20] which reaches a state-of-the-art core energy efficienc y of 60 TOp/s/W for binary-weight DNNs. For the specific case of Y odaNN, howe ver , taking I/O energy cost into accounts adds 15.28 mW to the core’ s 0.26 mW , bottlenecking the efficienc y to 1 TOp/s/W . A drop-in addition of 8 compressor and decompressor units—Y odaNN works on 8 feature maps at the input and output in parallel—would reduce the I/O cost and directly increase its energy ef ficiency at system le vel by 2–4 × (cf. Section V -D) while adding only 0.05 mm 2 (6%) to the 0.86 mm 2 of core area. b) HW Accelerator with F eature Maps On-Chip: An- other application scenario would be with Hyperdri ve [38] and large industrial chips such as T esla’ s platform for its next generation of cars, which store the feature maps on chip. Memory inherently takes up a large share of such a design, for the case of Hyperdrive, specifically 65%. With a compression scheme providing a reliable compression ratio across different input images and for all layer pairs (in a ping-pong buffering scheme), we can reduce the memory size by around 2 × (cf. Section V -E), to saving almost as much silicon area. c) Integr ation into a Heter ogeneous Many-Cor e Acceler- ator: A further use-case is the inte gration into a heterogeneous accelerator with multiple cores and/or accelerators working from a local scratchpad memory , where data is prefetched from a different lev el in the memory hierarchy , e.g., in the GAP- 8 SoC [53] which can be used for DNN-based autonomous navigation of nano-drones [54], 8 cores and a CNN hardware accelerator which share a 64 kB L1 scratchpad memory which is loaded with data from the 512 kB L2 memory using a DMA controller . In such systems, SRAM memory accesses and data mov ement across interconnects can mak e up for a significant share of the overall po wer , and generally memory space is a scarce resource. Integration of the proposed (de-)compressor into the DMA would improve both aspects jointly in such a system. V . R E S U LT S A. Experimental Setup Where not otherwise stated, we perform our experiments on AlexNet and are using images from the ILSVRC v alidation set. The models we used were pre-trained and downloaded from the PyT orch/T orchvision data repository where ver possible, and an identical preprocessing was applied to the data. As our method is lossless, we reach (top-1/top5) error rates of 43.45%/20.91% with AlexNet, 28.41%/9.62% with VGG- 16, 26.70%/8.58% with ResNet-34, 41.81%/19.38% with SqueezeNet, and 28.12%/9.71% with MobileNetV2. For the gradient analyses, we self-trained the same networks 3 . Some of the experiments are performed with fixed-point data types (default: 16-bit fixed-point). The feature maps were normal- ized to span 80% of the full range before applying uniform quantization in order to use the full value range up to a safety margin to pre vent overflo ws. All the feature maps were extracted after the ReLU (or ReLU6) activ ations. The code to reproduce these experiments is av ailable online 4 . B. Sparsity , Activation Histogram & Data Layout Neural networks are known to hav e sparse feature maps after applying a ReLU activ ation layer , which can be done on-the-fly after the conv olution layer and possibly batch nor- malization. Howe ver , it varies significantly for different layers within the network as well as for different CNNs. Sparsity is a ke y aspect when compressing feature maps, and we analyze it quantitati vely with statistics collected across 250 random ILSVRC’12 validation images and for each layer of AlexNet as well as the more modern and size-optimized MobileNeV2 in Fig. 6. For AlexNet, we can clearly see the increase in sparsity from earlier to later layers. For MobileNetV2, multiple effects are overlying. Overall, the feature maps later in the network are more sparse, and generally this is correlated with the number of feature maps (also in AlexNet). Feature maps following e xpanding 1 × 1 conv olutions (e.g., 15, 17, 19, 21) generally show lower sparsity (25–40%) than after the depth- wise separable 3 × 3 con volutions (e.g., 16, 18, 20, 22; sparsity 50–65%), where for the latter there are exceptions (e.g., 8, 14, 28) when these con volutions were strided (sparsity 20–35%). This aligns with intuition as the 1 × 1 layers combine feature maps to be filtered later, and the depth-wise 3 × 3 con volution layers literally perform the filtering. Besides the av erage sparsity , its probability distribution across different frames becomes rele vant in case guarantees hav e to be provided either due to real-time requirements in case of a bandwidth-limited hardware accelerator or due to size limits of the memory in which the feature maps are stored (e.g., on-chip SRAM). The whiskers in the box plot mark the 1st and 99th percentile, clearly showing ho w narrow the distribution of the sparsity is and that we thus can expect a very stable compression rate. W e consider compressing not only the feature maps but also the gradient maps for specialized training hardware, thus raising the question of how sparsity e volves o ver as training progresses. The gradient maps are generally identically sparse as the corresponding feature maps, as ReLU activ ations pass a zero-gradient wherev er the outgoing feature map value was zero. In Fig. 7, we can observe how the various layers are starting from all-50% after random initialization and with a few epochs settle close to their final level. In both networks, this is the case after around 15% of the epochs required for full con ver gence. The sparse values are not independently distributed but rather occur in b ursts when the 4D data tensor is laid out in one of the obvious formats. The most commonly used formats 3 Using code available at https://github .com/spallanzanimatteo/QuantLab 4 Code: https://github.com/lukasc- ch/ExtendedBitPlaneCompression 8 1 2 3 4 5 6 7 layer index 0 20 40 60 80 100 feature map sparsity [%] AlexNet 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 layer index MobileNetV2 Fig. 6: Feature map sparsity after activ ation for each layer of the fully trained network with information on the distribution across 250 frames of the validation set (median, 1st and 3rd quartile, 1st and 99th percentile). 0 20 40 epoch 0 20 40 60 80 100 feature map sparsity [%] Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 Layer 7 40 50 60 70 80 90 top-1 error rate [%] train error val error (a) AlexNet 0 50 100 150 200 epoch 0 20 40 60 80 100 feature map sparsity [%] Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 ... Layer 35 20 30 40 50 60 70 80 90 top-1 error rate [%] train error val error (b) MobileNetV2 Fig. 7: Feature map sparsity after acti vation by epoch for each layer . Note that the gradients are as sparse as the acti vations, since a zero activ ation results in a zero gradient. 9 are NCHW and NHWC, which are those supported by most framew orks and the widely used Nvidia cuDNN backend. NCHW is the preferred format for cuDNN and the default memory layout and means that neighboring values in the horizontal direction are stored next to each other in memory before the vertical, channel, and batch dimensions. NHWC is the default format of T ensorFlo w and has long before been used in computer vision and has the advantage of simple non- strided computation of inner products in channel (i.e., feature map) dimension. Further reasonable options that we include in our analysis are CHWN and HWCN, although most use-cases with hardware acceleration are targeting real-time low-latenc y inference and are thus operating with a batch size of 1. W e analyze the distribution of the length of zero bursts for these four data layouts at v arious depths within the network in Fig. 8. The results clearly show that having the spatial dimensions (H, W) next to each other in the data stream provides the longest zero bursts (lowest cumulati ve distribution curve) and thus a better compressibility than the other formats. This is also aligned with intuition: feature maps values mark the presence of certain features and are e xpected to be smooth [55]. Inspection the feature maps of CNNs is commonly known to sho w that they beha ve like ’heat maps’ marking the presence of certain geometric features nearby . Based on these results, we perform all the following ev aluations based on the NCHW data layout. Note also that the b urst length of non-zero values is mostly very short, such that there is limited gain in applying RLE also for the one-bits. Specifically , the probability of the burst length of non-zero values being at most 3 is 90%, 88%, 80%, and 95% for layer 1, 3, 5, and 7, respectiv ely . Using run- length encoding for such mostly very short burst introduce a significant overhead which is not outweighed by the benefits. T o compress further beyond exploiting the sparsity , the data has to remain compressible. This is definitely the case as can be seen when looking at histograms of the acti vation distributions as shown for some sample layers of AlexNet and MobileNetV2 in Fig. 9 and a strong indication that additional compression of the non-zero data is possible. C. Selecting P arameters The proposed method has two parameters: the maximum length of a zero sequence that can be encoded with a single code symbol of the Zero-RLE, and the BPC block size ( n , number of non-zero words encoded jointly). Max. Zero Burst Length: W e first analyze the effect of varying the maximum zero b urst length for Zero-RLE on the compression ratio without for various data word widths in T able III. The optimal value is arguably the same for our proposed method, since a constant offset in compressing the non-zero values does not affect the optimal choice of this parameter (just like the word width has no effect on it). The results also serve as a baseline for Zero-RLE and ZVC. It is worth noting that ZVC corresponds to Zero-RLE with a max. burst length of 1, yet breaks the trend shown in T able III. This is due to an inefficienc y of Zero-RLE in this corner: for a zero T A B L E I I I . C O M P R E S S I O N R AT I O U S I N G Z V C A N D Z E RO - R L E F O R V A R I O U S M A X I M U M Z E R O B U R S T L E N G T H S word width ZVC Zero-RLE max. zero burst length 2 1 2 2 2 3 2 4 2 5 2 6 8 2.52 2.48 2.56 2.62 2.63 2.59 2.53 16 3.00 2.96 3.02 3.06 3.07 3.04 3.00 32 3.30 3.28 3.32 3.34 3.35 3.33 3.31 burst length of 1, ZVC requires 1 bit whereas Zero-RLE with a max. burst length of 2 takes 2 bit. For a zero burst of length 2, ZVC encode 2 symbols of 1 bit each and Zero-RLE takes 2 bit as well. ZVC thus always performs at least as well for such a short max. b urst length. BPC Block Size: W e analyze the effect of the BPC block size parameter in Fig. 10 at various depths within the network. The best compression ratio is achiev ed with a block size of 16 across all the layers. A block size of 8 might also be considered to minimize the resources of the (de-)compression hardware block at a small drop in the compression ratio. D. T otal Compression F actor W e analyze the total compression factor of all feature maps of AlexNet, VGG-16, ResNet-34, SqueezeNet, and Mo- bileNetV2 in Fig. 11. For AlexNet, we can notice the high compression ratio of around 3 × already introduced by Zero- RLE and ZVC and that it is very similar for all data types. W e further see that pure BPC is not suitable since it intro- duces too much ov erhead when encoding only zero-values. For ResNet-34, SqueezeNet, and MobileNetV2, the gains by exploiting only the sparsity is significantly lo wer at around 1.55 × , 1.7 × and 1.4 × . The proposed method outperforms previous approaches clearly and particularly for 8 bit fixed- point values commonly used in today’ s inference accelerators. There we observe compression ratios of 5 × (AlexNet), 4 × (VGG-16), 2.4 × (ResNet-34), 2.8 × (SqueezeNet), and 2.2 × (MobileNetV2). When moving from 8 bit fixed-point values to 12 and 16 bit and ultimately to 16 bit floating point, the compression ratio of the methods based on sparsity only (zero-RLE, ZVC) do not change significantly . This is in line with expectations since the zero-values only make a negligible contribution to the final data size with zero-RLE and do not hav e any effect with ZVC. Contrary to this, BPC is very effecti ve for small word widths but loses its benefits as word widths increase. Our proposed method combines the best of the two worlds, starting with a very high compression ratio and slowly conv erging to ZVC and zero-RLE as the word width increases. The gains for 8-bit fixed-point data are significantly higher than for other data formats. Most input data—also CNN feature maps—carry the most important information is in the more significant bits and in case of floats in the exponent. The less significant bits appear mostly as noise to the encoder and cannot be compressed without accuracy loss, such that this behavior—a lower compression ratio for wider word widths—is expected. 10 0 5 10 15 20 0.0 0.2 0.4 0.6 0.8 1.0 cummulative distribution Layer 1 0 5 10 15 20 burst length Layer 3 0 5 10 15 20 Layer 5 0 5 10 15 20 Layer 7 data layout NCHW NHWC CHWN HWCN Fig. 8: Cumulative probability distribution of zero (solid) and non-zero (dotted) burst lengths of activ ated feature maps in AlexNet. 1 0 2 1 0 5 output Layer 1 Layer 3 Layer 5 Layer 7 0 0.5 1 1 0 2 1 0 5 gradient 0 0.5 1 0 0.5 1 0 0.5 1 (a) AlexNet 1 0 3 1 0 6 output Layer 1 Layer 12 Layer 24 Layer 35 0 0.5 1 1 0 3 1 0 6 gradient 0 0.5 1 0 0.5 1 0 0.5 1 (b) MobileNetV2 Fig. 9: Histogram of acti v ation (top) and gradient (bottom) v alues at various depths within the netw ork. Note the logarithmic vertical axis. Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 Layer 7 0 1 2 3 4 5 6 7 compr. ratio chunk size 4 6 8 16 24 32 40 48 64 Fig. 10: Analysis of the compression ratios of various layers’ outputs for sev eral BPC block sizes and with 16-bit fixed-point values. E. P er -Layer Compr ession Ratio As already expected from the results on sparsity , the com- pression ratio is fairly stable across multiple frames. Specifi- cally , the 1st percentile of compression ratios only lies around 20% below the average case for all the netw orks. Further results on a per-layer basis for AlexNet, ResNet-34, and MobileNetV2 is shown in Fig. 12. While there is significant variability between the layers, the 1% farthest outliers tow ards lower compression ratios can be found in AlexNet’ s first layer at a drop of around 25% from the average ratio. For ResNet- 34 and MobileNetV2, even the worst-case variations remain within less than 5% deviation from the mean. This allo ws us to scale down the av ailable bandwidth and/or the corresponding memory size with only a minimal risk of failure. Furthermore, the remaining risk can be further reduced when processing video streams in real-world applications, where the numerical precision could be scaled do wn to graciously as described in Section III-C, thus allo wing to accept graceful accuracy degradation in exchange for a smaller size of the compressed bitstream, thereby mitigating potentially catastrophic failure. For applications in on-de vice learning as well as to further boost the throughput of thermally or I/O-limited training ac- celerators in computing clusters, we have further inv estigated the compressibility of the gradient maps (cf. Fig. 13). Despite the higher precision data types as required for the gradients, high compression rates can be achieved, mostly higher or on par with those of the feature maps. V I . C O N C L U S I O N W e ha ve presented and ev aluated a novel compression method for CNN feature maps. The proposed algorithm achiev es an av erage compression ratio of 5.1 × on AlexNet (+46% over previous methods), 4 × on VGG-16 (+67%), 2.4 × on ResNet-34 (+33%), 2.8 × on SqueezeNet (+51%), and 2.2 × on MobileNetV2 (+30%) for 8 bit data, and thus clearly outperforms state-of-the-art, while fitting a very tight hardware resource budget with 0.004 mm 2 and 0.0025 mm 2 of silicon area in UMC 65 nm at 600 MHz and 0.8 word/cycle. The 11 fixed8 1 2 3 4 5 6 compr. ratio fixed12 fixed16 float16 AlexNet fixed8 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 fixed12 fixed16 float16 VGG-16 fixed8 1.00 1.25 1.50 1.75 2.00 2.25 2.50 fixed12 fixed16 float16 ResNet-34 fixed8 1.0 1.5 2.0 2.5 3.0 fixed12 fixed16 float16 SqueezeNet fixed8 1.00 1.25 1.50 1.75 2.00 2.25 2.50 fixed12 fixed16 float16 MobileNetV2 zero-RLE ZVC BPC ours Fig. 11: Compression ratio of all feature maps of AlexNet, VGG-16, ResNet-34, SqueezeNet, and MobileNetV2 for various compression methods and data types. 1 2 3 4 5 6 7 layer 0 2 4 6 8 10 compr. ratio AlexNet 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 layer 0 2 4 6 8 ResNet-34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 layer 0 1 2 3 4 5 6 7 8 MobileNetV2 Fig. 12: Per-layer compression ratio for Ale xNet, ResNet-34, and MobileNetV2. fixed16 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 compr. ratio float16 AlexNet fixed16 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 float16 VGG-16 fixed16 1.0 1.5 2.0 2.5 3.0 float16 ResNet-34 fixed16 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 float16 SqueezeNet fixed16 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 float16 MobileNetV2 zero-RLE ZVC BPC ours Fig. 13: Compression ratio of all the gradient maps for v arious networks and several compression methods and data types. frequency can be pushed to 1.5 GHz with a slight area increase of 25%. W e further show the proposed method works well not for various data formats and precisions, that the compression ratios are achiev ed reliably across man y images with out- liers only going do wn to 15% belo w the av erage ratio at the 1st percentile. The same method is also applicable for the compression of gradient maps during training, achieving compression rates again more than 20% higher than achiev ed for the feature maps in the forward pass. R E F E R E N C E S [1] G. Litjens, T . K ooi, B. E. Bejnordi, A. A. A. Setio, F . Ciompi, M. Ghafoorian, J. A. van der Laak, B. van Ginneken, and C. I. Sánchez, “A survey on deep learning in medical image analysis, ” Medical Image Analysis , vol. 42, no. December , pp. 60–88, 2017. [2] X. Bian, S. N. Lim, and N. Zhou, “Multiscale fully conv olutional network with application to industrial inspection, ” in Proc. IEEE W ACV , mar 2016, pp. 1–8. [3] L. Cavigelli, D. Bernath, M. Magno, and L. Benini, “Computationally efficient target classification in multispectral image data with Deep Neural Networks, ” in Proc. SPIE Security + Defence , vol. 9997, 2016. [4] B. W u, F . Iandola, P . H. Jin, and K. Keutzer , “SqueezeDet: Unified, Small, Low Power Fully Conv olutional Neural Networks for Real-Time Object Detection for Autonomous Driving, ” in Proc. IEEE CVPRW , 2017, pp. 129–137. [5] K. He, X. Zhang, S. Ren, and J. Sun, “Delving Deep into Rectifiers: Surpassing Human-Lev el Performance on ImageNet Classification, ” in Pr oc. IEEE ICCV . IEEE, dec 2015, pp. 1026–1034. [Online]. A vailable: http://ieeexplore.ieee.org/document/7410480/ [6] L. Cavigelli and L. Benini, “Origami: A 803-GOp/s/W Conv olutional Network Accelerator, ” IEEE Tr ansactions on Cir cuits and Systems for V ideo T echnolo gy , vol. 27, no. 11, pp. 2461–2475, nov 2017. [7] L. Cavigelli, D. Gschwend, C. Mayer , S. Willi, B. Muheim, and L. Benini, “Origamii: A Con volutional Network Accelerator, ” in Proc. IEEE GLSVLSI . New Y ork, New Y ork, USA: ACM Press, 2015, pp. 199–204. [Online]. A v ailable: http://dl.acm.org/citation.cfm?doid= 2742060.2743766 [8] J. Albericio, P . Judd, T . Hetherington, T . Aamodt, N. E. Jerger , and A. Moshovos, “Cn vlutin: Ineffectual-Neuron-Free Deep Neural Network Computing, ” in Pr oc. ACM/IEEE ISCA , 2016, pp. 1–13. 12 [9] A. Parashar , M. Rhu, A. Mukkara, A. Puglielli, R. V enkatesan, B. Khailany , J. Emer, S. W . Keckler , and W . J. Dally , “SCNN: An Accelerator for Compressed-sparse Conv olutional Neural Networks, ” in Pr oc. ACM/IEEE ISCA , 2017, pp. 27–40. [10] S. Zhang, Z. Du, L. Zhang, H. Lan, S. Liu, L. Li, Q. Guo, T . Chen, and Y . Chen, “Cambricon-X: An accelerator for sparse neural networks, ” in Pr oc. IEEE/ACM MICR O , 2016, pp. 20:1–20:12. [11] A. Aimar, H. Mostafa, E. Calabrese, A. Rios-Navarro, R. T apiador- Morales, I.-A. Lungu, M. B. Milde, F . Corradi, A. Linares-Barranco, S.-C. Liu, and T . Delbruck, “NullHop: A Flexible Conv olutional Neural Network Accelerator Based on Sparse Representations of Feature Maps, ” IEEE T ransactions on Neural Networks and Learning Systems , vol. 30, no. 3, pp. 644–656, mar 2019. [12] Y . H. Chen, J. Emer , and V . Sze, “Eyeriss: A Spatial Architecture for Energy-Ef ficient Dataflow for Con volutional Neural Networks, ” in Pr oc. ACM/IEEE ISCA , 2016, pp. 367–379. [13] S. Han, X. Liu, H. Mao, J. Pu, A. Pedram, M. A. Horowitz, and W . J. Dally , “EIE: Efficient Inference Engine on Compressed Deep Neural Network, ” in Proc. ACM/IEEE ISCA , 2016, pp. 243–254. [14] L. Cavigelli and L. Benini, “CBinfer: Exploiting Frame-to-Frame Lo- cality for Faster Conv olutional Network Inference on V ideo Streams, ” IEEE T ransactions on Circuits and Systems for V ideo T echnolo gy , 2019. [15] L. Cavigelli, M. Magno, and L. Benini, “ Accelerating Real-Time Embed- ded Scene Labeling with Con volutional Networks, ” in Proc. ACM/IEEE D AC , 2015, pp. 108:1—-108:6. [16] R. Andri, L. Cavigelli, D. Rossi, and L. Benini, “Hyperdrive: A Systolically Scalable Binary-W eight CNN Inference Engine for mW IoT End-Nodes, ” in Pr oc. IEEE ISVLSI , 2018, pp. 509–515. [17] ——, “Y odaNN: An Ultra-Low Power Conv olutional Neural Network Accelerator Based on Binary W eights, ” in Proc. IEEE ISVLSI , 2016, pp. 236–241. [18] M. Courbariaux, Y . Bengio, and J.-P . David, “BinaryConnect: Training Deep Neural Networks with binary weights during propagations, ” in Adv . NIPS , 2015, pp. 3123–3131. [19] A. Zhou, A. Y ao, Y . Guo, L. Xu, and Y . Chen, “Incremental Network Quantization: T ow ards Lossless CNNs with Low-Precision W eights, ” in Pr oc. ICLR , 2017. [20] R. Andri, L. Cavigelli, D. Rossi, and L. Benini, “Y odaNN: An Archi- tecture for Ultralo w Power Binary-W eight CNN Acceleration, ” IEEE T ransactions on Computer-Aided Design of Integrated Circuits and Systems , vol. 37, no. 1, pp. 48–60, 2018. [21] W . Chen, J. T . W ilson, S. T yree, K. Q. W einber ger, and Y . Chen, “Compressing Neural Networks with the Hashing T rick, ” in Proc. ICML , vol. 37, 2015, pp. 2285–2294. [22] E. Agustsson, F . Mentzer, M. Tschannen, L. Cavigelli, R. Timofte, L. Benini, and L. V an Gool, “Soft-to-Hard V ector Quantization for End- to-End Learning Compressible Representations, ” in Adv . NIPS , 2017, pp. 1141–1151. [23] S. Han, H. Mao, and W . J. Dally , “Deep Compression - Compressing Deep Neural Networks with Pruning, Trained Quantization and Huf fman Coding, ” in ICLR , 2016. [24] P . Stock, A. Joulin, R. Gribon val, B. Graham, and H. Jégou, “And the Bit Goes Down: Re visiting the Quantization of Neural Networks, ” Facebook AI Research, T ech. Rep., 2019. [25] M. Rhu, M. O’Connor , N. Chatterjee, J. Pool, Y . Kwon, and S. W . Keckler , “Compressing DMA Engine: Le veraging Activation Sparsity for Training Deep Neural Networks, ” in Pr oc. IEEE HPCA , 2018, pp. 78–91. [26] D. Gudovskiy , A. Hodgkinson, and L. Rigazio, “DNN feature map compression using learned representation over GF(2), ” in Pr oc. ECCV W orkshops , 2018, pp. 502–516. [27] Y . W ang, C. Xu, C. Xu, and D. T ao, “Beyond Filters: Compact Feature Map for Portable Deep Model, ” in Proc. ICML , vol. 70, 2017, pp. 3703– 3711. [28] K. He, X. Zhang, S. Ren, and J. Sun, “Deep Residual Learning for Image Recognition, ” Pr oc. IEEE CVPR , pp. 770–778, 2015. [29] F . Iandola, M. Moskewicz, S. Karayev , R. Girshick, T . Darrell, and K. Keutzer , “DenseNet: Implementing Efficient Con vNet Descriptor Pyramids, ” UC Berkeley , Berkeley , CA, USA, T ech. Rep., 2014. [30] F . N. Iandola, S. Han, M. W . Moske wicz, K. Ashraf, W . J. Dally , and K. Keutzer , “SqueezeNet: AlexNet-lev el accuracy with 50x fewer parameters and <0.5MB model size, ” UC Berkeley , Berkeley , CA, USA, T ech. Rep., 2016. [31] N. Ma, X. Zhang, H.-T . Zheng, and J. Sun, “ShuffleNet V2: Practical Guidelines for Efficient CNN Architecture Design, ” in Proc. ECCV , 2018, pp. 116–131. [32] M. Sandler , A. Ho ward, M. Zhu, A. Zhmogino v , and L.-C. Chen, “MobileNetV2: Inv erted Residuals and Linear Bottlenecks, ” in Pr oc. IEEE CVPR . IEEE, jun 2018, pp. 4510–4520. [33] M. T an, B. Chen, R. Pang, V . V asudev an, M. Sandler, A. Howard, and Q. V . Le, “MnasNet: Platform-A ware Neural Architecture Search for Mobile, ” in Pr oc. IEEE CVPR , 2019, pp. 2820–2028. [34] J. Redmon and A. Farhadi, “YOLOv3: An Incremental Improvement, ” Univ ersity of W ashington, Seattle, W A, USA, T ech. Rep., 2018. [35] Z. Cao, T . Simon, S.-E. W ei, and Y . Sheikh, “Realtime Multi-person 2D Pose Estimation Using Part Affinity Fields, ” in Pr oc. IEEE CVPR . IEEE, 2017, pp. 1302–1310. [36] M. Kocabas, S. Karagoz, and E. Akbas, “MultiPoseNet: Fast Multi- Person Pose Estimation Using Pose Residual Network, ” in Proc. ECCV , 2018, pp. 417–433. [37] L. Cavigelli and L. Benini, “Random Partition Relaxation for Training Binary and T ernary W eight Neural Networks, ” in Submitted to International Confer ence on Learning Representations , 2020. [Online]. A vailable: https://openrevie w .net/forum?id=S1lvW eBFwB [38] R. Andri, L. Cavigelli, D. Rossi, and L. Benini, “Hyperdriv e: A Multi- Chip Systolically Scalable Binary-W eight CNN Inference Engine, ” IEEE Journal on Emerging and Selected T opics in Circuits and Systems , vol. 9, no. 2, pp. 309–322, jun 2019. [39] L. Cavigelli and L. Benini, “Extended Bit-Plane Compression for Con volutional Neural Network Accelerators, ” in Proc. IEEE AICAS , 2018. [40] D. Neil, J. H. Lee, T . Delbruck, and S.-C. Liu, “Delta Networks for Opti- mized Recurrent Network Computation, ” in Proc. ICML . A CM/JMLR, 2017, pp. 2584–2593. [41] C. Gao, D. Neil, E. Ceolini, S.-C. Liu, and T . Delbruck, “DeltaRNN: A Power -efficient Recurrent Neural Network Accelerator, ” Pr oceedings of the 2018 ACM/SIGD A International Symposium on Field-Pr ogr ammable Gate Arrays - FPGA ’18 , pp. 21–30, 2018. [Online]. A vailable: http://dl.acm.org/citation.cfm?doid=3174243.3174261 [42] P . O. Connor and M. W elling, “Sigma-Delta Quantized Networks, ” ICLR , 2017. [43] L. Cavigelli, P . Degen, and L. Benini, “CBinfer: Change-Based Inference for Conv olutional Neural Networks on V ideo Data, ” in Pr oc. ACM ICDSC , 2017. [44] T . A. W elch, “A T echnique for High-Performance Data Compression, ” Computer , vol. 17, no. 6, pp. 8–19, 1984. [45] J. Ziv and A. Lempel, “Compression of Individual Sequences via V ariable-Rate Coding, ” IEEE T r ansactions on Information Theory , vol. 24, no. 5, pp. 530–536, 1978. [46] M. B. Lin, J. F . Lee, and G. E. Jan, “A lossless data compression and decompression algorithm and its hardware architecture, ” IEEE T ransactions on V ery Lar ge Scale Integr ation Systems , vol. 14, no. 9, pp. 925–936, 2006. [47] X. Zhou, Y . Ito, and K. Nakano, “An efficient implementation of LZW decompression in the FPGA, ” Pr oc. IEEE IPDPS , pp. 599–607, 2016. [48] M. Spallanzani, L. Cavigelli, G. P . Leonardi, M. Bertogna, and L. Benini, “Additive Noise Annealing and Approximation Properties of Quantized Neural Networks, ” in , 2019, pp. 1–18. [Online]. A vailable: http://arxiv .org/abs/1905.10452 [49] J. Kim, M. Sulliv an, E. Choukse, and M. Erez, “Bit-Plane Compression: T ransforming Data for Better Compression in Many-Core Architec- tures, ” in Pr oc. IEEE ISCA , 2016, pp. 329–340. [50] JEDEC Solid State T echnology Association, “Low Power Double Data Rate 4 (LPDDR4), ” JEDEC Solid State T echnology Association, T ech. Rep. August, 2014. [51] ——, “Graphics Double Data Rate (GDDR5) SGRAM, ” JEDEC Solid State T echnology Association, T ech. Rep. Feburary , 2016. [52] N. T oon and S. Knowles, “Graphcore, ” 2017. [Online]. A v ailable: https://www .graphcore.ai [53] E. Flamand, D. Rossi, F . Conti, I. Loi, A. Pullini, F . Rotenberg, and L. Benini, “GAP-8: A RISC-V SoC for AI at the Edge of the IoT, ” in Pr oc. IEEE ASAP . IEEE, jul 2018, pp. 1–4. [54] D. Palossi, A. Loquercio, F . Conti, F . Conti, E. Flamand, E. Flamand, D. Scaramuzza, and L. Benini, “A 64mW DNN-based V isual Navigation Engine for Autonomous Nano-Drones, ” IEEE Internet of Things Journal , vol. PP , no. May , pp. 1–1, 2019. [55] M. Mahmoud, K. Siu, and A. Moshovos, “Diffy: a Déjà vu-Free Differential Deep Neural Network Accelerator , ” in Pr oc. IEEE/ACM MICR O . IEEE, oct 2018, pp. 134–147. 13 Lukas Cavigelli received the B.Sc., M.Sc., and Ph.D. degree in electrical engineering and informa- tion technology from ETH Zürich, Zürich, Switzer- land in 2012, 2014 and 2019, respectively . He has since been a postdoctoral researcher with ETH Zürich. His research interests include deep learning, computer vision, embedded systems, and low-po wer integrated circuit design. He has received the best paper award at the VLSI-SoC and the ICDSC con- ferences in 2013 and 2017, the best student paper award at the Security+Defense conference in 2016, and the Donald O. Pederson best paper award (IEEE TCAD) in 2019. Georg Rutishauser receiv ed his B.Sc. and M.Sc. degrees in Electrical Engineering and Information T echnology from ETH Zürich in 2015 and 2018, respectiv ely . He is currently pursuing a Ph.D. de- gree at the Integrated Systems Laboratory at ETH Zürich. His research interests include algorithms and hardware for reduced-precision deep learning, and their application in computer vision and embedded systems. Luca Benini is the Chair of Digital Circuits and Systems at ETH Zürich and a Full Professor at the Univ ersity of Bologna. He has served as Chief Architect for the Platform2012 in STMicroelectron- ics, Grenoble. Dr . Benini’ s research interests are in energy-ef ficient system and multi-core SoC design. He is also active in the area of energy-efficient smart sensors and sensor networks. He has published more than 1’000 papers in peer-re viewed international journals and conferences, four books and sev eral book chapters. He is a Fellow of the ACM and of the IEEE and a member of the Academia Europaea.
