IEEE TRANSACTIONS ON CIRCUITS AND SYSTEMS—II: EXPRESS BRIEFS (TCAS-II), VOL. 14, NO. 8, OCTOBER 2023
1
A Low-Cost Reliable Racetrack Cache Based on
Data Compression
Elham Cheshmikhani, Fateme Shokouhinia, and Hamed Farbeh, Member, IEEE,
Abstract—SRAM-based cache memory faces several scalability
limitations in deep nanoscale technologies, e.g., high leakage
current, low cell stability, and low density. Emerging Non-Volatile
Memory (NVM) technologies have received lots of attention in
recent years, where Racetrack Memory (RTM) is among the most
promising ones. RTM has the highest density among all NVMs
and its access performance is comparable to SRAM technology.
Therefore, RTM is a suitable alternative for SRAM in the Last-
Level Caches (LLCs). Despite all its benefits, RTM confronts
different reliability challenges due to the stochastic behavior
of its storage element and highly error-prone data shifting,
leading to a high probability of multiple-bit errors. Conventional
Error-Correcting Codes (ECCs) are either incapable of tolerating
multiple-bit errors or require a large amount of extra storage

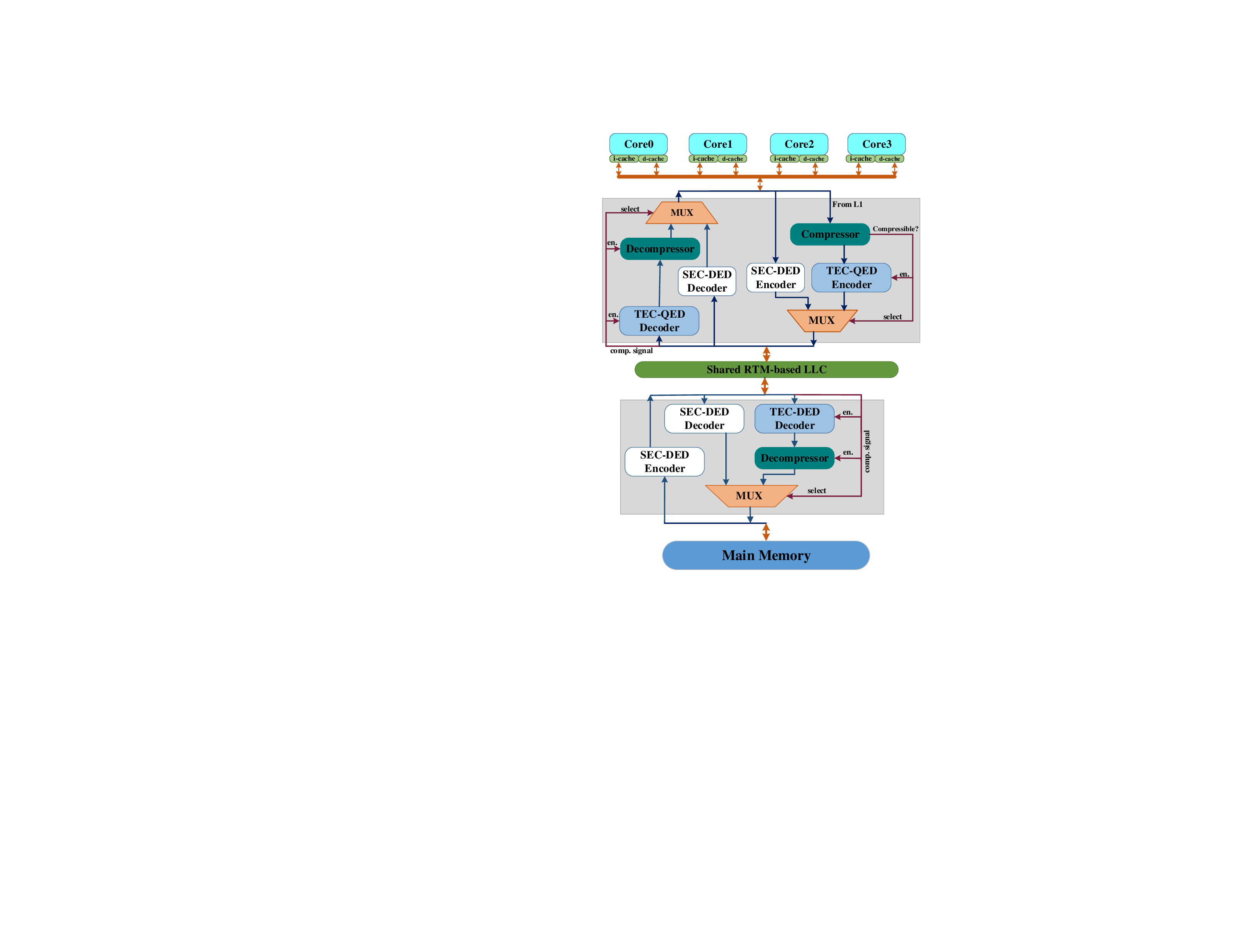

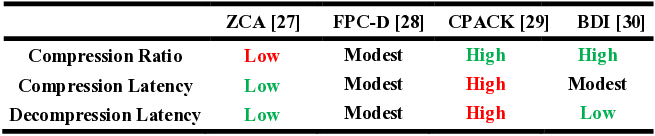

for check bits. This paper proposes taking advantage of value
locality for compressing data blocks and freeing up a large
fraction of cache blocks for storing data redundancy of strong
ECCs. Utilizing the proposed scheme, a large majority of cache
blocks are protected by strong ECCs to tolerate multiple-bit

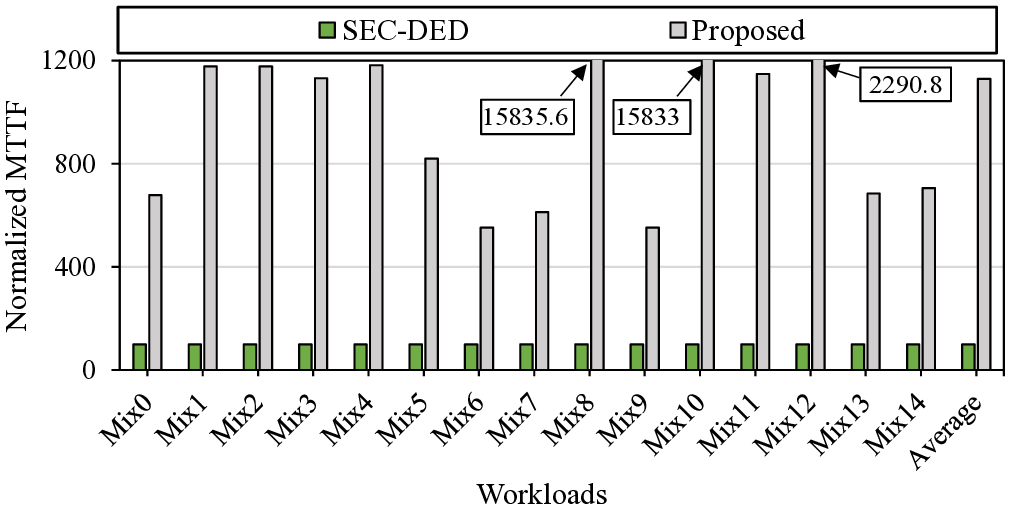

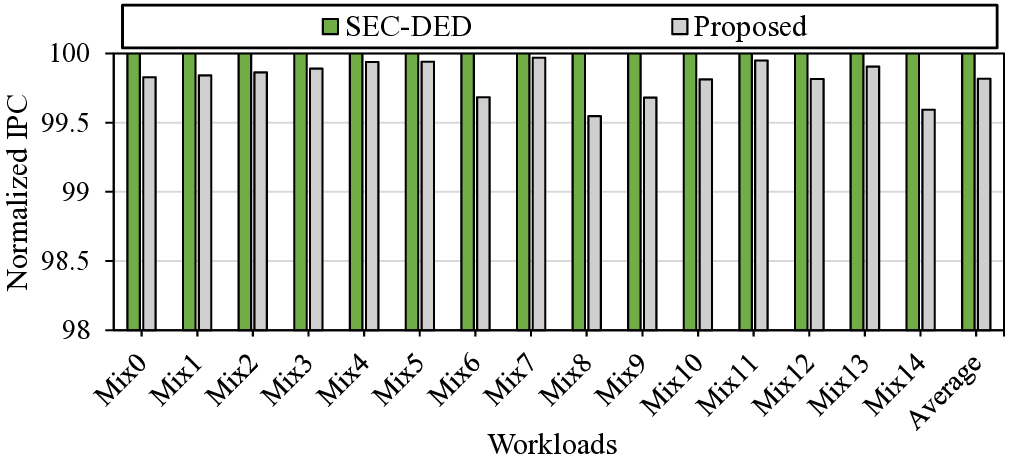

errors without any storage overhead. The evaluation using gem5
full-system simulator demonstrates that the proposed scheme
enhances the mean-time-to-failure of the cache by an average of
11.3x with less than 1% hardware and performance overhead.
Index Terms—Cache Memory, Racetrack Memory (RTM),
Reliability, Error-Correcting Codes (ECCs), Shift Error.
I. INTRODUCTION
In recent years, with technology’s downscaling trend and
high-performance AI applications, there has been a surge in re-
search and development efforts aimed at improving the perfor-
mance and efficiency of computing systems. Cache memories
as a vital component of modern computing architectures play a
vital role in bridging the gap between fast but small processor
registers and slow but large main memory. Traditionally, cache
designs have focused on utilizing Static Random-Access
Memory (SRAM) cells to store frequently accessed data.
However, due to the limitations of scaling, increasing power
demands, and their volatility, emerging Non-Volatile Memories
(NVMs) including Racetrack Memory (RTM), also known as
Domain-Wall Memory (DWM), have gained recognition as a
potential replacement for SRAM in cache designs.
RTM caches leverage the physics of magnetic domains to
store and retrieve data, offering several potential advantages
over conventional SRAM caches. These advantages include
extremely higher storage density, lower power consumption,
non-volatility, and reduced susceptibility to radiation-induced
E.
Cheshmikhani
is
with
the
Department
of
Computer
Science
and
Engineering,
Shahid
Beheshti
University,
Tehran,
Iran.
E-mail:
e cheshmikhani@sbu.ac.ir
F. Shokouhinia is with the Department of Computing Science, Simon Farser
University, BC, Canada. Email: fateme shokouhinia@sfu.ca
H. Farbeh is with the Department of Computer Engineering, Amirkabir
University of Technology, Tehran, Iran. E-mail: farbeh@aut.ac.ir
Manuscript received October 25, 2023.
errors, making them particularly appealing for both low-
power and high-performance computing systems [1]. However,
despite these promising benefits, RTM faces several reliability
challenges including shift errors and domain-wall tilting [2].
The core principle behind domain RTM caches is the uti-
lization of nanoscale magnetic domains, called domain walls,
to represent and store binary data [3]. The movement of these
domain walls along a magnetic nanowire creates resistance
variations that can be sensed and interpreted as digital states

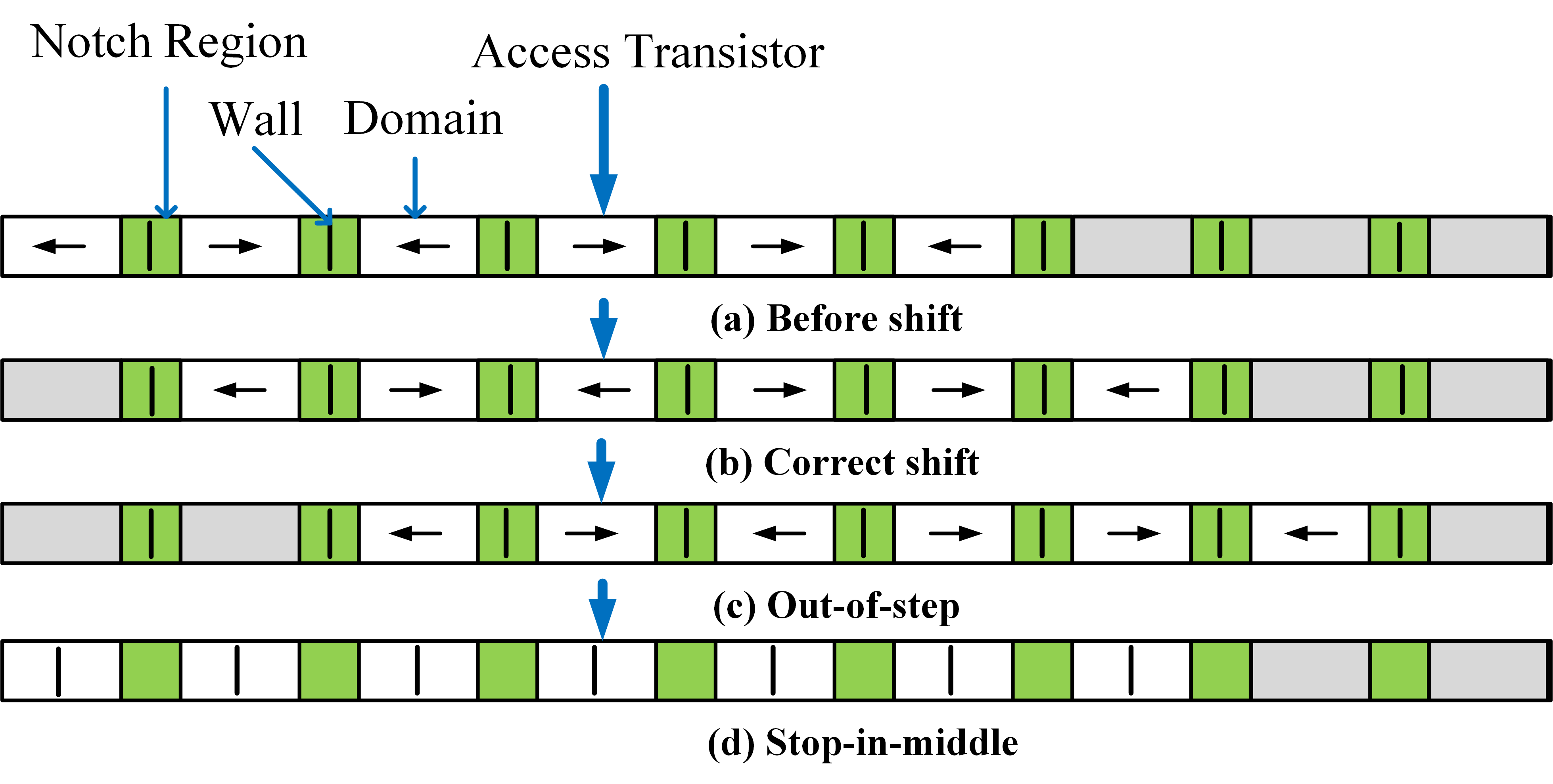

[4]. Each domain contains a data bit accessed via access ports.
As there are few access ports for several domains, shifting
domains is required to be aligned with the access ports.
The wrong number of shifts, named shift error, results in
accessing the wrong data in RTM. Tilting error refers to the
misalignment of cells in the domain [2], [5]. In addition to
RTM-specific errors, all error sources in Spin-Transfer Torque
MRAM (STT-MRAM), as the RTM predecessor, including
retention failure, write failure, and read disturbance are also
probable to occur in RTMs, which make RTM as the most
error-prone memory technology [6].
Several studies addressed various sources of errors in RTM
and tried to mitigate their occurrence rate [3], [4], [7]–[12].
However, to make it applicable, an error protection/recovery
mechanism is necessary besides the efforts for error rate reduc-
tion. Employing Error-Correcting Codes (ECCs) is the most
widespread approach for LLC safeguarding. However, the con-
ventional Single-Error Correction and Double-Error Detection
(SEC-DED) codes do not offer enough pr
