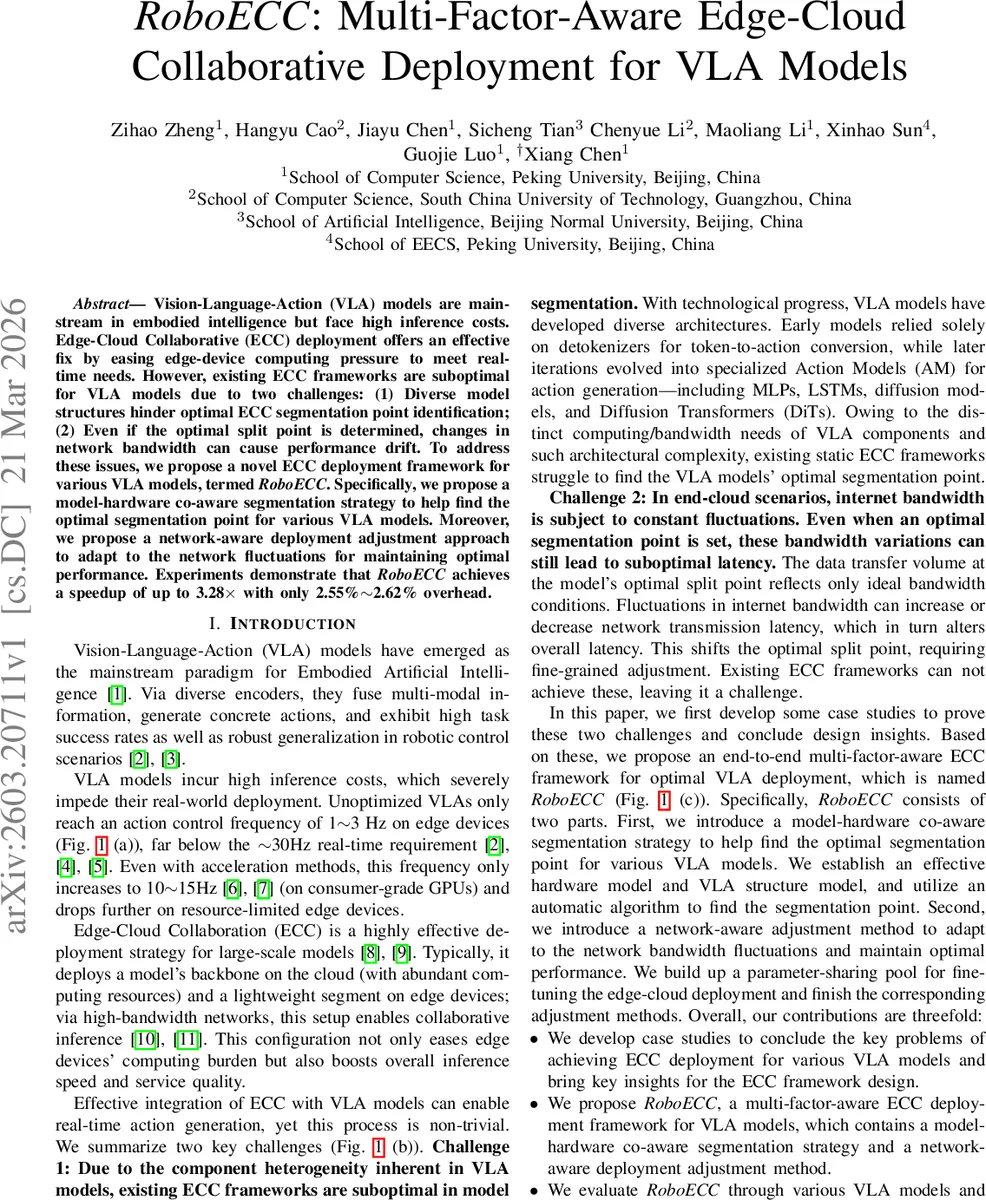

RoboECC: Multi-Factor-Aware Edge-Cloud Collaborative Deployment for VLA Models

Vision-Language-Action (VLA) models are mainstream in embodied intelligence but face high inference costs. Edge-Cloud Collaborative (ECC) deployment offers an effective fix by easing edge-device computing pressure to meet real-time needs. However, existing ECC frameworks are suboptimal for VLA models due to two challenges: (1) Diverse model structures hinder optimal ECC segmentation point identification; (2) Even if the optimal split point is determined, changes in network bandwidth can cause performance drift. To address these issues, we propose a novel ECC deployment framework for various VLA models, termed RoboECC. Specifically, we propose a model-hardware co-aware segmentation strategy to help find the optimal segmentation point for various VLA models. Moreover, we propose a network-aware deployment adjustment approach to adapt to the network fluctuations for maintaining optimal performance. Experiments demonstrate that RoboECC achieves a speedup of up to 3.28x with only 2.55x~2.62x overhead.

💡 Research Summary

**
The paper tackles the pressing problem of deploying Vision‑Language‑Action (VLA) models, which have become the dominant paradigm for embodied intelligence, on resource‑constrained edge devices. VLA models combine a vision encoder (e.g., ViT), a large language model (LLM), and a dedicated action generation module that may be an MLP, LSTM, diffusion model, or Diffusion Transformer (DiT). Their massive parameter count and computational demand limit inference on edge hardware to 1–3 Hz, far below the ≥30 Hz real‑time control frequency required for robotic tasks. Edge‑Cloud Collaborative (ECC) inference—splitting a model between a powerful cloud server and a lightweight edge component—offers a promising solution, but existing ECC frameworks are ill‑suited for VLA models for two reasons.

1. Structural Diversity: VLA architectures vary widely. Early models consist only of an encoder, LLM, and a detokenizer, while newer models incorporate sophisticated action generators. This heterogeneity makes it difficult for static ECC methods to locate the optimal split point that balances computation and communication.
2. Network Variability: In real deployments, the bandwidth between edge and cloud fluctuates. Existing ECC designs for LLMs assume a relatively stable transmission cost because LLMs generate long text outputs that amortize bandwidth changes. VLA models, however, produce short action sequences repeatedly; a sudden bandwidth drop can dramatically increase latency at the current split point, forcing a different partition to keep latency low.

To address these challenges, the authors propose RoboECC, a multi‑factor‑aware ECC framework comprising two complementary components:

1. Model‑Hardware Co‑aware Segmentation Strategy

• Structure Modeling: VLA models are abstracted into three ordered sets: encoder (S_enc), backbone (S_bac), and decoder (S_dec). Each set is mapped to a concrete type (e.g., M_ViT, M_LLM, M_DiT) and further broken down into fine‑grained layer categories L_i with hidden size H_{L_i} and parameter count W_i. This yields a lookup table that translates a layer’s characteristics into its compute cost (FLOPs) and data‑movement volume (KB).
• Hardware Modeling: The latency of a layer on a specific GPU is modeled as the maximum of compute latency and memory‑transfer latency, reflecting the pipelined nature of modern GPUs. The formula incorporates the GPU’s compute throughput P_i and memory bandwidth B_i.
• Optimal Split Search: Given a cloud‑side off‑load budget B_cloud, a depth‑first search traverses the layer sequence from the output side backward, accumulating compute and memory loads. For each candidate split point S, the total latency T_S = edge_latency + cloud_latency is computed using the analytical models. The algorithm selects the split that respects the budget while minimizing T_S. Because all costs are derived analytically, the search incurs negligible overhead and can be executed on‑the‑fly whenever the hardware configuration changes.

2. Network‑aware Deployment Adjustment Approach

• Bandwidth Predictor: A lightweight LSTM is trained on historical bandwidth traces collected between the edge and cloud. The predictor runs on both sides and outputs a short‑term bandwidth estimate. The input interval t_input is constrained to be smaller than the minimum processing time of any VLA sub‑module, ensuring the prediction is timely enough to influence split decisions.
• Parameter‑Sharing Pool: To avoid costly parameter transmission when the split point shifts, the framework stores the entire block containing the current optimal split on both edge and cloud devices. Only one block needs duplication, so the memory overhead is modest, and the weight transfer latency is eliminated.
• Dynamic Re‑partitioning: When the predictor signals a bandwidth drop, the system recomputes the optimal split using the same analytical model but with the updated bandwidth value. If a new split is selected, the edge instantly switches to the locally stored block, while the cloud continues using its copy. This enables seamless adaptation without interrupting inference.

Evaluation

The authors evaluate RoboECC on two representative VLA models: OpenVLA (ViT + LLM + detokenizer) and CogACT (ViT + LLM + diffusion‑based action model). Experiments are conducted on two hardware pairs: NVIDIA Orin (edge) + A100 (cloud) and NVIDIA Jetson Thor (edge) + A100 (cloud). Key findings include:

• Speedup: Compared with pure edge deployment, RoboECC achieves 3.16 ×–3.28 × speedup on Orin+A100 and 2.10 ×–2.23 × on Thor+A100.
• Overhead: The additional latency introduced by the segmentation search and network predictor is only 2.55 %–2.62 % of total inference time.
• Robustness to Bandwidth Fluctuations: When bandwidth drops from 10 MB/s to 1 MB/s, the system automatically moves the split point to a layer with lower activation size, reducing transmitted data from ~102 KB to ~25.5 KB and cutting network latency from ~100 ms to ~25 ms, thereby preserving the overall latency budget.

Contributions and Impact

1. Empirical Insight: The paper provides concrete case studies demonstrating why static ECC methods fail for VLA models, highlighting the need for structure‑aware and network‑aware designs.
2. Novel Framework: RoboECC integrates analytical latency modeling with real‑time bandwidth prediction, offering a unified solution that adapts to both model heterogeneity and network dynamics.
3. Practical Validation: The extensive experiments on realistic robotic platforms confirm that the approach meets the stringent real‑time requirements of embodied AI applications.

In summary, RoboECC represents the first ECC system that jointly considers model architecture, hardware capabilities, and network conditions for VLA deployment. Its low‑overhead analytical search and lightweight LSTM predictor enable on‑the‑fly re‑partitioning, delivering substantial speedups while keeping latency predictable even under volatile network conditions. This work paves the way for deploying large‑scale multimodal models in safety‑critical, real‑time robotics and other embodied AI scenarios.
