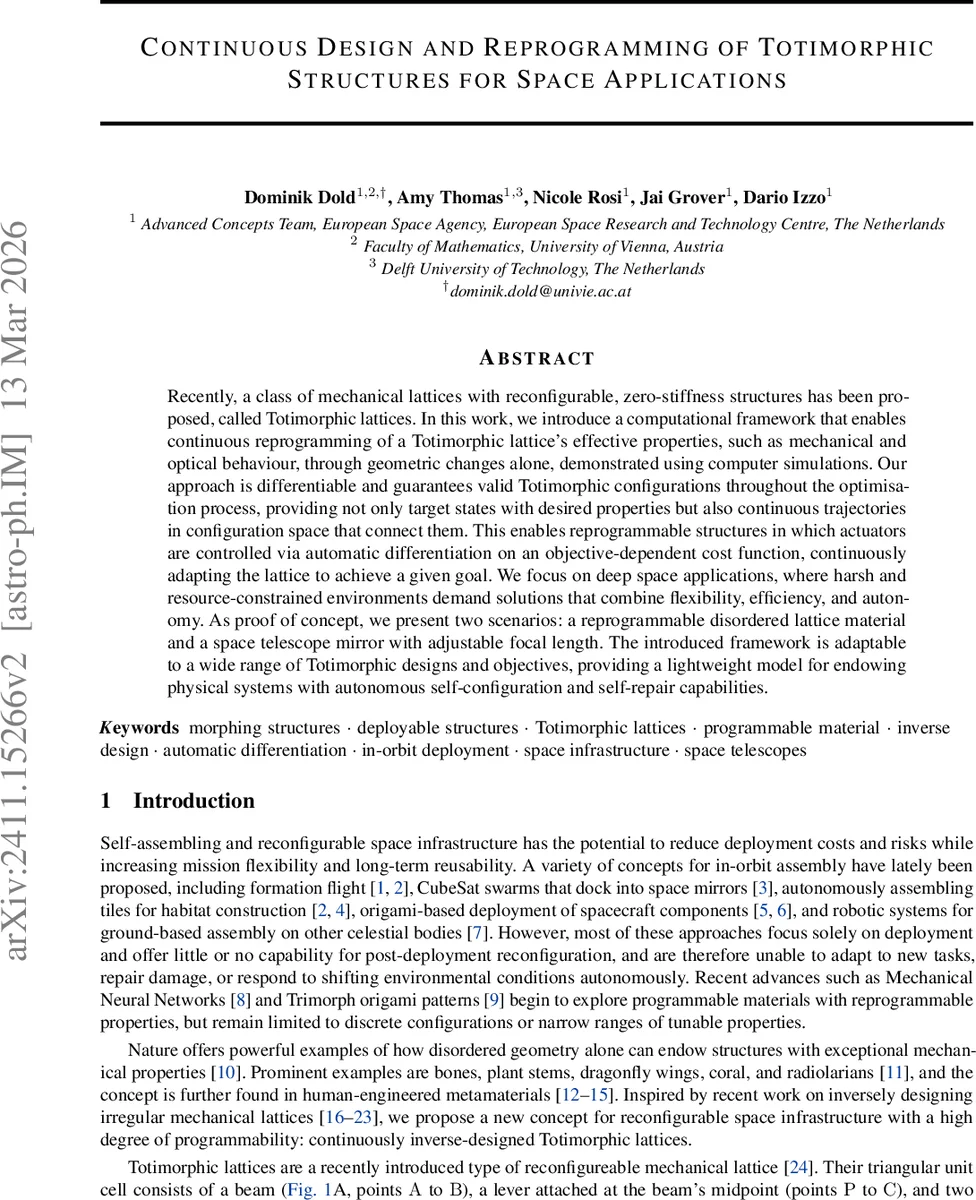

Continuous Design and Reprogramming of Totimorphic Structures for Space Applications

Recently, a class of mechanical lattices with reconfigurable, zero-stiffness structures has been proposed, called Totimorphic lattices. In this work, we introduce a computational framework that enables continuous reprogramming of a Totimorphic lattice’s effective properties, such as mechanical and optical behaviour, through geometric changes alone, demonstrated using computer simulations. Our approach is differentiable and guarantees valid Totimorphic configurations throughout the optimisation process, providing not only target states with desired properties but also continuous trajectories in configuration space that connect them. This enables reprogrammable structures in which actuators are controlled via automatic differentiation on an objective-dependent cost function, continuously adapting the lattice to achieve a given goal. We focus on deep space applications, where harsh and resource-constrained environments demand solutions that combine flexibility, efficiency, and autonomy. As proof of concept, we present two scenarios: a reprogrammable disordered lattice material and a space telescope mirror with adjustable focal length. The introduced framework is adaptable to a wide range of Totimorphic designs and objectives, providing a lightweight model for endowing physical systems with autonomous self-configuration and self-repair capabilities.

💡 Research Summary

The paper presents a novel computational framework for the continuous design and reprogramming of Totimorphic lattices, a class of mechanically neutral‑stable structures that can change shape without external loads. By embedding the geometric constraints of beam and lever lengths directly into a set of generalized coordinates (beam and lever angles together with the lattice’s global position), the authors derive a differentiable mapping function f_T that converts these parameters into the physical coordinates of every node in the lattice. This formulation guarantees that any point in the parameter space corresponds to a valid Totimorphic configuration, eliminating the need for post‑hoc constraint enforcement.

Using automatic differentiation, the framework minimizes an objective‑dependent cost function C that quantifies the deviation between the current lattice state and a desired mechanical or optical property. Gradient descent on C directly yields the actuator commands (joint rotations) required to move the lattice along a continuous, physically admissible trajectory from an initial configuration to a target state. Because the entire optimization path is tracked, the method provides not only the final design but also the full reconfiguration trajectory, a capability lacking in prior works that only produced static end‑states.

The authors validate the approach with two space‑focused proof‑of‑concept simulations. In the first, a centimeter‑scale lattice is subjected to a virtual compression test using the direct stiffness method. By adjusting the generalized angles, the effective Poisson’s ratio of the material can be tuned continuously from positive (expansive) through zero to negative (auxetic), demonstrating on‑demand mechanical property control without any structural damage. In the second example, a large‑scale space telescope mirror is modeled as a Totimorphic lattice. The cost function encodes a desired focal length; gradient‑based optimization automatically reorients the beams and levers across the entire mirror, reshaping the reflective surface to achieve the target curvature. The simulation also shows self‑repair: when a cell is artificially damaged, neighboring cells adjust their angles to restore the overall optical figure, illustrating autonomous maintenance.

Key contributions include: (1) a rigorous counting of lattice degrees of freedom (d_f = 2 + C + 2R + C·R for 2‑D, d_f = 3 + 2C + 3R + 3C·R for 3‑D), (2) the formulation of a fully differentiable Totimorphic model that respects all geometric constraints, (3) the integration of automatic differentiation to drive real‑time actuator control, and (4) demonstration of both mechanical property tuning and adaptive optics in realistic space‑mission scenarios. Limitations are acknowledged: the work remains at the simulation level, with no experimental hardware validation, and it does not address practical actuator design, power budgeting, or environmental robustness (thermal cycling, radiation). Future research directions suggested are prototype fabrication, in‑orbit testing, extension to multi‑physics optimization (thermal, electrical, optical), and development of closed‑loop self‑diagnosis and repair algorithms. Overall, the paper offers a compelling pathway toward truly reconfigurable, self‑healing structures for deep‑space applications, leveraging modern differentiable programming tools to bridge the gap between abstract inverse design and deployable hardware.
