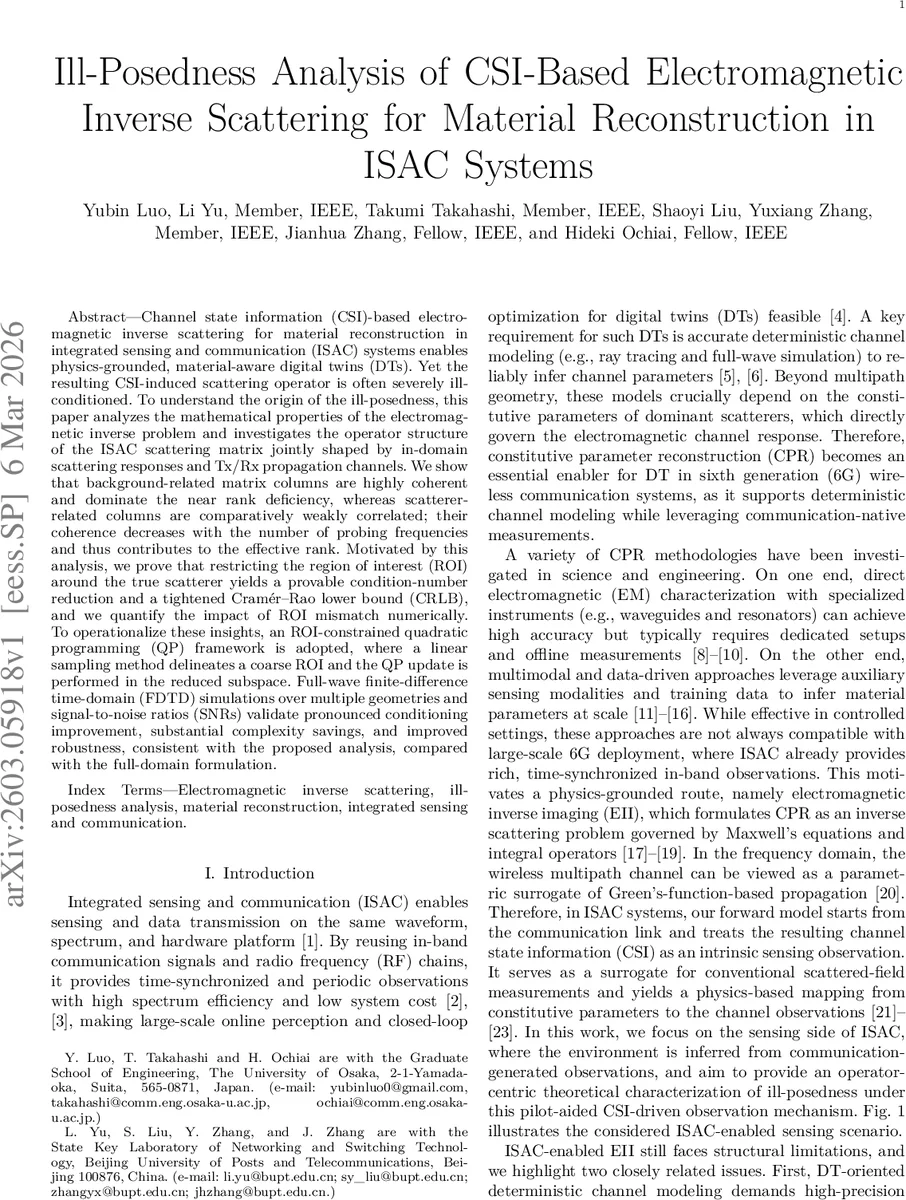

Ill-Posedness Analysis of CSI-Based Electromagnetic Inverse Scattering for Material Reconstruction in ISAC Systems

Channel state information (CSI)-based electromagnetic inverse scattering for material reconstruction in ISAC systems enables physics-grounded, material-aware DT. Yet the resulting CSI-induced scattering operator is often severely ill-conditioned. To understand the origin of the ill-posedness, this paper analyzes the mathematical properties of the electromagnetic inverse problem and investigates the operator structure of the ISAC scattering matrix jointly shaped by in-domain scattering responses and Tx/Rx propagation channels. We show that background-related matrix columns are highly coherent and dominate the near rank deficiency, whereas scatterer-related columns are comparatively weakly correlated; their coherence decreases with the number of probing frequencies and thus contributes to the effective rank. Motivated by this analysis, we prove that restricting the ROI around the true scatterer yields a provable condition-number reduction and a tightened CRLB, and we quantify the impact of ROI mismatch numerically. To operationalize these insights, an ROI-constrained QP framework is adopted, where a linear sampling method delineates a coarse ROI and the QP update is performed in the reduced subspace. Full-wave FDTD simulations over multiple geometries and SNR validate pronounced conditioning improvement, substantial complexity savings, and improved robustness, consistent with the proposed analysis, compared with the full-domain formulation.

💡 Research Summary

This paper investigates the severe ill‑posedness that arises when channel state information (CSI) from integrated sensing and communication (ISAC) systems is used for electromagnetic (EM) inverse scattering to reconstruct material parameters. The authors first derive a physics‑based forward model in which the end‑to‑end scattering operator A_k is factorized into a product of the transmit‑to‑domain propagation matrix H₁,k, the in‑domain Green’s function matrix G_D,k, the contrast vector χ, and the domain‑to‑receive propagation matrix H₂,k. After applying a Born approximation, the measurement equation becomes y_k ≈ A_k χ + n_k, where A_k = (X_k^T H₁,k) ∘ H₂,k (∘ denotes the Khatri‑Rao product) and X_k contains the pilot symbols.

A central contribution is an operator‑centric analysis of A_k’s column coherence. Columns associated with the background (air) region are shown to be highly coherent, forming a near‑redundant subspace that dominates the smallest singular values and thus inflates the condition number κ(A_k). In contrast, columns linked to actual scatterers have much lower inter‑column coherence; this coherence further diminishes as the number of probing frequencies K increases, effectively raising the rank of the informative subspace. By quantifying the average coherence of background (ρ_bg) and scatterer (ρ_scat) columns, the authors prove that restricting the reconstruction to a region of interest (ROI) that tightly encloses the true scatterer reduces the condition number roughly by a factor (1‑ρ_bg) and simultaneously tightens the Cramér‑Rao lower bound (CRLB). They also derive explicit expressions for the degradation of κ and CRLB when the ROI is mismatched, using precision and recall metrics to capture the extent of over‑ or under‑coverage.

To translate these insights into a practical algorithm, the paper proposes an ROI‑constrained quadratic programming (QP) framework. A coarse ROI is first obtained with the linear sampling method (LSM), which processes the multi‑frequency CSI to produce an indicator map. The subsequent QP solves a regularized least‑squares problem only on the reduced subspace defined by the ROI, using the updated Born‑iteration operator A_k^{(n)}|ROI. This approach dramatically cuts the dimensionality of the inverse problem, leading to lower computational load and improved numerical stability.

Extensive 2‑D finite‑difference time‑domain (FDTD) simulations validate the theory. Experiments across multiple geometries (circular, rectangular, composite objects) and signal‑to‑noise ratios (0–30 dB) show that the ROI‑restricted method reduces the condition number by up to an order of magnitude, lowers normalized mean‑square error by about 8 dB, and cuts execution time by more than 70 % compared with a full‑domain reconstruction. Sensitivity analysis of ROI placement demonstrates that as long as the ROI is within roughly 0.2 λ of the true scatterer center, the conditioning and CRLB benefits are near‑optimal; larger misalignments quickly erode the gains.

In summary, the paper identifies the dominant source of ill‑conditioning in CSI‑driven EM inverse scattering—the highly coherent background columns of the scattering matrix—provides rigorous proofs that ROI restriction mitigates this effect, and delivers a concrete ROI‑constrained QP reconstruction pipeline that achieves substantial conditioning improvement, computational savings, and robustness. The work opens avenues for 3‑D extensions, handling of anisotropic or nonlinear materials, and adaptive ROI tracking for real‑time digital‑twin updates in future 6G ISAC deployments.
