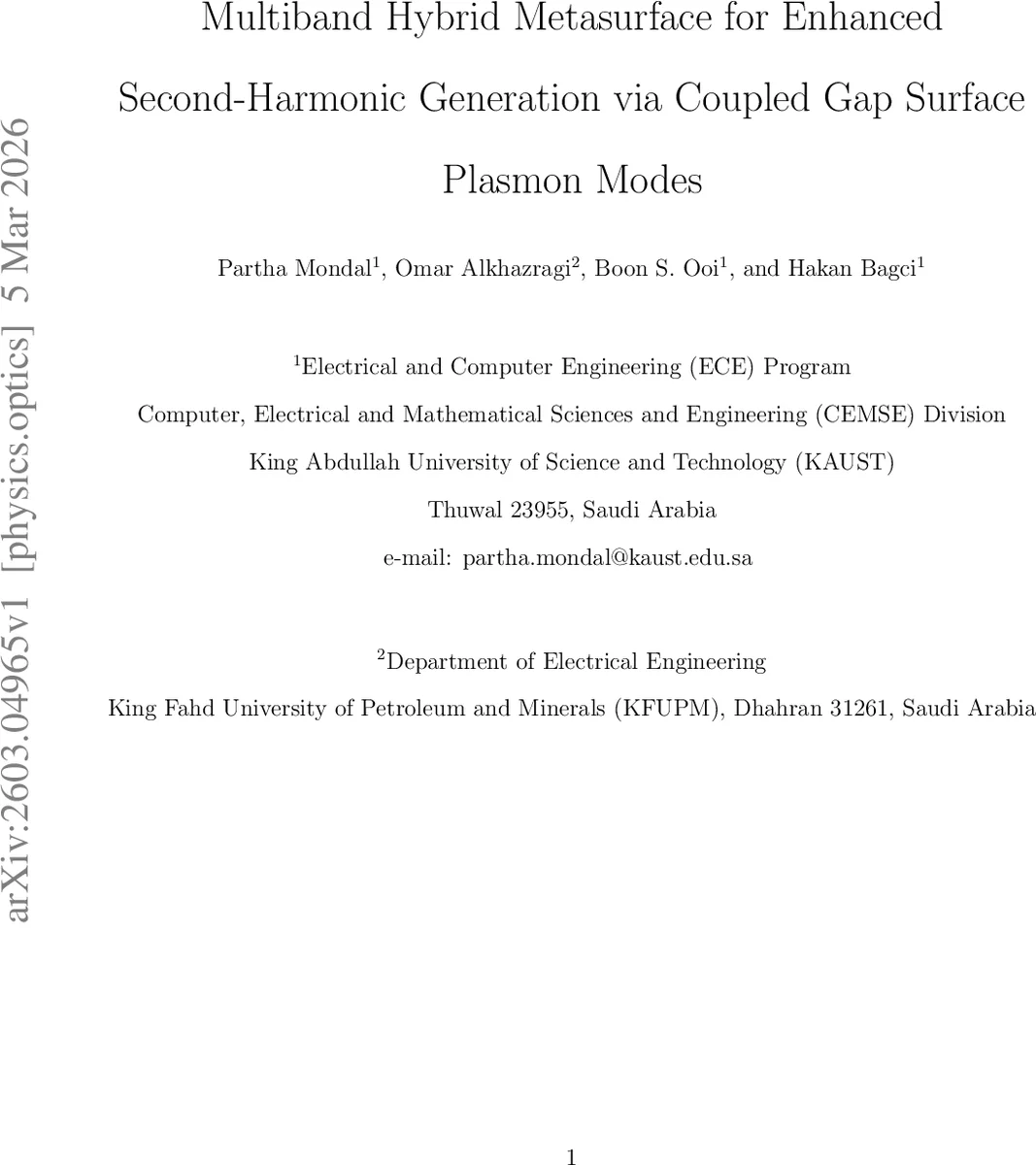

Multiband Hybrid Metasurface for Enhanced Second-Harmonic Generation via Coupled Gap Surface Plasmon Modes

A multiband hybrid metasurface supporting multiple gap-surface plasmon (GSP) and localized surface plasmon (LSP) modes is presented. The structure adopts a metal-dielectric-metal configuration consisting of an aluminum bottom layer, a silicon dioxide spacer, and a bar-disc hybrid resonator patterned in the top aluminum layer. Optimized geometrical parameters yield four distinct resonances across the near-infrared and telecommunication bands, arising from the interplay between GSP modes and LSP excitations. The reflectance spectra are systematically analyzed as functions of geometric parameters and polarization, demonstrating tunable multiband operation. Experimental measurements of the fabricated metasurface show good agreement with numerical predictions. Furthermore, the second-harmonic generation (SHG) response is numerically investigated, revealing enhanced SH emission at the resonance wavelengths due to strong electromagnetic field confinement within the metal-dielectric-metal cavity. The proposed metasurface provides a compact platform for multiband and multifunctional nanophotonic applications.

💡 Research Summary

The authors present a metal–dielectric–metal (MDM) metasurface that integrates a metallic bar and a metallic disc into a single hybrid resonator, forming a compact platform capable of supporting four distinct optical resonances spanning the near‑infrared to telecommunication wavelengths. The structure consists of an aluminum bottom layer (150 nm), a SiO₂ spacer (70 nm), and a patterned aluminum top layer (30 nm) in which the bar (width a₁ = 180 nm, length a₂ = 485 nm) and disc (radius r₁ ≈ 150 nm) are separated by a gap d₁ = 50 nm. Finite‑difference‑time‑domain (FDTD) simulations were used to optimize these geometric parameters and to explore the electromagnetic response under normal incidence with x‑polarized illumination.

The metasurface exhibits four resonant peaks at λ₁ ≈ 900 nm, λ₂ ≈ 990 nm, λ₃ ≈ 1075 nm, and λ₄ ≈ 1465 nm. Detailed field‑distribution analyses reveal that λ₁ originates from a localized surface‑plasmon (LSP) mode primarily confined to the bar, showing weak magnetic confinement in the dielectric gap. λ₂ is a hybrid LSP‑GSP mode arising from strong coupling between the bar and disc; both electric and magnetic fields are strongly enhanced within the SiO₂ gap. λ₃ and λ₄ correspond to first‑order gap‑surface‑plasmon (GSP) cavity modes (p = 1) confined beneath the bar and disc, respectively, characterized by a single magnetic antinode in the spacer.

Parametric sweeps demonstrate that increasing the bar width a₁ or disc radius r₁ red‑shifts the GSP‑related resonances (λ₂–λ₄) due to an increased effective lateral cavity length, while the LSP resonance λ₁ remains largely invariant. The spacer thickness h₂ strongly influences the GSP modes because the propagation constant β_gsp depends sensitively on the effective refractive index of the gap; consequently, λ₂–λ₄ shift markedly with h₂. Variations in the top‑metal thickness h₁ produce moderate shifts, whereas the bottom metal thickness h₃ (≫ skin depth) has negligible effect. Polarization studies show that the resonances are highly anisotropic: rotating the incident electric field from 0° (x‑polarized) to 90° (y‑polarized) suppresses λ₁–λ₃ and introduces a new feature near 930 nm, while λ₄ gains intensity and experiences a slight blueshift.

The metasurface was fabricated on a silicon wafer using standard electron‑beam lithography, metal sputtering, and PECVD for the dielectric layer. Scanning electron microscopy confirms the intended geometry, and broadband reflectance measurements (halogen source, 20× objective, NA = 0.5) agree well with simulated spectra, validating the multiband design.

Nonlinear optical performance was investigated numerically by incorporating the surface second‑order susceptibility χ^(2) of aluminum. At each resonance, the electric field inside the gap is enhanced by more than three orders of magnitude relative to the incident field, leading to a pronounced increase in second‑harmonic generation (SHG). The SHG intensity peaks at λ₂ and λ₄, where both the fundamental and second‑harmonic wavelengths are simultaneously resonant (doubly resonant condition), confirming that the hybrid LSP‑GSP coupling efficiently boosts nonlinear conversion.

In summary, the work demonstrates a simple yet versatile metasurface architecture that overcomes the bandwidth limitations typical of single‑resonator GSP designs. By integrating bar and disc elements, the authors achieve independent control over multiple LSP and GSP modes, enabling tunable multiband operation, polarization‑dependent response, and enhanced nonlinear frequency conversion. The platform is poised for applications such as broadband phase‑gradient optics, multicolor beam steering, compact frequency‑doubling devices, and sensitive plasmonic sensing.
