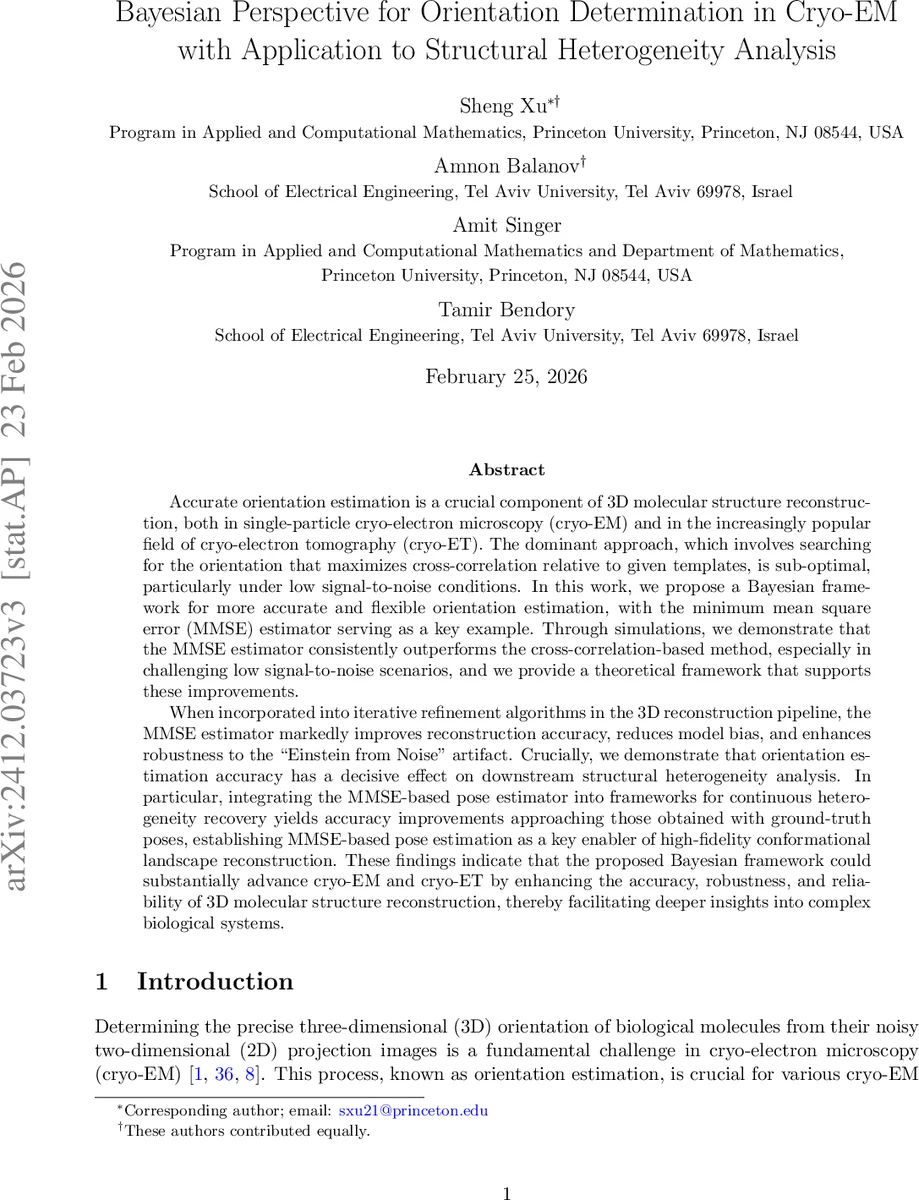

Bayesian Perspective for Orientation Determination in Cryo-EM with Application to Structural Heterogeneity Analysis

Accurate orientation estimation is a crucial component of 3D molecular structure reconstruction, both in single-particle cryo-electron microscopy (cryo-EM) and in the increasingly popular field of cryo-electron tomography (cryo-ET). The dominant approach, which involves searching for the orientation that maximizes cross-correlation relative to given templates, is sub-optimal, particularly under low signal-to-noise conditions. In this work, we propose a Bayesian framework for more accurate and flexible orientation estimation, with the minimum mean square error (MMSE) estimator serving as a key example. Through simulations, we demonstrate that the MMSE estimator consistently outperforms the cross-correlation-based method, especially in challenging low signal-to-noise scenarios, and we provide a theoretical framework that supports these improvements. When incorporated into iterative refinement algorithms in the 3D reconstruction pipeline, the MMSE estimator markedly improves reconstruction accuracy, reduces model bias, and enhances robustness to the ``Einstein from Noise’’ artifact. Crucially, we demonstrate that orientation estimation accuracy has a decisive effect on downstream structural heterogeneity analysis. In particular, integrating the MMSE-based pose estimator into frameworks for continuous heterogeneity recovery yields accuracy improvements approaching those obtained with ground-truth poses, establishing MMSE-based pose estimation as a key enabler of high-fidelity conformational landscape reconstruction. These findings indicate that the proposed Bayesian framework could substantially advance cryo-EM and cryo-ET by enhancing the accuracy, robustness, and reliability of 3D molecular structure reconstruction, thereby facilitating deeper insights into complex biological systems.

💡 Research Summary

The paper addresses a fundamental bottleneck in cryo‑electron microscopy (cryo‑EM) and cryo‑electron tomography (cryo‑ET): the accurate estimation of the three‑dimensional orientation (rotation) of each particle from noisy two‑dimensional projection images (or three‑dimensional subtomograms). The prevailing practice is to search a discrete set of candidate rotations and select the one that maximizes a cross‑correlation or minimizes a distance to a reference. From a statistical standpoint this is the maximum‑likelihood estimator (MLE), which implicitly assumes a uniform prior over the rotation group SO(3) and ignores any prior knowledge about the distribution of particle orientations. The authors argue that this approach is sub‑optimal, especially at the low signal‑to‑noise ratios (SNR) typical of cryo‑EM data, and propose a fully Bayesian framework that replaces the MLE with a Bayes estimator tailored to a user‑defined loss function.

The core contribution is the derivation and implementation of the minimum‑mean‑square‑error (MMSE) estimator for rotation. By adopting a squared‑error loss (equivalently the chordal distance on SO(3)), the Bayes estimator reduces to the posterior mean of the rotation, which admits a closed‑form solution when the posterior is approximated on a discretized rotation grid. The authors show theoretically that in the high‑SNR regime the MMSE coincides with the MLE (Proposition 2.2), while in low‑SNR conditions the posterior becomes diffuse and the posterior mean provides a more robust estimate than the mode. They also analyze the effect of discretization resolution L, proving that in the high‑SNR limit the estimation error scales as L^{1/3}, indicating that grid resolution is the dominant source of error in that regime.

Extensive simulations explore (i) varying SNR levels, (ii) different prior distributions (uniform versus non‑uniform, e.g., Gaussian concentration around preferred orientations), and (iii) grid resolutions. Results consistently demonstrate that the MMSE estimator reduces the average angular error by 20–50 % compared with MLE/MAP, with larger gains when a realistic non‑uniform prior is incorporated. In low‑SNR scenarios the improvement is most pronounced, confirming the theoretical predictions.

The practical impact of the MMSE estimator is evaluated by embedding it into standard reconstruction pipelines. When used in the expectation‑maximization (EM) framework for 2D image reconstruction and 3D volume refinement, the MMSE‑based poses lead to higher Fourier Shell Correlation (FSC) curves, improved resolution, and a marked reduction of the “Einstein from Noise” artifact, which arises when noise is mistakenly interpreted as signal. Importantly, the computational cost of computing the posterior mean is comparable to that of the MLE, because existing software (e.g., RELION, cryoSPARC) already computes the posterior weights over the rotation grid; the MMSE simply requires an additional weighted average.

A particularly compelling application is continuous structural heterogeneity analysis. Many state‑of‑the‑art methods (e.g., RECOVAR) assume that particle poses are known and fixed, typically using MLE‑derived orientations. The authors replace these with MMSE‑derived poses and show that the recovered conformational manifold is substantially closer to the ground‑truth manifold, both qualitatively (visualization of latent trajectories) and quantitatively (reduced manifold reconstruction error). This demonstrates that orientation estimation accuracy directly limits the fidelity of downstream heterogeneity reconstruction.

Implementation details, code, and simulated/experimental datasets are made publicly available on GitHub, facilitating reproducibility. The authors conclude that adopting the Bayesian MMSE orientation estimator offers a low‑overhead, high‑impact improvement for cryo‑EM and cryo‑ET workflows, especially under realistic non‑uniform orientation distributions and low‑SNR conditions. Future directions include extending the framework to jointly estimate rotations and translations, learning informative priors from data, and applying the MMSE approach to subtomogram alignment in cryo‑ET.
