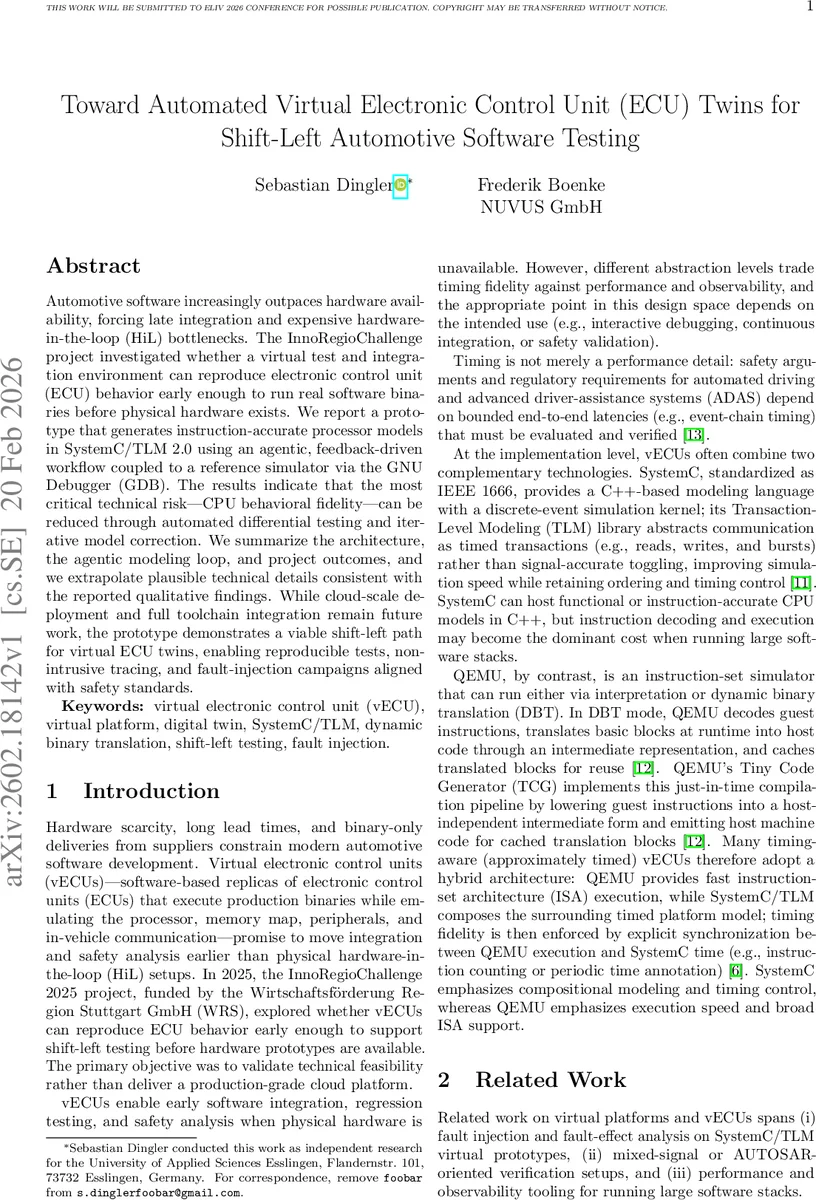

Toward Automated Virtual Electronic Control Unit (ECU) Twins for Shift-Left Automotive Software Testing

Automotive software increasingly outpaces hardware availability, forcing late integration and expensive hardware-in-the-loop (HiL) bottlenecks. The InnoRegioChallenge project investigated whether a virtual test and integration environment can reproduce electronic control unit (ECU) behavior early enough to run real software binaries before physical hardware exists. We report a prototype that generates instruction-accurate processor models in SystemC/TLM~2.0 using an agentic, feedback-driven workflow coupled to a reference simulator via the GNU Debugger (GDB). The results indicate that the most critical technical risk – CPU behavioral fidelity – can be reduced through automated differential testing and iterative model correction. We summarize the architecture, the agentic modeling loop, and project outcomes, and we extrapolate plausible technical details consistent with the reported qualitative findings. While cloud-scale deployment and full toolchain integration remain future work, the prototype demonstrates a viable shift-left path for virtual ECU twins, enabling reproducible tests, non-intrusive tracing, and fault-injection campaigns aligned with safety standards.

💡 Research Summary

The paper addresses a critical bottleneck in modern automotive software development: the mismatch between rapid software evolution and the slower availability of physical electronic control units (ECUs) for hardware‑in‑the‑loop (HiL) testing. To enable “shift‑left” testing—moving integration, regression, and safety verification earlier in the development cycle—the authors present a prototype that automatically generates instruction‑accurate processor models for an ECU twin (vECU) using SystemC/TLM‑2.0 and a feedback‑driven workflow.

The methodology is built around two nested loops. Loop A synthesizes candidate SystemC/TLM code from available artifacts such as register maps, memory maps, communication specifications, and optional AUTOSAR metadata. This synthesis is performed by a large‑language‑model (LLM) based code‑generation agent, which produces an initial hypothesis of the CPU, bus, and peripheral structures. Loop B evaluates the generated model against a reference ARMv8 instruction‑set simulator accessed through a GDB‑compatible interface. For each instruction, the prototype executes the same operation on both the reference and the generated model, extracts architectural state (registers, flags, bus transactions, timing information) via GDB, and computes multi‑dimensional deviation metrics (register deltas, timing offsets, state‑transition mismatches, fault‑response differences). The aggregated score is fed back to Loop A, guiding the LLM to refine the code. This generate‑evaluate‑revise cycle repeats until the virtual CPU exhibits instruction‑accurate behavior.

Key technical contributions include:

1. Agentic Model Generation – The use of an LLM as an “agent” that iteratively learns from deterministic differential testing results, reducing the need for manual hand‑crafting of corner‑case instruction handling.
2. Closed‑Loop Differential Testing – By coupling the SystemC model with a reference simulator via GDB, the approach provides a deterministic, repeatable oracle for each instruction, enabling fine‑grained correction of functional and timing errors.
3. Instruction‑Accurate CPU Modeling – The prototype focuses on a representative subset of ARMv8 instructions (e.g., MOV, CMP, basic arithmetic/logic) and achieves 100 % state‑match after a few refinement iterations. Trace deviations shrink dramatically across cycles, demonstrating convergence.
4. Non‑Intrusive Tracing and Fault Injection – The generated vECU can be instrumented without modifying the target binary, supporting ISO 26262‑style robustness studies and automated fault‑injection campaigns.

The experimental results confirm that the feedback‑driven workflow can automatically correct functional mismatches and reduce timing deviations, producing a CPU model that is both functionally correct and sufficiently timed for early‑stage safety analysis. However, the authors acknowledge several limitations. Peripheral modeling (timers, power‑management ICs, communication controllers) remains at an early stage, and system‑level timing fidelity depends on accurate peripheral behavior. Moreover, the standard SystemC kernel executes in a single host thread, which becomes a performance bottleneck for multi‑core SoC models. The paper discusses possible remedies, including parallel discrete‑event simulation (PDES), multi‑process co‑simulation, and hybrid C++ threading with OpenMP, as well as the need for cloud‑scale deployment and CI/CD integration.

In conclusion, the work demonstrates a viable path toward automated, high‑fidelity virtual ECU twins that can run production binaries before physical prototypes exist. By reducing reliance on scarce HiL resources, the approach promises shorter development cycles, lower test costs, and earlier generation of safety‑case evidence required by standards such as ISO 26262. Future work will extend the agentic synthesis to additional ECU components (GPUs, accelerators, analog front‑ends) and scale the calibration hierarchy from component to subsystem to full‑ECU while preserving determinism, timing fidelity, and safety‑relevant observability.
