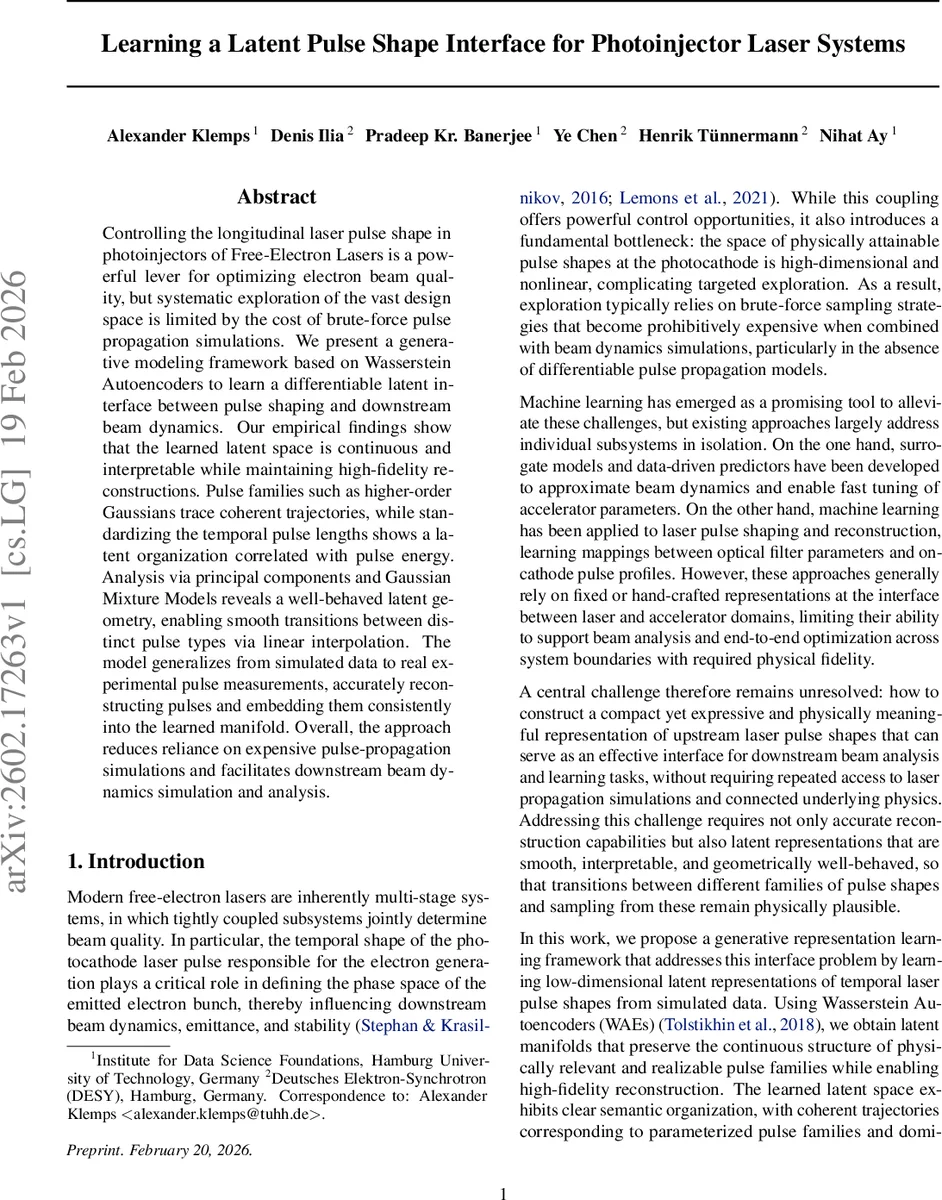

Learning a Latent Pulse Shape Interface for Photoinjector Laser Systems

Controlling the longitudinal laser pulse shape in photoinjectors of Free-Electron Lasers is a powerful lever for optimizing electron beam quality, but systematic exploration of the vast design space is limited by the cost of brute-force pulse propagation simulations. We present a generative modeling framework based on Wasserstein Autoencoders to learn a differentiable latent interface between pulse shaping and downstream beam dynamics. Our empirical findings show that the learned latent space is continuous and interpretable while maintaining high-fidelity reconstructions. Pulse families such as higher-order Gaussians trace coherent trajectories, while standardizing the temporal pulse lengths shows a latent organization correlated with pulse energy. Analysis via principal components and Gaussian Mixture Models reveals a well behaved latent geometry, enabling smooth transitions between distinct pulse types via linear interpolation. The model generalizes from simulated data to real experimental pulse measurements, accurately reconstructing pulses and embedding them consistently into the learned manifold. Overall, the approach reduces reliance on expensive pulse-propagation simulations and facilitates downstream beam dynamics simulation and analysis.

💡 Research Summary

The paper addresses a critical bottleneck in free‑electron laser (FEL) photoinjector design: the high computational cost of exploring the vast, nonlinear space of longitudinal laser pulse shapes that directly influence electron beam emittance, bunch length, and overall stability. To overcome this, the authors propose a data‑driven generative modeling framework based on Wasserstein Autoencoders (WAE) that learns a low‑dimensional, differentiable latent representation of temporal laser pulse profiles.

Data generation starts with a physically realistic parameter sweep of spectral amplitude shapes (secant, parabolic, flat‑top, triangular, Gaussian) and higher‑order Gaussian orders, combined with random draws of second‑, third‑, and fourth‑order spectral phase coefficients (φ₂, φ₃, φ₄). Ten thousand input‑propagated pulse pairs are simulated using the commercial RP Fiber Power solver, which solves the nonlinear Schrödinger equation coupled with rate equations to capture fiber dispersion, nonlinearities, and absorption. The resulting temporal intensity profiles are then pre‑processed: peak normalization, centroid alignment, support standardization to a 30 ps window, and resampling onto a 512‑point grid.

The core model is a deterministic WAE with a 32‑dimensional latent space. The encoder and decoder are built from 1‑D convolutional blocks, each followed by batch normalization and Leaky‑ReLU activations; residual skip connections preserve fine temporal details, and the decoder’s final tanh layer constrains outputs to the normalized intensity range. The training objective combines a mean‑squared‑error reconstruction loss with a Maximum Mean Discrepancy (MMD) regularizer using an inverse‑multiquadratic kernel, encouraging the aggregated posterior to match a standard Gaussian prior. Training proceeds for 150 epochs (batch size 64, Adam optimizer with learning rate 1e‑3, λ = 0.1 for the MMD term).

Results demonstrate three key properties. First, reconstruction fidelity is excellent: average MSE on a held‑out test set is on the order of 1e‑4, indicating that the autoencoder can reproduce intricate pulse shapes without noticeable loss. Second, the latent space exhibits a well‑structured geometry. Principal component analysis (PCA) and Gaussian Mixture Model (GMM) clustering reveal that distinct pulse families (higher‑order Gaussians, triangular, flat‑top, etc.) occupy coherent linear trajectories within the manifold. One latent axis correlates strongly with total pulse energy, which in turn is linked to downstream transverse emittance—a physically meaningful relationship. Third, linear interpolation between latent codes of two different pulses yields intermediate reconstructions that are physically realizable, as confirmed by low 2‑Wasserstein distances between the interpolated and true pulses. This smoothness enables artifact‑free morphing of pulse shapes, a crucial feature for gradient‑based optimization or Bayesian search over the design space.

Importantly, the learned representation generalizes to real experimental measurements. When experimentally recorded pulses undergo the same preprocessing and are fed through the trained encoder, their embeddings fall within the same regions occupied by simulated data, and reconstructions retain high fidelity. This demonstrates that the latent manifold captures underlying physics rather than overfitting to simulation artifacts.

The authors also propose a probabilistic interpretation of the normalized intensity profile as a probability density function for electron emission times. By constructing the cumulative distribution function and applying inverse transform sampling, they can generate emission‑time samples directly from any latent‑decoded pulse. This provides a natural bridge between the laser‑pulse latent space and downstream particle‑tracking simulations, allowing fast Monte‑Carlo generation of initial electron distributions conditioned on the learned pulse representation.

Overall, the work establishes a compact, continuous, and physically interpretable interface between laser pulse shaping and beam dynamics. By compressing high‑dimensional, nonlinear pulse physics into a 32‑dimensional latent manifold, the authors enable rapid exploration, interpolation, and optimization of pulse shapes without repeatedly invoking expensive propagation codes. Future directions suggested include integrating the latent space into reinforcement‑learning controllers for real‑time pulse shaping, extending the model to multimodal inputs (e.g., spatial beam profiles, spectral phase maps), and deploying the framework in live accelerator operation for closed‑loop beam quality optimization.
