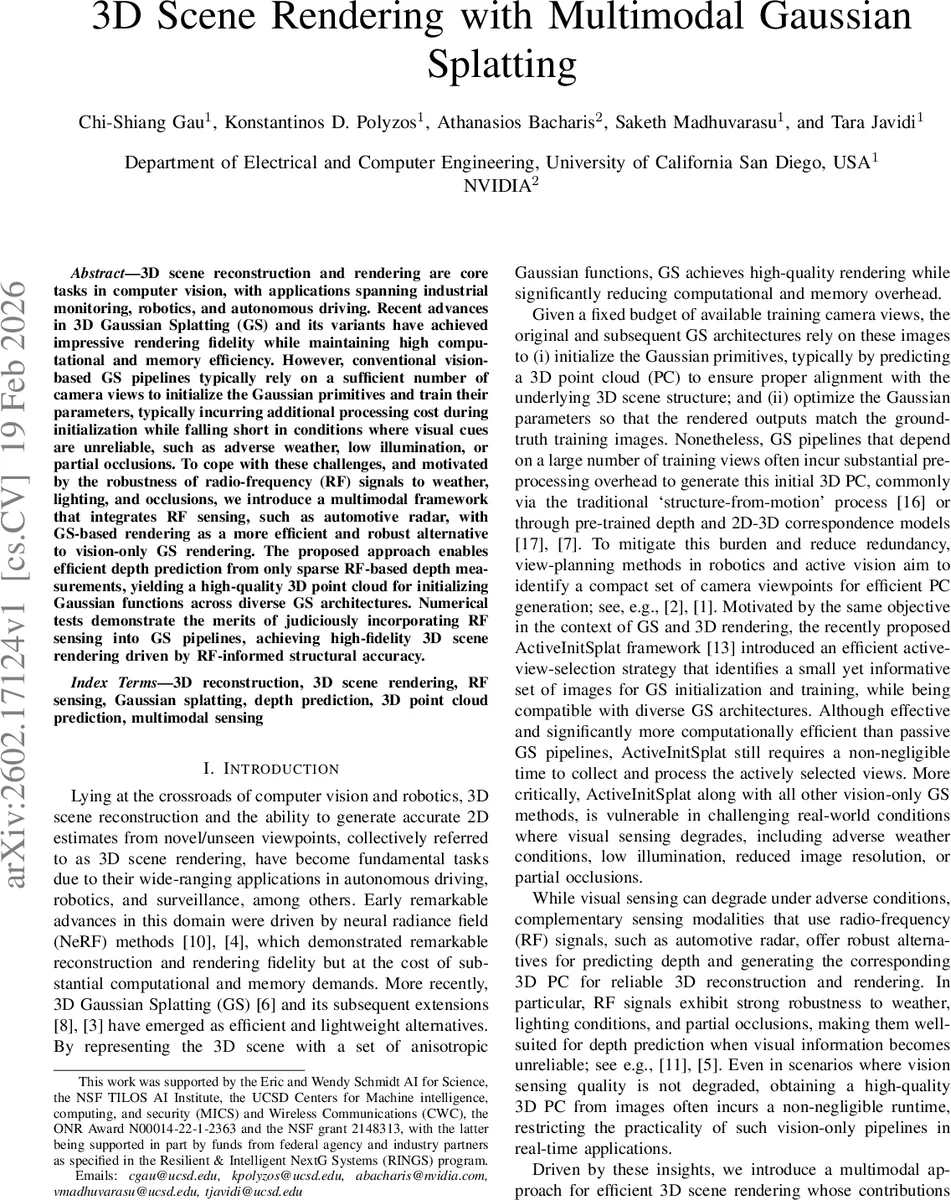

3D Scene Rendering with Multimodal Gaussian Splatting

3D scene reconstruction and rendering are core tasks in computer vision, with applications spanning industrial monitoring, robotics, and autonomous driving. Recent advances in 3D Gaussian Splatting (GS) and its variants have achieved impressive rendering fidelity while maintaining high computational and memory efficiency. However, conventional vision-based GS pipelines typically rely on a sufficient number of camera views to initialize the Gaussian primitives and train their parameters, typically incurring additional processing cost during initialization while falling short in conditions where visual cues are unreliable, such as adverse weather, low illumination, or partial occlusions. To cope with these challenges, and motivated by the robustness of radio-frequency (RF) signals to weather, lighting, and occlusions, we introduce a multimodal framework that integrates RF sensing, such as automotive radar, with GS-based rendering as a more efficient and robust alternative to vision-only GS rendering. The proposed approach enables efficient depth prediction from only sparse RF-based depth measurements, yielding a high-quality 3D point cloud for initializing Gaussian functions across diverse GS architectures. Numerical tests demonstrate the merits of judiciously incorporating RF sensing into GS pipelines, achieving high-fidelity 3D scene rendering driven by RF-informed structural accuracy.

💡 Research Summary

The paper introduces a multimodal framework that augments 3D Gaussian Splatting (GS) with radio‑frequency (RF) sensing, specifically automotive radar, to achieve robust and efficient scene reconstruction and rendering. Traditional GS pipelines rely heavily on a large set of calibrated camera views to generate an initial 3D point cloud (PC) via Structure‑from‑Motion (SfM) or pretrained depth models. This dependence creates two major problems: (1) high computational overhead during PC generation, and (2) severe performance degradation under adverse conditions such as rain, fog, low illumination, or occlusions, where visual cues become unreliable.

To address these issues, the authors propose using a single radar transmission that yields sparse depth measurements at known azimuth/elevation angles. The core technical contribution is a localized Gaussian Process (GP) approach for depth‑map reconstruction. Instead of a global GP—which scales cubically with the number of measurements (O(T³)) and suffers from poor extrapolation—the scene space is partitioned into non‑overlapping regions. Each region hosts an independent GP trained only on the measurements that fall inside it. This localization yields three benefits: (i) distant measurements, which have negligible influence, are ignored, improving prediction accuracy; (ii) computational complexity drops to the sum of cubic terms for each region, dramatically reducing runtime; and (iii) uncertainty estimates become more calibrated because each GP operates on a locally relevant data subset. An RBF kernel is employed, with region‑specific length‑scale hyper‑parameters optimized via marginal likelihood maximization.

The reconstructed depth map is converted into a 3D point cloud, which directly initializes the means and covariances of the anisotropic Gaussians used in GS. The subsequent GS optimization (color, opacity, view‑dependent appearance) proceeds exactly as in the original 3DGS pipeline, using only a modest number of training images (12 in the experiments).

Experiments are conducted on the View‑of‑Delft urban driving dataset, which provides synchronized RGB images and radar returns. The authors compare three configurations: (a) a vision‑only baseline where the PC is built with COLMAP; (b) a hybrid pipeline using the proposed localized GP depth reconstruction; and (c) a global‑GP depth predictor for reference. Results show that the localized GP reduces depth prediction error by roughly 15 % relative to the global GP and cuts inference time by more than 70 %. When the RF‑derived PC is fed into GS, the final rendered images achieve higher PSNR (≈31.2 dB) and SSIM than the vision‑only baseline (≈29.8 dB), despite using far fewer training views. Under simulated adverse weather (low light, rain), the radar‑augmented pipeline maintains visual fidelity, whereas the vision‑only method suffers from blur and artifacts.

The paper’s contributions are threefold: (1) an efficient radar‑based depth prediction module that replaces costly SfM or deep‑learning depth estimators; (2) a principled localized GP framework that offers scalable, uncertainty‑aware depth reconstruction from sparse RF data; (3) empirical evidence that integrating RF sensing into GS pipelines yields both computational savings and higher rendering quality.

Limitations include the inherent resolution constraints of automotive radar, the need for a predefined spatial partitioning scheme, and the current focus on using RF only for PC initialization rather than joint multimodal optimization. Future work is outlined to explore adaptive region partitioning, joint training of RF, LiDAR, and vision modalities, and real‑time deployment on autonomous platforms. Overall, the study demonstrates that RF‑informed depth can substantially strengthen Gaussian‑splatting‑based rendering, especially in conditions where pure vision pipelines falter.
