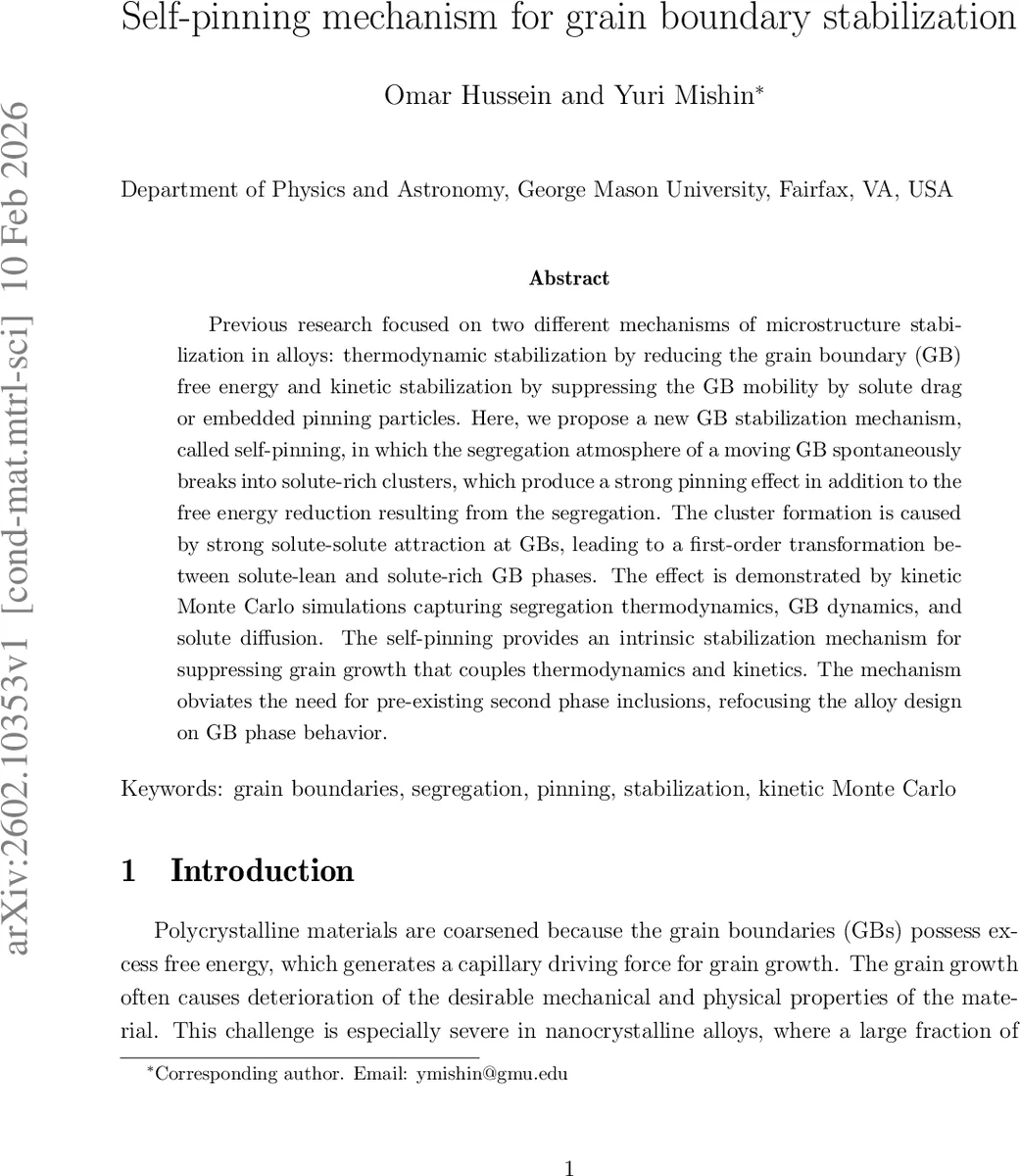

Self-pinning mechanism for grain boundary stabilization

Previous research focused on two different mechanisms of microstructure stabilization in alloys: thermodynamic stabilization by reducing the grain boundary (GB) free energy and kinetic stabilization by suppressing the GB mobility by solute drag or embedded pinning particles. Here, we propose a new GB stabilization mechanism, called self-pinning, in which the segregation atmosphere of a moving GB spontaneously breaks into solute-rich clusters, which produce a strong pinning effect in addition to the free energy reduction resulting from the segregation. The cluster formation is caused by strong solute-solute attraction at GBs, leading to a first-order transformation between solute-lean and solute-rich GB phases. The effect is demonstrated by kinetic Monte Carlo simulations capturing segregation thermodynamics, GB dynamics, and solute diffusion. The self-pinning provides an intrinsic stabilization mechanism for suppressing grain growth that couples thermodynamics and kinetics. The mechanism obviates the need for pre-existing second phase inclusions, refocusing the alloy design on GB phase behavior.

💡 Research Summary

The paper introduces a novel grain‑boundary (GB) stabilization mechanism termed “self‑pinning,” in which the segregation atmosphere of a moving GB spontaneously decomposes into solute‑rich clusters that act as intrinsic pinning centers. Traditional approaches to microstructure stability in alloys have been divided into two categories: thermodynamic stabilization, which reduces the GB free energy (γ_GB) by solute segregation (Gibbs adsorption), and kinetic stabilization, which suppresses GB mobility via solute drag or Zener pinning by pre‑existing second‑phase particles. Both categories generally assume a uniform solute distribution along the GB, an assumption that neglects the heterogeneous nature of real GBs, where solute can accumulate in facets, junctions, or distinct interfacial phases, leading to nanoscale clustering.

To explore the possibility that such heterogeneity itself could provide a stabilizing effect, the authors develop a kinetic Monte Carlo (KMC) framework that simultaneously captures (i) GB thermodynamics and the possibility of GB phase separation, (ii) long‑time solute diffusion, and (iii) the coupled evolution of GB migration, solute diffusion, and interfacial phase transformations. The model is built on a two‑dimensional square lattice populated by Potts‑type orientation variables σ_k (q possible grain orientations) and a lattice‑gas variable ξ_k (0/1) representing the presence of a solute atom at each site. Grain‑boundary sites are identified through a structural order parameter ϕ(n_k) that peaks when a site has exactly two unlike neighbors, a signature of a GB in this lattice representation.

Energetically, the system includes (a) a repulsive grain‑orientation interaction J_gg > 0, (b) a solute‑GB attraction J_sg < 0, (c) a bulk solute‑solute interaction J_ss (set to zero in the present study), and (d) a GB‑specific solute‑solute attraction J_ssg < 0. The latter term is the key control parameter for inducing phase separation within the GB segregation atmosphere. An external synthetic driving force F biases the system toward a selected grain orientation, thereby imposing a constant driving pressure on the GB and mimicking the effect of an applied stress or temperature gradient.

Transition rates follow harmonic transition‑state theory with a non‑linear barrier ε_ij that depends on the energy change ΔE_ij. Two event types are allowed: (1) orientation flips (grain growth/shrinkage) with a constant barrier ε_g0, and (2) solute jumps to neighboring empty sites. The solute‑jump barrier is reduced inside the GB by a factor η (typically 0.5) to capture short‑circuit diffusion along the boundary. The KMC algorithm is rejection‑free (n‑way) and advances physical time by the inverse total escape rate, enabling simulations over timescales far beyond those accessible to molecular dynamics.

The authors first map the equilibrium GB phase diagram by varying the GB‑specific attraction J_ssg from –0.2 to –0.9 (in reduced units) at a fixed temperature T = 0.15 and a modest bulk solute‑GB attraction J_sg = –0.2. For sufficiently negative J_ssg, the segregation isotherms Γ(c_g) (where Γ is the excess solute at the GB) display a discontinuity, indicating coexistence of two distinct GB phases: a low‑segregation phase and a high‑segregation phase. As J_ssg becomes less negative, the miscibility gap narrows and eventually vanishes at a critical point, beyond which the transition becomes continuous and the notion of two separate GB phases loses relevance.

Having established the thermodynamic landscape, the authors investigate non‑equilibrium behavior under a constant driving force. They monitor several quantitative metrics: (i) GB position via the separation λ between the two peaks of the averaged order‑parameter profile, (ii) GB velocity V defined as the change in λ per accumulated flip time t_f (which isolates the intrinsic GB dynamics from the overall KMC clock), (iii) segregation excess Γ, and (iv) solute clustering within the GB region. Clusters are identified as connected components of occupied GB sites (nearest‑neighbor connectivity) with a minimum size of four lattice sites to filter out thermal noise. The number of clusters N_C and their size distribution S_C are recorded throughout the simulation.

The results reveal a striking self‑pinning phenomenon. When J_ssg is sufficiently negative (e.g., –0.4), solute‑rich clusters nucleate spontaneously within the moving GB. Each nucleation event coincides with a sharp drop in GB velocity, indicating that the cluster acts as a physical obstacle. The GB then undergoes a “pinning‑depinning” cycle: it remains temporarily immobilized while the cluster persists, then resumes motion once the cluster dissolves or is bypassed. Compared with a reference system where the solute‑GB interaction is switched off (J_sg = 0), the self‑pinned GB moves orders of magnitude slower under the same driving force. The effective solute drag force P(V) = F(V) – F_0(V) (where F_0 is the force required in the reference system) exhibits a pronounced peak P* that is substantially larger than the drag predicted by classical solute‑drag theory. Moreover, the P(V) curve displays step‑like features corresponding to the discrete formation and annihilation of clusters, highlighting the intrinsically stochastic nature of the process.

A systematic parameter sweep shows that self‑pinning only occurs within the GB miscibility gap identified in the equilibrium analysis. In other words, the prerequisite for self‑pinning is the thermodynamic possibility of a first‑order GB phase transition. The strength of the pinning, quantified by the reduction in V or the magnitude of P*, scales with the depth of J_ssg and with the overall solute concentration. Higher bulk solute concentrations increase the probability of cluster nucleation, while higher temperatures tend to smear out the phase separation and weaken the pinning effect.

The authors discuss the broader implications of these findings. First, self‑pinning unifies thermodynamic and kinetic stabilization: the same solute that lowers γ_GB also, via GB phase separation, creates a kinetic barrier to GB migration. Second, because the mechanism does not rely on pre‑existing second‑phase particles, alloy design can shift focus toward engineering GB phase behavior—selecting solute pairs with strong GB‑specific attraction, tuning processing temperatures to lie within the GB miscibility gap, or deliberately introducing minor alloying additions that promote GB phase separation. Third, the KMC framework presented here provides a versatile tool for exploring long‑time microstructural evolution in systems where both diffusion and interface motion are coupled, a regime that is challenging for conventional molecular dynamics or continuum phase‑field models.

Limitations are acknowledged: the study uses a two‑dimensional lattice and a simplified Potts representation of grain orientations, which cannot capture the full geometric complexity of real three‑dimensional GBs (e.g., triple lines, curvature effects). The solute‑solute interaction is limited to nearest neighbors, neglecting longer‑range chemical or elastic interactions that may be important in specific alloy systems. Future work is suggested to extend the model to three dimensions, to calibrate interaction parameters against atomistic simulations or experimental data (e.g., atom probe tomography of GB segregation), and to explore the interplay of self‑pinning with other kinetic phenomena such as grain‑boundary sliding or migration under applied stress.

In conclusion, the paper provides the first quantitative demonstration of a self‑pinning mechanism whereby a moving grain boundary spontaneously generates solute‑rich clusters through a first‑order interfacial phase transition. This mechanism offers an intrinsic route to suppress grain growth without the need for extrinsic pinning particles, thereby opening a new design paradigm that emphasizes grain‑boundary phase engineering for the thermal stability of nanocrystalline alloys.
