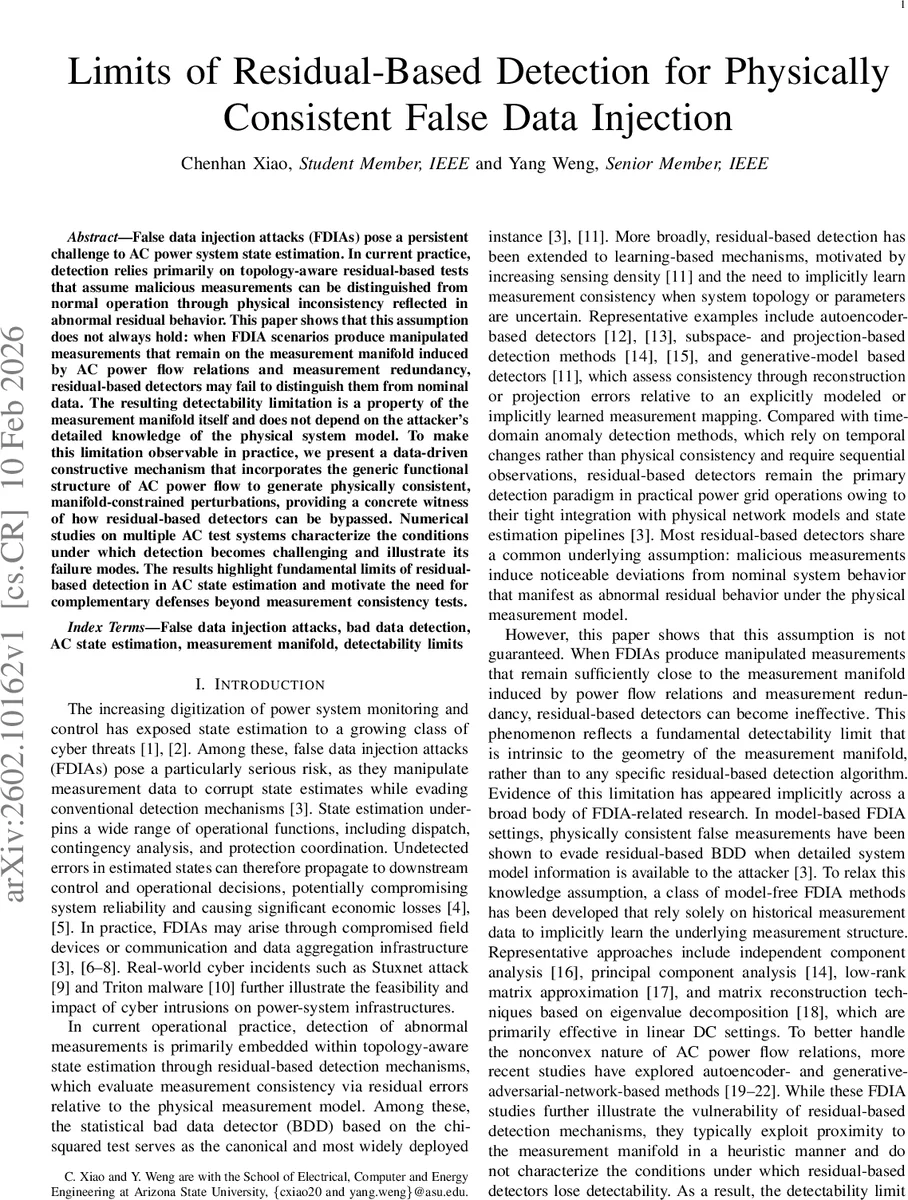

Limits of Residual-Based Detection for Physically Consistent False Data Injection

False data injection attacks (FDIAs) pose a persistent challenge to AC power system state estimation. In current practice, detection relies primarily on topology-aware residual-based tests that assume malicious measurements can be distinguished from normal operation through physical inconsistency reflected in abnormal residual behavior. This paper shows that this assumption does not always hold: when FDIA scenarios produce manipulated measurements that remain on the measurement manifold induced by AC power flow relations and measurement redundancy, residual-based detectors may fail to distinguish them from nominal data. The resulting detectability limitation is a property of the measurement manifold itself and does not depend on the attacker’s detailed knowledge of the physical system model. To make this limitation observable in practice, we present a data-driven constructive mechanism that incorporates the generic functional structure of AC power flow to generate physically consistent, manifold-constrained perturbations, providing a concrete witness of how residual-based detectors can be bypassed. Numerical studies on multiple AC test systems characterize the conditions under which detection becomes challenging and illustrate its failure modes. The results highlight fundamental limits of residual-based detection in AC state estimation and motivate the need for complementary defenses beyond measurement consistency tests.

💡 Research Summary

The paper investigates a fundamental limitation of residual‑based bad‑data detection (BDD) in AC power‑system state estimation. Conventional BDD, typically implemented as a χ² test on the weighted residual r(z)=‖z−h( x̂)‖²_R⁻¹, assumes that any malicious measurement will cause a noticeable increase in this residual because the measurement will no longer lie on the physical measurement manifold H={h(x)} defined by the AC power‑flow equations. The authors show that this assumption is not universally valid. If an attacker perturbs the measurement vector by a vector c that keeps the perturbed measurement zₐ = h( x̂)+c on the manifold (i.e., there exists a state x̂′ such that h(x̂′)=zₐ), then the residual remains unchanged: r(zₐ)=r(z). Consequently, any detector that relies solely on the distance from the measurement to H cannot distinguish the attack from normal data. This detectability limitation is intrinsic to the geometry of H and does not require the attacker to possess detailed knowledge of line parameters or network topology.

To make the limitation concrete, the authors develop a data‑driven constructive mechanism that can generate physically consistent, manifold‑constrained perturbations. They first examine a standard auto‑encoder (AE) approach, which learns a low‑dimensional latent representation of historical measurements and adds small perturbations in that space. However, due to the highly nonlinear nature of AC power‑flow mappings, AE‑generated reconstructions often drift off the true manifold, leading to detectable residual increases. To overcome this, the authors propose a physics‑guided representation: they lift the state vector into a higher‑dimensional “symbolic basis” φ(x) that explicitly contains sine, cosine, and bilinear voltage terms. In this lifted space the measurement mapping becomes approximately linear (A·φ(x)≈z). By training a linear encoder‑decoder pair on φ‑space, the decoder inherently respects the physical structure, guaranteeing that any generated perturbation stays on H. This mechanism is used purely as a diagnostic tool to expose the detectability limit, not as an attack strategy per se.

Extensive numerical experiments are conducted on IEEE test systems of 14, 30, 39, 57, 118, and 200 buses. Historical measurement data are generated with MATPOWER, incorporating realistic load variations derived from real‑world consumption profiles. For each test case, the authors apply the physics‑guided manifold‑constrained perturbations and evaluate several residual‑based detectors, including the classical χ² BDD, auto‑encoder‑based detectors, and generative‑adversarial‑network (GAN) detectors. The results reveal three key findings: (1) Attacks that remain on the measurement manifold produce virtually unchanged residuals, causing all tested detectors to miss the attack; (2) The success rate of the manifold‑constrained attack approaches 95 % when sufficient historical data are available for accurate manifold learning, whereas limited data increase reconstruction error and consequently raise detection rates; (3) Even as system size grows and the manifold dimension increases, the presence of measurement redundancy ensures that manifold‑constrained perturbations remain feasible.

These observations demonstrate that residual‑based detection fundamentally measures only the Euclidean (or weighted) distance to H, ignoring the direction of deviation. When an attacker manipulates the underlying physical state while preserving consistency, the distance does not change, rendering the detector blind. The paper therefore argues for complementary defenses: (i) time‑series or statistical anomaly detectors that monitor temporal continuity and distributional shifts; (ii) cross‑validation between heterogeneous measurement sources such as PMUs and SCADA; and (iii) hybrid frameworks that fuse physical models with machine‑learning‑based consistency checks, thereby providing additional detection dimensions beyond simple residual magnitude.

In summary, the work formalizes the detectability limit of residual‑based FDIA detection as a property of the measurement manifold, provides a concrete data‑driven method to illustrate this limit, and empirically validates the phenomenon across a range of realistic AC test systems. It highlights the necessity of moving beyond pure residual‑based schemes toward integrated, physics‑aware security solutions for future power‑grid state estimation.
