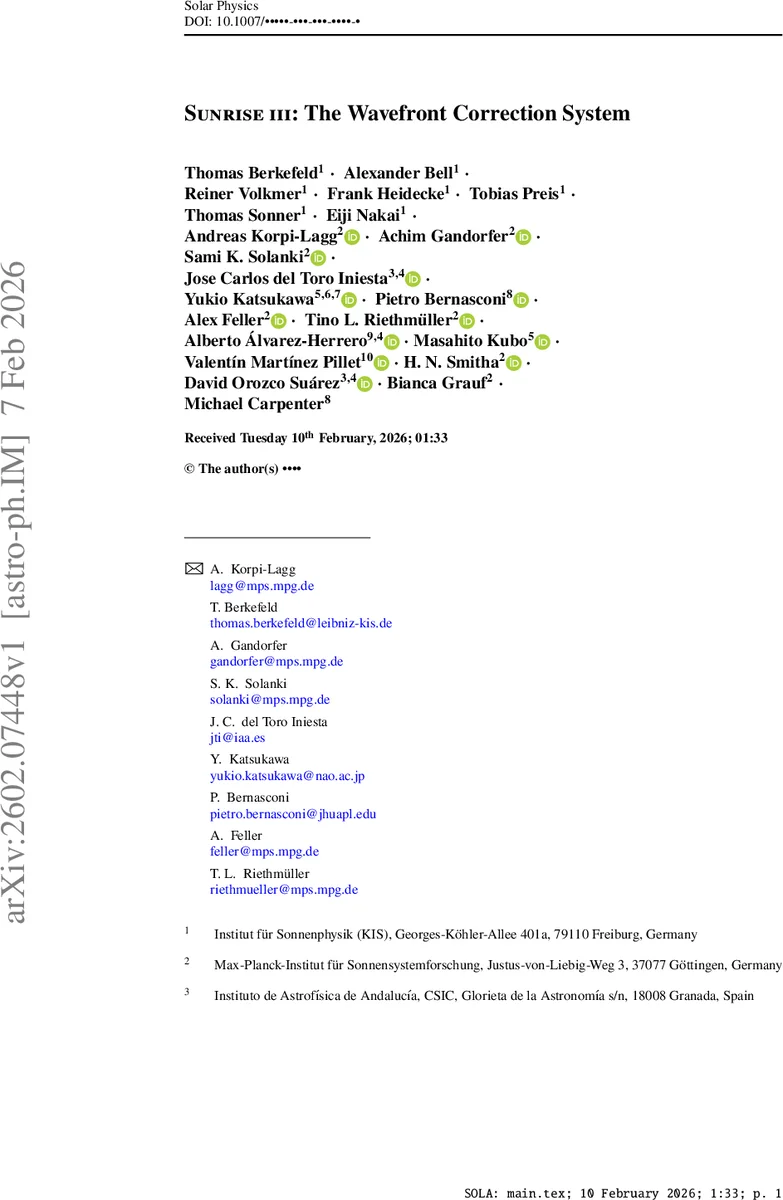

Sunrise III: The Wavefront Correction System

This paper describes the wave-front correction and image stabilisation system (CWS) developed for the Sunrise III balloon-borne telescope, and provides information about its performance as measured during the integration into the telescope and during the 2024 science flight. The fast image stabilisation is done by a correlation tracker (CT) and a fast tip-tilt mirror, low order aberrations such as defocus and coma are measured by a six-element Shack-Hartmann wavefront sensor (WFS) and corrected by an active telescope secondary mirror for automated focus and manual coma correction. The CWS is specified to deliver a stabilised image with a precision of 0.005 arcsec (rms). The autofocus adjustment is specified to maintain a focus stability of 0.01 waves in the focal plane of the CWS.

💡 Research Summary

The paper presents the design, implementation, and flight performance of the Wavefront Correction and Image Stabilisation system (CWS) for the Sunrise III balloon‑borne solar telescope, which completed its science flight in July 2024. The CWS is tasked with reducing the gondola‑induced pendulum motions (several degrees) to a few milliarcseconds, thereby enabling diffraction‑limited observations across the full 200‑arcsecond field of view.

Key hardware upgrades relative to Sunrise I and II include a shift of the operating wavelength from 500 nm to 640 nm, the addition of a high‑speed Correlation Tracker (CT) for tip‑tilt correction, and a new real‑time control computer. The CT uses a Photonfocus MV1‑D1024E‑160‑CL camera operating at 7 kHz (96 × 96 pixels) to perform cross‑correlation on the full aperture image. This provides a tip‑tilt correction bandwidth of 130 Hz (0 dB), an improvement over the 90 Hz bandwidth of the previous system.

Low‑order aberrations (focus and coma) are measured by a six‑element Shack‑Hartmann wavefront sensor (WFS). The WFS receives 10 % of the incoming light, creates six sub‑aperture images (0.33 m sub‑aperture size on M1), and delivers 0.2 arcsec pixel⁻¹ sampling. It is used primarily for slow focus control (≤0.1 Hz) and manual coma correction; the latter is performed before each observation sequence because a lateral shift of the secondary mirror (M2) that removes coma would introduce a large tip‑tilt error (≈400 ×).

The tip‑tilt mirror is a 30 mm diameter, piezo‑driven element (Phy‑sik Instrumente S‑330.8) placed at a 25 mm pupil image. It provides a total tilt range of ±30 arcsec (±6 mrad) with a resonance frequency of 700 Hz (channel 1) and 1200 Hz (channel 2). The mirror is driven by a PID controller running at 6–7 kHz, using a pre‑computed singular‑value‑decomposition (SVD) inverse of the interaction matrix between actuator voltages and image shifts.

Focus control is achieved by moving M2 along the optical axis with a motorised xyz stage at ≤0.01 Hz. An axial shift of 16 µm corresponds to a 100 nm RMS wavefront error, so the system maintains focus stability better than λ/100 (≈0.01 waves) as required.

System specifications are summarized in Table 1: residual tip‑tilt error < 5 mas RMS, tip‑tilt bandwidth > 100 Hz, autofocus accuracy < λ/100, coma measurement accuracy < λ/100, input voltage 24 V, power consumption ≤ 80 W, mass ≤ 10 kg, and operational temperature range 0–30 °C (non‑operational –40 to 40 °C).

During integration tests and the 2024 flight, the CWS demonstrated uninterrupted lock periods exceeding 4 hours, a mean tip‑tilt residual of 4.8 mas RMS, and focus drift remaining below 0.009 λ RMS. The CT’s high frame rate allowed real‑time updating of reference images every 10 seconds to track solar granulation evolution, while the WFS reference images were refreshed at the same interval.

The authors conclude that the combination of a fast correlation tracker, a high‑bandwidth piezo tip‑tilt mirror, and a low‑order Shack‑Hartmann sensor provides a robust solution for high‑precision image stabilisation on balloon platforms. Future work may involve expanding the Shack‑Hartmann array to increase the number of measured modes or integrating a deformable mirror for higher‑order wavefront correction, thereby extending the system’s capability beyond tip‑tilt and low‑order aberrations.
