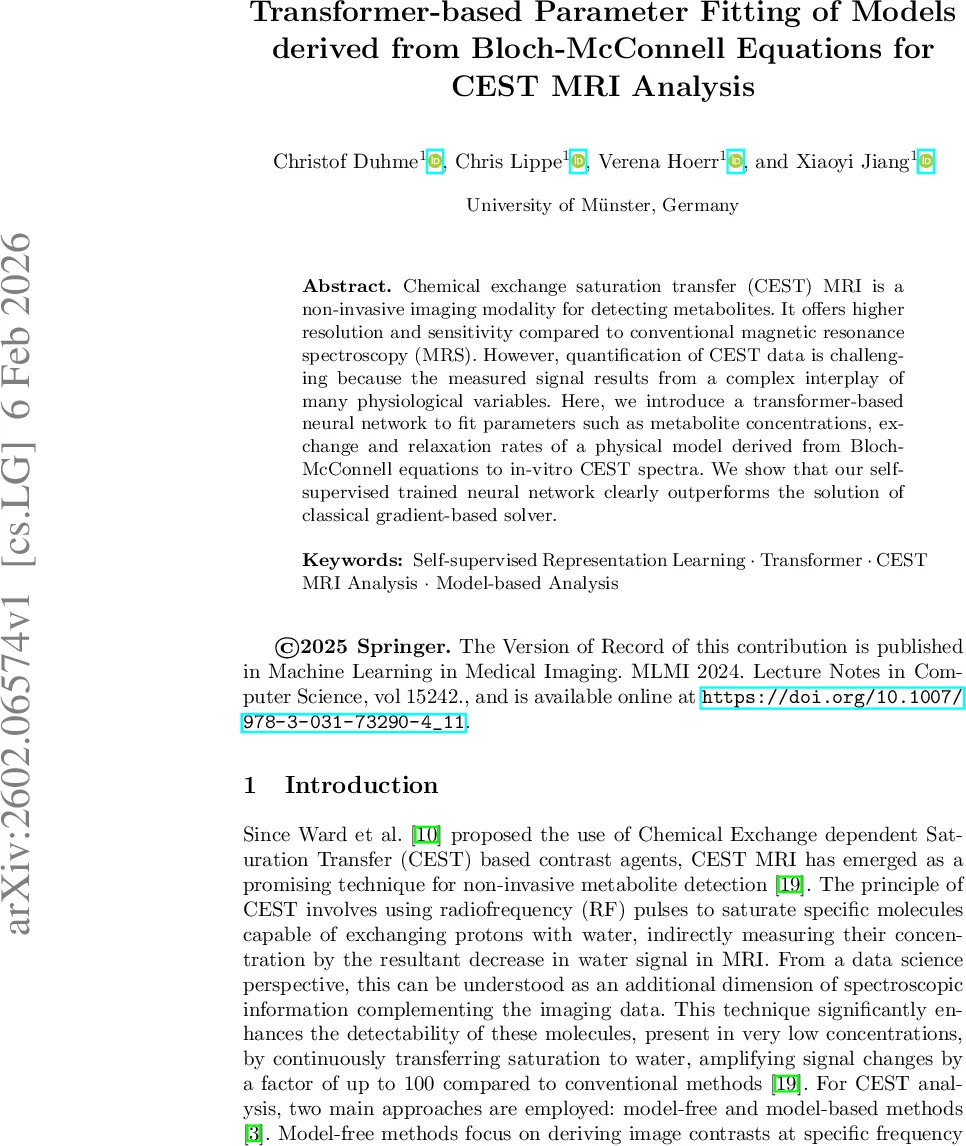

Transformer-based Parameter Fitting of Models derived from Bloch-McConnell Equations for CEST MRI Analysis

Chemical exchange saturation transfer (CEST) MRI is a non-invasive imaging modality for detecting metabolites. It offers higher resolution and sensitivity compared to conventional magnetic resonance spectroscopy (MRS). However, quantification of CEST data is challenging because the measured signal results from a complex interplay of many physiological variables. Here, we introduce a transformer-based neural network to fit parameters such as metabolite concentrations, exchange and relaxation rates of a physical model derived from Bloch-McConnell equations to in-vitro CEST spectra. We show that our self-supervised trained neural network clearly outperforms the solution of classical gradient-based solver.

💡 Research Summary

This paper addresses the challenging problem of quantitative analysis of chemical exchange saturation transfer (CEST) magnetic resonance imaging (MRI). CEST MRI provides indirect detection of low‑concentration metabolites by applying frequency‑selective radio‑frequency (RF) saturation pulses that exchange protons with water, leading to a measurable reduction in the water signal. Quantitative interpretation requires fitting a physical model derived from the Bloch‑McConnell equations to the measured Z‑spectra. The model contains many inter‑dependent parameters (proton fractions fᵢ, exchange rates kᵢ, longitudinal and transverse relaxation rates R₁ᵢ, R₂ᵢ, resonance offsets δωᵢ, etc.), making the fitting problem highly non‑linear and ill‑conditioned. Traditional gradient‑based solvers such as L‑BFGS‑B, Nelder‑Mead, and Powell often struggle with convergence, are sensitive to initial guesses, and require careful tuning of parameter bounds.

The authors propose a self‑supervised transformer‑based neural network to directly predict the model parameters from raw CEST spectra. The network follows an encoder‑decoder architecture: the encoder is an 8‑layer transformer with eight attention heads, hidden size 1024, and MLP dimension 1024; the decoder consists of three 3×3 convolutional layers (512, 256, 128, 64 channels) followed by a fully‑connected head that outputs a vector f(x). This vector is transformed into physically admissible parameters p_M(x) = c_M + d_M·tanh f(x), where c_M and d_M define the centre and half‑range of each parameter’s allowed interval. The loss function is the mean‑squared error between the spectrum reconstructed by the physical model M(p_M(x)) and the input spectrum x, thereby embedding the model constraints directly into training. No ground‑truth parameter values are required, which is advantageous for future in‑vivo applications where such labels are unavailable.

Experiments were performed on a phantom dataset consisting of nine mixtures of glucose and lactate (concentrations 5, 15, 30 mM, pH 6.5–7, temperature 20 °C). For each mixture, 129 frequency offsets (−5 ppm to +5 ppm) were acquired at four B₁ amplitudes (1.2, 1.6, 2.0, 2.4 µT), yielding 529 pixel‑wise spectra. The data were normalized and B₀‑corrected. The network was trained with 5‑fold cross‑validation: 200 epochs for the simple Lorentzian model and 1000 epochs for the Bloch‑McConnell‑derived analytical Z‑model and the MTR_Rex model, using Adam (learning rate 1e‑5).

Three physical models were fitted: (1) a multi‑Lorentzian model (Equation 8), (2) an analytical Z‑model derived from the Bloch‑McConnell equations (Equation 4), and (3) an MTR_Rex model (Equation 7). For each model, the authors compared the transformer against L‑BFGS‑B, Nelder‑Mead, and Powell solvers. Performance was quantified by the coefficient of determination (R²) between the predicted parameters (or derived proton fractions) and the known concentrations, after fitting a zero‑intercept linear regression.

Results (Table 1) show that the transformer consistently achieves R² values above 0.95 for all models and both metabolites, often surpassing L‑BFGS‑B, especially for lactate where traditional solvers exhibit instability. The transformer’s predictions are monotonic with respect to concentration, producing smooth, physiologically plausible curves (Figure 1). In contrast, L‑BFGS‑B sometimes collapses parameters to bounds or yields non‑linear trends. Runtime analysis (Table 2) demonstrates a dramatic speed advantage: on a GPU the transformer processes a single spectrum in ~9 ms, while L‑BFGS‑B requires 150 ms for the Lorentzian model and up to 4 s for the more complex Bloch‑McConnell models. Even on a CPU the transformer remains faster (≈93 ms) than any classical solver. Extrapolating to a 10×10×10 voxel 3‑D volume predicts a total processing time of ~9 s versus ~4000 s for L‑BFGS‑B, a >400‑fold acceleration.

The authors discuss that the transformer’s attention mechanism captures long‑range dependencies across frequency offsets, which is essential for modeling the subtle exchange effects in CEST spectra. They also note that the model’s self‑supervised nature eliminates the need for labeled training data, facilitating translation to in‑vivo studies where ground‑truth concentrations are unavailable. Limitations include the current focus on phantom data; in‑vivo applications will introduce additional confounds such as B₀/B₁ inhomogeneities, tissue heterogeneity, and physiological motion. Future work should explore domain adaptation, data augmentation, and interpretability of attention maps to link learned features to specific spectral regions.

In conclusion, this study demonstrates that a transformer‑based, self‑supervised neural network can reliably fit complex Bloch‑McConnell‑derived models to CEST MRI data, delivering higher accuracy, greater robustness, and orders‑of‑magnitude faster inference than conventional gradient‑based solvers. The approach paves the way for rapid, model‑based quantitative CEST imaging in clinical settings, potentially enabling real‑time metabolic mapping and improved diagnostic capabilities.
