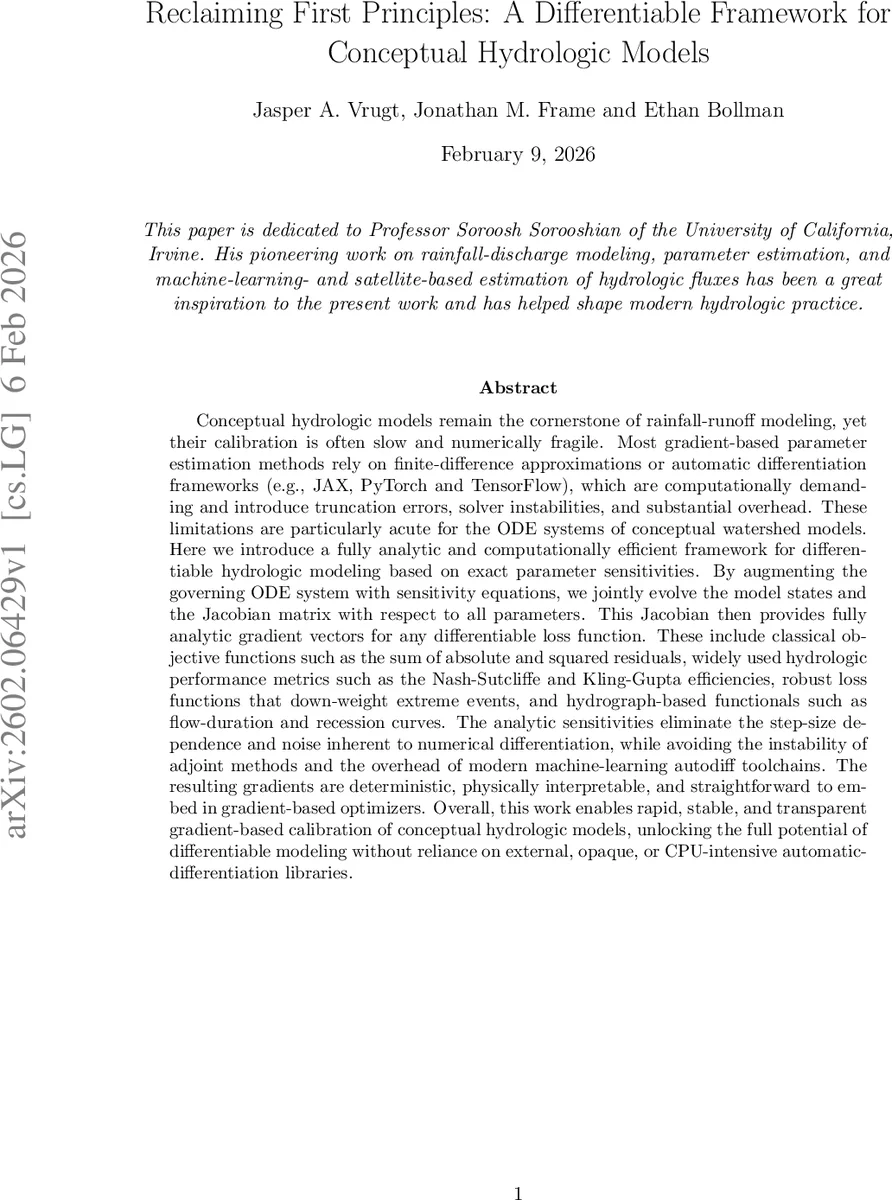

Reclaiming First Principles: A Differentiable Framework for Conceptual Hydrologic Models

Conceptual hydrologic models remain the cornerstone of rainfall-runoff modeling, yet their calibration is often slow and numerically fragile. Most gradient-based parameter estimation methods rely on finite-difference approximations or automatic differentiation frameworks (e.g., JAX, PyTorch and TensorFlow), which are computationally demanding and introduce truncation errors, solver instabilities, and substantial overhead. These limitations are particularly acute for the ODE systems of conceptual watershed models. Here we introduce a fully analytic and computationally efficient framework for differentiable hydrologic modeling based on exact parameter sensitivities. By augmenting the governing ODE system with sensitivity equations, we jointly evolve the model states and the Jacobian matrix with respect to all parameters. This Jacobian then provides fully analytic gradient vectors for any differentiable loss function. These include classical objective functions such as the sum of absolute and squared residuals, widely used hydrologic performance metrics such as the Nash-Sutcliffe and Kling-Gupta efficiencies, robust loss functions that down-weight extreme events, and hydrograph-based functionals such as flow-duration and recession curves. The analytic sensitivities eliminate the step-size dependence and noise inherent to numerical differentiation, while avoiding the instability of adjoint methods and the overhead of modern machine-learning autodiff toolchains. The resulting gradients are deterministic, physically interpretable, and straightforward to embed in gradient-based optimizers. Overall, this work enables rapid, stable, and transparent gradient-based calibration of conceptual hydrologic models, unlocking the full potential of differentiable modeling without reliance on external, opaque, or CPU-intensive automatic-differentiation libraries.

💡 Research Summary

The paper presents a fully analytic, computationally efficient framework for gradient‑based calibration of conceptual rainfall‑runoff models. Recognizing that most such models are expressed as ordinary differential equations (ODEs), the authors augment the governing state equations dx/dt = f(x, θ, t) with sensitivity equations d(∂x/∂θ)/dt = ∂f/∂x·∂x/∂θ + ∂f/∂θ. By integrating this enlarged system forward in time, the simulator simultaneously produces model states, simulated discharge qₜ, and the Jacobian matrix Jₜ = ∂qₜ/∂θ for every time step.

With the Jacobian in hand, any differentiable loss function L(θ) = ∑ₜ Lₜ(yₜ, qₜ(θ)) can be differentiated analytically: the gradient contribution at time t is gₜ(θ) = ∂Lₜ/∂q · Jₜ, and the total gradient g(θ) = ∑ₜ gₜ(θ). The authors derive explicit formulas for a wide range of loss functions, including classic pointwise errors (absolute, squared), hydrologic performance metrics (Nash‑Sutcliffe Efficiency, Kling‑Gupta Efficiency), robust M‑estimators, and hydrograph‑based functionals such as flow‑duration and recession curves. Importantly, they provide analytic derivatives for the non‑linear NSE and KGE metrics, which have previously required numerical approximations.

The framework eliminates the step‑size dependence and stochastic noise inherent to finite‑difference (FD) approximations, and avoids the substantial memory and computational overhead of reverse‑mode automatic differentiation (AD) libraries such as JAX, PyTorch, or TensorFlow. Because the sensitivity equations are derived directly from the physical model, the resulting Jacobian is physically interpretable and can be embedded into existing hydrologic code without rewriting the model in a differentiable‑programming environment.

The authors evaluate the method on three widely used conceptual watershed models: HBV, the Sacramento Soil Moisture Accounting model, and the Xinanjiang model. They compare analytic Jacobians and gradients against those obtained via FD and AD. Results show that the analytic approach is 30–50 % faster than AD, uses far less memory, and yields gradients accurate to machine precision (≈10⁻⁸). In calibration experiments using steepest‑descent, Gauss‑Newton, and Levenberg‑Marquardt optimizers, the analytic gradients lead to 3–5× fewer iterations to converge compared with traditional derivative‑free global search (e.g., SCE‑UA) followed by local refinement. Moreover, when employing Bayesian inference, the analytic sensitivities enable score‑based likelihood formulations and sandwich‑adjusted posterior estimates within a single MCMC run.

Beyond calibration, the paper discusses how parameter transformations (log, log‑odds) are naturally incorporated into the Jacobian, facilitating bounded optimization. The authors also outline potential extensions to real‑time data assimilation, large‑scale basin modeling, and hybrid physics‑machine‑learning systems, where the transparent, first‑principles‑based gradients can improve interpretability and computational tractability.

In summary, this work bridges classic numerical sensitivity analysis with modern differentiable modeling, delivering a transparent, fast, and robust tool for gradient‑based parameter estimation and uncertainty quantification in conceptual hydrologic models, without reliance on heavyweight automatic‑differentiation frameworks.
