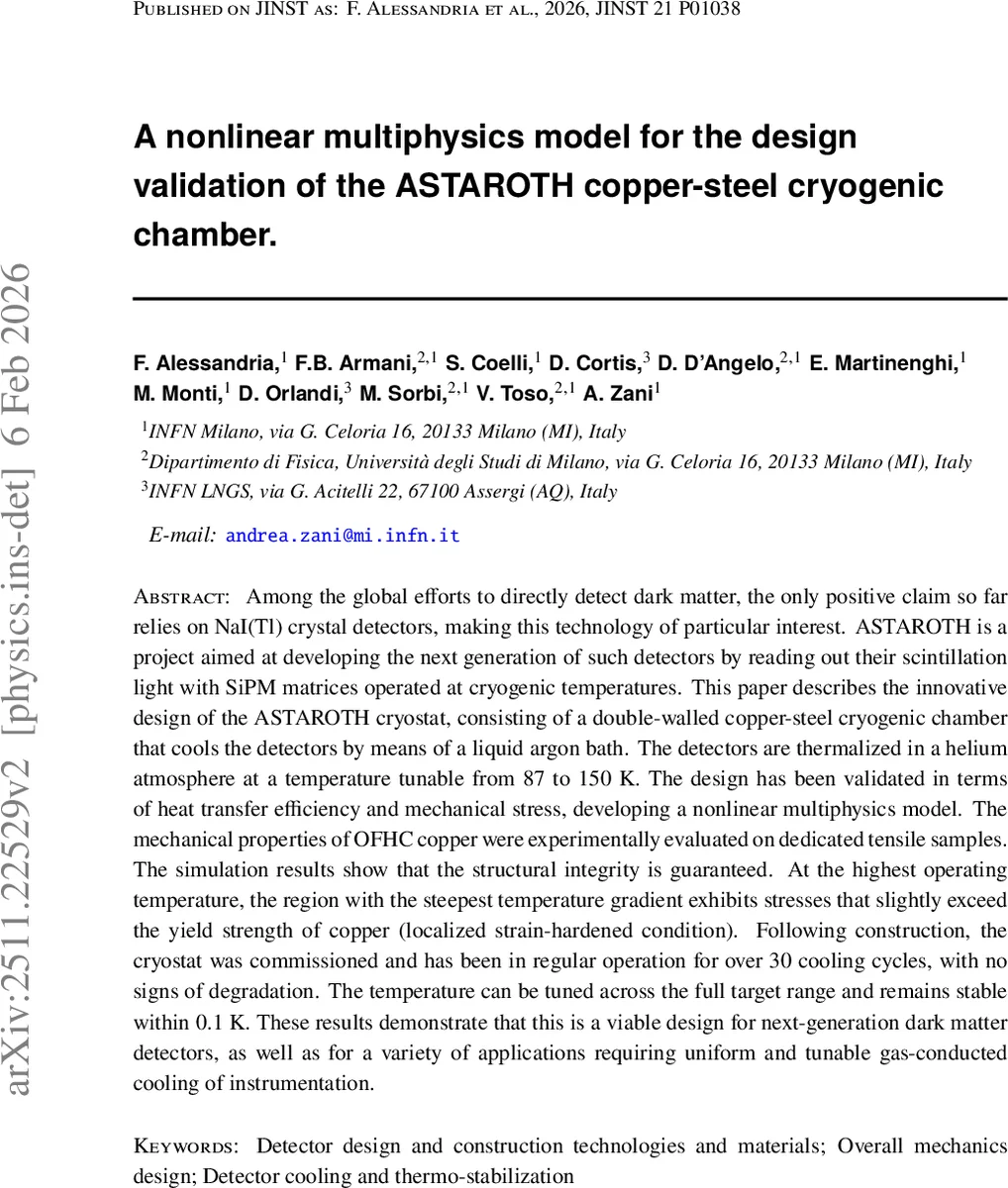

A nonlinear multiphysics model for the design validation of the ASTAROTH copper-steel cryogenic chamber

Among the global efforts to directly detect dark matter, the only positive claim so far relies on NaI(Tl) crystal detectors, making this technology of particular interest. ASTAROTH is a project aimed at developing the next generation of such detectors by reading out their scintillation light with SiPM matrices operated at cryogenic temperatures. This paper describes the innovative design of the ASTAROTH cryostat, consisting of a double-walled copper-steel cryogenic chamber that cools the detectors by means of a liquid argon bath. The detectors are thermalized in a helium atmosphere at a temperature tunable from 87 to 150 K. The design has been validated in terms of heat transfer efficiency and mechanical stress, developing a nonlinear multiphysics model. The mechanical properties of OFHC copper were experimentally evaluated on dedicated tensile samples. The simulation results show that the structural integrity is guaranteed. At the highest operating temperature, the region with the steepest temperature gradient exhibits stresses that slightly exceed the yield strength of copper (localized strain-hardened condition). Following construction, the cryostat was commissioned and has been in regular operation for over 30 cooling cycles, with no signs of degradation. The temperature can be tuned across the full target range and remains stable within 0.1 K. These results demonstrate that this is a viable design for next-generation dark matter detectors, as well as for a variety of applications requiring uniform and tunable gas-conducted cooling of instrumentation.

💡 Research Summary

The paper presents a comprehensive design, simulation, and experimental validation of a double‑walled copper‑steel cryogenic chamber developed for the ASTAROTH project, which aims to advance NaI(Tl) dark‑matter detectors by reading out scintillation light with silicon photomultiplier (SiPM) matrices operated at cryogenic temperatures. The chamber consists of two concentric OFHC copper cylinders forming the inner wall and two concentric AISI 316 L stainless‑steel cylinders forming the outer wall. The copper‑steel interface is realized by high‑vacuum brazing, and a dedicated “thermal bridge” provides a controlled conductive path between the liquid‑argon (LAr) bath and the inner volume. The inner volume is filled with dry helium at 100 mbar to ensure uniform gas‑conducted cooling while avoiding condensation.

Key design requirements are: (1) uniform cooling of up to two 50 mm NaI(Tl) crystals within the 87 K–150 K range, (2) temporal temperature gradients below 20 K h⁻¹ and spatial gradients below 1 K, and (3) temperature stability better than 0.1 K during data‑taking. To meet these, the chamber incorporates five thin disks along the chimney to suppress convective loops, a 150 W resistive heater with PID control for fine temperature tuning, and a set of UHV feed‑throughs for sensor read‑out and gas handling.

Thermal and mechanical properties of the materials were gathered from literature, databases, and dedicated tensile tests on copper samples taken from the production batch. The copper specimens were annealed at 850 °C for five hours before testing, revealing a range of yield strengths due to batch variability; the measured values were used to define a strain‑hardening material model. Temperature‑dependent thermal conductivity and expansion coefficients for both copper and steel were implemented in ANSYS Workbench.

A coupled nonlinear multiphysics model (thermal‑structural) was built. Thermal analysis showed that radiative heat exchange between the walls is 60–100 times smaller than conductive heat transfer through the bridge, justifying its neglect. The model predicts a temperature difference of up to ~70 K across the bridge at the highest operating temperature (150 K), leading to localized von Mises stresses that marginally exceed the nominal yield strength of OFHC copper. However, the strain‑hardening behavior observed experimentally raises the effective yield limit, and the stress distribution is sufficiently spread to avoid plastic deformation.

The chamber was commissioned and operated for more than 30 cooling cycles, initially using liquid nitrogen for convenience and later liquid argon for physics runs. Throughout these cycles the temperature could be tuned across the full 87–150 K range and remained stable within ±0.05 K. No mechanical degradation, brazing joint failure, or material fatigue was observed, confirming the robustness of the design. The system also demonstrated flexibility for other applications, such as characterizing electronic components, circuit boards, and integrated circuits over a broad temperature range without the thermal conduction issues typical of cold‑head setups.

In conclusion, the authors successfully validated a sophisticated cryogenic chamber through a rigorous nonlinear multiphysics approach, experimental material characterization, and long‑term operational testing. The work establishes a reliable platform for next‑generation NaI(Tl) dark‑matter detectors and provides a transferable methodology for any instrumentation requiring uniform, tunable, gas‑conducted cooling in the 80–150 K regime. Future developments will focus on optimizing the thermal bridge geometry, refining helium flow control algorithms, and extending durability tests to further increase confidence for large‑scale deployments.
