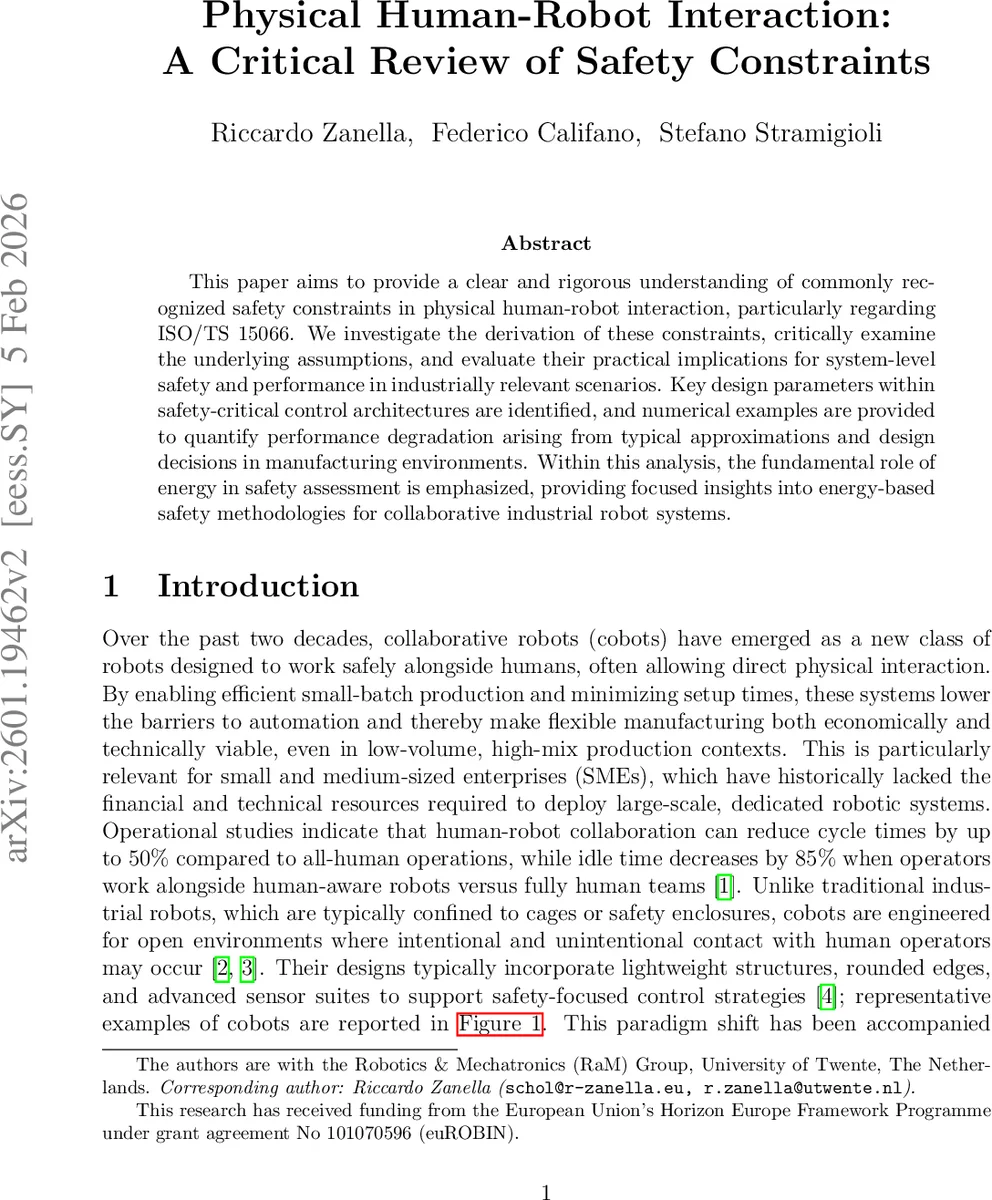

Physical Human-Robot Interaction: A Critical Review of Safety Constraints

This paper aims to provide a clear and rigorous understanding of commonly recognized safety constraints in physical human-robot interaction, particularly regarding ISO/TS 15066. We investigate the derivation of these constraints, critically examine the underlying assumptions, and evaluate their practical implications for system-level safety and performance in industrially relevant scenarios. Key design parameters within safety-critical control architectures are identified, and numerical examples are provided to quantify performance degradation arising from typical approximations and design decisions in manufacturing environments. Within this analysis, the fundamental role of energy in safety assessment is emphasized, providing focused insights into energy-based safety methodologies for collaborative industrial robot systems.

💡 Research Summary

The paper provides a rigorous, mathematics‑driven examination of the safety constraints that underpin physical human‑robot interaction (pHRI) as defined in ISO/TS 15066, with a particular focus on the Power and Force Limiting (PFL) mode. After outlining the industrial motivation for collaborative robots—especially for SMEs seeking flexible, low‑volume production—the authors trace the evolution of safety standards from ISO 10218‑2 to the more recent technical specification ISO/TS 15066. They emphasize that safety in pHRI is an emergent property that depends not only on robot behavior but also on task, environment, and human variability.

The core contribution is a step‑by‑step derivation of the operational limits on robot motion from human biomechanical pain and injury thresholds. Human tissue is modeled as a linear elastic spring with stiffness k, while the robot and the impacted body region are represented as lumped masses m_R and m_H. By applying conservation of energy to the impact, the authors obtain the maximum permissible elastic potential energy E_max = ½ k Δx², where Δx is the allowable tissue deformation. This energy bound is directly linked to the quasi‑static force/pressure limits reported in the FP‑0317 algometry study and the DGUV/BGIA recommendations. To extend these static limits to transient contacts (duration < 0.5 s), ISO/TS 15066 introduces a scaling factor (typically a factor of two), reflecting the higher tolerance of human tissue to short‑duration loads. Consequently, the allowable robot speed is derived as

 v* = √(2 E_max / m_R),

which varies with the specific body region (through k and the force/pressure limit), robot mass, and the chosen scaling factor.

The paper critically examines the assumptions embedded in this derivation: (i) linear elasticity neglects the visco‑elastic and non‑linear behavior of real tissues; (ii) a fixed impact duration and constant masses ignore the diversity of real‑world collisions; (iii) the underlying human data are limited to 100 healthy adults, omitting age, gender, and pathology effects. To quantify the impact of these simplifications, the authors present a simulation with m_R = 3 kg, m_H = 1 kg, k = 5 N/m, and an initial robot velocity of 1 m/s. The results show a peak compression after 0.6 s, with both masses reaching a common velocity of approximately 0.75 m/s. Sensitivity analysis reveals that doubling the stiffness reduces the permissible speed by a factor of √2, while lowering the scaling factor from 2 to 1.5 raises the probability of exceeding injury thresholds by over 30 %.

Beyond the derivation, the authors argue that energy‑based safety metrics provide an intuitive, physically meaningful way to monitor and modulate robot behavior in real time. However, they acknowledge that energy alone cannot capture contact‑area distribution, pressure gradients, or individual sensory differences; thus, they advocate for multimodal sensing (force/torque sensors, pressure mats, vision) to complement energy monitoring.

The paper also compiles a design‑parameter checklist that directly influences safety margins and task efficiency: tissue stiffness k, body‑region specific force/pressure limits, impact duration, robot mass and inertia, and sensor accuracy. Using this checklist, they demonstrate that a modest 10 % increase in safety margin typically incurs a 12 % rise in cycle time, highlighting the inherent trade‑off between risk mitigation and productivity.

Finally, the authors propose future research directions: (1) developing non‑linear, subject‑specific tissue models; (2) building large, diverse databases of biomechanical thresholds; (3) integrating energy‑based constraints with existing distance‑ and speed‑monitoring safety functions in a hybrid control architecture; and (4) creating systematic validation protocols that bridge the gap between standard‑specified static limits and dynamic industrial scenarios.

In summary, the paper demystifies how ISO/TS 15066’s safety constraints are mathematically derived, exposes the limitations of the underlying assumptions, quantifies their effect on robot performance, and offers concrete guidance for engineers seeking to design safe yet efficient collaborative robotic systems.
