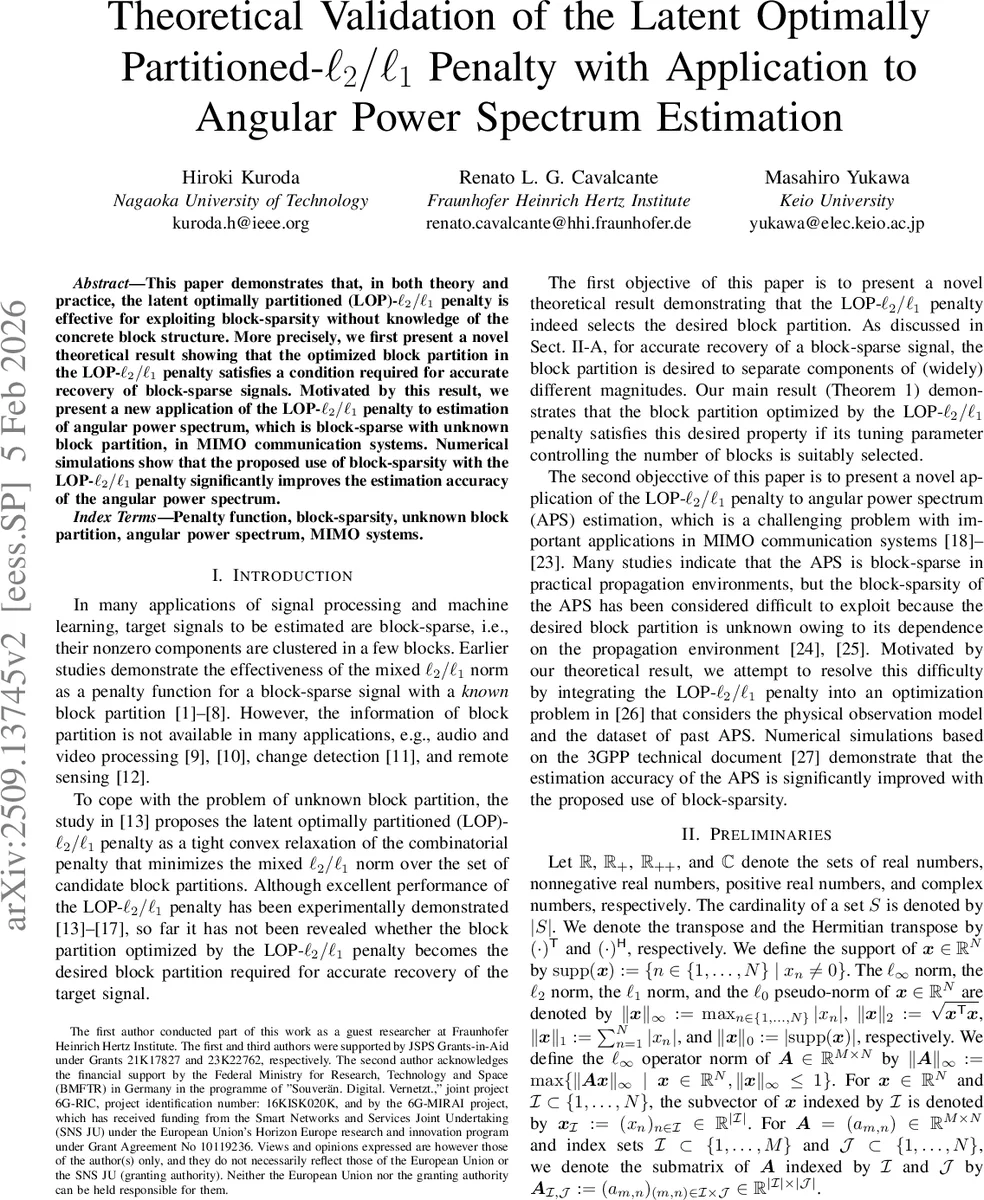

Theoretical Validation of the Latent Optimally Partitioned-$ll_2/ll_1$ Penalty with Application to Angular Power Spectrum Estimation

This paper demonstrates that, in both theory and practice, the latent optimally partitioned (LOP)-$\ell_2/\ell_1$ penalty is effective for exploiting block-sparsity without knowledge of the concrete block structure. More precisely, we first present a novel theoretical result showing that the optimized block partition in the LOP-$\ell_2/\ell_1$ penalty satisfies a condition required for accurate recovery of block-sparse signals. Motivated by this result, we present a new application of the LOP-$\ell_2/\ell_1$ penalty to estimation of angular power spectrum, which is block-sparse with unknown block partition, in MIMO communication systems. Numerical simulations show that the proposed use of block-sparsity with the LOP-$\ell_2/\ell_1$ penalty significantly improves the estimation accuracy of the angular power spectrum.

💡 Research Summary

This paper addresses a fundamental challenge in block‑sparse signal recovery: the block partition is often unknown, yet most existing regularizers (e.g., the mixed ℓ₂/ℓ₁ norm) require a predefined partition to be effective. The authors focus on the latent optimally partitioned (LOP) ℓ₂/ℓ₁ penalty, originally introduced as a tight convex relaxation of a combinatorial penalty that minimizes the mixed ℓ₂/ℓ₁ norm over all possible partitions. While previous works demonstrated its empirical success, no theoretical guarantee existed that the LOP‑ℓ₂/ℓ₁ penalty actually selects the “desired” partition—one that groups components of similar magnitude while separating blocks with markedly different scales.

The paper’s first major contribution is a rigorous theoretical analysis. By reformulating the constrained definition of the LOP‑ℓ₂/ℓ₁ penalty into an unconstrained Lagrangian form, the authors derive sufficient conditions under which the penalty reduces exactly to a weighted mixed ℓ₂/ℓ₁ norm built on a partition that satisfies two intuitive criteria: (i) adjacent blocks have distinct standard deviations, and (ii) within each block the magnitudes are close to the block’s standard deviation. Theorem 1 formalizes this result, showing that for any signal x and any positive tuning parameter α, if the associated Lagrange multiplier βₐ is chosen ≤ ¼, there exist latent variables σ̂, η̂, and an index set Î that satisfy a set of implicit equations. Under these conditions the LOP‑ℓ₂/ℓ₁ value ψₐ(x) equals Σₖ wₖ*‖x_{Bₖ*}‖₂, where Bₖ* are the desired blocks and wₖ* are weights that converge to the conventional √|Bₖ| when βₐ is small. The authors provide intuitive remarks explaining why the conditions are naturally met when the signal exhibits the two criteria above, and they discuss the existence of the required latent variables, showing they can be constructed from any candidate partition when βₐ is sufficiently small.

Motivated by this theoretical guarantee, the second contribution applies the LOP‑ℓ₂/ℓ₁ penalty to angular power spectrum (APS) estimation in MIMO wireless systems. The APS, defined on a discretized angle grid, is known to be block‑sparse in realistic propagation environments, but the block boundaries depend on the unknown scattering geometry. The authors formulate the APS estimation problem as a linear inverse problem using the sample channel covariance matrix and incorporate a dataset of past APS realizations as a prior. They embed the LOP‑ℓ₂/ℓ₁ penalty (in a Generalized Moreau‑Enhanced version for algorithmic stability) into the objective, thereby allowing the optimizer to discover the appropriate block structure automatically.

Simulation studies based on the 3GPP 3‑D channel model evaluate the proposed method against standard ℓ₁, group ℓ₂/ℓ₁, and least‑squares baselines. Experiments vary the number of antennas (8–64) and the number of channel snapshots, reflecting both large‑array and small‑array regimes. Results show a consistent NMSE improvement of 3–7 dB over the baselines, with the most pronounced gains in the small‑array, limited‑sample scenario where exploiting block sparsity is most critical. The performance boost is attributed to the LOP‑ℓ₂/ℓ₁ penalty’s ability to avoid under‑estimation of large‑magnitude components within heterogeneous blocks and to merge blocks that share similar statistical properties.

In conclusion, the paper delivers (i) a novel theoretical validation that the LOP‑ℓ₂/ℓ₁ penalty indeed recovers the optimal block partition under mild conditions, (ii) a practical algorithm that leverages this property for APS estimation, and (iii) empirical evidence of substantial performance gains in realistic MIMO settings. The analysis also offers guidance on selecting the tuning parameters α and βₐ, paving the way for broader application of LOP‑ℓ₂/ℓ₁ regularization to other domains where block sparsity is present but the block layout is unknown. Future work may explore adaptive tuning of βₐ, extensions to nonlinear observation models, and real‑time hardware implementations.
