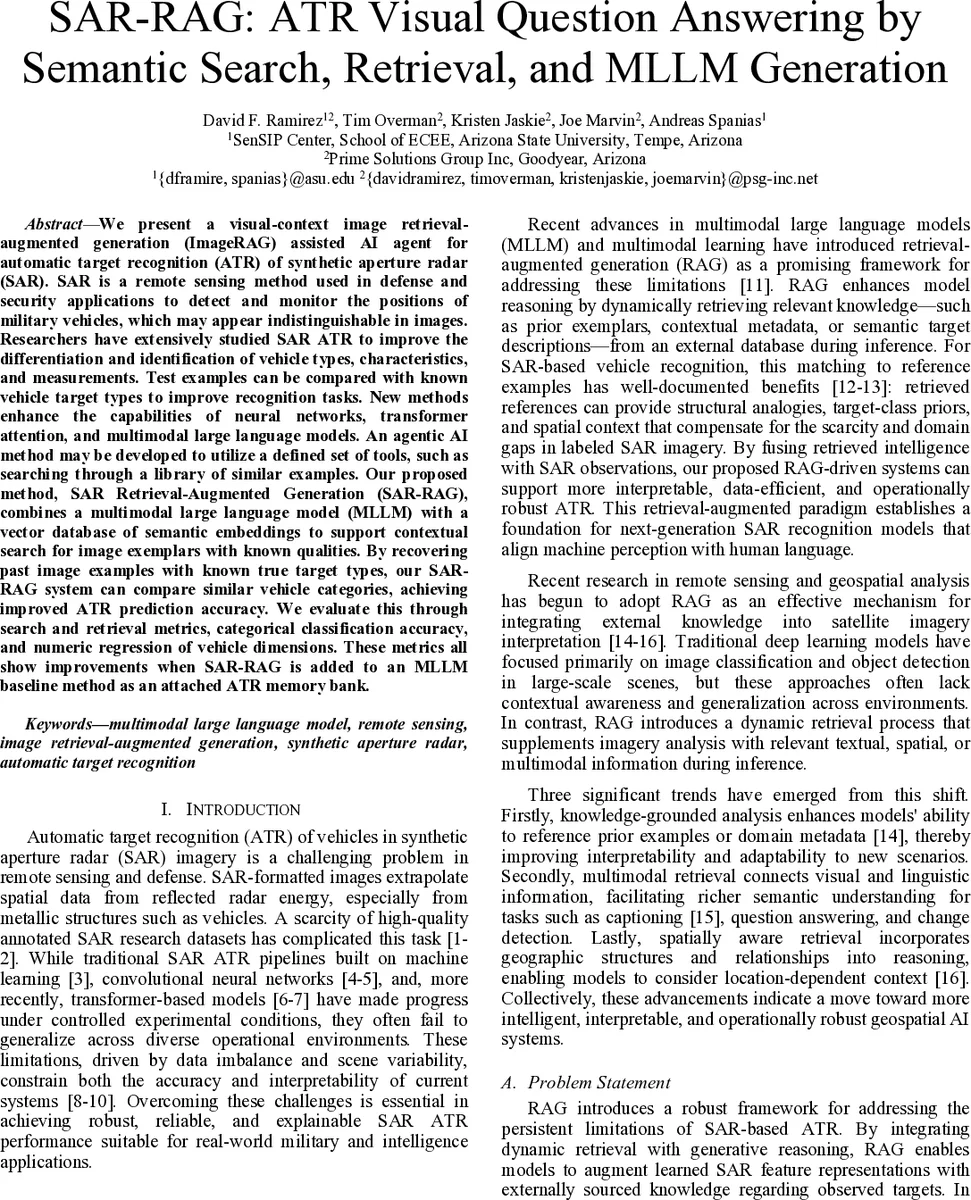

SAR-RAG: ATR Visual Question Answering by Semantic Search, Retrieval, and MLLM Generation

We present a visual-context image retrieval-augmented generation (ImageRAG) assisted AI agent for automatic target recognition (ATR) of synthetic aperture radar (SAR). SAR is a remote sensing method used in defense and security applications to detect and monitor the positions of military vehicles, which may appear indistinguishable in images. Researchers have extensively studied SAR ATR to improve the differentiation and identification of vehicle types, characteristics, and measurements. Test examples can be compared with known vehicle target types to improve recognition tasks. New methods enhance the capabilities of neural networks, transformer attention, and multimodal large language models. An agentic AI method may be developed to utilize a defined set of tools, such as searching through a library of similar examples. Our proposed method, SAR Retrieval-Augmented Generation (SAR-RAG), combines a multimodal large language model (MLLM) with a vector database of semantic embeddings to support contextual search for image exemplars with known qualities. By recovering past image examples with known true target types, our SAR-RAG system can compare similar vehicle categories, achieving improved ATR prediction accuracy. We evaluate this through search and retrieval metrics, categorical classification accuracy, and numeric regression of vehicle dimensions. These metrics all show improvements when SAR-RAG is added to an MLLM baseline method as an attached ATR memory bank.

💡 Research Summary

The paper introduces SAR‑RAG, a Retrieval‑Augmented Generation (RAG) framework designed to boost Automatic Target Recognition (ATR) performance on Synthetic Aperture Radar (SAR) imagery. Recognizing that SAR images exhibit speckle noise, anisotropic back‑scattering, and a scarcity of annotated data, the authors combine a domain‑adapted vision encoder, a multimodal vector database, and a large multimodal language model (MLLM) to create a dynamic “memory bank” of past SAR exemplars.

Methodology

1. SAR‑specific visual encoder – A variant of the Qwen2 vision‑language transformer is fine‑tuned on the MSTAR dataset, learning radar‑specific features while preserving semantic similarity. This encoder maps each SAR chip to a high‑dimensional embedding that captures structural and scattering characteristics.
2. Hybrid vector store – Image embeddings and rich metadata (vehicle type, depression/azimuth angles, weight, dimensions, etc.) are indexed in a Qdrant vector database. The hybrid indexing enables both content‑based similarity search and context‑aware filtering (e.g., matching acquisition angles).
3. Retrieval‑augmented generation – At inference, a query image or natural‑language question is encoded, and the most similar k exemplars are retrieved. The retrieved visual evidence and associated textual descriptors are injected into the prompt of LLaVA‑Next v1.6 (Mistral‑7B) – the chosen MLLM. The model then generates answers grounded in the retrieved cases, reducing hallucination and improving interpretability.
4. Continual learning loop – New SAR samples are periodically encoded and added to the database, while the MLLM is updated via parameter‑efficient adapters. This ensures the system retains prior knowledge while staying current with evolving sensor configurations and emerging vehicle classes.

Experiments
Using the widely adopted MSTAR benchmark (14,108 images across ten vehicle types), the authors split the data 50/50 for training and validation, repeating the split for robustness. Evaluation covers four aspects: retrieval accuracy, visual question answering (VQA), categorical classification, and regression of physical attributes.

• Retrieval: 1‑shot accuracy 77.7 % (baseline 2 %); 5‑shot precision 74.39 % (baseline 2 %).
• VQA: “Any Correct @5‑shot” 93.54 % vs. 69.44 % baseline; “All Correct @3‑shot” 61.58 % vs. 0.94 % baseline.
• Classification: vehicle type accuracy 99.24 % (baseline 99.04 %).
• Regression: weight MAE 0.428 t (baseline 0.530 t), dimension MAE 0.2639 m (baseline 0.33 m).

All metrics show statistically significant improvements, demonstrating that the retrieved exemplars provide valuable contextual priors that compensate for limited training data and domain shift.

Significance and Future Directions
SAR‑RAG showcases how RAG, originally popular in text‑centric AI, can be extended to radar remote sensing by integrating visual embeddings and domain‑specific metadata. The system offers a scalable, interpretable, and adaptable solution for defense and security applications where rapid adaptation to new platforms and sensor settings is critical. Future work may explore (i) multimodal fusion with other remote‑sensing modalities (multiband SAR, optical, thermal), (ii) real‑time streaming ingestion and online index updates, and (iii) human‑in‑the‑loop feedback to further enhance trustworthiness and operational readiness.
