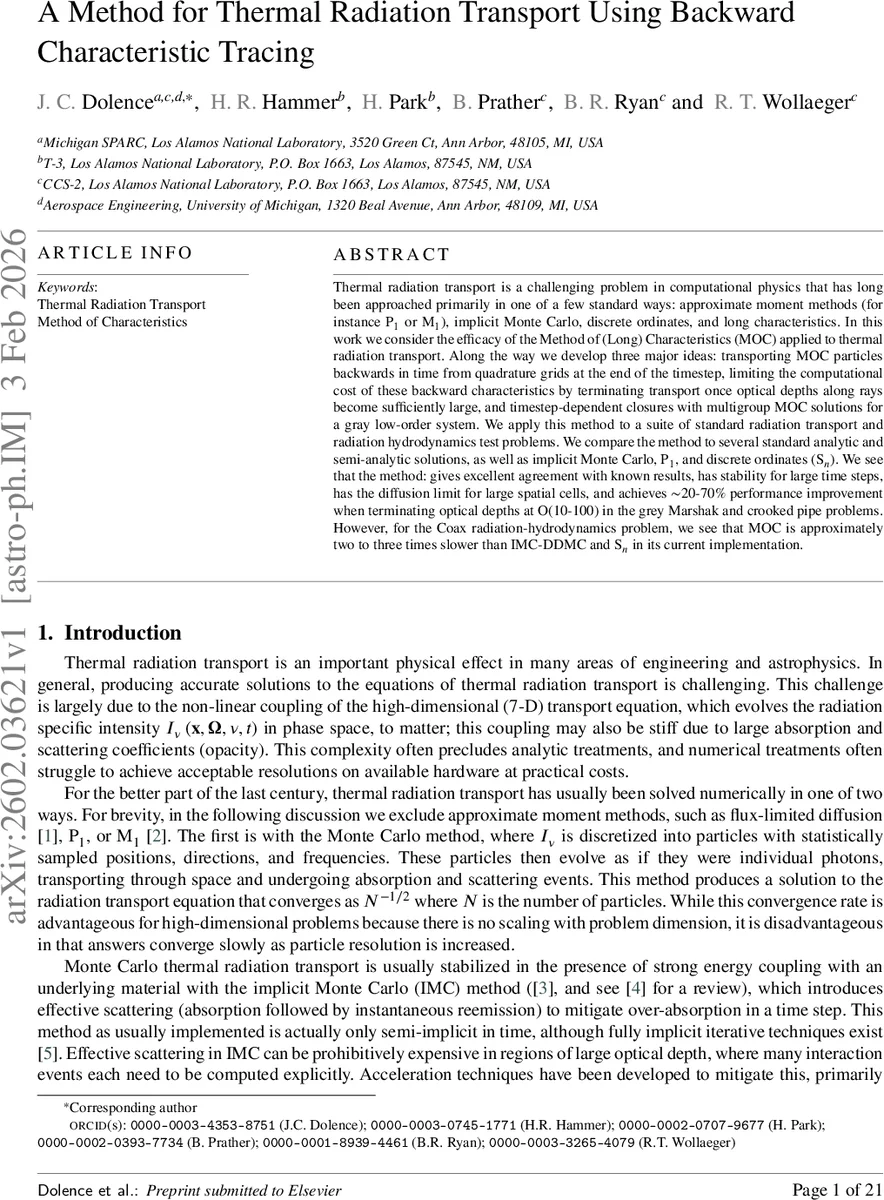

A Method for Thermal Radiation Transport Using Backward Characteristic Tracing

Thermal radiation transport is a challenging problem in computational physics that has long been approached primarily in one of a few standard ways: approximate moment methods (for instance P$_1$ or M$_1$), implicit Monte Carlo, discrete ordinates, and long characteristics. In this work we consider the efficacy of the Method of (Long) Characteristics (MOC) applied to thermal radiation transport. Along the way we develop three major ideas: transporting MOC particles backwards in time from quadrature grids at the end of the timestep, limiting the computational cost of these backward characteristics by terminating transport once optical depths along rays become sufficiently large, and timestep-dependent closures with multigroup MOC solutions for a gray low-order system. We apply this method to a suite of standard radiation transport and radiation hydrodynamics test problems. We compare the method to several standard analytic and semi-analytic solutions, as well as implicit Monte Carlo, P$_1$, and discrete ordinates (S$_n$). We see that the method: gives excellent agreement with known results, has stability for large time steps, has the diffusion limit for large spatial cells, and achieves $\sim$20-70% performance improvement when terminating optical depths at O(10-100) in the grey Marshak and crooked pipe problems. However, for the Coax radiation-hydrodynamics problem, we see that MOC is approximately two to three times slower than IMC-DDMC and S$_n$ in its current implementation.

💡 Research Summary

The paper introduces a novel implementation of the Method of (Long) Characteristics (MOC) for solving the thermal radiation transport equation, addressing long‑standing challenges in accuracy, stability, and computational cost. Traditional approaches—moment methods (P₁, M₁), Implicit Monte Carlo (IMC), discrete ordinates (Sₙ), and forward‑time long characteristics—each have specific drawbacks: moment methods struggle in optically thin regimes, IMC suffers from high cost in large‑optical‑depth regions, and Sₙ suffers from ray effects and memory intensity. The authors propose three key innovations to overcome these limitations.

First, they introduce a backward‑in‑time characteristic tracing strategy. At the end of each time step, particles (or “characteristic samples”) are placed on a quadrature grid at mesh nodes rather than cell centers. These particles are then traced backward in time along discrete ordinates to reconstruct the intensity at the beginning of the time step. This approach mirrors adjoint transport methods, ensuring that the intensity is evaluated precisely at the desired space‑time point and allowing a clean quadrature representation at the end of each step.

Second, they terminate characteristic tracing early once the accumulated optical depth along a ray exceeds a prescribed threshold (typically τ≈10–100). Because intensity decays exponentially with optical depth, contributions beyond this point are negligible. Early termination dramatically reduces the number of ray‑cell intersections that must be processed, cutting computational expense without compromising physical fidelity. The authors demonstrate that this “optical‑depth cut‑off” yields 20–70 % speed‑ups in the gray Marshak wave and crooked‑pipe benchmarks.

Third, they couple the high‑order MOC solution to a gray low‑order (LO) moment system for radiation energy density (E) and flux (F). The LO system consists of the frequency‑averaged energy and momentum equations (Eqs. 8–9) discretized with a second‑order finite‑volume scheme. Closure is achieved by extracting normalized Eddington tensors and opacity averages from the high‑order (HO) intensity field. Importantly, the LO variables are treated as the true physical quantities, while the HO solution provides only the necessary closure coefficients (pressure tensor, averaged opacities). No artificial consistency terms are added; physical source terms (emission, absorption, scattering, material‑motion corrections) naturally drive both HO and LO toward a common equilibrium, and any residual discrepancy is merely truncation error.

The implementation leverages the existing Jayenne transport library, originally built for IMC. This reuse provides particle handling, adaptive mesh refinement (AMR), and MPI‑based domain decomposition. Particles store full multigroup spectra and optical depths, enabling straightforward extension to multigroup problems. The backward‑in‑time integration avoids exponential growth of intensity (which would cause floating‑point overflow) because the equations are integrated in the direction of attenuation.

The authors validate the method on three canonical test problems:

1. Gray Marshak Wave – a classic diffusion‑dominated benchmark. The backward‑MOC reproduces the analytic solution with high fidelity and, when the optical‑depth cut‑off is applied, achieves a 20–70 % reduction in runtime compared with forward MOC and matches IMC and Sₙ results.

2. Crooked Pipe – a geometry with sharp corners and varying optical thickness. Again, the method maintains accuracy while the cut‑off yields substantial speed‑ups, demonstrating robustness to complex spatial configurations.

3. Coaxial Radiation‑Hydrodynamics (Coax) Problem – a demanding radiation‑hydrodynamics scenario coupling strong material motion with radiation. Here, the current implementation of backward‑MOC is 2–3× slower than state‑of‑the‑art IMC‑DDMC or Sₙ. The authors attribute this to the high cost of tracing many characteristics in regions of strong coupling and the need for more sophisticated acceleration or hybridization.

Overall, the paper shows that backward characteristic tracing combined with an optical‑depth termination criterion provides a stable, diffusion‑consistent, and computationally efficient alternative to existing methods for many thermal radiation transport problems. The method retains the exactness of long characteristics within each cell (piecewise‑constant source assumption) while gaining the flexibility of particle‑based infrastructure. Limitations are acknowledged: performance degrades in highly coupled radiation‑hydrodynamics cases, and the current spatial discretization is limited to linear finite elements. Future work suggested includes higher‑order spatial elements, adaptive selection of the optical‑depth threshold, and tighter HO‑LO coupling (e.g., HOLO‑style feedback loops) to improve performance on the Coax benchmark.

In conclusion, this work makes a significant contribution by re‑imagining the Method of Characteristics through a backward‑in‑time lens, offering a practical path toward accurate, stable, and faster thermal radiation transport simulations, especially in regimes where optical depth varies widely and large time steps are desirable.
