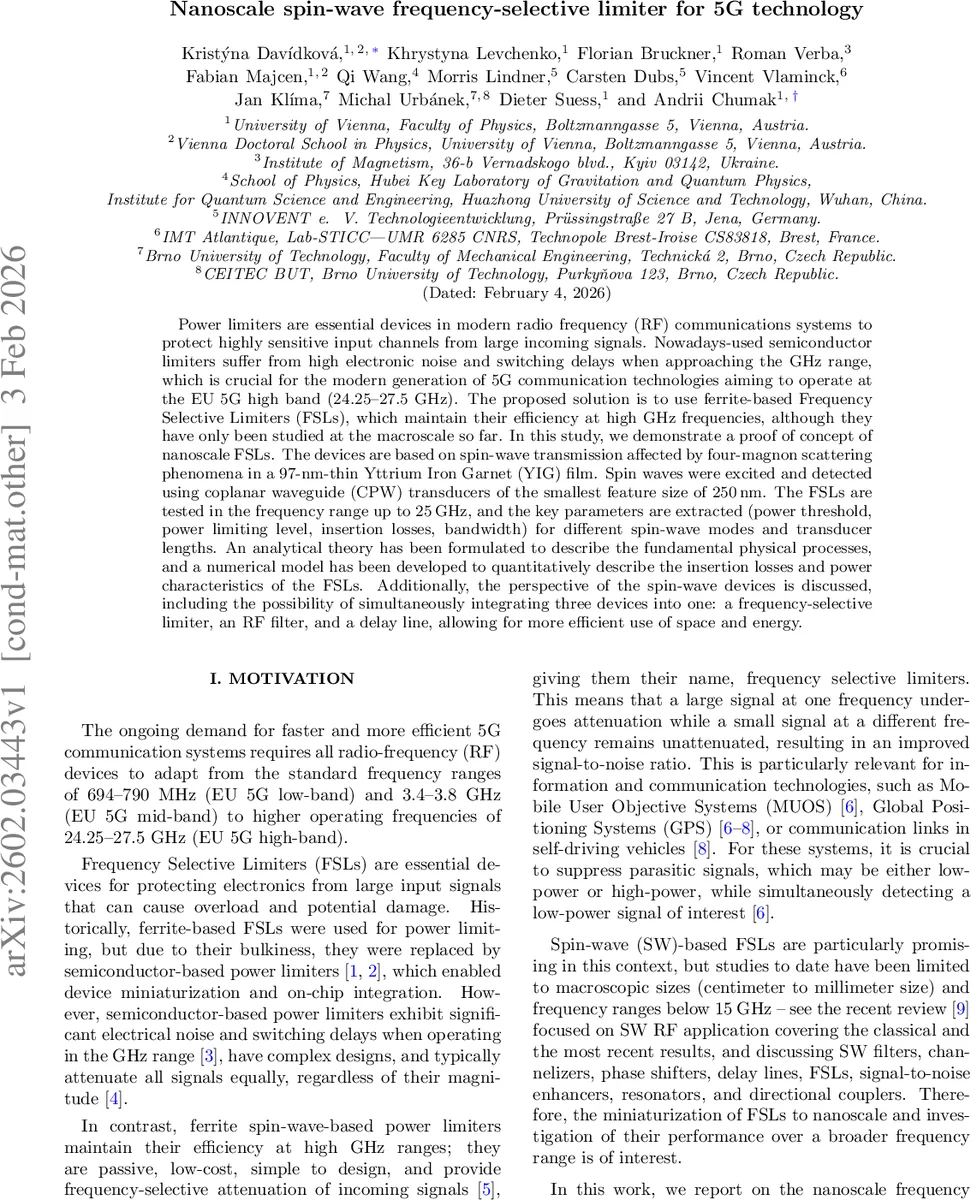

Nanoscale spin-wave frequency-selective limiter for 5G technology

Power limiters are essential devices in modern radio frequency (RF) communications systems to protect highly sensitive input channels from large incoming signals. Nowadays-used semiconductor limiters suffer from high electronic noise and switching delays when approaching the GHz range, which is crucial for the modern generation of 5G communication technologies aiming to operate at the EU 5G high band (24.25-27.5 GHz). The proposed solution is to use ferrite-based Frequency Selective Limiters (FSLs), which maintain their efficiency at high GHz frequencies, although they have only been studied at the macroscale so far. In this study, we demonstrate a proof of concept of nanoscale FSLs. The devices are based on spin-wave transmission affected by four-magnon scattering phenomena in a 97-nm-thin Yttrium Iron Garnet (YIG) film. Spin waves were excited and detected using coplanar waveguide (CPW) transducers of the smallest feature size of 250 nm. The FSLs are tested in the frequency range up to 25 GHz, and the key parameters are extracted (power threshold, power limiting level, insertion losses, bandwidth) for different spin-wave modes and transducer lengths. An analytical theory has been formulated to describe the fundamental physical processes, and a numerical model has been developed to quantitatively describe the insertion losses and power characteristics of the FSLs. Additionally, the perspective of the spin-wave devices is discussed, including the possibility of simultaneously integrating three devices into one: a frequency-selective limiter, an RF filter, and a delay line, allowing for more efficient use of space and energy.

💡 Research Summary

The paper presents a proof‑of‑concept nanoscale frequency‑selective limiter (FSL) based on spin‑wave (magnon) transmission in a 97 nm‑thick yttrium iron garnet (YIG) film, targeting the high‑band 5G spectrum (24.25–27.5 GHz). Using electron‑beam lithography, the authors fabricated coplanar waveguide (CPW) transducers with a minimum feature size of 250 nm, widths of 250 nm, and inter‑line spacing of 750 nm. Two transducer lengths (10 µm and 100 µm) were realized to explore the influence of geometry on performance. The devices were tested at three representative frequencies—4 GHz (mid‑band), 9 GHz, and 25 GHz (high‑band)—for both Damon‑Eshbach (DE) and Backward‑Volume (BV) spin‑wave modes under appropriate in‑plane bias fields.

Measurements were performed with a vector network analyzer (VNA) and picoprobe contacts, allowing the extraction of the complex transmission parameter S21. By subtracting a reference measurement (detuned magnetic field) the authors isolated the pure spin‑wave contribution from electromagnetic cross‑talk. The resulting power‑transfer curves display a clear nonlinear behavior: below a power threshold (Pth) the output follows the input, while above Pth the spin‑wave signal is strongly attenuated due to four‑magnon scattering, leading to a nearly constant output power (the limiting level PL). The threshold and limiting levels were quantified for each frequency, mode, and transducer length. Notably, at 25 GHz the limiter exhibits a ~5 dB variation around PL, while insertion losses remain modest (2–4 dB). Shorter transducers reduce Pth but slightly increase insertion loss, highlighting a design trade‑off.

The underlying physics is modeled analytically as a four‑magnon scattering process that conserves energy and momentum, redistributing magnons from the driven mode (frequency f) into two secondary magnons at f/2 with different wavevectors, preventing them from reaching the detection transducer. A numerical simulation based on the nonlinear Landau‑Lifshitz‑Gilbert equation reproduces the experimental Pth, PL, bandwidth, and loss values, providing a predictive tool for device optimization.

Beyond limiting, the authors discuss the possibility of integrating filtering and delay‑line functions within the same YIG platform, exploiting the intrinsic dispersion and low damping of YIG to achieve narrow‑band filtering and picosecond‑scale group delays. This multifunctionality could dramatically reduce the footprint and power consumption of 5G front‑end modules.

Future work is suggested in three directions: (1) further thinning of YIG (≤50 nm) to lower Pth, (2) engineering of transducer geometry to minimize electromagnetic leakage and enhance current density, and (3) development of CMOS‑compatible fabrication routes for large‑scale integration. Overall, the study demonstrates that nanoscale magnonic devices can provide low‑noise, high‑frequency, and frequency‑selective power limiting, offering a compelling alternative to semiconductor limiters for next‑generation wireless communications.
