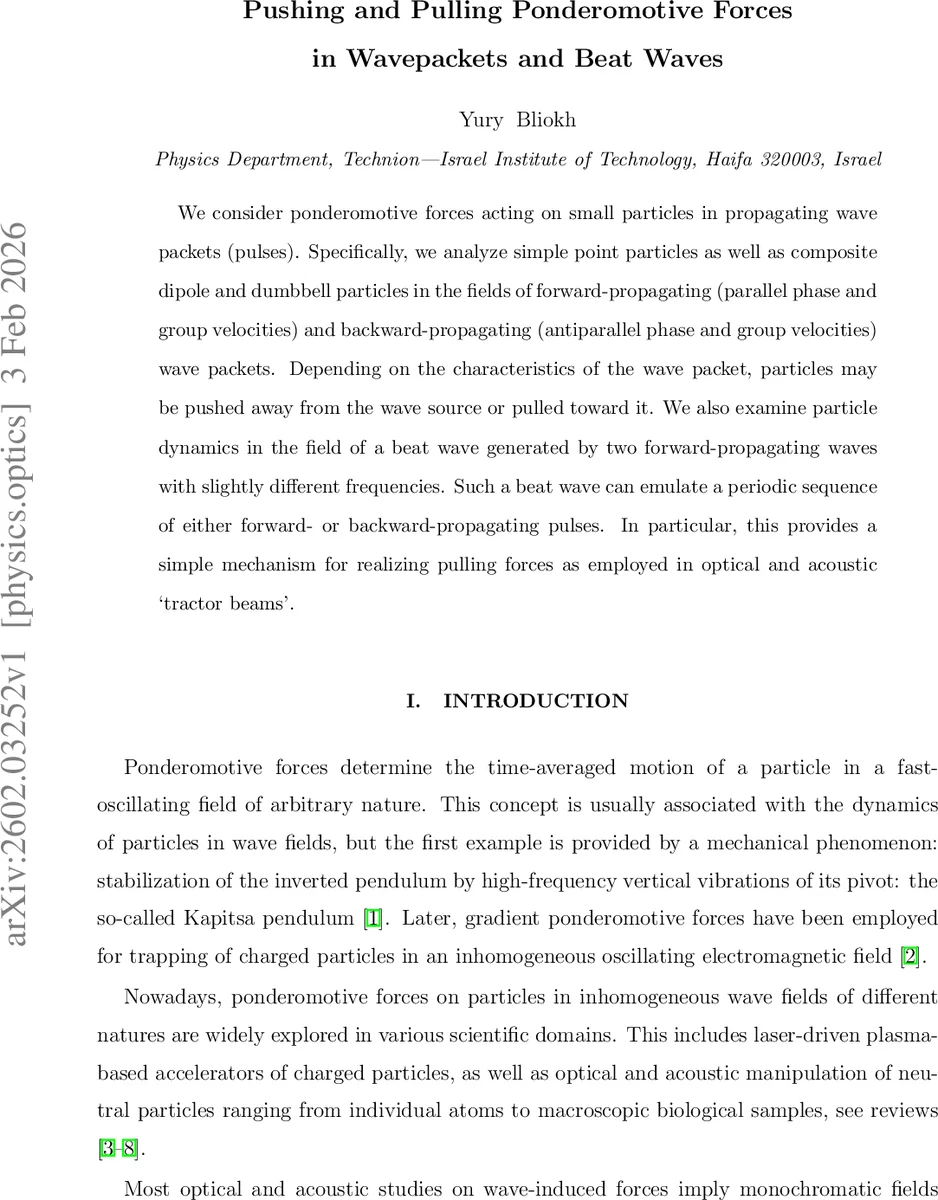

Pushing and Pulling Ponderomotive Forces in Wavepackets and Beat Waves

We consider ponderomotive forces acting on small particles in propagating wave packets (pulses). Specifically, we analyze simple point particles as well as composite dipole and dumbbell particles in the fields of forward-propagating (parallel phase and group velocities) and backward-propagating (antiparallel phase and group velocities) wave packets. Depending on the characteristics of the wave packet, particles may be pushed away from the wave source or pulled toward it. We also examine particle dynamics in the field of a beat wave generated by two forward-propagating waves with slightly different frequencies. Such a beat wave can emulate a periodic sequence of either forward- or backward-propagating pulses. In particular, this provides a simple mechanism for realizing pulling forces as employed in optical and acoustic `tractor beams'.

💡 Research Summary

The paper presents a systematic theoretical study of ponderomotive forces acting on small particles in propagating wave packets (pulses) and in beat waves formed by two slightly detuned forward‑propagating waves. Starting from a one‑dimensional quasi‑monochromatic pulse described by a slowly varying amplitude a(ξ,τ) multiplied by sin(τ−s ξ) (where s=sgn(k) denotes the relative orientation of phase and group velocities), the authors employ a perturbative approach that separates the particle motion into a fast oscillatory component and a slow averaged component. Averaging over the rapid oscillations yields a ponderomotive force
Fₚₒₙₙ = −¼(1+2 s η_g) d(a²)/d¯θ,
with η_g = v_g/v_ph the ratio of group to phase velocity. For forward‑propagating waves (s=+1) the force always points opposite to the amplitude gradient, i.e., in the direction of pulse propagation, pushing the particle forward. For backward‑propagating waves (s=−1) the sign of the force depends on η_g: if η_g<½ the particle is repelled, while for η_g>½ the particle is attracted toward the source. This reversal arises because the total derivative of the squared amplitude contains both spatial and temporal contributions that can change sign when phase and group velocities are antiparallel.

The analysis is then extended to composite particles consisting of two point masses linked by a massless rod. Three configurations are considered: (i) a dumbbell with equal “charges” (σ=+1), (ii) a permanent dipole with opposite charges (σ=−1), and (iii) an induced dipole whose rod length is proportional to the local field (σ=−1, d=αF). Translational motion of the centre of mass follows the same averaged equation as a point particle, but rotational dynamics introduces new effects. For the dumbbell, the averaged rotation obeys
d²¯φ/dτ² = −¼ a²(¯θ) sin2¯φ(1+cos2¯φ),
which can be written as motion in a ponderomotive potential U(φ)=−¼ cos4φ. After the pulse passes, the dumbbell acquires a constant angular velocity, indicating simultaneous transfer of linear and angular momentum from the wave. For the permanent dipole, the rotation equation reduces to
d²¯φ/dτ² = −a² d² sin²¯φ,
identical to the Kapitza pendulum without gravity. Here the small‑parameter condition a₀≪d must hold; when a₀/d grows, the system exhibits increasingly nonlinear and eventually chaotic rotation, as confirmed by numerical simulations. The induced dipole case leads to a purely gradient force
d²¯ξ/dτ² = α⁴ da²/d¯ξ,
which is conservative; the particle remains at rest after the pulse but its position is shifted in the direction of the amplitude gradient, independent of the phase‑velocity sign.

The beat‑wave section shows that two forward‑propagating waves with frequencies ω₁ and ω₂ (Δω≪ω) generate a slowly varying envelope (the beat) whose effective group velocity u_g can be positive or negative depending on the dispersion relation. Consequently, a sequence of forward‑ or backward‑propagating pulses can be mimicked, providing a simple route to realize pulling (tractor‑beam) forces without requiring actual backward‑propagating energy flow.

Energy–momentum conservation is examined numerically for 500 composite particles with random initial orientations. After the pulse, the final linear momentum P and kinetic energy W satisfy P/W = s with high accuracy, confirming that the momentum‑to‑energy ratio of the particle matches the sign of the phase velocity, as expected from relativistic considerations.

Finally, the authors discuss practical implementations of pulling forces using backward‑propagating pulses or beat waves. Backward waves arise in left‑handed metamaterials (ε<0, μ<0), negative‑phase‑velocity waveguides, and surface plasmon‑like modes at plasma–vacuum interfaces. While material losses and fabrication complexity pose challenges, the beat‑wave approach offers a loss‑tolerant alternative that can be realized with conventional forward‑propagating beams. By arranging a train of appropriately timed pulses (forward or backward), one can transport particles stepwise over arbitrary distances, effectively creating an optical or acoustic conveyor or tractor beam.

In summary, the paper provides a unified analytical framework for understanding when and how wave packets push or pull particles, extends the theory to dipolar and polarizable composites, demonstrates the role of phase‑group velocity mismatch, and proposes realistic schemes for tractor‑beam applications based on backward pulses or beat‑wave engineering.
