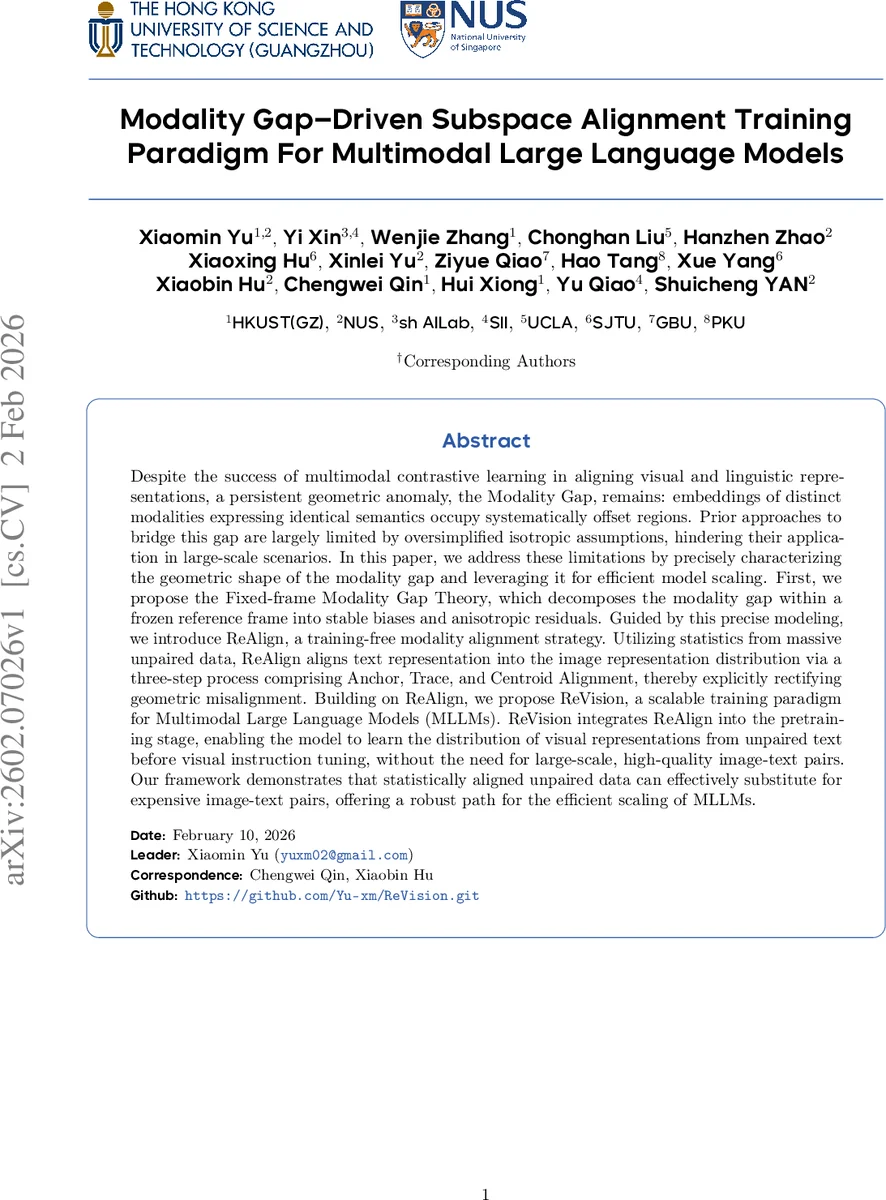

Modality Gap-Driven Subspace Alignment Training Paradigm For Multimodal Large Language Models

Despite the success of multimodal contrastive learning in aligning visual and linguistic representations, a persistent geometric anomaly, the Modality Gap, remains: embeddings of distinct modalities expressing identical semantics occupy systematically offset regions. Prior approaches to bridge this gap are largely limited by oversimplified isotropic assumptions, hindering their application in large-scale scenarios. In this paper, we address these limitations by precisely characterizing the geometric shape of the modality gap and leveraging it for efficient model scaling. First, we propose the Fixed-frame Modality Gap Theory, which decomposes the modality gap within a frozen reference frame into stable biases and anisotropic residuals. Guided by this precise modeling, we introduce ReAlign, a training-free modality alignment strategy. Utilizing statistics from massive unpaired data, ReAlign aligns text representation into the image representation distribution via a three-step process comprising Anchor, Trace, and Centroid Alignment, thereby explicitly rectifying geometric misalignment. Building on ReAlign, we propose ReVision, a scalable training paradigm for Multimodal Large Language Models (MLLMs). ReVision integrates ReAlign into the pretraining stage, enabling the model to learn the distribution of visual representations from unpaired text before visual instruction tuning, without the need for large-scale, high-quality image-text pairs. Our framework demonstrates that statistically aligned unpaired data can effectively substitute for expensive image-text pairs, offering a robust path for the efficient scaling of MLLMs.

💡 Research Summary

The paper tackles a persistent geometric issue in multimodal contrastive learning known as the “Modality Gap”: embeddings of the same semantic content from visual and textual modalities occupy systematically offset regions in the joint space. Prior work has attempted to close this gap using simplistic isotropic assumptions—treating the gap as a mean shift plus isotropic noise—which fails to capture the true high‑dimensional structure and limits scalability.

To address this, the authors first conduct a fine‑grained empirical study by training a dual‑encoder from scratch on a large image‑text corpus. They introduce a Fixed‑frame Modality Gap Theory that decomposes the gap within a frozen reference frame into four components: (i) a stable orthogonal bias (γ) residing in the subspace V orthogonal to the principal task subspace, (ii) a principal modality bias (β) in the task subspace U, (iii) anisotropic residuals δ in U, and (iv) anisotropic residuals ζ in V. The task subspace U is obtained from the top eigenvectors of the combined covariance of visual and textual embeddings, while V is its orthogonal complement. Empirical analysis shows that γ drifts slowly and remains highly cosine‑stable, indicating a passive evolution driven by subspace rotation rather than direct optimization. In contrast, β is the dominant mean offset that must be removed to avoid mixing mean and covariance.

Crucially, the residuals are far from isotropic. In U, the condition number κ(Σ_U) exceeds 10³ throughout training, revealing that variance concentrates along a few dominant directions. Moreover, the residual covariance aligns tightly with the gradient covariance (ρ_align≈1), a phenomenon the authors call “signal locking.” In V, ζ also exhibits strong anisotropy (κ>10¹) but remains orthogonal to γ, confirming a geometric decoupling of bias and noise. These findings invalidate the isotropic noise assumption and demonstrate that the Modality Gap possesses a structured, direction‑dependent shape.

Guided by this precise geometric model, the authors propose ReAlign, a training‑free alignment method that statistically maps text embeddings into the visual embedding distribution using massive unpaired data. ReAlign proceeds in three linear steps: (1) Anchor Alignment matches first‑order statistics (means), (2) Trace Alignment rescales global variance to align second‑order statistics, and (3) Centroid Alignment corrects the spherical projection drift caused by normalizing embeddings onto the unit hypersphere. All operations are linear transformations and normalizations; no additional gradient updates are required.

Building on ReAlign, the paper introduces ReVision, a two‑stage training paradigm for Multimodal Large Language Models (MLLMs). In the first stage—Modality Substitution Pretraining—large‑scale unpaired text is passed through ReAlign to generate pseudo‑visual embeddings. An adapter is then trained on these embeddings while the underlying LLM remains frozen, allowing the model to acquire visual semantics purely from text. The second stage—Visual Instruction Tuning—introduces real images for supervised fine‑tuning, supplementing fine‑grained visual details that statistical alignment alone may miss.

Extensive experiments demonstrate that ReVision’s text‑only pretraining matches or surpasses baselines trained on massive high‑quality image‑text pairs across benchmarks such as image captioning, visual question answering, and complex multimodal reasoning. The approach dramatically reduces the reliance on costly paired data while preserving, and in many cases improving, downstream performance.

In summary, the paper makes four key contributions: (1) a Fixed‑frame Modality‑Gap framework that rigorously decomposes the gap into stable biases and anisotropic residuals, moving beyond isotropic simplifications; (2) ReAlign, a statistically grounded, training‑free alignment technique; (3) ReVision, a scalable MLLM pretraining pipeline that leverages ReAlign to substitute expensive paired data with abundant unpaired text; and (4) comprehensive empirical validation showing superior efficiency and scalability of the proposed paradigm. This work opens a new avenue for cost‑effective scaling of multimodal language models by exploiting the geometric structure of the modality gap.
