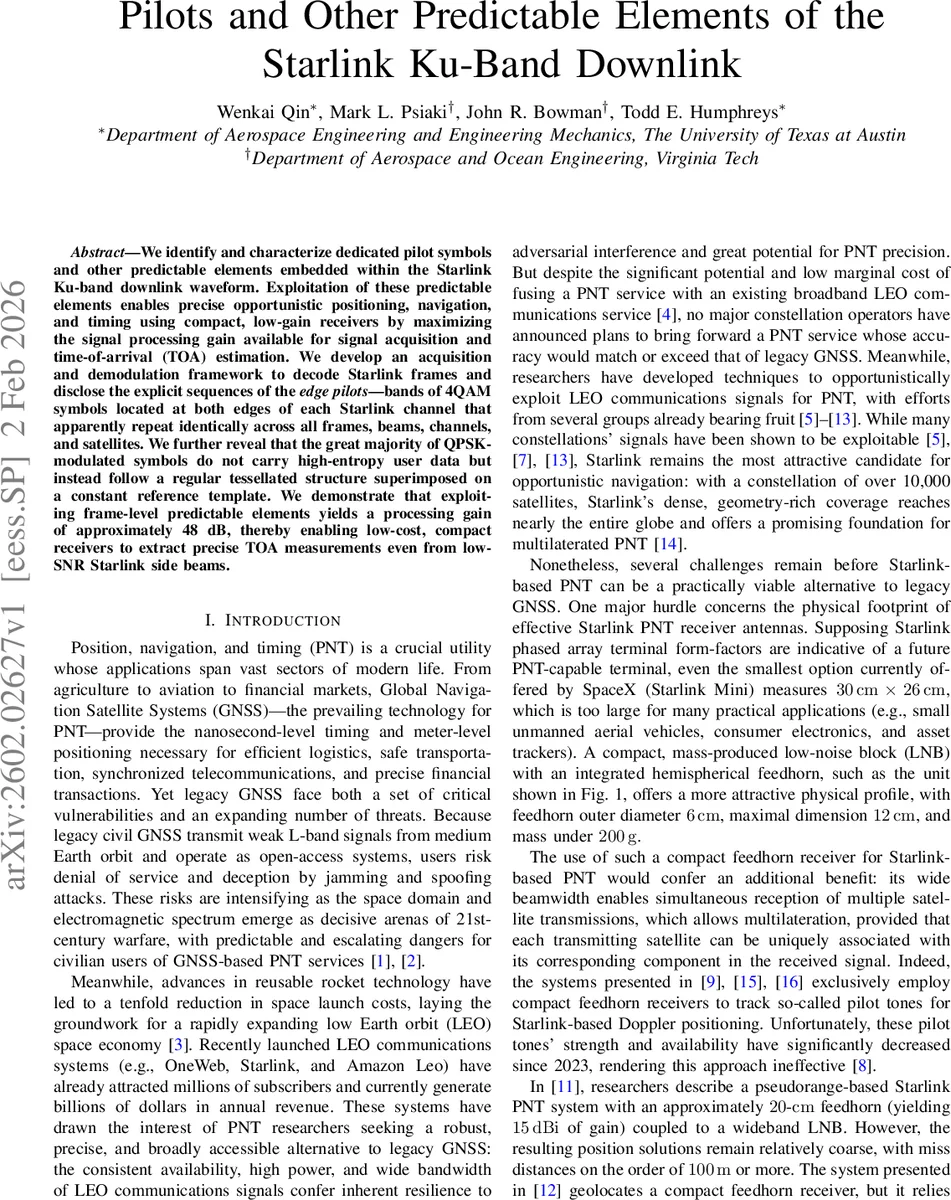

Pilots and Other Predictable Elements of the Starlink Ku-Band Downlink

We identify and characterize dedicated pilot symbols and other predictable elements embedded within the Starlink Ku-band downlink waveform. Exploitation of these predictable elements enables precise opportunistic positioning, navigation, and timing using compact, low-gain receivers by maximizing the signal processing gain available for signal acquisition and time-of-arrival (TOA) estimation. We develop an acquisition and demodulation framework to decode Starlink frames and disclose the explicit sequences of the edge pilots – bands of 4QAM symbols located at both edges of each Starlink channel that apparently repeat identically across all frames, beams, channels, and satellites. We further reveal that the great majority of QPSK-modulated symbols do not carry high-entropy user data but instead follow a regular tessellated structure superimposed on a constant reference template. We demonstrate that exploiting frame-level predictable elements yields a processing gain of approximately 48 dB, thereby enabling low-cost, compact receivers to extract precise TOA measurements even from low-SNR Starlink side beams.

💡 Research Summary

The paper presents a comprehensive study of predictable structures embedded in the Starlink Ku‑band downlink and demonstrates how these structures can be exploited to achieve high‑precision positioning, navigation, and timing (PNT) with compact, low‑gain receivers. The authors first review the limitations of legacy GNSS—low‑power L‑band signals, open access, and susceptibility to jamming and spoofing—and argue that the dense low‑Earth‑orbit (LEO) constellations such as Starlink offer a promising alternative due to their high transmit power, wide bandwidth, and global coverage. However, prior opportunistic PNT attempts with Starlink have required large phased‑array terminals or have suffered from weakened pilot tones, limiting practical deployment on small platforms.

The core contribution of this work is the identification and full characterization of two classes of deterministic signal elements: (1) edge pilots and (2) low‑entropy elements (LEEs). Edge pilots are bands of 4‑QAM symbols placed at the extreme frequency edges of each 240 MHz channel. The authors experimentally confirm that these pilot symbols repeat identically across all frames, beams, channels, and satellites, and they provide the exact symbol sequences, enabling direct use for channel estimation and synchronization.

More surprisingly, after the initial header symbols, the vast majority of QPSK‑modulated OFDM symbols are not random user data but follow a highly regular tessellated pattern that can be reconstructed by applying deterministic phase rotations and symbol‑wise transformations. These LEEs constitute thousands of symbols per frame, each effectively known a priori. By treating both edge pilots and LEEs as known information, the authors construct a full‑frame replica of the transmitted waveform.

Using a rigorous definition of processing gain L = SNRpost/SNRpre, the paper extends the classic DSSS analysis to OFDM. For constant‑modulus constellations (QPSK) and unit‑modulus replicas, the gain simplifies to L = 1 + (N − 1)|μ|², where N is the number of known symbols and μ is the correlation between the known replica and the transmitted symbols. With N on the order of several thousand and |μ|≈1, the theoretical processing gain reaches approximately 48 dB—substantially higher than the ~33 dB gain obtained by correlating only the primary and secondary synchronization sequences (PSS + SSS).

To assess the impact on time‑of‑arrival (TOA) estimation, the authors employ the Ziv‑Zakai bound (ZZB), which captures both high‑SNR (Cramér‑Rao) behavior and low‑SNR threshold effects. Correlation using only PSS + SSS degrades sharply when pre‑correlation SNR falls below –17 dB, whereas full‑frame correlation maintains ZZB‑CRB agreement down to pre‑correlation SNR of –30 dB. This means that even side‑beam signals, which can be 5–18 dB weaker than the assigned beam, become usable for sub‑meter TOA measurements.

Experimental validation uses a compact 6 cm diameter feedhorn antenna with an integrated low‑noise block (LNB) providing ~15 dBi gain and a 1 dB noise figure. Measured pre‑correlation SNRs range from 1–8 dB for the assigned beam and as low as –5 dB for side beams. After applying the full‑frame matched filter, post‑correlation SNR exceeds 30 dB, confirming the predicted 48 dB processing gain. The results demonstrate that precise PNT can be achieved with a receiver weighing under 200 g and fitting within a 12 cm envelope, far smaller than the 30 cm × 26 cm Starlink user terminal.

In conclusion, the paper shows that Starlink’s downlink contains abundant deterministic information—edge pilots and a large set of low‑entropy QPSK symbols—that can be leveraged to construct a near‑perfect replica of the transmitted signal. Matched filtering against this replica yields massive processing gain, enabling robust TOA extraction from low‑SNR side beams and supporting high‑accuracy, low‑cost PNT on platforms where traditional GNSS antennas are impractical. This work paves the way for widespread adoption of opportunistic LEO‑based navigation services across UAVs, IoT devices, and consumer electronics.
