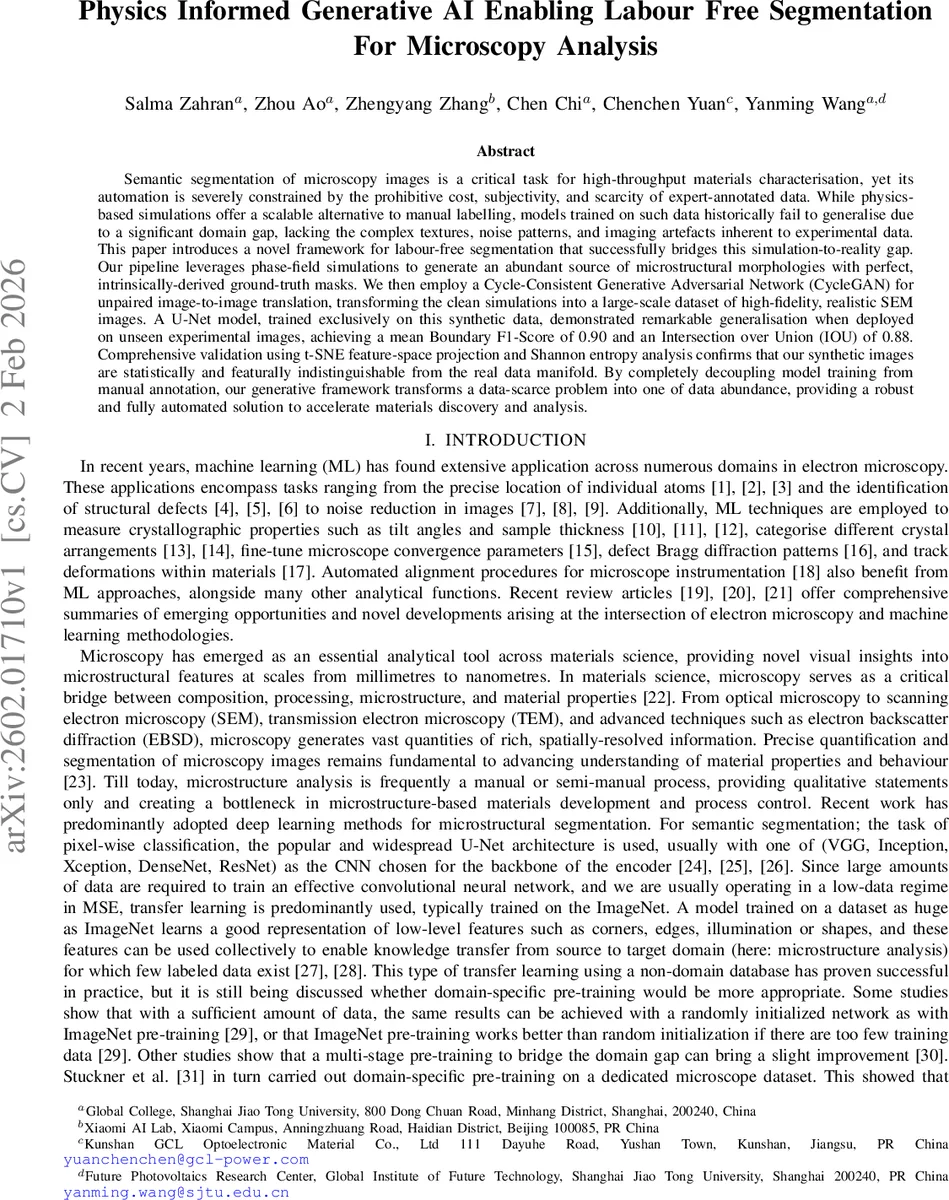

Physics Informed Generative AI Enabling Labour Free Segmentation For Microscopy Analysis

Semantic segmentation of microscopy images is a critical task for high-throughput materials characterisation, yet its automation is severely constrained by the prohibitive cost, subjectivity, and scarcity of expert-annotated data. While physics-based simulations offer a scalable alternative to manual labelling, models trained on such data historically fail to generalise due to a significant domain gap, lacking the complex textures, noise patterns, and imaging artefacts inherent to experimental data. This paper introduces a novel framework for labour-free segmentation that successfully bridges this simulation-to-reality gap. Our pipeline leverages phase-field simulations to generate an abundant source of microstructural morphologies with perfect, intrinsically-derived ground-truth masks. We then employ a Cycle-Consistent Generative Adversarial Network (CycleGAN) for unpaired image-to-image translation, transforming the clean simulations into a large-scale dataset of high-fidelity, realistic SEM images. A U-Net model, trained exclusively on this synthetic data, demonstrated remarkable generalisation when deployed on unseen experimental images, achieving a mean Boundary F1-Score of 0.90 and an Intersection over Union (IOU) of 0.88. Comprehensive validation using t-SNE feature-space projection and Shannon entropy analysis confirms that our synthetic images are statistically and featurally indistinguishable from the real data manifold. By completely decoupling model training from manual annotation, our generative framework transforms a data-scarce problem into one of data abundance, providing a robust and fully automated solution to accelerate materials discovery and analysis.

💡 Research Summary

The paper presents a fully automated pipeline for semantic segmentation of microscopy images that eliminates the need for any manually annotated data. The authors first generate a large, physically realistic set of microstructural morphologies using a phase‑field model of grain growth. Starting from 300 Voronoi‑tessellated configurations, the model evolves for 1 000 Allen‑Cahn time steps, producing 512 × 512 pixel images with an average of 112 grains per image. Because the phase‑field order parameters are known, perfect binary masks are obtained automatically by simple thresholding, providing a source domain (Y) of paired images and ground‑truth labels.

To bridge the notorious simulation‑to‑experiment domain gap, the authors train an unpaired image‑to‑image translation network based on Cycle‑Consistent Generative Adversarial Networks (CycleGAN). Two generators (G: X→Y and F: Y→X) and two discriminators (D_X, D_Y) are optimized with adversarial loss and a cycle‑consistency loss that forces F to modify only the visual style while preserving the underlying microstructural layout. A modest, unlabeled collection of real scanning electron microscopy (SEM) images constitutes the target domain (X). After training, the generator F converts each clean simulated microstructure y into a realistic‑looking SEM‑style image (\hat{x}) that exhibits detector noise, drift artefacts, intensity variations, and other instrument‑specific imperfections.

The synthetic paired dataset ((\hat{x}, y_{\text{mask}})) is then used to train a U‑Net segmentation network. The encoder backbone is a ResNet‑34, and the loss combines Dice and cross‑entropy terms to balance region and boundary accuracy. Training proceeds for 150 epochs on the generated data only; no real‑world labeled images are ever seen. When evaluated on a held‑out set of genuine SEM micrographs, the model achieves a mean Boundary F1‑Score of 0.90 and an Intersection‑over‑Union (IoU) of 0.88, surpassing prior approaches that rely on ImageNet pre‑training or limited domain‑specific fine‑tuning.

The authors substantiate the claim that the synthetic images are statistically indistinguishable from real ones using two complementary analyses. First, t‑SNE visualisation of high‑dimensional feature vectors (extracted from a pretrained ResNet) shows near‑complete overlap between the synthetic and experimental point clouds. Second, Shannon entropy computed over pixel intensity histograms demonstrates that the information content and texture complexity of the generated images match those of the real SEM data. These quantitative assessments confirm that the CycleGAN successfully transfers the complex appearance characteristics without corrupting the structural information needed for segmentation.

In the discussion, the paper acknowledges potential limitations: CycleGAN training can suffer from mode collapse, and the learned style may become overly specialized to the particular SEM instrument used for the unpaired set, reducing transferability to other microscopes or acquisition settings. Moreover, the diversity of simulated morphologies depends on the range of phase‑field parameters explored; insufficient variation could still lead to bias. The authors propose future work such as multi‑domain style transfer (e.g., StarGAN), conditional GANs that incorporate explicit imaging parameters (e.g., SPADE), and Bayesian optimisation of simulation hyper‑parameters to systematically expand the synthetic data manifold. Extending the framework to other imaging modalities—transmission electron microscopy, electron backscatter diffraction, or even optical microscopy—is also suggested.

Overall, the study demonstrates that a physics‑informed generative AI workflow can turn a data‑scarce problem into a data‑abundant one, delivering high‑quality, annotation‑free training data that enables robust, high‑performance segmentation of real microscopy images. This approach promises to accelerate materials discovery pipelines, reduce expert labor, and pave the way for fully automated, high‑throughput microstructural analysis across a broad range of imaging techniques.
