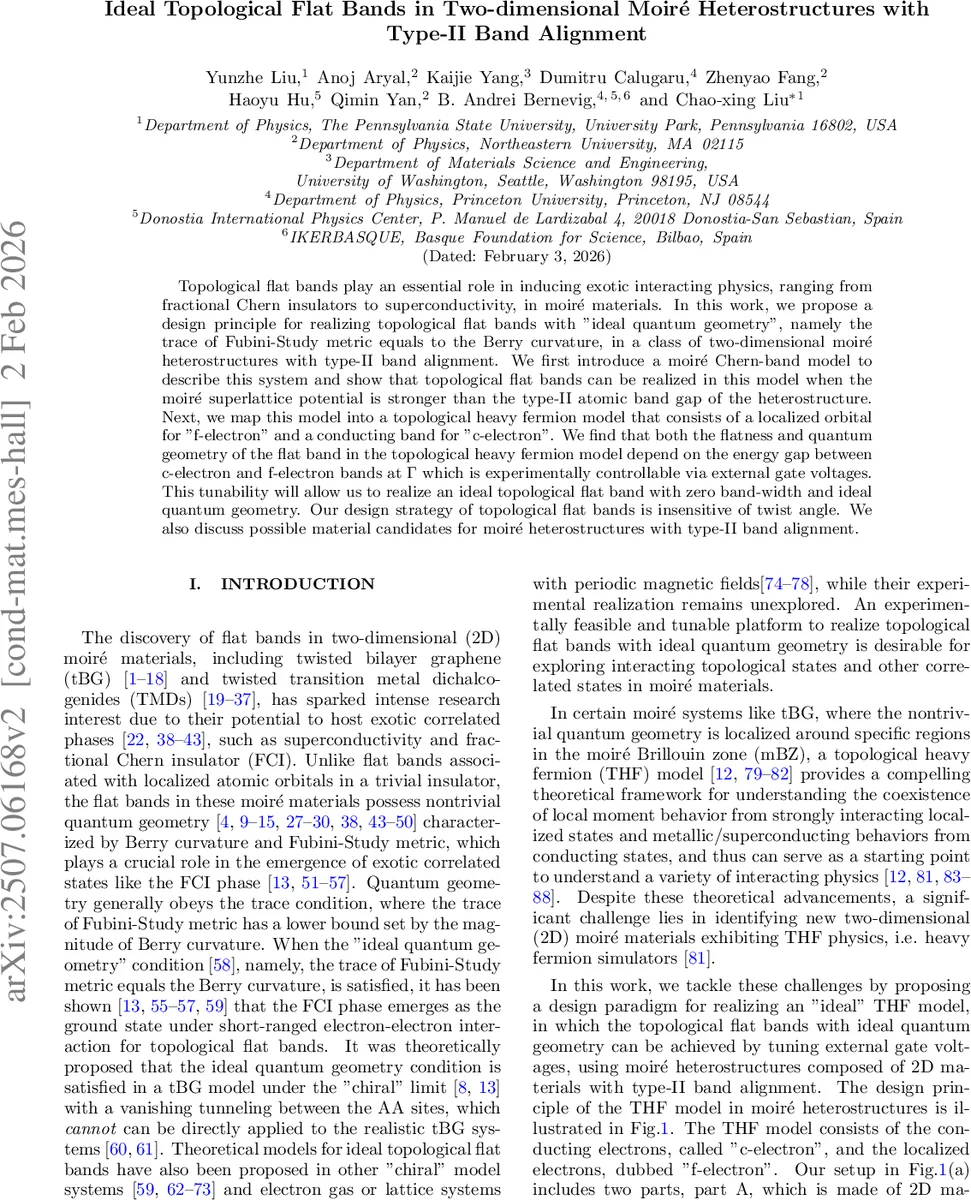

Ideal Topological Flat Bands in Two-dimensional Moiré Heterostructures with Type-II Band Alignment

Topological flat bands play an essential role in inducing exotic interacting physics, ranging from fractional Chern insulators to superconductivity, in moiré materials. In this work, we propose a design principle for realizing topological flat bands with “ideal quantum geometry”, namely the trace of Fubini-Study metric equals to the Berry curvature, in a class of two-dimensional moiré heterostructures with type-II band alignment. We first introduce a moiré Chern-band model to describe this system and show that topological flat bands can be realized in this model when the moiré superlattice potential is stronger than the type-II atomic band gap of the heterostructure. Next, we map this model into a topological heavy fermion model that consists of a localized orbital for “f-electron” and a conducting band for “c-electron”. We find that both the flatness and quantum geometry of the flat band in the topological heavy fermion model depend on the energy gap between c-electron and f-electron bands at $Γ$ which is experimentally controllable via external gate voltages. This tunability will allow us to realize an ideal topological flat band with zero band-width and ideal quantum geometry. Our design strategy of topological flat bands is insensitive of twist angle. We also discuss possible material candidates for moiré heterostructures with type-II band alignment.

💡 Research Summary

In this work the authors propose a concrete design principle for engineering topological flat bands with ideal quantum geometry in two‑dimensional moiré heterostructures that exhibit type‑II band alignment. The basic setup consists of two stacked 2D layers: layer A provides light‑mass itinerant “c‑electrons” (conduction band) while layer B supplies heavy‑mass valence states that become localized “f‑electrons” under a moiré superlattice potential. The key requirement is that the energy offset M between the conduction‑band minimum of A and the valence‑band maximum of B at the Γ point be modest (a few hundred meV), so that a sufficiently strong moiré potential Δ₀ can invert the band ordering.

The authors first formulate a two‑band Chern‑band Hamiltonian ˆH_C = ε(k) I + M(k) σ_z + A(k_xσ_x + k_yσ_y) with M(k)=M+Bk² and ε(k)=Dk². For M B < 0 the model carries a Chern number C = ±1; however, they deliberately choose M, B > 0 so that the atomic Hamiltonian is a trivial insulator. The moiré potential ˆH_m is introduced in a first‑shell approximation: only the six shortest reciprocal‑lattice vectors are kept, and the potential acts solely on the valence orbital (α = 2) with amplitude Δ₀. When Δ₀ exceeds the atomic gap M, the highest valence miniband (VB1) is pushed upward, undergoes a Γ‑point inversion with the lowest conduction miniband (CB1), and acquires C = 1. Symmetry analysis shows that the irreducible representations at Γ, K and M change from an elementary band representation to a non‑EBR set (Γ₁₀, K₄, M₃), confirming the topological nature. The rotation eigenvalues (η(Γ)=e^{‑iπ/6}, θ(K)=‑1, ε(M)=i) satisfy the relation e^{iπ/3}=‑η θ ε, yielding C = 1. Berry curvature becomes sharply concentrated around Γ, and the trace of the Fubini‑Study metric exactly equals the Berry curvature, fulfilling the “ideal quantum geometry” condition.

Next, the model is mapped onto a topological heavy‑fermion (THF) description. In this picture the localized f‑electron corresponds to a Wannier orbital with J_z = 3/2 centered at the moiré Wyckoff position 1a, while the itinerant c‑electron remains a light conduction band. The crucial tunable parameter is the energy separation Δ_cf between the c‑ and f‑bands at Γ. Because Δ_cf is directly controlled by an external gate voltage (which shifts the relative band alignment of the two layers), one can continuously reduce Δ_cf toward zero. In the limit Δ_cf → 0 the hybridization between c‑ and f‑states vanishes, the flat band becomes exactly dispersionless, and the ideal quantum‑geometric relation remains intact. Importantly, this tuning does not depend on the twist angle; only the relative strength of the moiré potential Δ₀ and the atomic gap M matter.

The authors illustrate the feasibility of their proposal with a concrete material candidate: a Tl₂Se₂/Zn₂Te₂ heterobilayer where the moiré potential is imposed on the Tl₂Se₂ layer. First‑principles estimates give M ≈ 0.13 eV and A ≈ 0.7 eV·Å, placing the system well within the regime where Δ₀ > M can be achieved by modest lattice mismatch or twist. They also list other possible combinations (e.g., InAs/GaSb quantum wells, WSe₂/MoSe₂, etc.) that satisfy the type‑II alignment and possess the required symmetry.

Overall, the paper delivers four major contributions: (1) a universal mechanism—type‑II alignment plus a strong moiré potential—to generate C = 1 topological flat bands; (2) demonstration that these bands can satisfy the ideal quantum‑geometry condition without fine‑tuning of interlayer tunneling amplitudes; (3) a practical route to achieve a perfectly flat, ideal band by gate‑controlled tuning of the c‑f energy gap in a THF framework; and (4) a design that is robust against variations in twist angle, greatly simplifying experimental realization. The work opens a realistic pathway toward strongly correlated topological phases such as fractional Chern insulators and interaction‑driven superconductivity in moiré heterostructures.
