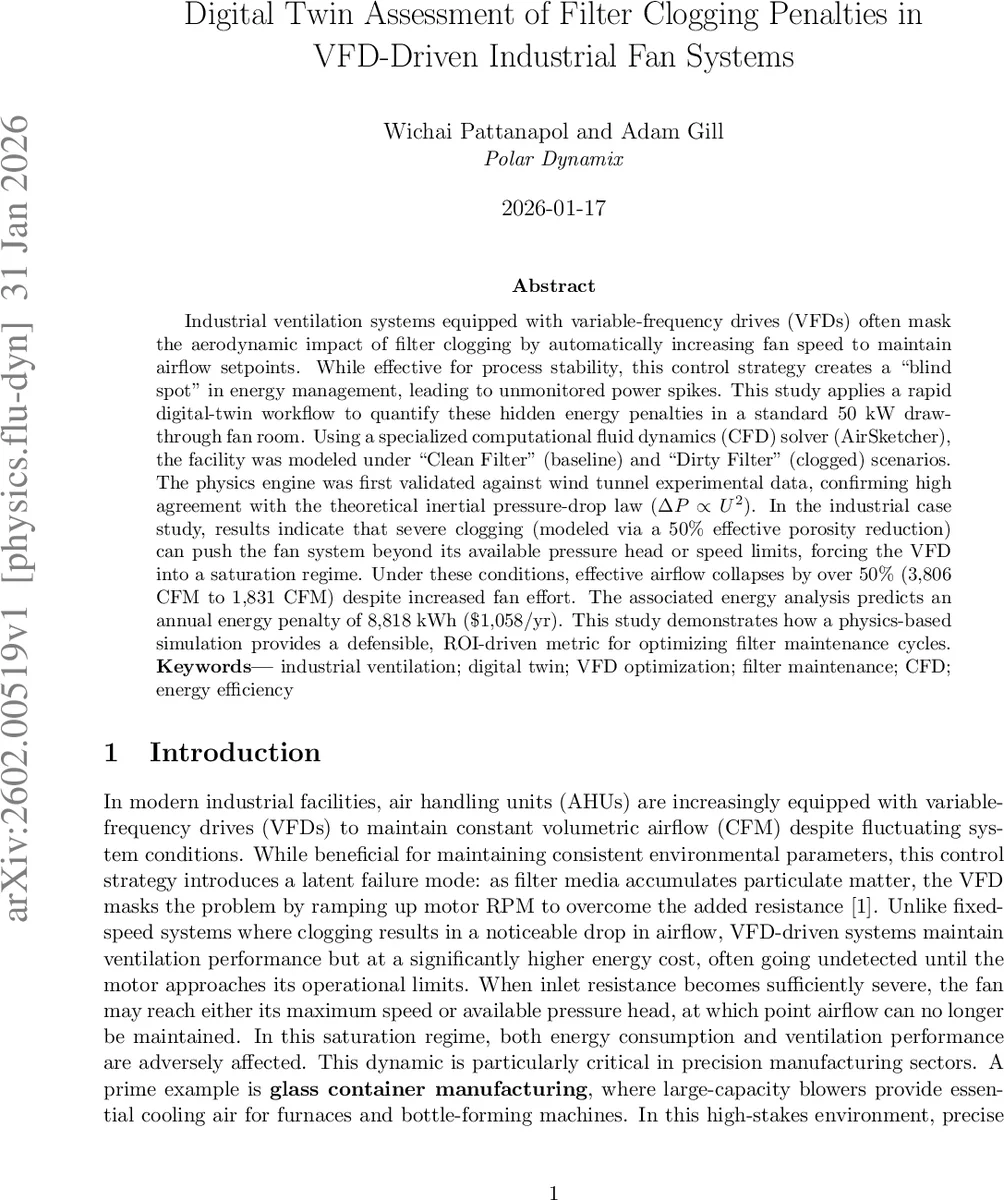

Digital Twin Assessment of Filter Clogging Penalties in VFD-Driven Industrial Fan Systems

Industrial ventilation systems equipped with variable-frequency drives (VFDs) often mask the aerodynamic impact of filter clogging by automatically increasing fan speed to maintain airflow setpoints. While effective for process stability, this control strategy creates a “blind spot” in energy management, leading to unmonitored power spikes. This study applies a rapid digital twin workflow to quantify these hidden energy penalties in a standard 50 kW draw-through fan room. Using a specialized computational fluid dynamics (CFD) solver (AirSketcher), the facility was modeled under “Clean Filter” (baseline) and “Dirty Filter” (clogged) scenarios. The physics engine was first validated against wind tunnel experimental data, confirming high agreement with the theoretical inertial pressure-drop law ($ΔP \propto U^2$). In the industrial case study, results indicate that severe clogging (modeled via a 50% effective porosity reduction) can push the fan system beyond its available pressure head or speed limits, forcing the VFD into a saturation regime. Under these conditions, effective airflow collapses by over 50% (3,806 CFM to 1,831 CFM) despite increased fan effort. The associated energy analysis predicts an annual energy penalty of 8,818 kWh ($1,058/yr). This study demonstrates how a physics-based simulation provides a defensible, ROI-driven metric for optimizing filter maintenance cycles. Keywords - industrial ventilation; digital twin; VFD optimization; filter maintenance; CFD; energy efficiency

💡 Research Summary

The paper investigates hidden energy penalties caused by filter clogging in industrial ventilation systems that are controlled by variable‑frequency drives (VFDs). Because VFDs automatically increase fan speed to maintain setpoint airflow, the additional pressure drop across a fouled filter is often invisible to operators, leading to unmonitored spikes in power consumption. To expose this “energy blind spot,” the authors built a rapid digital‑twin workflow using the specialized CFD solver AirSketcher. The solver employs steady‑state incompressible RANS equations with the Spalart‑Allmaras turbulence model and a porous‑media drag formulation that links pressure drop to an effective porosity (ϕ). Validation against wind‑tunnel data from Politecnico di Milano showed that the model reproduces the inertial pressure‑drop law (ΔP ∝ U²) with less than 8 % deviation, confirming its reliability for high‑speed industrial airflows.
The validated digital twin was then applied to a representative 50 kW draw‑through fan room (6 m × 4 m). Two scenarios were simulated: a clean filter (80 % porosity) and a severely clogged filter (50 % porosity). In the clean case the fan operates near its peak efficiency, delivering 3 806 CFM with modest static pressure rise. When the filter porosity is halved, the static pressure upstream of the fan spikes, forcing the VFD into a saturation regime where the fan reaches its maximum speed and pressure head limits. Consequently, airflow collapses to 1 831 CFM—a 52 % reduction—while the motor draws additional power that is largely wasted overcoming the inlet restriction rather than moving useful air.
An energy‑impact analysis based on the upstream power‑flow relationship (P ∝ Q·ΔP) yielded a reduction factor r_fan ≈ 0.941, translating to an annual energy penalty of 8 818 kWh (≈ $1 058 at $0.12/kWh) for the clogged condition. Assuming a filter‑bank replacement cost of $800, the payback period is under nine months, markedly shorter than the typical 1.7‑year ROI reported for VFD hardware retrofits. The study also quantifies a carbon‑footprint reduction of roughly 3.5 tCO₂e per year.
The authors argue that digital‑twin‑enabled condition‑based maintenance offers a scalable, ROI‑driven pathway to recover hidden energy, improve process reliability (especially in precision‑manufacturing such as glass container production), and lower greenhouse‑gas emissions. They suggest future work extending the methodology to three‑dimensional, transient flows and multi‑fan installations to further enhance predictive maintenance capabilities.
