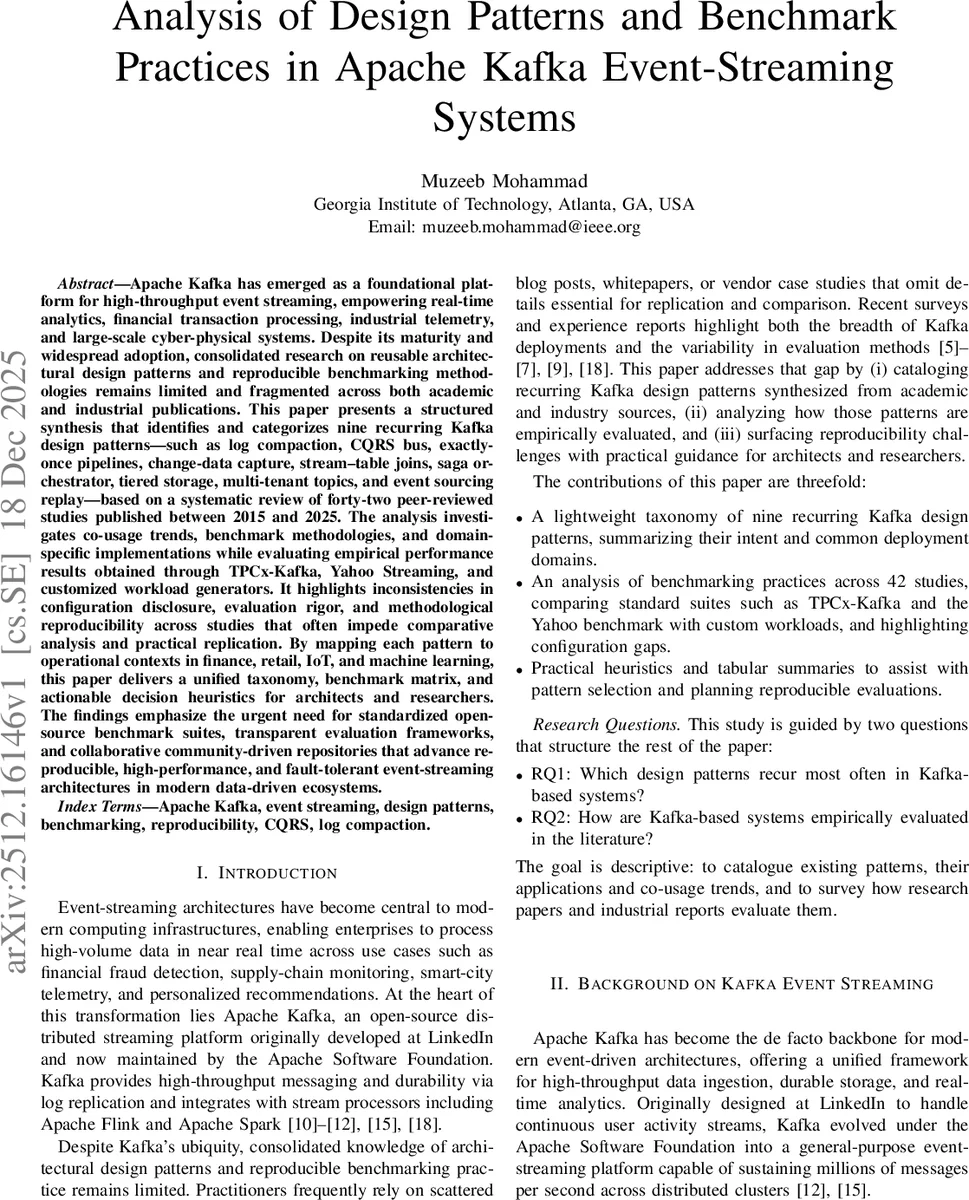

Analysis of Design Patterns and Benchmark Practices in Apache Kafka Event-Streaming Systems

Apache Kafka has become a foundational platform for high throughput event streaming, enabling real time analytics, financial transaction processing, industrial telemetry, and large scale data driven systems. Despite its maturity and widespread adoption, consolidated research on reusable architectural design patterns and reproducible benchmarking methodologies remains fragmented across academic and industrial publications. This paper presents a structured synthesis of forty two peer reviewed studies published between 2015 and 2025, identifying nine recurring Kafka design patterns including log compaction, CQRS bus, exactly once pipelines, change data capture, stream table joins, saga orchestration, tiered storage, multi tenant topics, and event sourcing replay. The analysis examines co usage trends, domain specific deployments, and empirical benchmarking practices using standard suites such as TPCx Kafka and the Yahoo Streaming Benchmark, as well as custom workloads. The study highlights significant inconsistencies in configuration disclosure, evaluation rigor, and reproducibility that limit cross study comparison and practical replication. By providing a unified taxonomy, pattern benchmark matrix, and actionable decision heuristics, this work offers practical guidance for architects and researchers designing reproducible, high performance, and fault tolerant Kafka based event streaming systems.

💡 Research Summary

This paper conducts a systematic review of 42 peer‑reviewed studies published between 2015 and 2025 that focus on Apache Kafka‑based event‑streaming systems. Using a lightweight PRISMA‑inspired methodology, the authors searched five major scholarly databases with the Boolean query (“Kafka” AND benchmark*) OR (“Kafka” AND “design pattern”). After duplicate removal and title/abstract screening, 42 papers remained for qualitative coding. Each paper was coded for (a) the design pattern(s) discussed, (b) benchmark tool or workload used, (c) reported performance metrics, (d) application domain, and (e) co‑usage of multiple patterns.

The analysis identifies nine recurring Kafka design patterns: Log Compaction, CQRS Bus, Exactly‑Once Pipelines, Change‑Data Capture (CDC), Stream‑Table Joins, Saga Orchestrator, Multi‑Tenant Topics, Tiered Storage, and Event‑Sourcing Replay. Frequency counts show Log Compaction (17 studies) and CQRS Bus (15) as the most common, while Event‑Sourcing Replay appears in only three papers. The authors map each pattern to dominant industry domains: finance (Exactly‑Once, CQRS, Replay), retail (CDC, Stream‑Table Join, CQRS), IoT/Smart‑City (Log Compaction, Stream‑Table Join), machine‑learning pipelines (Tiered Storage, Replay), and travel/logistics (Saga Orchestrator, Exactly‑Once). Co‑usage analysis reveals frequent pairings such as CQRS + CDC, Tiered Storage + Replay, and Log Compaction + Stream‑Table Join, indicating that real‑world systems often combine complementary patterns to balance scalability, consistency, and auditability.

Benchmarking practices are examined across the 42 studies. Twenty‑six papers (62 %) report empirical performance evaluations, which fall into three categories: (1) standardized suites—TPCx‑Kafka (14 studies) and Yahoo Streaming Benchmark (6 studies); (2) custom domain‑specific scripts (6 studies); and (3) hybrid approaches that extend standard suites with additional parameters. The authors find significant inconsistencies in configuration disclosure: even among TPCx‑Kafka studies, essential settings such as partition count, replication factor, message size, and producer/consumer acknowledgment modes are often omitted. Custom scripts typically lack publicly released code, further hampering reproducibility.

To illustrate practical implications, the authors conduct three lightweight experiments on a reproducible single‑broker Kafka 3.7.0 testbed: (i) Exactly‑Once transactional producers with varying message sizes (1 KB, 10 KB) and partition counts (5, 10) achieve near‑linear throughput scaling (≈39 kmsg/s → 76 kmsg/s) while maintaining sub‑25 ms p50 latency; (ii) CQRS read‑side scaling shows throughput increasing linearly up to the number of partitions, then plateauing, confirming that balanced partition design is critical for consumer‑group performance; (iii) Producer batching experiments reveal that larger batch sizes (up to 128 KB) combined with moderate linger times (5 ms) can double throughput, though latency rises with excessive linger. These results validate the broader claim that Kafka performance hinges on coordinated tuning of producer, consumer, and topic parameters rather than isolated optimizations.

Based on the systematic review and experimental validation, the paper proposes two practical artifacts: (a) a “Benchmark Configuration Checklist” that enumerates mandatory reporting items (partition count, replication factor, ISR percentage, ack settings, batch size, linger, compression, workload mix, key distribution, etc.); and (b) a “Pattern‑Benchmark Matrix” that cross‑references each design pattern with the benchmark suites used in the literature, highlighting gaps (e.g., Saga Orchestrator rarely evaluated with standard suites). The authors also release a Docker‑Compose based Kafka testbed and a GitHub repository containing the three benchmark scripts, aiming to foster reproducible research.

In conclusion, the study provides a unified taxonomy of Kafka design patterns, a comprehensive overview of current benchmarking practices, and actionable heuristics for architects and researchers. It underscores the urgent need for standardized, transparent benchmark reporting and open‑source workload repositories to enable cross‑study comparison and reproducible performance evaluation in event‑streaming systems. Future work is suggested to expand meta‑analysis across larger corpora, develop automated tuning frameworks that integrate the pattern‑benchmark matrix, and create community‑maintained benchmark suites that reflect realistic multi‑pattern deployments.
