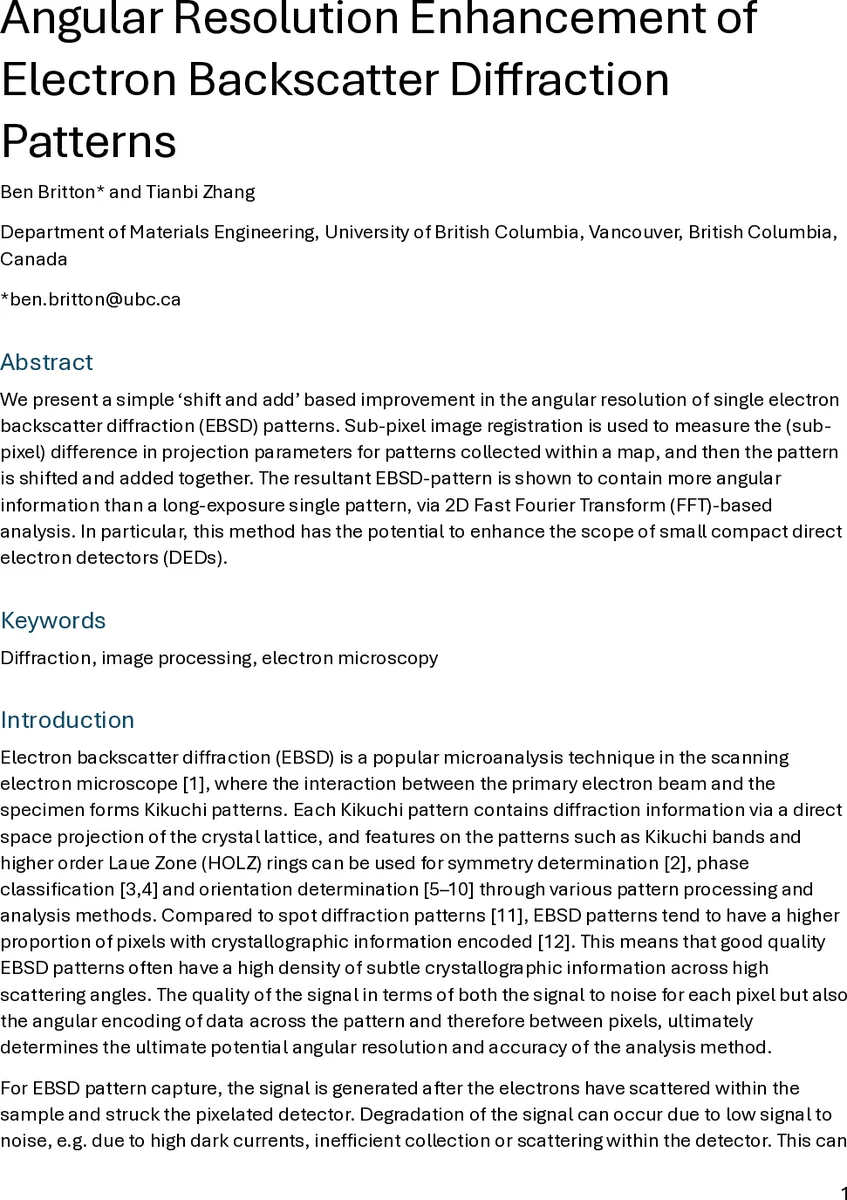

Angular Resolution Enhancement of Electron Backscatter Diffraction Patterns

We present a simple ‘shift-and-add’ based improvement in the angular resolution of single electron backscatter diffraction (EBSD) patterns. Sub-pixel image registration is used to measure the (sub-pixel) difference in projection parameters for patterns collected within a map, and then the pattern is shifted and added together. The resultant EBSD-pattern is shown to contain more angular information than a long-exposure single pattern, via 2D Fast Fourier Transform (FFT)-based analysis. In particular, this method has the potential to enhance the scope of small compact direct electron detectors (DEDs).

💡 Research Summary

The presented research introduces an innovative “shift-and-add” computational technique designed to enhance the angular resolution of single Electron Backscatter Diffraction (EBSD) patterns. In the field of electron microscopy, the precision of EBSD is fundamentally limited by the physical pixel size of the detector and the stability of the projection geometry during data acquisition. Traditionally, researchers have attempted to improve signal quality by increasing the exposure time of a single pattern. However, this approach is highly susceptible to beam drift and specimen instability, which leads to pattern blurring and a subsequent loss of angular information.

To overcome these hardware-centric limitations, the authors propose a method based on sub-pixel image registration. The core methodology involves collecting a series of short-exposure patterns during a mapping sequence. By employing sub-pixel image registration, the researchers can precisely quantify the minute variations in projection parameters between these consecutive frames. Once these sub-pixel differences are identified, the patterns are computationally realigned (shifted) to a common reference frame and then integrated (added) together. This process effectively suppresses random noise through averaging while preserving and sharpening the diffraction features.

The efficacy of this proposed method was rigorously validated using 2D Fast Fourier Transform (FFT) analysis. The FFT results demonstrate that the aggregated pattern produced by the shift-and-add technique contains significantly higher-frequency components compared to a single long-exposure pattern. This indicates a superior retention of angular information and a much sharper representation of the diffraction spots, effectively surpassing the resolution limits imposed by the detector’s physical pixel size.

The implications of this research are particularly significant for the advancement of compact Direct Electron Detectors (DEDs). As the industry moves toward smaller, more cost-effective, and integrated electron microscopy systems, the ability to achieve high-resolution EBSD without relying on massive, expensive hardware becomes crucial. This computational approach provides a powerful tool to extend the capabilities of small-scale DEDs, enabling them to perform at a level comparable to much larger, high-end detectors. Ultimately, this work paves the way for high-performance, accessible crystallographic analysis in next-generation scanning electron microscopy (SEM) technologies.
