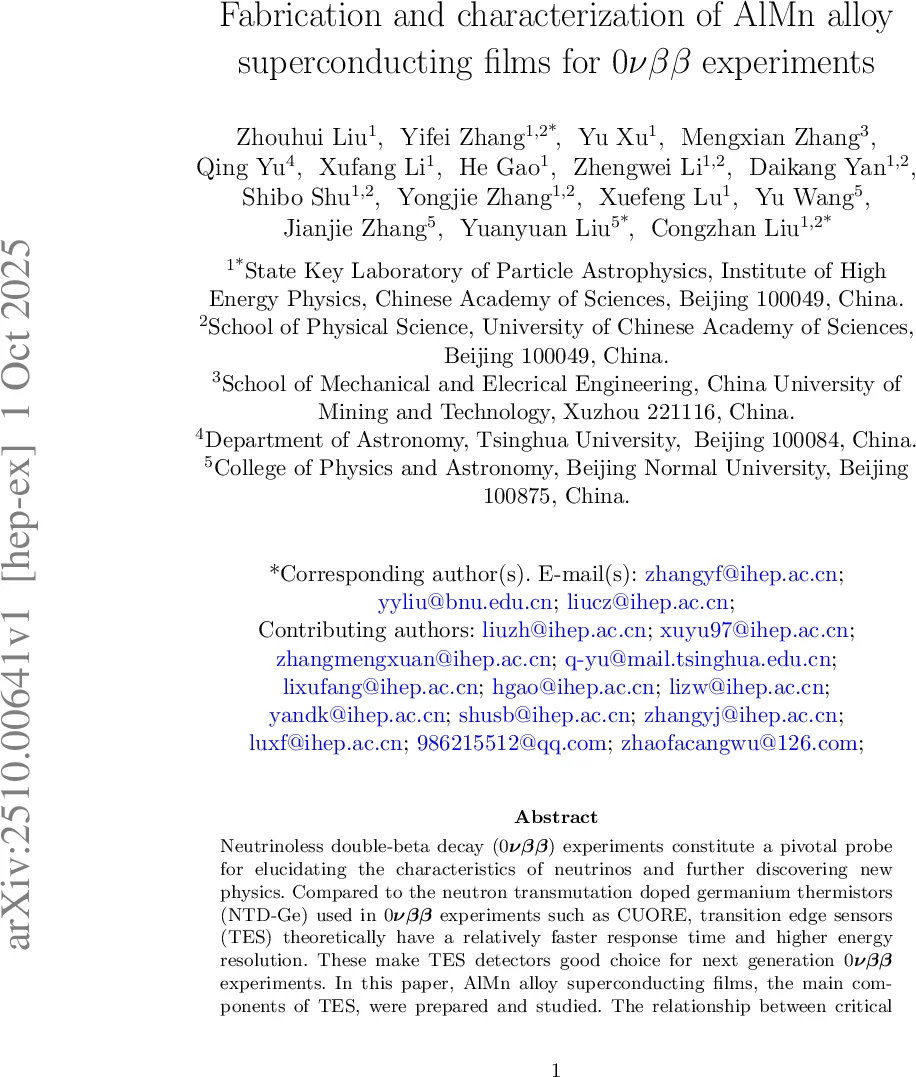

Fabrication and characterization of AlMn alloy superconducting films for 0vbb experiments

Neutrinoless double-beta decay (0vbb) experiments constitute a pivotal probe for elucidating the characteristics of neutrinos and further discovering new physics. Compared to the neutron transmutation doped germanium thermistors (NTD-Ge) used in 0vbb experiments such as CUORE, transition edge sensors (TES) theoretically have a relatively faster response time and higher energy resolution. These make TES detectors good choice for next generation 0vbb experiments. In this paper, AlMn alloy superconducting films, the main components of TES, were prepared and studied. The relationship between critical temperature (Tc) and annealing temperature was established, and the impact of magnetic field on Tc was tested. The experimental results demonstrate that the Tc of AlMn film can be tuned in the required range of 10 - 20 mK by using the above methods, which is a key step for the application of AlMn TES in 0vbb experiment. In the test range, the Tc of AlMn film is sensitive to out-of-plane magnetic field but not to the in-plane magnetic field. Furthermore, we find that a higher annealing temperature results in a more uniform distribution of Mn ions in depth, which opens a new avenue for elucidating the underlying mechanism for tuning Tc.

💡 Research Summary

The paper presents a comprehensive study on the fabrication and characterization of aluminum‑manganese (AlMn) alloy superconducting films intended for use as the core sensing element in transition‑edge sensor (TES) detectors for neutrinoless double‑beta decay (0νββ) experiments. The authors begin by motivating the need for faster, higher‑resolution detectors than the neutron‑transmutation‑doped germanium thermistors (NTD‑Ge) employed in current experiments such as CUORE. TES devices, read out via SQUID multiplexing, promise the required performance, but their critical temperature (Tc) must be precisely tuned to the 10–20 mK range required for ultra‑low‑temperature calorimetry.

Using a DC magnetron sputtering system, the team deposited AlMn films from two targets containing 1800 ppm and 2000 ppm Mn, respectively. They first quantified the dependence of the sputtering rate on power and argon pressure, finding a linear relationship with power (Vs = 0.063 Ps + 0.1 nm s⁻¹) and only a modest (~20 %) decrease when pressure was raised from 2 to 10 mTorr. This establishes sputtering power as the primary knob for thickness control.

A systematic matrix of film thicknesses (100–200 nm), Mn concentrations, and post‑deposition annealing temperatures (160 °C–250 °C) was then explored. Four‑terminal resistance‑temperature (R‑T) measurements performed in a Bluefors LD250 dilution refrigerator revealed that Tc can be tuned linearly with annealing temperature for both Mn concentrations. For 2000 ppm films, Tc initially drops with increasing anneal temperature up to ~235 °C, then rises, while the transition width ΔTc remains around 2 mK until anneals exceed ~200 °C, after which ΔTc broadens sharply. Films with 1800 ppm Mn exhibit similar linear Tc‑temperature trends but with higher slopes, indicating that lower Mn content makes Tc more sensitive to annealing. Importantly, the desired 10–20 mK window is reachable by selecting appropriate anneal temperatures (≈120 °C–200 °C) without exceeding standard micro‑fabrication limits.

Magnetic‑field sensitivity was probed using Helmholtz coils that generated controlled vertical (B⊥) and horizontal (B∥) fields. A vertical field reduces Tc at a rate of –6.4 mK per gauss, whereas horizontal fields up to 0.14 G have negligible impact. This anisotropy underscores the necessity of magnetic shielding in TES modules, especially for devices operating at the lower end of the Tc range. Additional tests with strong static fields (1.1 T, 4 T, 7 T) applied at room temperature for ten minutes showed minimal permanent alteration of Tc, suggesting that transient ambient fields are not a major concern.

The relationship between critical current (Ic) and Tc was measured for a 150 nm, 2000 ppm film annealed at 190 °C. The data fit the Ginzburg‑Landau expression Ic = Ic₀(1 – Tc/Tc₀)^{3/2} with Ic₀ = 200 µA and Tc₀ = 37.3 mK, confirming that conventional superconducting theory adequately describes the current‑induced transition in these alloy films.

To investigate the microscopic origin of the Tc‑anneal correlation, Time‑of‑Flight Secondary Ion Mass Spectrometry (TOF‑SIMS) was employed. Results show that higher annealing temperatures promote a more uniform Mn distribution: Mn accumulates near the film surface while its concentration in the mid‑depth region diminishes, and a notable Mn enrichment occurs at the AlMn/Si₃N₄ interface. These observations support the hypothesis that annealing reduces Mn clustering and homogenizes the impurity landscape, thereby modulating the pair‑breaking effect of Mn and shifting Tc.

In conclusion, the authors have mapped a clear fabrication window for AlMn TES films: sputtering power controls thickness, Mn concentration sets the baseline Tc, and annealing temperature fine‑tunes Tc within the 10–20 mK band required for next‑generation 0νββ calorimeters. The demonstrated sensitivity to out‑of‑plane magnetic fields mandates proper shielding, while the negligible impact of room‑temperature magnetization simplifies integration. The work provides a practical recipe for producing uniform, low‑Tc AlMn films, directly supporting the development of TES‑based detectors for the upcoming CUPID‑like experiment at the China JinPing Underground Laboratory.
