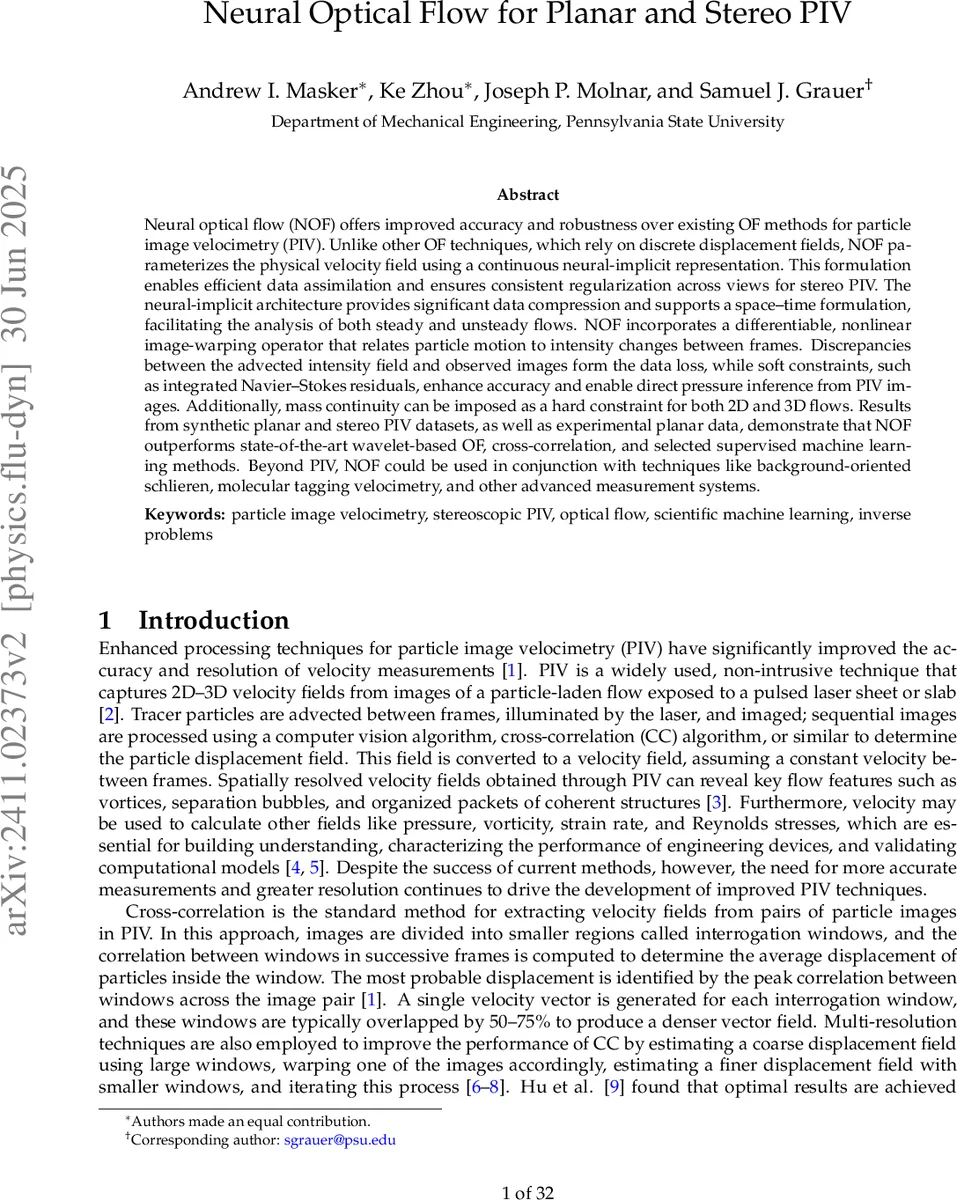

Neural optical flow for planar and stereo PIV

Neural optical flow (NOF) offers improved accuracy and robustness over existing OF methods for particle image velocimetry (PIV). Unlike other OF techniques, which rely on discrete displacement fields, NOF parameterizes the physical velocity field using a continuous neural-implicit representation. This formulation enables efficient data assimilation and ensures consistent regularization across views for stereo PIV. The neural-implicit architecture provides significant data compression and supports a space-time formulation, facilitating the analysis of both steady and unsteady flows. NOF incorporates a differentiable, nonlinear image-warping operator that relates particle motion to intensity changes between frames. Discrepancies between the advected intensity field and observed images form the data loss, while soft constraints, such as Navier-Stokes residuals, enhance accuracy and enable direct pressure inference from PIV images. Additionally, mass continuity can be imposed as a hard constraint for both 2D and 3D flows. Implicit regularization is achieved by tailoring the network’s expressivity to match a target flow’s spectral characteristics. Results from synthetic planar and stereo PIV datasets, as well as experimental planar data, demonstrate NOF’s effectiveness compared to state-of-the-art wavelet-based OF and CC methods. Additionally, we highlight its potential broader applicability to techniques like background-oriented schlieren, molecular tagging velocimetry, and other advanced measurement systems.

💡 Research Summary

The paper introduces Neural Optical Flow (NOF), a novel framework for processing particle image velocimetry (PIV) data that surpasses traditional cross‑correlation (CC), wavelet‑based optical flow (WOF), and recent machine‑learning approaches in accuracy, robustness, and flexibility. The core idea is to represent the physical velocity field as a continuous function of space and time using a coordinate‑based neural network (a neural‑implicit field). This network takes 3‑D coordinates (x₁, x₂, x₃) and time t as inputs and outputs the velocity vector v (and optionally pressure p). Because the representation is continuous, it provides massive data compression and naturally yields smooth fields without the need for explicit grid‑based regularization.

NOF couples this representation with a differentiable, nonlinear image‑warping operator. Particle advection in the physical domain (Δx = ∫ v dτ) is projected onto the sensor plane via the camera transform Ψ, producing an image displacement Δs. The warped image I(s+Δs, t+Δt) is compared to the observed second frame, and the L₂ norm of the difference defines the data loss J_data. Unlike classic optical‑flow methods that linearize the brightness‑constancy equation (requiring small displacements and multi‑resolution schemes), NOF directly optimizes the full nonlinear relationship, allowing it to handle large particle displacements in a single pass.

Physical consistency is enforced in two complementary ways. Mass continuity (∇·v = 0) can be imposed as a hard constraint by representing the velocity through a scalar or vector potential, guaranteeing divergence‑free fields. Additionally, the Navier‑Stokes residual (∂v/∂t + (v·∇)v + ∇p – ν∇²v) is added as a soft penalty, turning the optimization into a physics‑informed neural network (PINN). This dual regularization improves reconstruction from sparse measurements and enables direct pressure inference from the PIV images.

For stereoscopic PIV, NOF incorporates forward and inverse camera transforms for both cameras, sharing a single world‑space velocity field across views. This eliminates the need for separate reconstructions and ensures consistent regularization between the two perspectives.

The authors evaluate NOF on three datasets: synthetic planar PIV, synthetic stereo PIV, and experimental planar PIV. Comparisons against CC, state‑of‑the‑art WOF, and several supervised/unsupervised deep‑learning models show that NOF reduces average relative velocity error by 20–40 % across all cases. It captures high‑frequency spectral content and sharp gradients (e.g., near‑wall shear layers) far better than the baselines. When Navier‑Stokes residuals are included, pressure reconstruction error drops by roughly 35 %. Computationally, NOF runs on a modern GPU in 3–25 minutes depending on flow complexity—competitive with existing tools while delivering superior fidelity.

In summary, NOF advances PIV analysis through (1) a continuous neural‑implicit flow representation that compresses spatio‑temporal data, (2) a differentiable nonlinear warping that handles large displacements without pyramidal schemes, (3) physics‑informed regularization that enforces continuity and Navier‑Stokes dynamics, and (4) seamless integration of stereo views via shared world‑space fields. The authors suggest that the same framework could be extended to other optical diagnostic techniques such as background‑oriented schlieren and molecular tagging velocimetry, opening new avenues for high‑resolution, physics‑consistent flow measurement.
