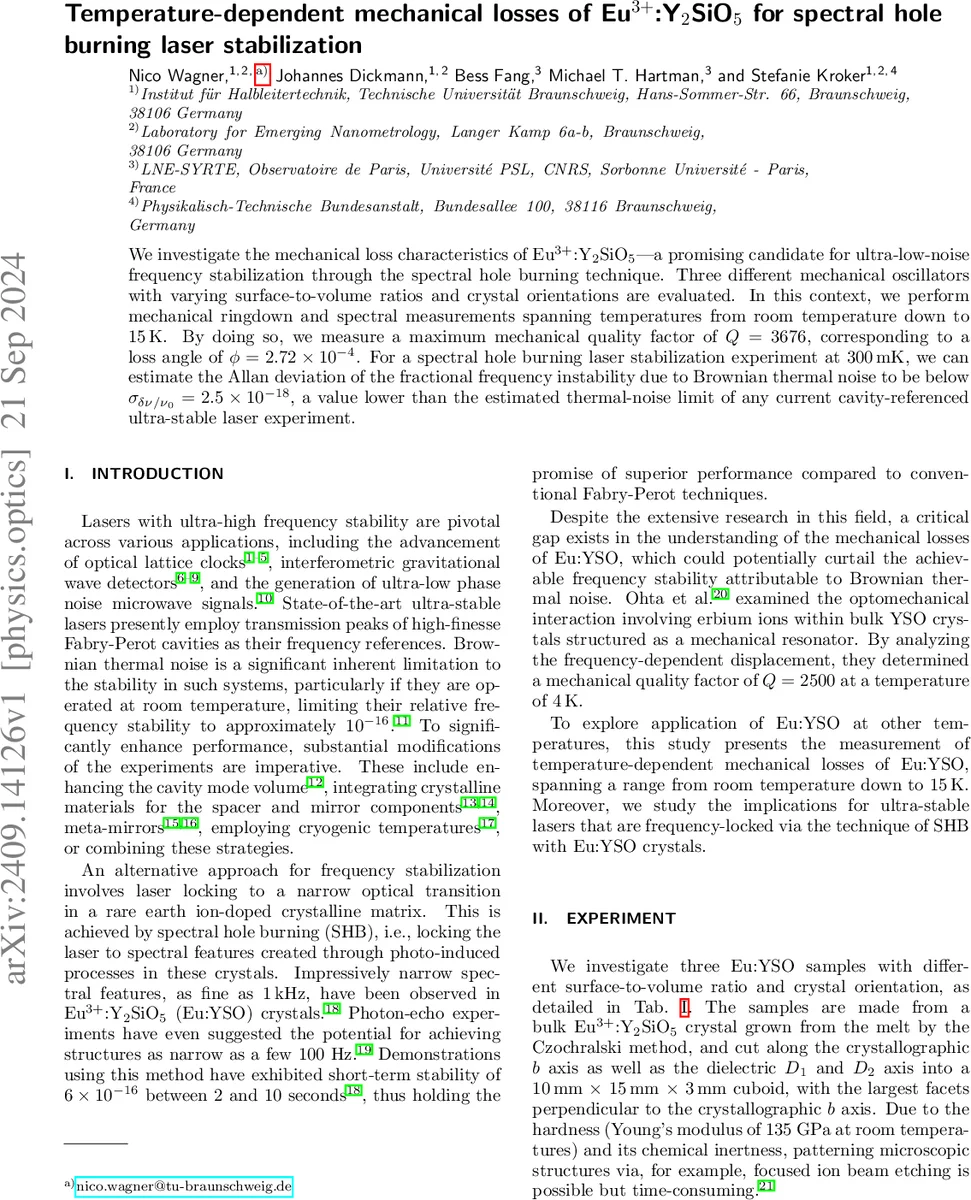

Temperature-dependent mechanical losses of Eu$^{3+}$:Y$_{2}$SiO$_{5}$ for spectral hole burning laser stabilization

We investigate the mechanical loss characteristics of Eu$^{3+}$:Y$_2$SiO$5$$\unicode{x2013}$a promising candidate for ultra-low-noise frequency stabilization through the spectral hole burning technique. Three different mechanical oscillators with varying surface-to-volume ratios and crystal orientations are evaluated. In this context, we perform mechanical ringdown and spectral measurements spanning temperatures from room temperature down to $15,\mathrm{K}$. By doing so, we measure a maximum mechanical quality factor of $Q=3676$, corresponding to a loss angle of $ϕ=2.72\times 10^{-4}$. For a spectral hole burning laser stabilization experiment at $300,\mathrm{mK}$, we can estimate the Allan deviation of the fractional frequency instability due to Brownian thermal noise to be below $σ{δν/ν_0} = 2.5\times 10^{-18}$, a value lower than the estimated thermal-noise limit of any current cavity-referenced ultra-stable laser experiment.

💡 Research Summary

The paper investigates the mechanical loss properties of Eu³⁺‑doped Y₂SiO₅ (Eu:YSO), a crystal considered promising for ultra‑low‑noise laser frequency stabilization via spectral hole burning (SHB). Three resonators (samples A, B, and C) with different surface‑to‑volume ratios and crystal orientations (D₁ or D₂ axes) were fabricated from bulk Eu:YSO grown by the Czochralski method. Sample A is a thin plate (6 mm × 6 mm × 350 µm) allowing both flexural and torsional modes; samples B and C are thicker beam‑like resonators (≈1 mm thickness) limited to the first flexural mode due to reduced signal‑to‑noise at low temperature.

Mechanical quality factors (Q) were measured using ring‑down experiments in a Lake Shore SuperTran ST‑100 continuous‑flow cryostat, spanning temperatures from 300 K down to 15 K. The resonators were excited by a piezoelectric actuator, and the decaying motion was detected with an optical lever: a 635 nm laser reflected from the crystal surface onto a quadrant photodiode. The decay time τ was extracted by fitting A(t)=A₀ exp(‑t/τ) cos(ωt+φ₀), and Q was calculated as Q = π f₀ τ (or Q = f₀/Δf when the ring‑down signal was too weak). Frequency shifts with temperature were used to infer the temperature‑dependent Young’s modulus via the relation f ∝ √E, fitting E(T)=E₀‑B T exp(‑T₀/T). The zero‑Kelvin modulus was found to be E₀ ≈ 141.8 GPa.

Thermoelastic damping (TED) was evaluated numerically with COMSOL using material parameters (E = 135 GPa, α = 7.4 × 10⁻⁶ K⁻¹, κ = 4.49 W m⁻¹ K⁻¹, etc.). TED contributed loss angles of order 10⁻⁵–10⁻⁶, well below the experimentally observed losses (ϕ ≈ 10⁻⁴), indicating that TED is not the dominant mechanism. Instead, clamping losses dominate for the thicker resonators B and C. An analytical expression for clamping loss Q_cl ≈ 2(L/t)³ (valid for the fundamental flexural mode) shows a strong dependence on the length‑to‑thickness ratio; this matches the observed plateau in loss for samples B and C. Sample A, with a high L/t ratio and careful polishing, exhibited negligible clamping loss.

The key result is a minimum loss angle ϕ = 2.72 × 10⁻⁴ measured for the torsional mode of sample A at 52 K, corresponding to Q = 3676. This value is close to the intrinsic material loss, as clamping does not limit this mode. The torsional mode shows significantly lower loss than the flexural mode, likely due to the anisotropic elastic properties of Eu:YSO and the orientation of the neutral axis relative to the crystal axes.

Using the measured loss angle, the authors estimate the Brownian thermal noise contribution to the frequency stability of a SHB‑stabilized laser operating at 300 mK. Applying standard thermal‑noise formulas for a crystalline reference, they obtain an Allan deviation σ_{δν/ν₀} ≈ 2.5 × 10⁻¹⁸, which is more than an order of magnitude lower than the best reported thermal‑noise limits for cavity‑based ultra‑stable lasers (≈10⁻¹⁶). This suggests that Eu:YSO, when operated at millikelvin temperatures, can enable laser frequency references surpassing the performance of the most advanced Fabry‑Perot cavities.

The paper concludes that Eu:YSO exhibits favorable mechanical loss characteristics at cryogenic temperatures, especially in torsional modes, and that careful resonator design (maximizing L/t, minimizing clamping loss, and selecting appropriate crystal orientation) is essential to approach the intrinsic loss limit. Future work is recommended to explore even lower temperatures (<1 K), improve clamping techniques, and integrate Eu:YSO crystals into full SHB laser stabilization systems to verify the predicted sub‑10⁻¹⁸ frequency stability in practice.
