EV-based Smart E-mobility System -- Part I: Concept

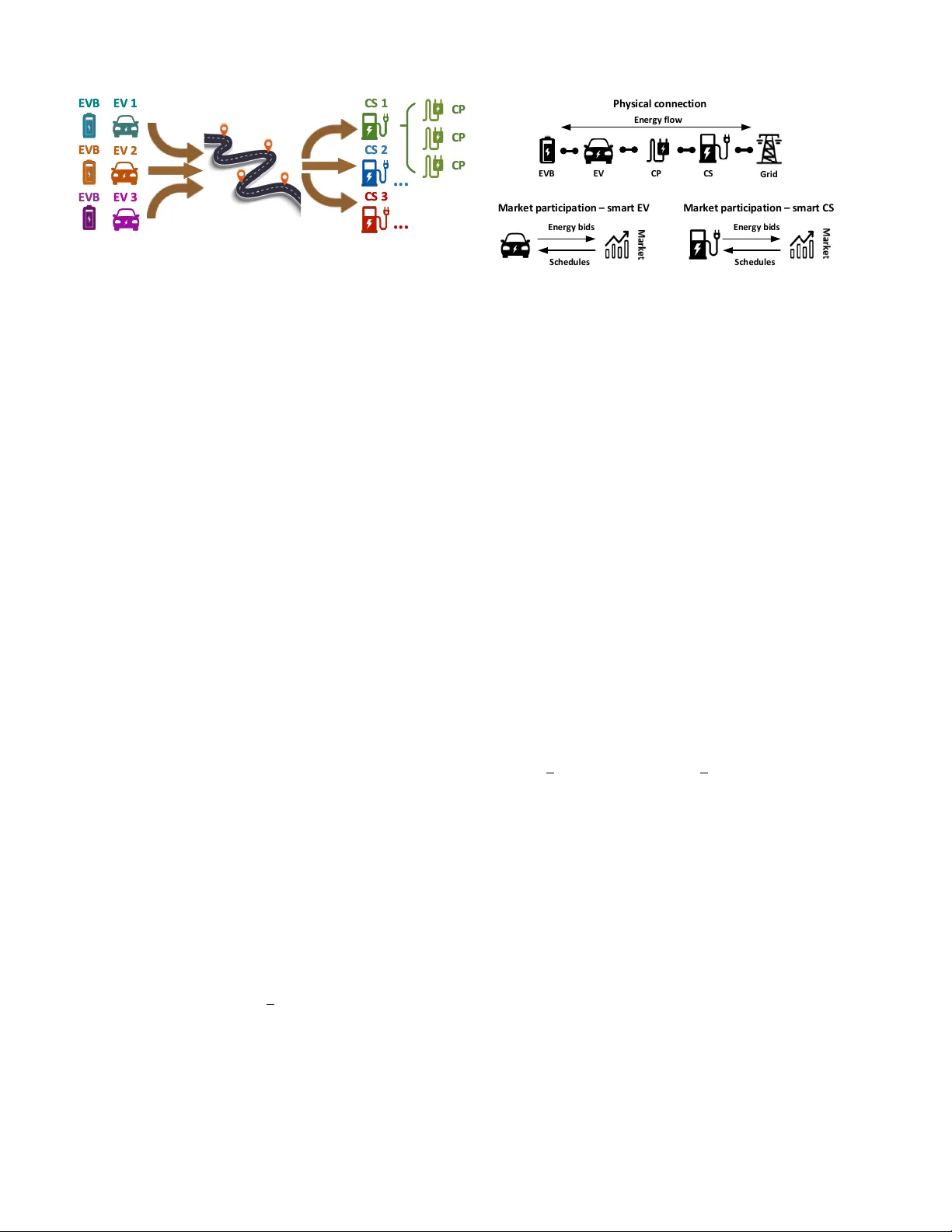

1 EV -based Smart E-mobility System – P art I: Concept I. Pa vi ´ c, Student Member , IEEE , H. Pand ˇ zi ´ c, Senior Member , IEEE , T . Capuder , Member , IEEE Abstract —The first of this two-paper series pr oposes and elaborates a concept of electric vehicle (EV)-based e-mobility system. T o this end, models designed to reap the benefits of EVs’ flexibility in the literature almost exclusi vely consider charging stations as activ e players exploiting the EVs’ flexibility . Such stations are seen as static loads able to provide flexibility only when EVs are connected to them. Ho wever , this standpoint suffers from two major issues. First, the charging stations need to anticipate some important parameters of the incoming EVs, e.g. time of arrival and departure, state-of-energy of the EV’ s battery at arrival and the r equired state-of-energy at its departur e. Second, it observes the EVs only when they are connected to these charging stations, thus overlooking the arbitrage and charging opportunities when the EVs are connected to other charging stations. This paper proposes a new viewpoint, where EVs are observed as dynamic movable storage systems which can provide flexibility at any charging station. The paper defines both systems, the existing one, where the flexibility is viewed from the standpoint of charging stations, and the proposed one, where the flexibility is viewed from the EVs’ standpoint. Index T erms —Electric vehicles, Charging stations, Aggregator , Electricity market. I . I N T R O D U C TI O N Increasing shares of rene wable ener gy sources (RES) entail lower marginal price of energy , but at the same time decrease system controllability . T o allocate suf ficient flexibility , ne w technologies (e.g. ener gy storage) or new concepts (e.g. de- mand response) are introduced. Electrification of the transport sector provides an attractive new flexibility source. If electric vehicles (EVs) are charged uncontrollably [1], i.e. charging at maximum power until fully charged, power system’ s hunger for flexibility increases, calling for additional inv estments in peaking units and grid infrastructure upgrades. On the other hand, if EVs are char ged in a controllable manner [2], they resemble features of both demand response and energy storage. Shifting their charging times represents the aspect of demand response. This is often referred to as Grid-to-V ehicle (G2V) mode, which requires unidirectional controllable chargers [3]. A possibility to discharge a part of the surplus energy when not needed for motion, often referred to as V ehicle-to-Grid (V2G) mode, corresponds to the energy storage aspect of EVs and requires bidirectional controllable chargers [4], [5]. Detailed ov erviews of EV charging modes are av ailable in [6] and [7]. This paper proposes a new concept of using the EV flexi- bility more ef ficiently in a world with a multitude of new data Ivan Pavi ´ c, Hrvoje Pand ˇ zi ´ c and T omislav Capuder are with the University of Zagreb Faculty of Electrical Engineering and Computing, Zagreb HR- 10000, Croatia (e-mails: i van.pa vic@fer .hr, hrvoje.pandzic@fer .hr, tomis- lav .capuder@fer .hr). streams relying on information-communication technologies in vehicles and without any loss of comfort for EV dri vers. W e argue that the state-of-the-art literature, research projects and e-mobility sector concei ve the smart e-mobility in a w ay which leads to an underutilization of EV flexibility and to insufficient financial returns. The usual understanding of smart e-mobility is that Charging Stations (CSs) use EVs to provide flexibility to the power system (CS-based concept), whereas this paper challenges this concept and reverses the roles by stating that EVs themselves are actually smart players providing flexibility and the CSs are merely an enabling infrastructure (EV -based concept). The smart e-mobility term used in this paper refers to an adv anced multisector system where the main actors are: EVs, CSs, Electric V ehicle Aggre gators (EV As), power grid and electricity market operators. Merchant actors within this ecosystem have at their disposal smart EV charging and discharging to provide flexibility to the power system and in return receive monetary rew ard. This paper analyzes a basic illustrativ e example with 3 EVs and 3 CSs. The purpose of the example is to highlight certain issues in the state-of-the- art, after which, in the second part of this two-paper series, we define the proposed EV A mathematical model and demonstrate how it eliminates the issues of the current state-of-the-art through a detailed case study . Contribution of this two-part paper series consists of the following: i) design of a nov el EV A model tracking the EVs at all locations thus capturing all relev ant battery information, ii) formulation of the proposed EV -based model, iii) systematic and rigorous comparative assessment of the CS-based and EV -based models, iv) demonstration that models without relev ant features, such as power lev els and grid tariffs, driv e the obtained results in a wrong direction. I I . I L L U S T R A T I V E E X A M P L E A. Assumptions and Description An illustrative example presented in Figures 1, 2, and 3 compares the current smart e-mobility CS-based model with the proposed EV -based concept. Sev eral simplifications and assumptions are made to keep this example concise. W e observe three EVs and three CSs (Figure 1) and their behavior through a 24-hour period with 1-hour time resolution. Each EV can be char ged at different CSs and each driving period, i.e. period when EV is not connected to any CS, lasts one hour . Each EV has one Battery (EVB) and one On-Board 2 E V 3 E V 2 E V 1 C S 3 C S 2 C S 1 . . . . . . E V B E V B E V B CP CP CP E V 3 E V 2 E V 1 C S 3 C S 2 C S 1 . . . . . . E V B E V B E V B CP CP CP Fig. 1. Illustrativ e example - overvie w Charger (OBC), while each CS encompasses three Charging Points (CPs), meaning it can serve all three EVs at a time. All three CPs within a CS are A C and hav e chargers of same power capacity . Let us assume that both EVs and CSs can indi vidually participate in the wholesale electricity market 1 , namely the day-ahead market, and that their objectiv e is to minimize the purchasing costs of electricity for mobility purposes and/or to maximize earnings through energy arbitrage. Other types of flexibility rev enues (such as balancing services) are neglected for the sake of brevity . A smart e-mobility system can therefore be conceiv ed as an EV -based or a CS-based, as illustrated in Figure 2. In the former model, the EVs are the smart entities negotiating market strate gy while the CSs are merely an infrastructure with their technical constraints (CP power capacity) and economic parameters (CS utilization fee). The latter model observes the same entities, but from an opposite standpoint. The CSs are the smart entities negotiating market strategy , while the EVs only impose technical constraints (OBC power capacity) and economic charges (battery utilization fee). The CSs must pay a fee to use the EVs’ physical equipment (battery) and the energy stored within the EVBs when performing arbitrage (V2G mode). On the other hand, they receive payments by the EVs for the energy they charge for driving purposes. B. EV -based vs. CS-based Smart E-mobility Model W e use the graphs in Figure 3 to describe the differences between the EV -based and the CS-based smart e-mobility models. The graphs to the left show charging profiles of the three EVs, while the ones to the right show charging profiles of the three CSs. All graphs are created from the same data, but observed from different viewpoints: graphs to the left are relev ant for the EV -based, while the ones to the right are relev ant for the CS-based smart e-mobility model. EVs in Figure 3 are sho wn in different colors: EV1 – turquoise, EV2 – orange, and EV3 – purple. Their respecti ve OBC maximum po wers (OBC LIM) are marked with straight lines: EV1 – low-po wer OBC (4 kW), EV2 – medium-power OBC (8 kW), and EV3 – high-power OBC (12 kW). The EVs can charge at three CS types: CS1 is a home charger (4 kW) – green, CS2 is charger at work (8 kW) – blue, and CS3 is charger at a shopping mall (12 kW) – red. EVs ha ve different driving profiles. EV1 has a home-work-home profile: 1 Currently this is done through aggregators due to energy bid thresholds in most markets. P h ys i ca l c o n n e ct i o n M a r k e t p a r t i c i p a t i o n – s m a r t E V E n e r g y b i d s S c h e d u les M a r k e t p a r t i ci p a t i o n – s m a r t CS E n e r g y b i d s S c h e d u les E V B EV CP CS G r i d E n e r g y f lo w Fig. 2. Physical connection and market participation of EV -based and CS- based smart e-mobility models it is connected to CS1 from midnight to 07:00, drives to CS2 where it stays from 08:00 to 16:00, and driv es back to CS1, where it is connected from 17:00 to midnight. Charging profile of EV2 is home-mall-home , while EV3’ s profile is home-work- mall-home . Each char ging period is colored according to the corresponding CS. The CS charging curves are composed of the charging curves of the EVs connected to it. For example, the graph for CS1 (upper-right in Figure 3) sho ws that all three EVs are connected to it from 00:00 to 07:00. The power required at CS1 during that time is the sum of the OBC powers of the EVs using it. EV2 (orange) is staying longer at CS1 (until 11:00), while EV1 (turquoise) comes back home earlier than others (at 17:00). Since EV1 and EV3 are at w ork during the morning and midday hours, CS2 has two connected EVs from 08:00 to 16:00 (turquoise EV1 and purple EV3), and no connected EVs in other hours. EV2 goes to a shopping mall, where it charges at CS3 from 12:00 to 21:00, while EV3 goes to the mall after work form 17:00 to 21:00 (third graph on the right-hand side). The areas in the graphs to the right correspond to stacked OBC po wers, while the maximum CP power limits are indicated with fix ed straight lines. In instances where CP LIM is lower than OBC LIM , the CP is the limiting factor for char ging power . The lower graphs in Figure 3 are aggregate curves based on the EVs’ beha vior (left) and the CSs’ beha vior (right). The colors display which EV (left) or CS (right) contributes to the aggregated behavior at a specific period of time. The outline curve is the same in the left and the right graphs, meaning that if there is only one central aggre gation entity that oversees all EVs and CSs, it does not matter whether it is defined as an EV - or a CS-based. Howe ver , it does matter when multiple aggregators enter the market. The areas with the yello w background in the graphs in Figure 3 show the EV state of energy (SOE) throughout the day . In graphs to the left, each SOE curve corresponds to the corresponding EV , while in graphs to the right only the SOE curve of EV3 is displayed for simplicity . C. Data T ransfer Different data forms must be exchanged between the EVs and the CSs which is essential for correct smart e-mobility operation in both the EV - and CS-based system. In the EV - 3 EV 1 04 08 12 16 20 24 t [h] P [kW] 08 16 24 EV 2 04 08 12 16 20 24 t [h] P [kW] 08 16 24 EV 3 04 08 12 16 20 24 t [h] P [kW] 08 16 24 CS 1 04 08 12 16 20 24 t [h] P [kW] 08 16 24 CS 2 04 08 12 16 20 24 t [h] P [kW] 08 16 24 CS 3 04 08 12 16 20 24 t [h] P [kW] 8 16 24 EV 3 04 08 12 16 20 24 t [h] P [kW] 08 16 24 EV 2 EV 1 CS 3 CS 2 CS 1 32 04 08 12 16 20 24 t [h] P [kW] 08 16 24 32 S1 S2' S3' S1 S1' S2 S2' S3 S3' EV profiles CS profiles S1' S2 S3 OBC_LIM OBC_LIM OBC_LIM CP_LIM CP_LIM CP_LIM SOE SOE SOE Fig. 3. Illustrativ e example - daily curves for three EVs and three CSs based system the CS data must be sent to EVs, while in the CS-based system the EV data must be sent to CSs. Required EV data are: i) technical data – parameters such as OBC power levels, battery capacity , etc., ii) infrastructure cost – expenses arising from EV usage apart from mobility reasons, such as V2G battery degra- dation, iii) preferences – EV users’ desires related to charging, such as minimum SOE under which an EV does not offer flexibility , targeted SOE at some point in time, etc., iv) behaviour – historic driving/parking data which serve as a base for future EV behaviour forecasts. Required CS data are: i) technical data – parameters such as CP connector type and CP power levels, ii) infrastructure cost – expenses arising from CS usage for any kind of charging and discharging, e.g. CS operation and maintenance cost, CS in vestment return, and grid fees. I I I . I S S U E S A N D P R O P O S E D S O L U T I O N In the CS-based smart e-mobility system the CSs submit their individual bids in the market. Each of them runs their own optimization algorithm based on their own predictions. Howe v er , this results in the issues indi vidually elaborated below . A. Issue 1 – Insufficient Information on EVs’ Behavior at Other CSs 1) CS-based Issue: The first issue is that a CS only tracks the EVs’ SOE in the periods when they are connected to it. From the mathematical standpoint, power to be charged/discharged and the SOE while the EVs are either parked at other premises or driving are unknown and included in the model as stochastic parameters. Only when EVs are connected to this CS those values become controllable variables. If observing the SOE curve of EV3 in Figure 3, it is broken down into sev eral segments (at points S1-S3), where each CS can see only one part of it but not the entire daily curve. This is a major drawback since the values of the (dis)char ging v ariables should come directly from forecasting the four main attributes of each EV : i) arriv al time of vehicle v ( t ARR v ), ii) SOE at arriv al ( S O E ARR v ), iii) departure time ( t DEP v ), iv) required SOE at departure ( S O E DEP v ). For the CSs in the presented example, the following stands for EV3: • CS1 forecasts t DEP and S O E DEP v ,cp 1 at S1 and t ARR and S O E ARR v ,cp 1 at S3, • CS2 forecasts t ARR and S O E ARR v ,cp 2 at S1 and t DEP and S O E DEP v ,cp 2 at S2, • CS3 forecasts t ARR and S O E ARR v ,cp 3 at S2 and t DEP and S O E DEP v ,cp 3 at S3. 4 The CSs must do the same for all EVs coming to charge. Mathematically , this is represented as follo ws: if t ∈ Ω T parked at observed CS v ,cp soe EV v ,t = soe EV v ,t − 1 + e SCH v ,t · η SCH − e DCH v ,t / η DCH ; (1) else − if t = t ARR v ,cp soe EV v ,t = S O E ARR v ,cp ; (2) else − if t = t DEP v ,cp soe EV v ,t ≥ S O E DEP v ,cp ; (3) else t ∈ Ω T driving or parked at other CS v ,cp soe EV v ,t unconstrained ∀ v , t. (4) The first equation tracks an EVB during the period when the EV is parked at the observed CS, with variables soe EV v ,t , e SCH v ,t and e DCH v ,t denoting the EV’ s SOE, energy charged and discharged, respecti vely , and η SCH and η DCH the corresponding efficiencies. The second and the third constraints set the soe EV v ,t at arri val/departure based on the SOE forecasts or requirements. The periods when an EV is dri ving or parked at other CSs are not e xplicitly modeled and its behavior during these periods can only be considered through the forecasted values of unknown parameters. The questions that inspired this research were: How would each of the CSs forecast the four uncertain values (arriv al time, SOE at arriv al, departure time and required SOE at departure) for all the EVs with suf ficient accuracy? How would they anticipate the EVs’ behavior while driving and especially while at other CSs? One option is that each EV sends its data to all the CSs where it could potentially park and charge. Another option is that each CS sends its own forecasts for each EV to all CSs in surroundings, i.e. all the CSs should optimize their portfolio in a joint optimization or using separate optimizations with coupling SOE constraints. On top of the issue of global optimality of such approach, the amount of data to be transmitted becomes critical and data security issues could easily render such model inapplicable. 2) EV -based Solution: In the EV -based smart e-mobility system, the three EVs in Figure 3 submit their individual bids to the market operator . Each of them runs its own independent optimization algorithm based on own predictions. Contrary to the CS-based system, each EV knows its behavior (SOE curve) throughout the day wherev er it is. From the mathematical standpoint, power to be (dis)charged and the SOE is always known to the EV . If the SOE curve of EV3 in Figure 3 is observed, EV3 sees it as a continuous line without interruptions at points S1-S3, while the CSs see only their portion of this curve. The EV -based model can thus be mathematically represented as follows: soe EV v ,t = soe EV v ,t − 1 + e SCH v ,t · η SCH − e DCH v ,t /η DCH − E R UN v ,t /η R UN + e FCH v ,t · η FCH ∀ v , t ; (5) It sets the EVs’ SOE considering the SOE from the pre vious time step, charging at a slow CS (SCH), energy discharged in V2G mode (DCH), discharged for dri ving purposes (R UN), and energy charged at fast charging stations (FCH). Compared to equations (1)–(4) in the CS-based system, this model observes and controls all variables at all time periods. The forecasting ef fort is drastically reduced and simplified since the EV predicts its own behavior , while in the CS-based system each CS must predict behavior of a multitude of EVs. There is no need for the EV -to-CS communication nor for additional CS-to-CS communication. Each EV keeps its driving/parking information and its technical data to itself and does not send any data to other entities. The complexity of data flow is reduced, while its security is increased as compared to the CS-based model. B. Issue 2 – Inability to T ransfer Flexibility between CSs 1) CS-based Issue: The second issue in the CS-based system relates to daily human activities and the way the CSs are usually organized. In our example, CS1 is a home charger and has access to the EVs mostly during the night. On the other hand, CS2 has EVs connected to it only during daytime, while the EVs are at CS3 mostly during the ev ening periods. When performing energy arbitrage, the ener gy should be shifted from peak- to lo w-price periods. Usually , the prices are lo wer during the night (when the consumption is low) and midday (when PV generation is high and load is at its local minimum), while the peak prices occur in the morning and e vening (when PV generation is low and consumption high). The CSs aiming to perform energy arbitrage with EVs should thus roughly follow the sequence: night → char ging, morning → discharging, midday → charging, ev ening → discharging. CS1 has only one EV connected to it in the morning and the evening so it cannot discharge all the EVs at peak periods. At midday it does not have any EVs connected to it and thus cannot recharge them. CS2 cannot transfer ener gy from night to ev ening periods because it does not hav e any EVs connected to it in the ev ening, b ut can dischar ge the EVs in the morning and recharge them at midday . Howe v er , to have enough energy to discharge EVs in the morning it must communicate with CS1 and request additional charging (more than necessary for mobility). CS3 can discharge EVs in the evening, but it needs to communicate the additional energy with CS2. 2) EV -based Solution: The EV -based concept follows the EVs throughout the day . If behavior of EV3 in Figure 3 is observed, it can provide the optimal charge–dischar ge sequence following the typical daily price curve elaborated above. It can charge during the night at CS1 and discharge in the morning at CS2, where it can also recharge around midday . Then, it can discharge in the ev ening at CS3 and start charging at CS1 late in the ev ening. In the EV -based system, the EV flexibility can thus be fully exploited without the need for CS-to-CS communication. T o summarize, the proposed EV -based concept results in higher savings, no priv acy issues and lo wer communication burden. C. Issue 3 – Insuf ficient P ower Constraints 1) CS-based Issue: Throughout the day , EVs with different OBC po wer capac- ities park at CSs with various power capacities. This issue is illustrated in the graphs to the right in Figure 3, where each CP installed power capacity is shown with a fixed value, 5 CP LIM, while the EVs’ OBC power constraints are shown as stacked colored areas. If the OBC power constraints are omitted, the CSs could end up scheduling higher power than technically possible to deliver , e.g. EV1 at CS2. On the other hand, if the OBC power constraint is higher than the CP power constraint, the CP constraint is binding and does not af fect the EV scheduling, e.g. EV2 at CS1. Such ev ents can cause dif ferences between the scheduled and deliv ered energy and lead to additional balancing costs. The OBC installed po wer is an additional parameter that all EVs must communicate to the CSs or CSs must anticipate, which can lead to errors. Furthermore, this EV -to-CS commu- nication is highly incon venient due to lar ge amount of dynamic data as well as security issues. 2) EV -based Solution: EVs change their location during the day . In our example EV1 and EV2 park at two, while EV3 parks at three dif ferent locations. Since CSs have different installed charging po wers, the EVs must anticipate the installed power of the CSs where they park. This is illustrated in Figure 3 on graphs to the left, where each EVs OBC installed power (OBC LIM) is shown as a fixed value, while the CSs’ capacities vary through the day (visualized as stacked colored areas). If the CS power constraint is omitted, the EVs whose OBC is of higher power than the CS’ s maximum power could schedule more charging power than possible in reality , e.g. EV2 during night/morning parked at CS1. As in the CS-based concept, both the OBC and CS max- imum charging po wer constraints need to be included in the optimization model. Howe ver , most CSs publicly publish their chargers’ technical parameters, such as connector type and installed power , and EVs can easily download the required data. The EV -to-CS communication is again av oided making the EV -based system easier to implement than the CS-based system. D. Issue 4 – Incomplete Costs 1) CS-based Issue: Each EV must pay energy cost for its basic mobility charging in the electricity market (through its CS supplier). Apart from energy expenditures, each load must pay a grid fee (upper part of Figure 2). At lower voltages, loads generally pay higher fees since they use grid of several voltage le vels. CSs are connected to the low voltage distribution grid and the grid fees account for a significant share in their total costs transferred to the EVs. T o properly address the cost of EV charging, grid fees must be taken into account. 2 Apart from energy cost and grid fees, there is a cost associated with remuneration between EVs and CSs. When it comes to basic mobility charging, EVs pay fees to the CSs to recov er the operation and maintenance costs, as well as the in vestment. Howe ver , when CSs use EVBs for ener gy arbitrage or other actions beside basic mobility charging, they should pay a fee to the EVs for using their battery since increased battery cycling causes it to degrade faster . In the CS-based system, a CS must obtain data from EVs on their infrastructure (battery) costs. Again, the EVs must send their priv ate data to all relev ant CSs. 2) EV -based Solution: In the EV -based system, EVs obtain data on CS infras- tructure costs and grid fees. Unlike the EVs, the CSs are public and already publish their prices online to attract EVs. In the proposed EV -based system, EVs must pay a fee to 2 Generation facilities mostly do not pay the grid fees. In case of V2G discharging, such fees could have a major effect on its financial profitability . T ABLE I. Categorization of research papers related to Issues 1–4 (comm. – commercial; ch. – charging; inf. – infrastructure; deg. – degradation) Issue 1 – insufficient information on EVs beha vior at other CSs Issue 2 – inability to transfer flexibility between CSs Literature type CS-based EV -based with only 1 CS EV -based Households W ork/comm. ch. station Multiple Smart homes/ microgrids [8], [9], [10], [11], [12], [13], [14] [15], [16], [17] - [8], [9], [10], [11], [12], [13], [14], [15], [16] - [17] EV aggregators [18], [19], [20], [21], [22], [23], [24], [25], [26] [27], [28] - [18], [19], [20], [21], [22], [24], [26], [27], [28], - [23], [25] Parking lots/ ch. stations [29], [30], [31], [32], [33], [34], [35], [36], [37], [38] - - [35] [29], [30], [31], [32], [33], [34], [36], [37], [38] - Proposed concept - - X - - X Issue 3 – insufficient power constraints Issue 4 – incomplete costs Literature type Fixed CP or OBC only Both CP and OBC No grid/ inf./deg. cost W ith grid fee/ inf. cost W ith deg. cost Smart homes/ microgrids [8], [9], [10], [11], [12], [13], [15], [16], [17] [14] - [8], [9], [11], [12], [13], [14], [16], [17] [10] [15] EV aggregators [18], [20], [21], [22], [24], [25], [26], [27], [28] [19], [23] - [18], [19], [20], [21], [22], [23], [25], [26], [28] - [24], [27] Parking lots/ ch. stations [29], [30], [31], [33], [34], [35], [36], [37], [38] - [32] [29], [30], [31], [33], [34], [35] , [36], [37] [32] [38] Proposed concept - - X - X / X X 6 CSs whenev er they use them for energy arbitrage and/or basic mobility charging. The EV -to-CS communication is not necessary as the relev ant CS data are av ailable online. I V . C U R R E N T S T A T E - O F - T H E - A RT , I N D U S T RY P R A C T I C E S A N D P R O P O S E D C O N C E P T A. Literatur e Revie w State-of-the-art literature on smart e-mobility scheduling can be di vided into se veral research approaches. T able I summarizes the literature considering three topics (smart home/microgrids, EV aggregators, smart parking lots/char ging stations) and the way they tackle the four issues detected in Section III. Under Issue 1 we add an intermediate step between the CS-based and EV -based concepts for papers using equations similar to (5), but not specifying chargers or considering only residential chargers. 1) Smart homes/ Micr ogrids: Smart home algorithms often include EVs as one of the demand response appliances that help minimizing the total home electricity bill [8], [9], [10], [11], [12], [15], [16]. These algorithms observe only a single EV at a single location, which directly makes them susceptible to Issues 1 & 2 . EVs and smart homes can also be grouped under a microgrid where EVs act as flexibility providers [13], [14]. In a future in- terconnected smart grid, EVs will be able to interact with both the smart communities (local microgrids) and the central grid to offer their services [17]. T able I shows that papers related to home/microgrids are mostly CS-based and focused on home- chargers with fixed power levels ( Issue 3 ) and consider only energy prices ( Issue 4 ). Exception to the standard CS-based models are papers [15] and [16], which model the EV beha vior throughout the day in a parking-driving sequence, but neglect the possibility of charging at other CSs. In addition to home charging, only paper [17] considers parking lots and charging stations, but as independent entities capable of utilizing the EVs’ flexibility . 2) EV aggr e gators: Apart from observing a single CP or locational aggregation through microgrids, EVs can be seen as a decentralized source scheduled by an aggre gator and without considering their location. Such models can hav e various goals, such as minimizing the EVs’ total charging costs [18], [19], [21], [23], [28], [26], minimizing frequency de- viations [20], [24] maximizing conditional value-at-risk [22], optimizing reserve provision [25] or maximizing rev enue [27]. T able I shows that papers related to EV aggregators mostly focus on home char gers within the CS-based concept ( Issues 1 and 2 ) and consider fixed power levels and only energy prices ( Issues 3 and 4 ). For example, paper [24] presents a CS-based framework where aggreg ators group CSs while EVs migrate among them. On the other hand, authors of [27] and [28] do indeed model EVs’ beha viour throughout the day , but only as av ailability periods at unspecified types of chargers, i.e. they do not address the fact that EVs charge and discharge at other CSs as well. Although papers [18], [19], [20], [21], [22], [23], [24], [26], [27], [28] model EVs connected to the distribution grid, they take into account only energy and/or balancing prices without network fees or infrastructure costs ( Issue 4 ). EV C P O 3 C P O 2 C P O 1 . . . . . . E MP 1 S u p p l i e r / a g g r e g a t o r (e n e r g y a r b i t r a g e ) G r i d o p e r a t o r (g r i d f e e s ) EV C P O 3 C P O 2 C P O 1 . . . . . . E MP 1 G r id o p e r a t o r (g r i d f e e s ) S u p p l i e r / a g g r e g a t o r (e n e r g y a r b i t r a g e ) EV - b a s e d CS - b a s e d EV C P O 3 C P O 2 C P O 1 . . . . . . E MP 1 S u p p l i e r / a g g r e g a t o r (e n e r g y a r b i t r a g e ) G r i d o p e r a t o r (g r i d f e e s ) EV C P O 3 C P O 2 C P O 1 . . . . . . E MP 1 G r id o p e r a t o r (g r i d f e e s ) S u p p l i e r / a g g r e g a t o r (e n e r g y a r b i t r a g e ) EV - b a s e d CS - b a s e d Fig. 4. Position of an aggregator in the CS-based and EV -based concepts 3) P arking lots/ Char ging stations: In addition to res- idential parking, EVs can also be charged at work- place/commercial/leisure parking lots or fast charging stations. EVs park at parking lots for longer times and power capacity of A C CPs is usually low to medium. On the other hand, EVs do not park at fast (DC) char ging stations but only stop to char ge, resembling the existing gas stations. Both the smart parking lot and charging station algorithms aim either at maximizing the benefits [29], [30], [32], [33], [34], [35] or minimizing electricity costs [31], [36], [37], [38], while preserving customers expectations. T able I shows that papers related to parking lots/charging stations are CS-based and specific locations are observed without proper multiple power lev els ( Issue 3 ) or costs ( Issue 4 ). Papers [29], [30], [31], [32], [33], [34] model work- place/commercial parking lots, while [35] observes residential priv ate and public parking lots. Similarly , all the papers modeling CS operation tackle a specific CS connected to a single point in the grid and managed by a centralized controller [36], [37], [38], inflicting Issues 1 & 2 . W ith respect to Issue 3 , i.e. insuf ficient po wer constraints, papers [29], [30], [31], [34], [35] use fixed CP power con- straints at a parking lot or a CS without considering the OBC maximum po wer . In [33] the authors use one fixed v alue for OBC (the one of Nissan Leaf). Only paper [32] defines both the EV and the CP power limits, but it only considers CPs at their o wn parking lot. All the papers in vestigating CSs use only chargers’ power limits without mentioning the OBC power lev els [36], [37], [38]. Unlike the majority of papers which do not consider any grid fees ( Issue 4 ), the cost of charging in [32] includes both the electricity price and the grid fees, while [38] takes into account battery degradation costs. B. Industry Practices and Resear ch Pr ojects Current e-mobility related companies can be seen through three business schemes: Charging Point Operators (CPOs), 7 E-Mobility Providers (EMPs), and energy-related companies (electricity suppliers, grid operators). CPOs are the companies operating and maintaining a pool of CPs, while EMPs pro vide charging services to EV users by enabling them access to CPs (authentication) and offering payment options. EVs hav e con- tracts only with EMPs who forward their customers’ payments to the CPOs. EMPs have contracts with many CPOs, while the CPOs have contracts with energy suppliers as well as grid operators. If energy arbitrage or flexibility provision through an aggregator is the target, EVs and EMPs cannot directly provide it, only the CPOs can. This is in line with the CS- based smart e-mobility , as illustrated in Figure 4. On the other hand, in the EV -based e-mobility approach the aggre gator must be connected to EVs or EMPs. Grid fees are still assigned to CPOs because the physical connection does not change (see Figure 2). The Internet-of-Things (IoT), energy and e-mobility com- panies already took the CS-based path of the smart e-mobility [39], [40], [41], [42]. The smart charging in the current indus- try practices usually means scheduling char ging for household users at low electricity tariffs or cutting the peak load of larger CSs. Research projects such as [43], [44], [45] tackle mostly the issue of V2G testing on bidirectional chargers without integrating an aggregator into a real-world e-mobility system. It is clear that the e-mobility industry does not yet operate within the EV -based smart e-mobility concept, which would change the role of the main beneficiaries in the smart environ- ment from CPOs to EMPs. C. Pr oposed Concept The CS-based concept arises from a con ventional way of addressing the EVs – they are an electric load stationary connected at a specific location to a specific CS. This CS does not hav e information about the EV’ s battery SOE prior and after the connection and must forecast those values. In this sense, an EV A aggregates specific CSs physically located at households, parking lots or dedicated charging stations and their proper name should be EV Charger Aggre gator or EVCA. W e argue that EVs should not be observed as con ventional loads but as mobile batteries. EV A should not aggregate specific CSs but the EVs with their batteries. The new concept of EV A is therefore named EV Battery Aggregator or EVB A. EVB A continuously monitors and records EV information (SOE, planed trips) as a part of the future IoT concept. CPOs should allow all EVs to connect without restrictions but for a charging fee. CPOs should be understood as infrastructure operators similar to transmission/distrib ution system operators and charging a fee in a way that transmission and distribution fees (tariffs) are charged. Additional benefits of the EVB A concept are the payment possibilities. Slow chargers are usually part of other consumer facilities and they are controlled within their smart environ- ment (smart households, buildings, parking lots, etc.). It is not quite clear how an EVCA can aggregate CPs at someone else’ s property . That is why each EV should hav e its own independent metering device so energy to/from an EV can be exactly measured as in the EVBA case. Although EVB A is contrary to scientific research and cur- rent industry practises, as discussed in Sections IV -A and IV -B, it is in line with the ISO 15118 standard, which foresees two controllers essential for deployment of a smart e-mobility system: an EV communication controller and a CP communication controller . In such advanced communication architecture, the EVB A can easily communicate the schedules to its EVs and the EVs can send all required data back to the EVB A. The data transfer between EVs and CSs can be easily achiev ed through EV and CP controllers. V . C O N C L U S I O N This first of the two-paper series on EV smart mobility sys- tems has demonstrated on a small example the shortcomings of the CS-based concept, which is predominantly used in the research community . The main drawback of this concept is that it observes the EV batteries only when connected to a specific CS. This results in suboptimal EV charging schedules and EVCA rev enues. Furthermore, CSs hav e to forecast the EV battery parameters (arriv al and departure times and SOE at arriv al and departure), which further reduces the optimality of the charging schedule. As opposed to the CS-based concept, which aggre gates the CSs, the proposed EV -based concept aggreg ates EVs themselves. This enables optimal charging schedule for each EV , regardless where it is charged. On top of this, it resolves the communication issues as there is no need for EVs to send their priv ate data to CSs. Another issue with the current literature is the lack of power constraints. This is related to charging capacities of EV’ s OBC and CP , as the lower of these two values is binding and, thus, both should be considered in the models. The EVCA concept requires EVs to send the OBC capacity data to CSs in order to determine their future flexibility volume, which is av oided with the EVB A concept. The final issue we identified are incomplete costs of charg- ing as majority of the published papers do not consider grid fees or infrastructure costs. In the EVCA model, this infrastructure are EVs themselves, which means they should send their costs to CSs so an EVCA can decide on its charging schedule. Again, the proposed EVB A model requires CSs, which are infrastructure in this case, to send their costs to EVs and these costs are already public. In the second part of this work the EVCA and EVBA concepts are compared on a case study and the impact of each of the four identified issues are quantified. R E F E R E N C E S [1] M. Muratori, “Impact of uncoordinated plug-in electric vehicle charging on residential po wer demand, ” Natur e Ener gy , v ol. 3, no. 3, pp. 193–201, March 2018. [2] M. W olinetz, J. Axsen, J. Peters, and C. Crawford, “Simulating the value of electric-vehiclegrid integration using a behaviourally realistic model, ” Natur e Energy , vol. 3, no. 2, pp. 132–139, Feb. 2018. [3] Y . Xu, S. C ¸ olak, E. C. Kara, S. J. Moura, and M. C. Gonz ´ alez, “Planning for electric vehicle needs by coupling charging profiles with urban mobility , ” Nature Energy , vol. 3, no. 6, pp. 484–493, June 2018. [4] I. Pavi ´ c, T . Capuder, and I. Kuzle, “V alue of flexible electric vehicles in providing spinning reserve services, ” Applied Energy , v ol. 157, pp. 60–74, Nov . 2015. 8 [5] I. Pa vi ´ c, T . Capuder , and I. Kuzle, “Low carbon technologies as providers of operational flexibility in future power systems, ” Applied Ener gy , vol. 168, pp. 724–738, April 2016. [6] C. Liu, K. T . Chau, D. Wu, and S. Gao, “Opportunities and Challenges of V ehicle-to-Home, V ehicle-to-V ehicle, and V ehicle-to-Grid T echnolo- gies, ” Proceedings of the IEEE , vol. 101, no. 11, pp. 2409–2427, Nov . 2013. [7] V . Monteiro, J. G. Pinto, and J. L. Afonso, “Operation Modes for the Electric V ehicle in Smart Grids and Smart Homes: Present and Proposed Modes, ” IEEE Tr ansactions on V ehicular T echnology , vol. 65, no. 3, pp. 1007–1020, March 2016. [8] O. Erdinc, N. G. Paterakis, T . D. P . Mendes, A. G. Bakirtzis, and J. P . S. Catalao, “Smart Household Operation Considering Bi-Directional EV and ESS Utilization by Real-Time Pricing-Based DR, ” IEEE T ransac- tions on Smart Grid , vol. 6, no. 3, pp. 1281–1291, May 2015. [9] Y .-M. W i, J.-U. Lee, and S.-K. Joo, “Electric vehicle charging method for smart homes/buildings with a photovoltaic system, ” IEEE T ransac- tions on Consumer Electronics , vol. 59, no. 2, pp. 323–328, May 2013. [10] S. Pal and R. Kumar, “Electric V ehicle Scheduling Strategy in Resi- dential Demand Response Programs With Neighbor Connection, ” IEEE T ransactions on Industrial Informatics , vol. 14, no. 3, pp. 980–988, March 2018. [11] R. Rana, S. Prakash, and S. Mishra, “Energy Management of Electric V ehicle Integrated Home in a Time-of-Day Regime, ” IEEE Tr ansactions on T ransportation Electrification , vol. 4, no. 3, pp. 804–816, Sept. 2018. [12] B. Naghibi, M. A. S. Masoum, and S. Deilami, “Effects of V2H Integra- tion on Optimal Sizing of Renewable Resources in Smart Home Based on Monte Carlo Simulations, ” IEEE P ower and Energy T echnology Systems Journal , vol. 5, no. 3, pp. 73–84, Sept. 2018. [13] M. H. K. Tushar , C. Assi, M. Maier, and M. F . Uddin, “Smart Microgrids: Optimal Joint Scheduling for Electric V ehicles and Home Appliances, ” IEEE Tr ansactions on Smart Grid , vol. 5, no. 1, pp. 239– 250, Jan. 2014. [14] N. G. Paterakis, O. Erdinc, I. N. Pappi, A. G. Bakirtzis, and J. P . S. Catalao, “Coordinated Operation of a Neighborhood of Smart House- holds Comprising Electric V ehicles, Energy Storage and Distributed Generation, ” IEEE T ransactions on Smart Grid , vol. 7, no. 6, pp. 2736– 2747, Nov . 2016. [15] F . Y . Melhem, O. Grunder, H. Zakaria, and M. Nazih, “Optimization and Energy Management in Smart Home Considering Photov oltaic, W ind, and Battery Storage System W ith Integration of Electric V ehicles, ” Canadian Journal of Electrical and Computer Engineering , vol. 40, no. 2, pp. 128 – 138, 2017. [16] H. Kikusato, K. Mori, S. Y oshizawa, Y . Fujimoto, H. Asano, Y . Hayashi, A. Kaw ashima, S. Inagaki, and T . Suzuki, “Electric V ehicle Charge- Discharge Management for Utilization of Photovoltaic by Coordination between Home and Grid Energy Management Systems, ” IEEE Tr ansac- tions on Smart Grid , vol. 10, no. 3, pp. 3186–3197, May 2018. [17] R. Zhang, X. Cheng, and L. Y ang, “Energy Management Framework for Electric V ehicles in the Smart Grid: A Three-Party Game, ” IEEE Communications Magazine , vol. 54, no. 12, pp. 93–101, Dec. 2016. [18] D. T . Nguyen and L. B. Le, “Joint Optimization of Electric V ehicle and Home Energy Scheduling Considering User Comfort Preference, ” IEEE T ransactions on Smart Grid , vol. 5, no. 1, pp. 188–199, Jan. 2014. [19] W . W ei, F . Liu, and S. Mei, “Charging Strategies of EV Aggregator Under Renewable Generation and Congestion: A Normalized Nash Equilibrium Approach, ” IEEE T ransactions on Smart Grid , vol. 7, no. 3, pp. 1630–1641, May 2016. [20] S. I. V agropoulos, D. K. Kyriazidis, and A. G. Bakirtzis, “Real-time charging management framework for electric vehicle aggregators in a market environment, ” IEEE T ransactions on Smart Grid , vol. 7, no. 2, pp. 948–957, March 2016. [21] R. J. Bessa and M. A. Matos, “Optimization Models for EV Aggregator Participation in a Manual Reserve Market, ” IEEE T ransactions on P ower Systems , vol. 28, no. 3, pp. 3085–3095, Aug. 2013. [22] H. W u, M. Shahidehpour, A. Alabdulwahab, and A. Abusorrah, “A Game Theoretic Approach to Risk-Based Optimal Bidding Strategies for Electric V ehicle Aggregators in Electricity Markets W ith V ariable W ind Energy Resources, ” IEEE T r ansactions on Sustainable Ener gy , vol. 7, no. 1, pp. 374–385, Jan. 2016. [23] R. J. Bessa, M. A. Matos, F . J. Soares, and J. A. P . Lopes, “Optimized Bidding of a EV Aggregation Agent in the Electricity Market, ” IEEE T ransactions on Smart Grid , vol. 3, no. 1, pp. 443–452, March 2012. [24] K. Kaur , M. Singh, and N. Kumar , “Multiobjecti ve Optimization for Frequency Support Using Electric V ehicles: An Aggregator-Based Hi- erarchical Control Mechanism, ” IEEE Systems J ournal , vol. 13, no. 1, pp. 771–782, March 2019. [25] C. Goebel and H.-A. Jacobsen, “Aggregator -Controlled EV Charging in Pay-as-Bid Reserve Markets W ith Strict Delivery Constraints, ” IEEE T ransactions on P ower Systems , vol. 31, no. 6, pp. 4447–4461, Nov . 2016. [26] S. I. V agropoulos and A. G. Bakirtzis, “Optimal Bidding Strategy for Electric V ehicle Aggregators in Electricity Markets, ” IEEE T ransactions on P ower Systems , v ol. 28, no. 4, pp. 4031–4041, Nov . 2013. [27] M. R. Sarker, Y . Dvorkin, and M. A. Ortega-V azquez, “Optimal Par- ticipation of an Electric V ehicle Aggregator in Day-Ahead Energy and Reserve Markets, ” IEEE T ransactions on P ower Systems , vol. 31, no. 5, pp. 3506–3515, Sept. 2016. [28] M. A. Ortega-V azquez, F . Bouffard, and V . Silva, “Electric V ehicle Aggregator/System Operator Coordination for Charging Scheduling and Services Procurement, ” IEEE T r ansactions on P ower Systems , vol. 28, no. 2, pp. 1806–1815, May 2013. [29] Y . Zhang and L. Cai, “Dynamic Charging Scheduling for EV Parking Lots W ith Photovoltaic Po wer System, ” IEEE Access , vol. 6, pp. 56 995– 57 005, 2018. [30] L. Zhang and Y . Li, “A Game-Theoretic Approach to Optimal Schedul- ing of Parking-Lot Electric V ehicle Charging, ” IEEE Tr ansactions on V ehicular T ec hnology , vol. 65, no. 6, pp. 4068–4078, June 2016. [31] L. Zhang and Y . Li, “Optimal Management for Parking-Lot Electric V ehicle Char ging by T wo-Stage Approximate Dynamic Programming, ” IEEE T ransactions on Smart Grid , vol. 8, no. 4, pp. 1722–1730, July 2017. [32] A. S. A. A wad, M. F . Shaaban, T . H. M. EL-Fouly , E. F . El-Saadany , and M. M. A. Salama, “Optimal Resource Allocation and Char ging Prices for Benefit Maximization in Smart PEV -Parking Lots, ” IEEE T r ansactions on Sustainable Energy , vol. 8, no. 3, pp. 906–915, July 2017. [33] M. S. Kuran, A. Carneiro Viana, L. Iannone, D. Kofman, G. Mermoud, and J. P . V asseur , “A Smart Parking Lot Management System for Scheduling the Recharging of Electric V ehicles, ” IEEE T ransactions on Smart Grid , vol. 6, no. 6, pp. 2942–2953, Nov . 2015. [34] E. Akhavan-Rezai, M. F . Shaaban, E. F . El-Saadany , and F . Karray , “Online Intelligent Demand Management of Plug-In Electric V ehicles in Future Smart Parking Lots, ” IEEE Systems Journal , vol. 10, no. 2, pp. 483–494, June 2016. [35] A. Mehrabi and K. Kim, “Low-Complexity Charging/Discharging Scheduling for Electric V ehicles at Home and Common Lots for Smart Households Prosumers, ” IEEE T ransactions on Consumer Electronics , vol. 64, no. 3, pp. 348–355, Aug. 2018. [36] Y . Zheng, Y . Song, D. J. Hill, and K. Meng, “Online Distributed MPC- Based Optimal Scheduling for EV Charging Stations in Distribution Systems, ” IEEE Tr ansactions on Industrial Informatics , vol. 15, no. 2, pp. 638–649, Feb . 2019. [37] Y . Zhou, R. Kumar , and S. T ang, “Incentive-Based Distributed Schedul- ing of Electric V ehicle Charging Under Uncertainty , ” IEEE T ransactions on P ower Systems , v ol. 34, no. 1, pp. 3–11, Jan. 2019. [38] P . Y ou, Z. Y ang, M.-Y . Chow , and Y . Sun, “Optimal Cooperativ e Charging Strategy for a Smart Charging Station of Electric V ehicles, ” IEEE T ransactions on P ower Systems , vol. 31, no. 4, pp. 2946–2956, July 2016. [39] Enervalis, “Smart EV Charging Enervalis. ” [Online]. A vailable: https://www .enerv alis.com/smart- ev- char ging/ [40] W allbox, “About Us — W allbox. ” [Online]. A vailable: https: //wallbox.com/en/about- us/ [41] O VO Smart Charger, “O V O Smart Char ger — Smart electrical vehicle charging. ” [Online]. A vailable: https://www .ovoener gy .com/ ev- e verywhere/smart- char ger [42] Greenflux, “The Future of Smart Charging — Greenflux.com, ” 2019. [Online]. A vailable: https://www .greenflux.com/ [43] NewMotion, “Charging Solutions for EV — New- Motion, ” 2019. [Online]. A vailable: https://newmotion.com/ the- future- of- ev- char ging- with- v2x- technology [44] SEEV4-City , “Operational Pilots, Interreg VB North Sea Region Programme. ” [Online]. A v ailable: https://northsearegion.eu/see v4- city/ operational- pilots/ [45] Parker , “Parker — W orld’ s first cross-brand V2G demonstration conducted in Denmark, ” 2019. [Online]. A vailable: https://parker- project.com/ worlds- first- cross- brand- v2g- demonstration- conducted- in- denmark/
