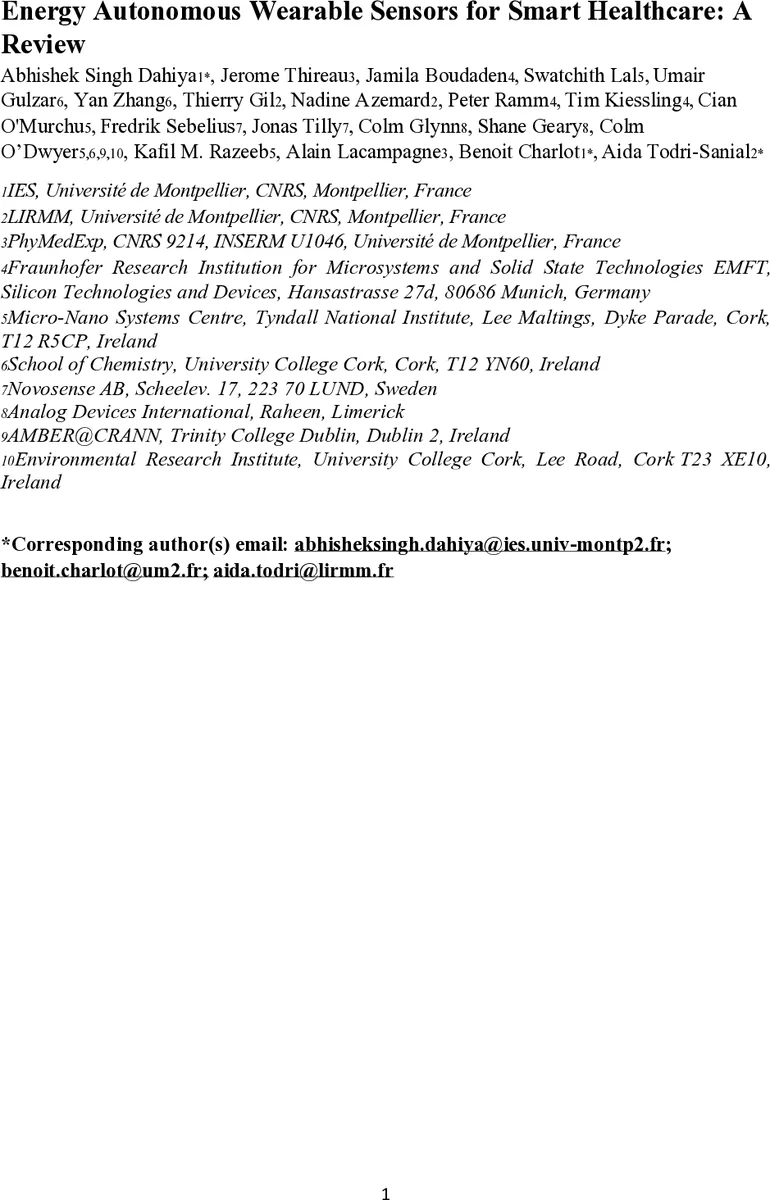

Energy Autonomous Wearable Sensors for Smart Healthcare: A Review

Energy Autonomous Wearable Sensors (EAWS) have attracted a large interest due to their potential to provide reliable measurements and continuous bioelectric signals, which help to reduce health risk factors early on, ongoing assessment for disease prevention, and maintaining optimum, lifelong health quality. This review paper presents recent developments and state-of-the-art research related to three critical elements that enable an EAWS. The first element is wearable sensors, which monitor human body physiological signals and activities. Emphasis is given on explaining different types of transduction mechanisms presented, and emerging materials and fabrication techniques. The second element is the flexible and wearable energy storage device to drive low-power electronics and the software needed for automatic detection of unstable physiological parameters. The third is the flexible and stretchable energy harvesting module to recharge batteries for continuous operation of wearable sensors. We conclude by discussing some of the technical challenges in realizing energy-autonomous wearable sensing technologies and possible solutions for overcoming them.

💡 Research Summary

The paper provides a comprehensive review of Energy‑Autonomous Wearable Sensors (EAWS) for smart healthcare, focusing on three essential components: wearable sensing elements, flexible energy‑storage devices, and stretchable energy‑harvesting modules. It begins by outlining the rapid growth of the Internet‑of‑Things (IoT) and its medical subset (IoMT), emphasizing that conventional batteries are bulky, have limited lifespans, and require frequent replacement, which hampers long‑term continuous monitoring. Consequently, achieving energy autonomy—typically in the range of 1–100 µW for wearable systems—is identified as a critical goal.

Wearable Sensors – The review categorizes sensors by their transduction mechanisms: mechanical (piezoresistive, capacitive, piezoelectric, triboelectric), biopotential (ECG, EMG), optical, and biochemical (glucose, oxygen saturation). Piezoresistive sensors are examined in depth, highlighting materials such as metal thin‑films, nanocracked metals, carbon nanotube (CNT)‑polymer nanocomposites, and silver nanowire hybrids. High gauge factors (up to 2000) can be achieved through nanocrack engineering, but durability and cycle life remain concerns. Capacitive sensors offer linearity, low hysteresis, and fast response; they are implemented via parallel‑plate configurations, flexible field‑effect transistors (FETs), or porous PDMS dielectrics inspired by natural sponges. Piezoelectric and triboelectric sensors are noted for their intrinsic ability to generate electrical signals from mechanical deformation, making them attractive for self‑powered applications, though their output power is modest. The authors stress that ultra‑low‑power readout circuits are essential to extend the operational life of rechargeable batteries.

Flexible Energy Storage – The second section surveys flexible batteries and super‑capacitors designed for wearable use. Solid‑state electrolytes (polymer‑ceramic hybrids) are presented as a means to prevent leakage while maintaining flexibility. Thin‑film metal‑oxide cathodes, 3‑D printed electrode architectures, and roll‑to‑roll manufacturing are discussed as strategies to increase energy density while allowing >100 % stretchability. Super‑capacitors based on CNT, graphene, or MXene electrodes combined with ion‑gel electrolytes achieve high power density and rapid charge‑discharge cycles, making them suitable for buffering the intermittent power supplied by harvesters.

Stretchable Energy Harvesting – The third segment reviews mechanical, solar, and thermal harvesting technologies. Nanogenerators (NGs) exploiting piezoelectric or triboelectric effects are described, with material examples such as PDMS, PVDF, and composites containing metallic or ceramic nanoparticles. Design innovations like micro‑pyramids, spiral structures, and microfluidic channels improve voltage output to the range of 0.5–5 V and currents in the µA regime. Flexible photovoltaic cells, especially perovskite and organic solar cells, provide 10–15 % conversion efficiency on bendable substrates, enabling skin‑conformal power generation. Thermoelectric generators that harvest body heat are also mentioned, though their power is low and they are best used as supplementary sources.

Integration Challenges and Outlook – The authors argue that true EAWS must integrate sensing, storage, and harvesting with careful electrical and mechanical interfacing. Issues such as impedance matching, voltage regulation, and reliable stretchable interconnects are highlighted. Low‑power wireless protocols (BLE, LoRa, NFC) and energy‑management ICs that perform voltage conversion, power gating, and energy‑recovery are essential for minimizing overall consumption. Biocompatibility, long‑term skin comfort, and regulatory approval (FDA, CE) are identified as non‑technical hurdles. Moreover, large‑scale manufacturing techniques—roll‑to‑roll printing, 3‑D printing, spray coating—are still in early development, and the cost of nanomaterials (silver nanowires, perovskites) remains a barrier to commercialization. Finally, data security and privacy for transmitted health information are emphasized as critical considerations.

In conclusion, the review synthesizes the state‑of‑the‑art across materials science, device engineering, and system integration, outlining both the progress made and the remaining gaps. By proposing a multidisciplinary roadmap that couples advanced nanomaterials, ultra‑low‑power electronics, and robust manufacturing processes, the paper points toward a future where fully autonomous wearable sensors can be deployed widely for continuous health monitoring, disease prevention, and personalized medicine.
