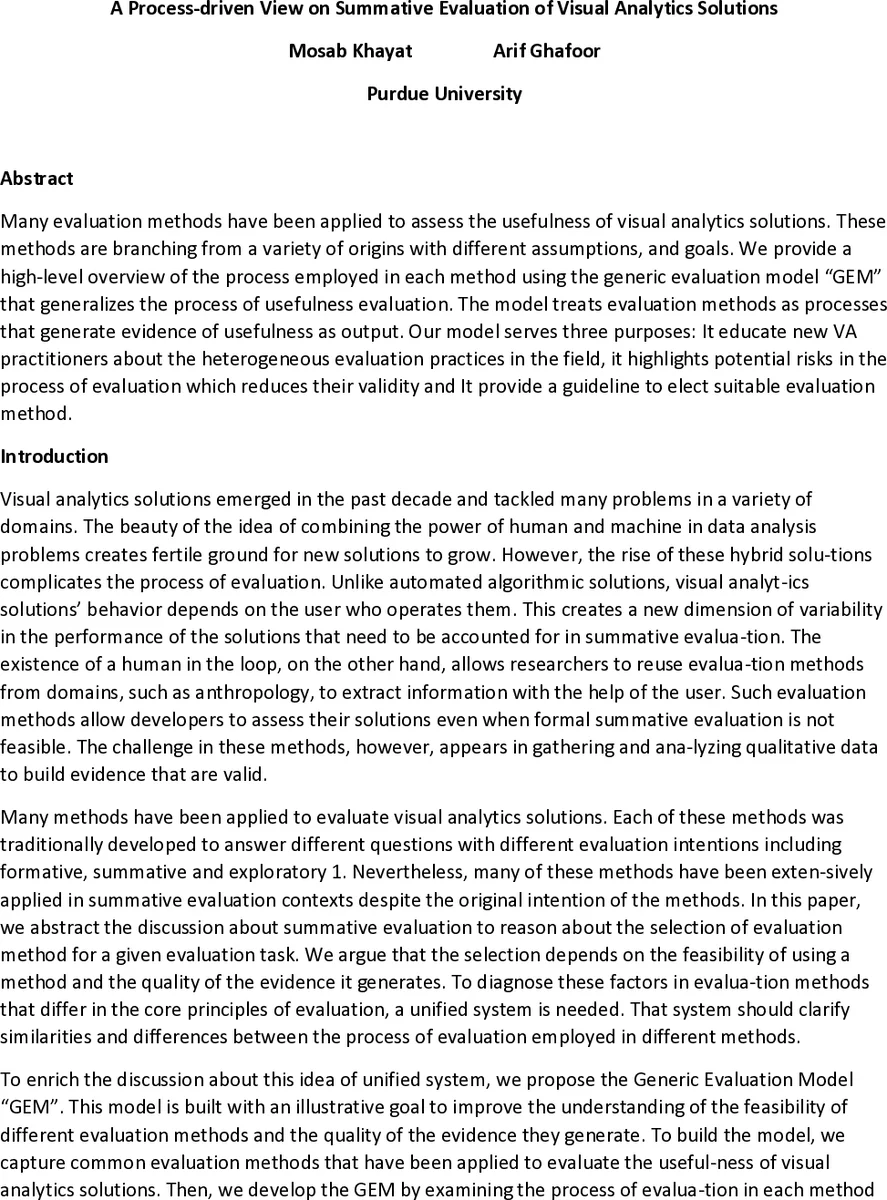

A Process-driven View on Summative Evaluation of Visual Analytics Solutions

Many evaluation methods have been applied to assess the usefulness of visual analytics solutions. These methods are branching from a variety of origins with different assumptions, and goals. We provide a high-level overview of the process employed in each method using the generic evaluation model “GEM” that generalizes the process of usefulness evaluation. The model treats evaluation methods as processes that generate evidence of usefulness as output. Our model serves three purposes: It educate new VA practitioners about the heterogeneous evaluation practices in the field, it highlights potential risks in the process of evaluation which reduces their validity and It provide a guideline to elect suitable evaluation method.

💡 Research Summary

**
The paper addresses a fundamental challenge in the visual analytics (VA) community: how to evaluate the usefulness of VA solutions in a systematic, reproducible, and meaningful way. While a plethora of evaluation methods exist—ranging from algorithmic complexity analysis to user‑centered case studies—these methods have originated in disparate fields, carry different assumptions, and are often applied outside their original intent. To bring order to this heterogeneous landscape, the authors introduce the Generic Evaluation Model (GEM), a process‑oriented framework that abstracts the evaluation workflow of any VA system into a set of well‑defined stages and inputs.

The authors begin by clarifying the notion of “summative evaluation,” borrowing the term from education research. Summative evaluation is defined as a process that produces evidence about the degree to which a solution meets predefined objectives (or standards) at a specific point in time. Three levels of evidence are identified, ordered by their validity: (1) objective testing against a known ground truth, (2) expert feedback when ground truth is unavailable, and (3) inspection of heuristics or guidelines when neither ground truth nor expert knowledge can be leveraged. This hierarchy provides a practical decision‑making ladder for researchers who must often choose an evaluation approach under constraints.

Next, the paper surveys 49 recent VA papers (covering more than 100 evaluation studies) and extracts a taxonomy of eight high‑level evaluation method categories. These categories are derived from existing surveys but are organized around the process of evaluation rather than the context of use. The taxonomy distinguishes between theoretical (deductive) and empirical (inductive) methods, and further splits empirical methods into quantitative and qualitative streams. The quantitative branch includes objective performance testing, comparative experiments, and statistical analysis; the qualitative branch encompasses case studies, insight‑based evaluations, heuristic inspections, cognitive walkthroughs, and other user‑centered techniques. Each category is illustrated with concrete examples from the literature, highlighting typical data sources (e.g., interaction logs, think‑aloud transcripts, accuracy scores) and analysis techniques (e.g., ANOVA, thematic coding).

GEM itself is built on three fundamental input sets: a collection of problem instances {P}, a set of candidate solutions {S}, and a set of target users {U}. Each problem instance is associated with a correct answer a* in an answer space A. The evaluation process proceeds through a sequence of steps—problem definition, evaluation design, execution and data collection, data analysis, and conclusion—culminating in a decision about the solution’s usefulness. Importantly, the model annotates each step with two dimensions of risk: feasibility (cost, time, participant recruitment, technical setup) and evidence quality (threats to internal validity such as confounders, bias, or insufficient control). The authors use color‑coding (green for positive, red for negative) in their diagram to make these risks visually salient.

By mapping each of the eight taxonomy categories onto distinct paths through GEM, the authors demonstrate how different methods expose the evaluator to different feasibility‑quality trade‑offs. For instance, a quantitative comparative experiment offers high evidential validity but demands rigorous experimental control and substantial participant resources; a heuristic inspection is cheap and fast but yields low‑confidence evidence. Insight‑based evaluation occupies a middle ground: it collects rich qualitative data from users, yet the resulting insight counts can be quantified, providing a hybrid metric that supports both assessment and comparison.

The paper concludes with a discussion of how GEM can be employed as a decision‑support tool during the planning phase of a VA study. Researchers can ask: (a) What objective am I trying to achieve (assessment vs. comparison)? (b) What level of ground truth is available? (c) What resources are at my disposal? By answering these questions within the GEM framework, they can systematically select an evaluation method whose feasibility aligns with project constraints while maximizing the validity of the generated evidence.

Overall, the contribution of the paper is twofold. First, it offers a clear, process‑centric taxonomy that unifies a fragmented body of VA evaluation literature. Second, it provides the Generic Evaluation Model, a practical blueprint that makes explicit the hidden assumptions, resource requirements, and validity threats of each evaluation approach. This model not only aids researchers in method selection but also promotes transparency and reproducibility in reporting evaluation studies, thereby strengthening the scientific rigor of the visual analytics field.
