Database Assisted Automatic Modulation Classification Using Sequential Minimal Optimization

In this paper, we have proposed a novel algorithm for identifying the modulation scheme of an unknown incoming signal in order to mitigate the interference with primary user in Cognitive Radio systems, which is facilitated by using Automatic Modulation Classification (AMC) at the front end of Software Defined Radio (SDR). In this study, we used computer simulations of analog and digital modulations belonging to eleven classes. Spectral based features have been used as input features for Sequential Minimal Optimization (SMO). These features of primary users are stored in the database, then it matches the unknown signal’s features with those in the database. Built upon recently proposed AMC, our new database approach inherits the benefits of SMO based approach and makes it much more time efficient in classifying an unknown signal, especially in the case of multiple modulation schemes to overcome the issue of intense computations in constructing features. In various applications, primary users own frequent wireless transmissions having limited their feature size and save few computations. The SMO based classification methodology proves to be over 99 % accurate for SNR of 15 dB and accuracy of classification is over 95 % for low SNRs around 5dB.

💡 Research Summary

The paper presents a novel automatic modulation classification (AMC) framework tailored for cognitive radio (CR) environments, where rapid identification of a primary user’s modulation scheme is essential to avoid interference. The authors combine two key ideas: (1) training support vector machines (SVMs) using Sequential Minimal Optimization (SMO), and (2) storing the resulting feature vectors in a relational database for fast lookup during real‑time operation.

Eleven modulation types—five analog (AM, FM, DSB, LSB, USB) and six digital (2ASK, 4ASK, 2FSK, 4FSK, 2PSK, 4PSK)—are generated in MATLAB under additive white Gaussian noise (AWGN) at various signal‑to‑noise ratios (SNRs). For each simulated signal, nine spectral‑based statistical features originally proposed by Nandi and Azzouz are extracted: maximum power spectral density (γmax), variance of instantaneous phase (σdp), variance of the non‑linear phase component (σap), spectral symmetry (P), standard deviations of instantaneous amplitude, frequency, and their centered versions (σaa, σaf, σa), and kurtoses of amplitude and frequency (μa⁴², μf⁴²). These features capture amplitude, phase, and frequency dynamics and are known to be robust even at low SNR.

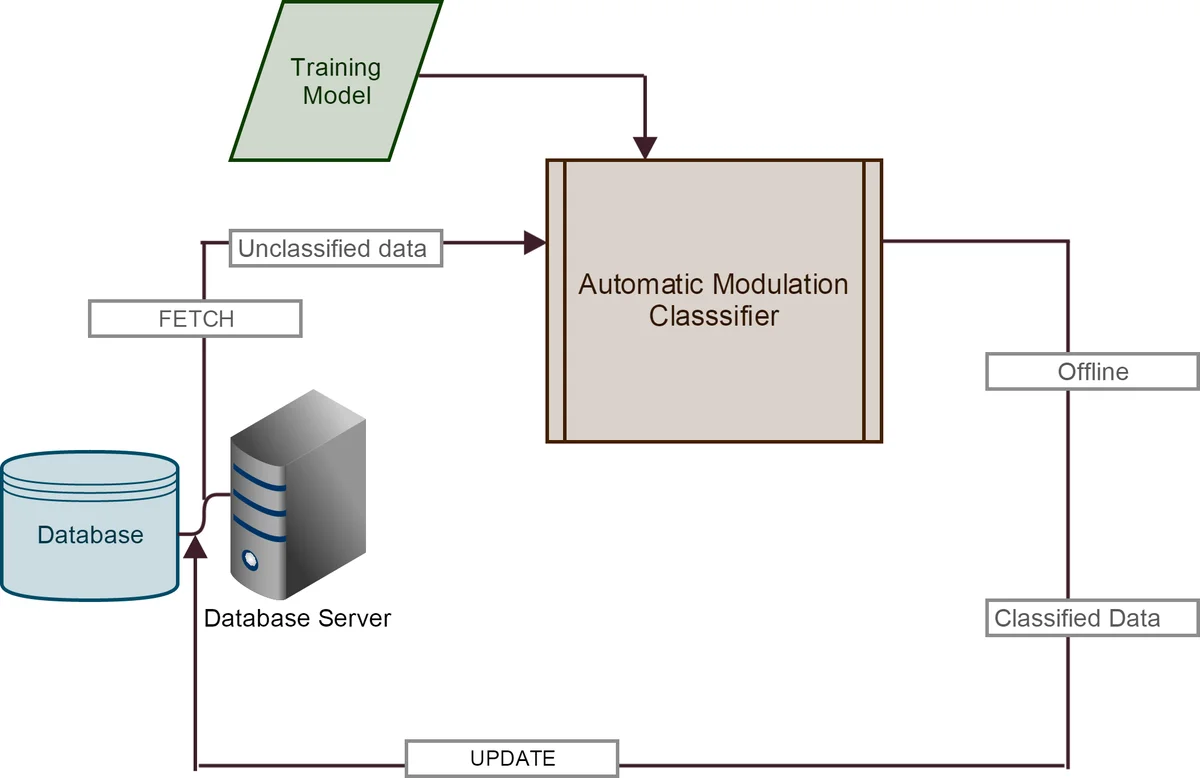

The feature vectors are formatted as WEKA ARFF files and fed to an SMO‑trained SVM. Because the problem involves eleven classes, the authors adopt a one‑vs‑one strategy, building 11 binary classifiers with a polynomial kernel. The trained models are saved both as files and as entries in a MySQL database. During the classification phase, an incoming unknown signal is processed to extract the same nine features, which are then packaged into an ARFF test file. The system queries the database, matches the test vector against stored records, loads the appropriate SMO model, and returns the predicted modulation class.

Performance is evaluated against a baseline “non‑database” approach that stores training data in flat files. Timing results show that the database‑assisted method scales linearly with the number of known signals, whereas the flat‑file method exhibits near‑exponential growth in classification time as the library expands. Accuracy results are impressive: at 15 dB SNR the system achieves >99 % correct classification across all eleven modulations; at 5 dB SNR it maintains >95 % accuracy, outperforming recent neural‑network‑based AMC schemes that typically plateau at 80‑90 % under similar conditions. Confusion matrices confirm that most misclassifications occur only among closely related digital schemes, and the overall probability of correct detection exceeds 0.99 at high SNR.

The authors acknowledge several limitations: (1) only a single transmission is assumed at any instant; (2) secondary users transmit at very low power and do not interfere with primary or unknown users; (3) the database contains only the predefined eleven modulation types, so novel or intelligent adversarial signals that mimic known patterns cannot be detected; (4) the system does not address multi‑user simultaneous transmissions or dynamic spectrum sharing scenarios.

In conclusion, the study demonstrates that integrating SMO‑based SVM with a structured database dramatically improves both the speed and reliability of AMC in CR contexts. The approach reduces computational overhead by avoiding repeated feature construction for known signals and provides a scalable solution as the library of known modulations grows. Future work is suggested in three directions: extending the framework to handle concurrent multi‑user environments, incorporating online learning to accommodate new modulation formats, and combining the current statistical features with deep‑learning representations for even greater robustness against sophisticated interference and malicious spoofing. Such extensions would further solidify AMC as a cornerstone technology for intelligent, interference‑aware spectrum access in next‑generation wireless networks.
