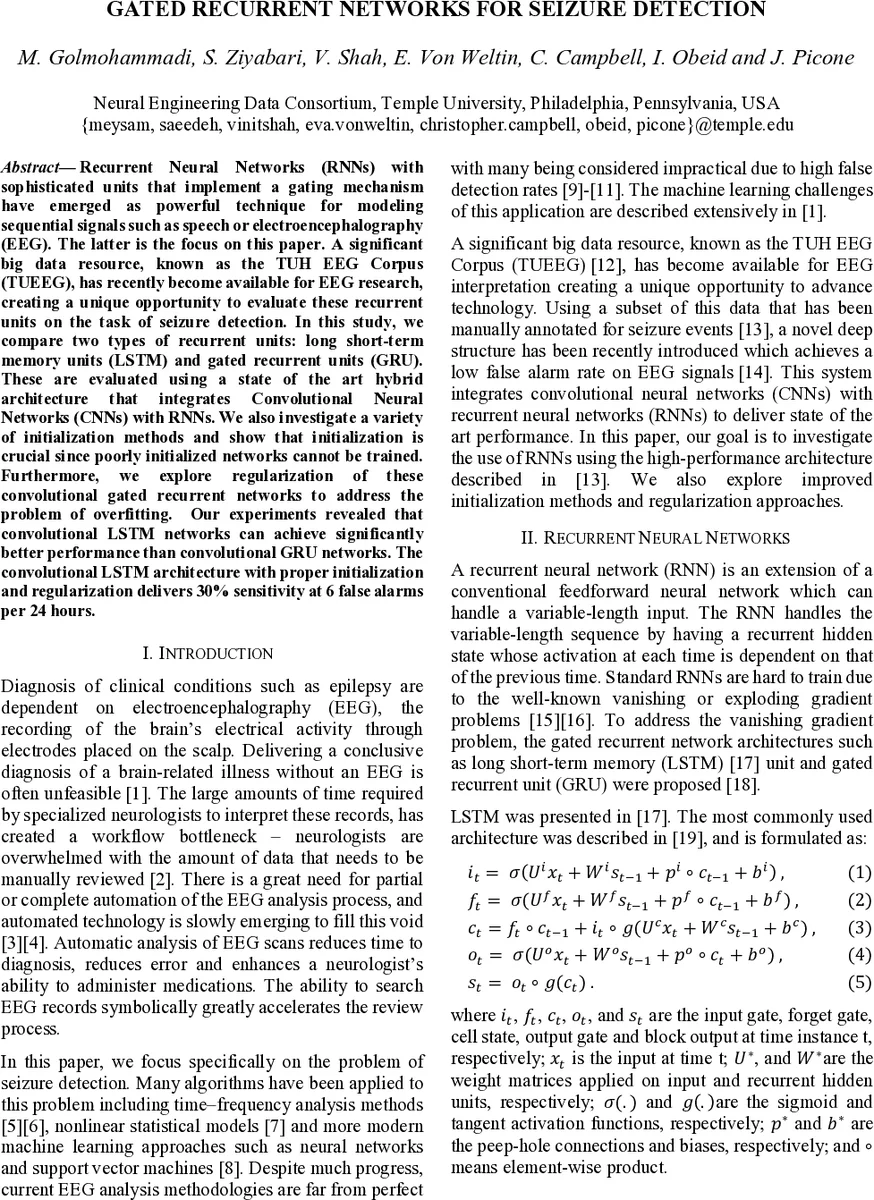

Gated Recurrent Networks for Seizure Detection

Recurrent Neural Networks (RNNs) with sophisticated units that implement a gating mechanism have emerged as powerful technique for modeling sequential signals such as speech or electroencephalography (EEG). The latter is the focus on this paper. A significant big data resource, known as the TUH EEG Corpus (TUEEG), has recently become available for EEG research, creating a unique opportunity to evaluate these recurrent units on the task of seizure detection. In this study, we compare two types of recurrent units: long short-term memory units (LSTM) and gated recurrent units (GRU). These are evaluated using a state of the art hybrid architecture that integrates Convolutional Neural Networks (CNNs) with RNNs. We also investigate a variety of initialization methods and show that initialization is crucial since poorly initialized networks cannot be trained. Furthermore, we explore regularization of these convolutional gated recurrent networks to address the problem of overfitting. Our experiments revealed that convolutional LSTM networks can achieve significantly better performance than convolutional GRU networks. The convolutional LSTM architecture with proper initialization and regularization delivers 30% sensitivity at 6 false alarms per 24 hours.

💡 Research Summary

**
The paper investigates the application of gated recurrent neural networks (RNNs) for automatic seizure detection in electroencephalography (EEG) recordings, leveraging the large publicly available TUH EEG Corpus (TUEEG) and its seizure subset (TUSZ). The authors compare two popular gated recurrent units—Long Short‑Term Memory (LSTM) and Gated Recurrent Unit (GRU)—within a state‑of‑the‑art hybrid architecture that combines convolutional neural networks (CNNs) and recurrent layers. The study focuses on three main aspects: (1) architectural design, (2) weight initialization strategies, and (3) regularization techniques to mitigate overfitting.

Architectural Design
The proposed pipeline processes raw EEG signals through a series of stages. First, the signals are segmented into 0.5‑second frames and transformed into linear frequency cepstral coefficients (LFCCs) together with their first and second derivatives, yielding a 22‑channel × 26‑dimensional feature map per frame. These features are reshaped into a 2‑D “image” (width = 26, height = 22, depth = 1) and fed into a stack of three 2‑D convolutional blocks (16, 32, and 64 kernels of size 3×3) each followed by 2×2 max‑pooling. This stage extracts spatial patterns across EEG channels. The output is then flattened and passed through a 1‑D convolutional layer (16 kernels of size 3) that reduces the temporal dimension from 210 frames to 26 frames. Finally, the compressed sequence is supplied to a bidirectional recurrent layer—either LSTM or GRU—whose hidden sizes are 128 and 256. The bidirectional configuration enables the network to consider both past and future context, which is crucial for detecting seizures that may manifest as subtle, long‑range temporal dependencies. The recurrent output is fed to a two‑way sigmoid classifier that produces a per‑epoch (1‑second) seizure probability.

Training Procedure and Optimization
Training employs the Adam optimizer with a mean‑square‑error loss. Exponential Linear Units (ELU) are used as activation functions to increase non‑linearity. The authors systematically evaluate seven weight initialization schemes: zeros, ones, normal distribution, uniform distribution, Lecun uniform, Glorot uniform, Glorot normal, variance scaling, Lecun normal, He normal, random uniform, truncated normal, and orthogonal initialization. Results (Table 4) show that orthogonal initialization yields the best convergence, achieving 30 % sensitivity with 96.9 % specificity, whereas zero or one initialization leads to complete training failure due to vanishing or exploding gradients. The analysis highlights that preserving the norm of activations across layers is essential for deep recurrent‑convolutional networks.

Regularization Experiments
To address overfitting, five regularization strategies are examined: L1, L2, combined L1/L2 penalties, dropout (probability 0.5), and additive zero‑centered Gaussian noise. The L1/L2 combination provides the lowest overall false‑alarm (FA) rate across the detection error trade‑off (DET) curve, while dropout excels at the low‑FA operating point. However, applying dropout directly on convolutional kernels degrades performance, suggesting that spatial regularization must be handled carefully. The authors propose future exploration of Bayesian CNNs that place probability distributions over kernels to improve robustness on limited data.

Performance Comparison Between LSTM and GRU
Both recurrent variants are evaluated on the TUSZ v1.1.1 dataset using a fixed operating point of 30 % sensitivity. The CNN/LSTM model attains 30 % sensitivity with 97.1 % specificity and 6 false alarms per 24 hours, whereas the CNN/GRU model reaches the same sensitivity but only 91.49 % specificity and a slightly higher FA rate (21 per 24 hours). Training time for the GRU model is about 10 % shorter, reflecting its reduced parameter count, yet the LSTM’s superior memory cell enables better modeling of long‑range dependencies inherent in seizure patterns. The authors conclude that the presence of a dedicated cell state in LSTM confers a tangible advantage for EEG seizure detection.

Conclusions and Future Directions
The study demonstrates that (i) LSTM‑based recurrent layers outperform GRU in the context of EEG seizure detection, (ii) proper weight initialization—particularly orthogonal initialization—is critical for convergence of deep convolutional‑recurrent networks, and (iii) regularization via combined L1/L2 penalties yields the most favorable trade‑off between sensitivity and false‑alarm rate. Future work will explore reinforcement‑learning‑driven architectures to approach human‑level performance (targeting 75 % sensitivity with ≤1 false alarm per 24 hours), further optimization of initialization and regularization schemes, and Bayesian convolutional models to enhance robustness on small training sets. The ultimate goal is to develop a clinically viable, real‑time seizure detection system that can alleviate the workload of neurologists and improve patient outcomes.
