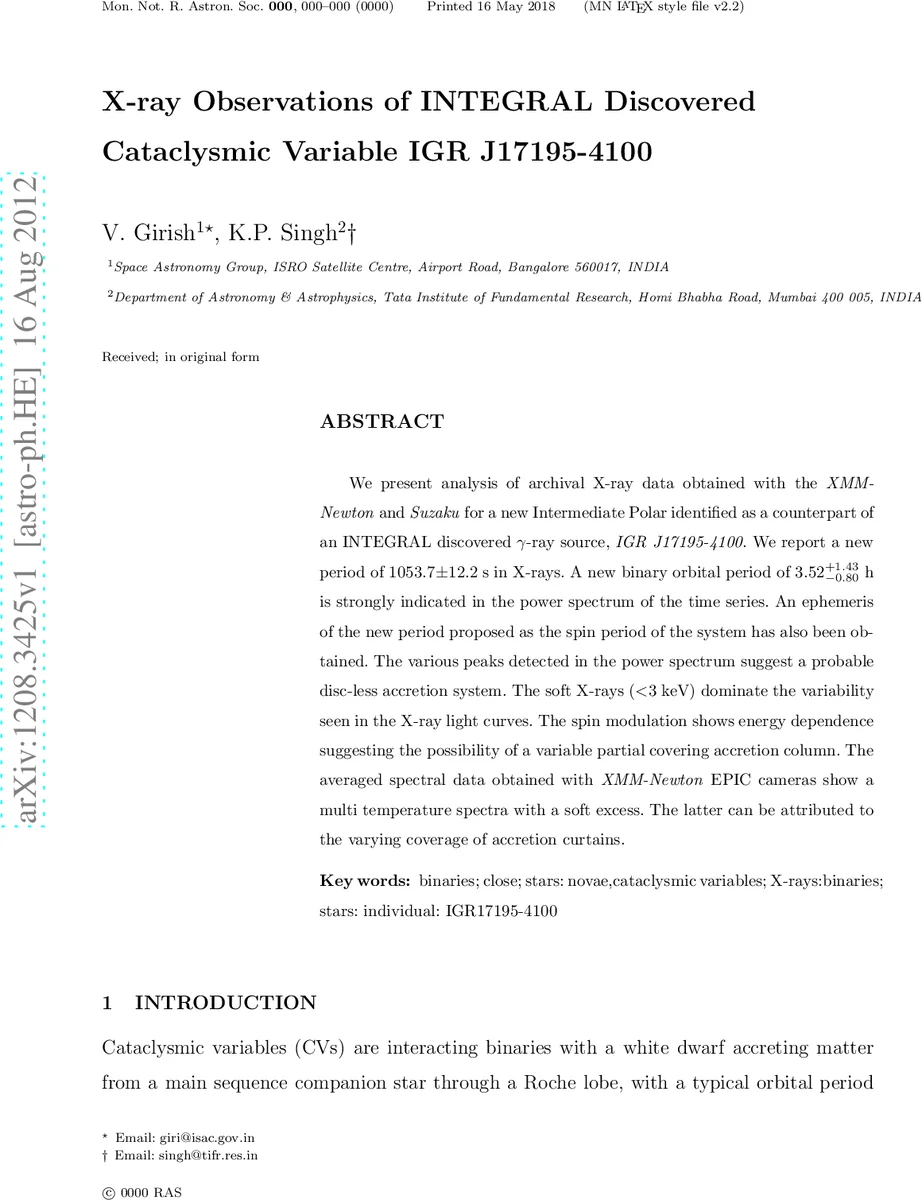

X-ray Observations of INTEGRAL Discovered Cataclysmic Variable IGR J17195-4100

We present analysis of archival X-ray data obtained with the XMM-Newton and Suzaku for a new Intermediate Polar identified as a counterpart of an INTEGRAL discovered gamma-ray source, IGR J17195-4100. We report a new period of 1053.7\pm12.2 s in X-rays. A new binary orbital period of 3.52+1.43-0.80 h is strongly indicated in the power spectrum of the time series. An ephemeris of the new period proposed as the spin period of the system has also been obtained. The various peaks detected in the power spectrum suggest a probable disc-less accretion system. The soft X-rays (<3 keV) dominate the variability seen in the X-ray light curves. The spin modulation shows energy dependence suggesting the possibility of a variable partial covering accretion column. The averaged spectral data obtained with XMM-Newton EPIC cameras show a multi temperature spectra with a soft excess. The latter can be attributed to the varying coverage of accretion curtains.

💡 Research Summary

The authors present a comprehensive X‑ray study of the INTEGRAL‑discovered source IGR J17195‑4100, confirming it as a new intermediate polar (IP) cataclysmic variable. Using archival observations from XMM‑Newton (EPIC MOS1, MOS2, pn; 33.6 ks) and Suzaku (XIS; 73.4 ks) taken in 2009, they performed standard data reduction (SAS, HEASOFT) and extracted background‑subtracted light curves and spectra in the 0.3–10 keV band.

Timing analysis: Fourier transforms of the combined EPIC light curve reveal a dominant peak at 0.949 ± 0.011 mHz, corresponding to a period of 1053.7 ± 12.2 s. This signal is also present in the Suzaku data, albeit with lower significance due to data gaps. The authors interpret this as the white‑dwarf spin period. Additional low‑frequency peaks are found near 0.260 mHz (≈3.52 h) and its harmonics; the 3.5‑hour signal is proposed as the binary orbital period, although its statistical strength is modest. Energy‑resolved power spectra show that the modulation amplitude is largest in the soft band (0.3–1 keV), diminishes in 1–3 keV, and is almost absent above 3 keV, indicating that the spin modulation is driven primarily by variable absorption rather than intrinsic flux changes. Folding the light curves at the 1053.7 s period yields clear sinusoidal profiles in the soft bands and a nearly flat profile in the hard band, reinforcing the absorption‑driven scenario. An ephemeris for the flux maxima is derived:
T_max = 55076.9993 + 0.0121 E − 2.8113 × 10⁻¹¹ E² (MJD).

Spectral analysis: The EPIC pn and combined MOS spectra exhibit a hard continuum extending beyond 10 keV, prominent Fe Kα fluorescence at 6.4 keV, and ionised Fe XXV/XXVI lines at 6.7 and 6.9 keV. Simple single‑temperature bremsstrahlung or blackbody models provide poor fits (χ²_ν > 3). A multi‑temperature collisionally‑ionised plasma model (APEC) with a high temperature (~64 keV) improves the fit but cannot account for the 6.4 keV line. The best‑fit composite model includes:

• Galactic absorption (phabs) with N_H,ISM ≈ 1.2 × 10²² cm⁻²,
• A partial‑covering absorber (pcfabs) with N_H,pc ≈ (5–7) × 10²² cm⁻² and covering fraction ≈ 0.35–0.45,
• A multi‑temperature APEC plasma (kT ≈ 64 keV),
• A soft blackbody component (kT_bb ≈ 0.12 keV) to model the excess below 1 keV,
• Three Gaussian lines for Fe Kα (6.4 keV, EW ≈ 120 eV) and the ionised Fe lines (6.7/6.9 keV, EW ≈ 80–100 eV).

The fit yields χ²_ν ≈ 1.2 for ~1800 degrees of freedom, indicating an acceptable description of the data. The soft excess, together with the energy‑dependent modulation, is interpreted as emission from accretion curtains or spots that are partially obscured by the rotating magnetic flow.

Physical interpretation: The derived spin period (≈1054 s) and tentative orbital period (≈3.5 h) give a spin‑to‑orbit ratio P_spin/P_orb ≈ 0.08, well within the typical range for IPs (0.05–0.15). The detection of sideband frequencies (ω ± Ω) and the dominance of soft‑band variability point toward a disc‑less accretion geometry, where material streams directly along magnetic field lines (stream‑fed or disc‑overflow accretion) rather than forming a full Keplerian disc. This scenario is reminiscent of the well‑studied disc‑less IP V2400 Oph. The presence of both a hard, multi‑temperature plasma and a soft blackbody component aligns with the emerging picture that many hard X‑ray selected IPs (detected by INTEGRAL/IBIS) exhibit a soft excess, likely due to re‑processing in the accretion curtains.

The paper also discusses previous period determinations: RXTE had suggested 1842 s and 2645 s, while optical photometry reported a spin of 1139.5 s and an orbital period of 4.005 h. The authors argue that their X‑ray period is more reliable because it is derived from high‑signal, continuous EPIC data and is corroborated by Suzaku. However, they acknowledge the need for independent confirmation of the orbital period, preferably through long‑baseline optical spectroscopy or photometry.

Limitations and future work: The orbital signal is weak, and the partial‑covering absorber parameters are inferred indirectly from spectral fitting; time‑resolved spectroscopy could map the absorber’s phase dependence. The white‑dwarf mass estimate (≈1.03 M_⊙) relies on previous Suzaku broadband fits; higher‑energy coverage (e.g., NuSTAR) would tighten this value. Simultaneous optical/X‑ray monitoring could test the stream‑fed accretion hypothesis by searching for beat‑frequency modulations.

In summary, the study establishes IGR J17195‑4100 as a hard‑X‑ray bright intermediate polar with a 1054 s spin, a probable 3.5 h orbit, disc‑less (or heavily truncated disc) accretion, variable partial covering, and a multi‑temperature plasma plus soft excess. The results enrich the sample of INTEGRAL‑selected IPs and underscore the importance of combined timing and spectral diagnostics for unraveling the accretion physics of magnetic cataclysmic variables.
