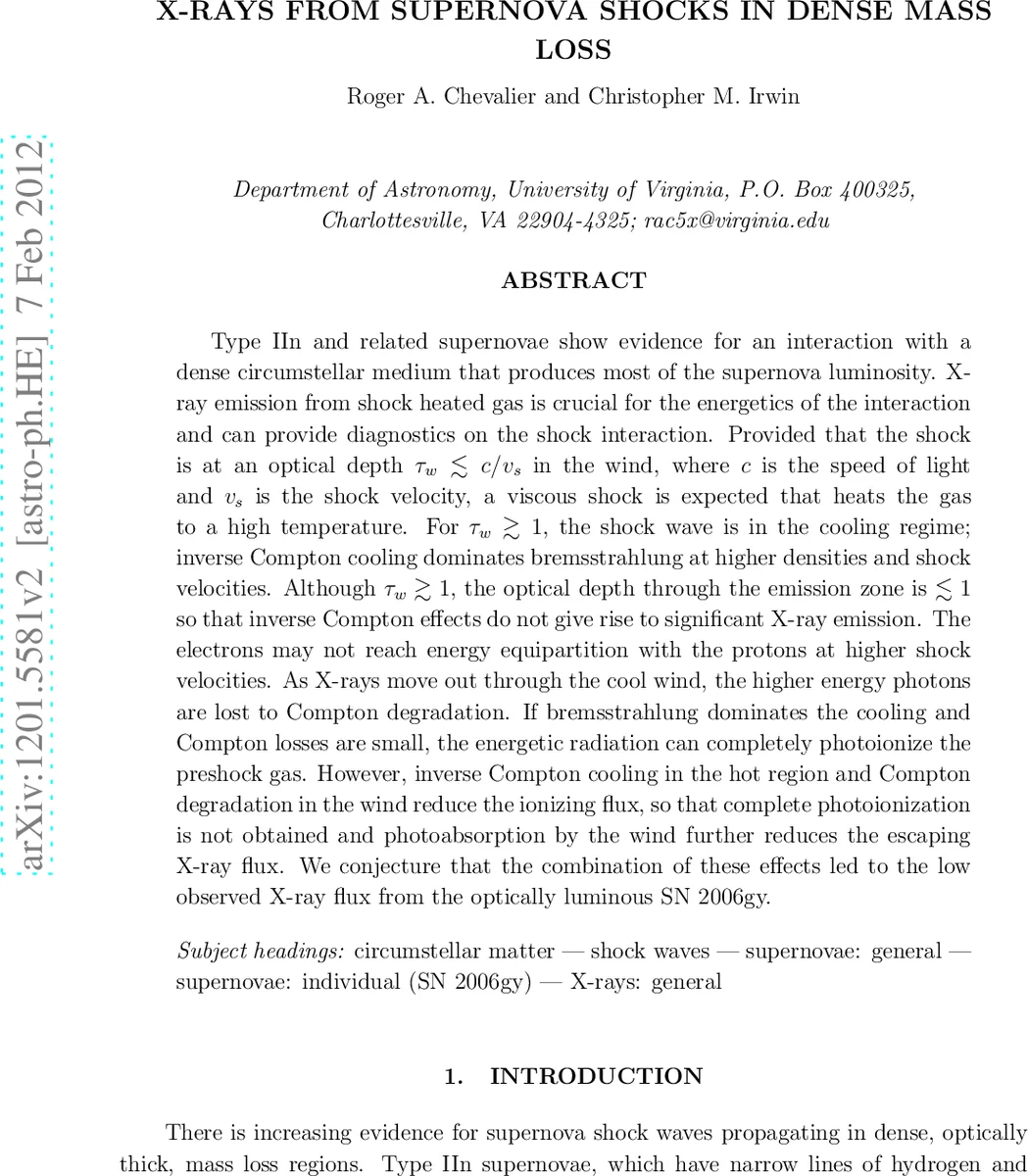

X-Rays from Supernova Shocks in Dense Mass Loss

Type IIn and related supernovae show evidence for an interaction with a dense circumstellar medium that produces most of the supernova luminosity. X-ray emission from shock heated gas is crucial for the energetics of the interaction and can provide diagnostics on the shock interaction. Provided that the shock is at an optical depth tau_w\la c/v_s in the wind, where c is the speed of light and v_s is the shock velocity, a viscous shock is expected that heats the gas to a high temperature. For tau_w\ga 1, the shock wave is in the cooling regime; inverse Compton cooling dominates bremsstrahlung at higher densities and shock velocities. Although tau_w\ga 1, the optical depth through the emission zone is \la 1 so that inverse Compton effects do not give rise to significant X-ray emission. The electrons may not reach energy equipartition with the protons at higher shock velocities. As X-rays move out through the cool wind, the higher energy photons are lost to Compton degradation. If bremsstrahlung dominates the cooling and Compton losses are small, the energetic radiation can completely photoionize the preshock gas. However, inverse Compton cooling in the hot region and Compton degradation in the wind reduce the ionizing flux, so that complete photoionization is not obtained and photoabsorption by the wind further reduces the escaping X-ray flux. We conjecture that the combination of these effects led to the low observed X-ray flux from the optically luminous SN 2006gy.

💡 Research Summary

The paper investigates why Type IIn supernovae, which are powered largely by interaction with a dense circumstellar medium (CSM), often exhibit surprisingly weak X‑ray emission despite their extreme optical luminosities. The authors focus on the physics of shock waves propagating through a steady wind with a density profile ρ∝r⁻², characterized by a mass‑loss rate Ṁ and wind speed v_w. They define the wind optical depth τ_w = 1.7×10¹⁶ k D_*/R (k≈0.34 cm² g⁻¹) and show that a viscous shock forms when τ_w < c/v_s, where v_s is the shock velocity. For τ_w ≳ 1 the shock is radiative; cooling can be dominated either by bremsstrahlung or by inverse Compton (IC) scattering, depending on density and velocity.

In the bremsstrahlung‑dominated regime the X‑ray luminosity scales as L_b ≈ 3×10⁴⁵ D_² (t/10 d)⁻¹ erg s⁻¹, whereas in the IC‑dominated regime L_c ≈ 3.1×10⁴⁴ D_ v_s4³ erg s⁻¹ (v_s4 = v_s/10⁴ km s⁻¹). The transition between these regimes occurs near τ_w ≈ 1, which also corresponds to the optical depth at which the emission zone itself becomes marginally transparent (τ≈1).

A crucial point is that electrons may not achieve equipartition with protons at high shock speeds. The electron temperature is set by a balance between Coulomb heating and IC cooling, yielding T_e ≈ 7×10⁸ K (ε_γ/0.5)⁻²⁄⁵, considerably lower than the proton temperature (≈10⁹ K). Consequently, the emergent X‑ray spectrum is softer, and the overall X‑ray power is reduced.

The authors then examine how the emitted X‑rays propagate through the unshocked wind. In a medium with τ_w > 1, multiple electron scatterings (Comptonization) degrade photon energies: the maximum photon energy after escaping is ε_max ≈ 51 keV/τ_w², so for τ_w≈3 the highest observable photons are only a few keV. This “Compton degradation” strongly suppresses hard X‑ray flux.

Simultaneously, the X‑ray/UV radiation field ionizes the pre‑shock wind. The ionization parameter ξ = L/(n r²) is independent of radius for a ρ∝r⁻² wind and, in the cooling regime, evaluates to ξ ≈ 10⁴ (v_s4)³. For ξ ≳ 10⁴ the wind is fully ionized (C, N, O, and even Fe become stripped), minimizing photo‑absorption. However, when IC cooling dominates, ξ is reduced, leading to only partial ionization; the remaining neutral atoms then absorb X‑rays, further lowering the escaping flux.

Applying this framework to the luminous SN 2006gy, the authors adopt τ_w≈3–5, v_s≈10⁴ km s⁻¹, and D_*≈0.1. Under these conditions IC cooling is dominant, electron–proton equipartition is not achieved, and Compton degradation limits escaping photons to ≲5 keV. The ionization parameter is modest, so the wind is not fully ionized, and photo‑absorption removes a substantial fraction of the already weak X‑ray signal. The net result is an X‑ray luminosity that is orders of magnitude below the optical luminosity, consistent with the observed upper limits for SN 2006gy.

Overall, the paper presents a coherent theoretical picture that combines shock dynamics, cooling physics, electron–proton temperature coupling, Compton scattering, and photo‑ionization to explain the low X‑ray output of optically bright Type IIn supernovae. It highlights the importance of the wind optical depth and shock velocity in determining whether X‑rays can escape, and it offers quantitative criteria (τ_w ≈ c/v_s, ξ values, cooling regime boundaries) that can be applied to future observations of interacting supernovae.
