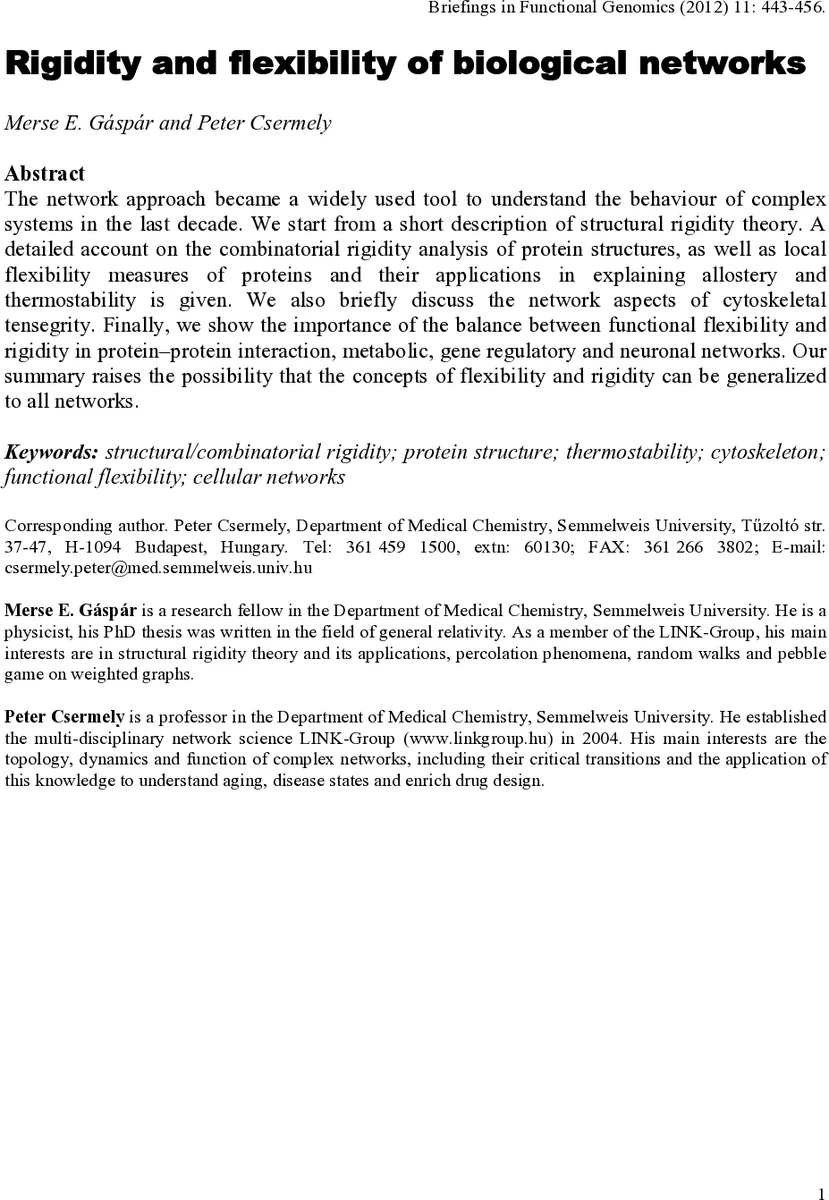

Rigidity and flexibility of biological networks

The network approach became a widely used tool to understand the behaviour of complex systems in the last decade. We start from a short description of structural rigidity theory. A detailed account on the combinatorial rigidity analysis of protein structures, as well as local flexibility measures of proteins and their applications in explaining allostery and thermostability is given. We also briefly discuss the network aspects of cytoskeletal tensegrity. Finally, we show the importance of the balance between functional flexibility and rigidity in protein-protein interaction, metabolic, gene regulatory and neuronal networks. Our summary raises the possibility that the concepts of flexibility and rigidity can be generalized to all networks.

💡 Research Summary

The paper provides a comprehensive review of rigidity and flexibility concepts as they apply to biological networks, bridging structural rigidity theory with functional network dynamics. It begins by outlining the network paradigm—nodes as distinct biological entities and edges as pairwise interactions—emphasizing that topology alone is insufficient for understanding complex biological behavior; dynamics and possible network evolution must also be considered. Two distinct notions of rigidity/flexibility are defined: (1) structural rigidity, where the network is a geometric framework embedded in Euclidean space, and (2) functional rigidity, where the network is dynamic and its response to external perturbations is limited.

Structural rigidity theory is introduced through the classic bar‑joint framework, Maxwell’s counting rule (3N‑6 constraints for three‑dimensional rigidity), and Laman’s theorem for two‑dimensional generic rigidity. The authors explain that while Laman’s theorem fully characterizes 2‑D bar‑joint rigidity, a comparable combinatorial characterization for 3‑D bar‑joint systems remains elusive. They then discuss body‑bar‑hinge frameworks, which treat groups of atoms as rigid bodies connected by bars and hinges, allowing a direct generalization of Laman’s condition to (6,6)‑critical multigraphs. The pebble‑game algorithm, a polynomial‑time method for identifying rigid clusters, redundant edges, and internal degrees of freedom, is highlighted as the primary computational tool.

The paper moves to practical applications in protein structural analysis. Two modeling strategies are described: (a) the bond‑bending (bar‑joint) model, where atoms are joints and covalent bonds, angle constraints, and torsional constraints are represented by bars of various ranges; and (b) the body‑bar‑hinge model, where each chemically rigid group (e.g., a tetrahedral carbon center) is a body and rotatable single bonds become hinges. Software implementations—FIRST (ASU‑FIRST) and KINARI—are compared. Both use the pebble‑game algorithm, allow user‑defined energy cut‑offs for selecting which interactions count as constraints, and output rigidity order parameters such as the size of the largest rigid cluster relative to the whole protein. The authors note that rigidity analysis is highly sensitive to the chosen cut‑off, that real chemical bonds exhibit variability, and that generic rigidity assumptions may not hold for near‑degenerate geometries. To address these limitations, they discuss the “virtual pebble game” (Gonzalez et al., 2020), which operates on weighted graphs with non‑integer constraint counts, enabling dilution plots that track rigidity metrics across a continuum of energy thresholds.

Beyond proteins, the authors briefly review rigidity analyses of RNA and other macromolecules, and they point out that rigid‑cluster decomposition can dramatically reduce conformational search space in molecular dynamics simulations, thereby accelerating folding and docking studies.

The review then shifts to functional rigidity/flexibility in higher‑level biological networks. It argues that a network can be structurally rigid yet functionally flexible, and vice versa, depending on the timescale and nature of perturbations. Examples include:

• Protein‑protein interaction networks – excessive rigidity can impede signal propagation, while too much flexibility leads to noisy responses.
• Metabolic networks – core pathways tend to be rigid (ensuring essential fluxes), whereas peripheral routes provide flexibility for environmental adaptation.
• Gene regulatory networks – transcription factor binding sites impose rigidity, whereas chromatin remodeling and co‑activator dynamics supply flexibility.
• Neuronal networks – the classic stability‑flexibility dilemma, where synaptic strength (rigidity) must coexist with plasticity (flexibility) for learning and memory.

The authors emphasize that the balance between rigidity and flexibility is a key evolutionary pressure, influencing thermostability of enzymes, allosteric regulation, and robustness against mutations. They also note that functional rigidity lacks a universal mathematical framework because it depends on specific dynamics and external influences; nevertheless, combinatorial rigidity concepts, probabilistic constraint counting, and dynamic network models together provide a useful toolbox.

In the concluding section, the paper proposes that rigidity and flexibility concepts can be generalized to all network types. Achieving this requires (i) quantitative topological rigidity metrics, (ii) probabilistic extensions of constraint counting (e.g., virtual pebble game), and (iii) integration with dynamical simulations and experimental data. Future research directions suggested include multi‑scale studies linking molecular rigidity to cellular tensegrity, evolutionary analyses of rigidity‑flexibility trade‑offs, and the exploitation of rigidity hotspots in drug design. Overall, the review synthesizes structural rigidity theory, computational tools, and functional network perspectives to argue that a nuanced, balanced view of rigidity and flexibility is essential for understanding and engineering biological systems.
