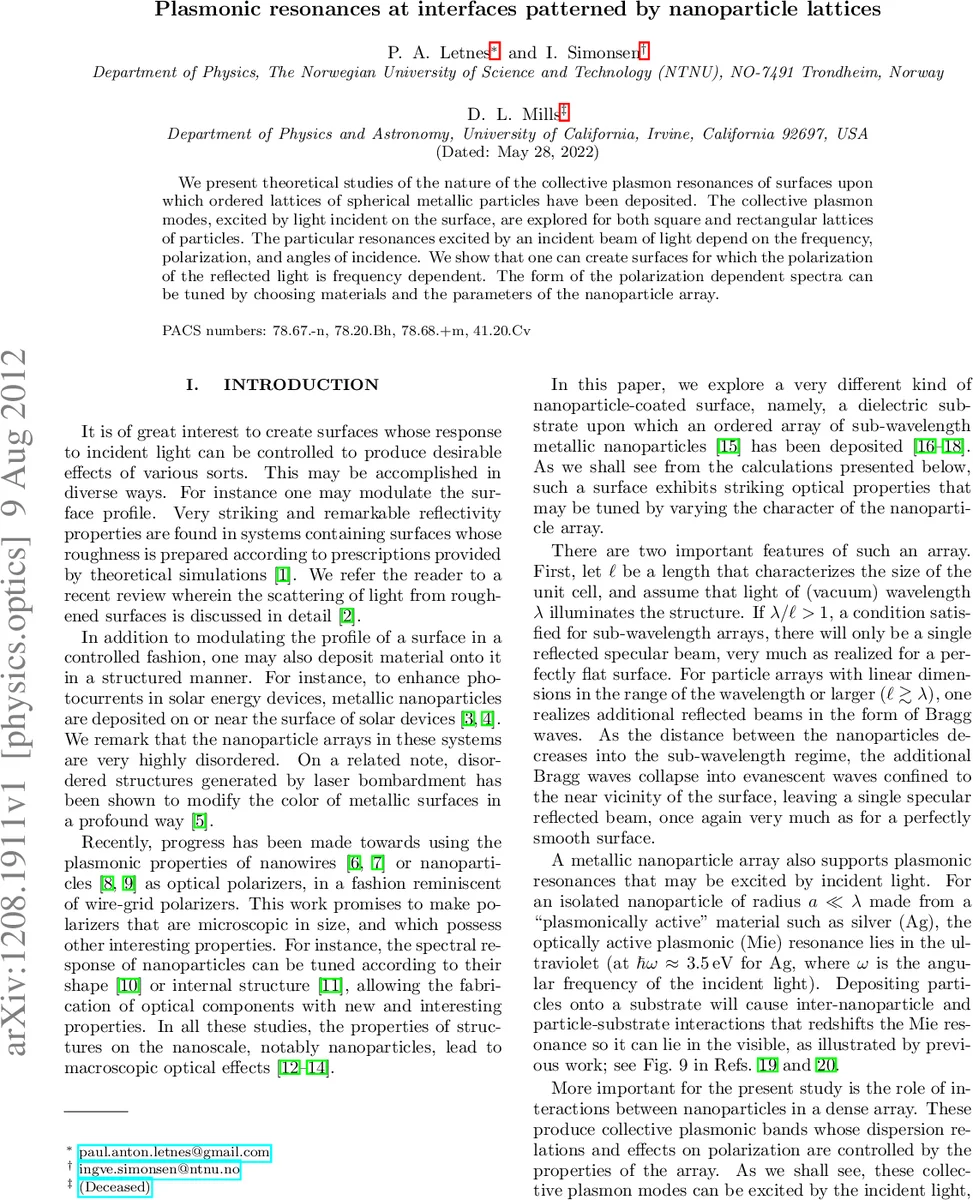

Plasmonic resonances at interfaces patterned by nanoparticle lattices

We present theoretical studies of the nature of the collective plasmon resonances of surfaces upon which ordered lattices of spherical metallic particles have been deposited. The collective plasmon modes, excited by light incident on the surface, are explored for both square and rectangular lattices of particles. The particular resonances excited by an incident beam of light depend on the frequency, polarization, and angles of incidence. We show that one can create surfaces for which the polarization of the reflected light is frequency dependent. The form of the polarization dependent spectra can be tuned by choosing materials and the parameters of the nanoparticle array.

💡 Research Summary

In this paper the authors present a comprehensive theoretical investigation of collective plasmon resonances that arise when ordered lattices of metallic nanoparticles are deposited on a dielectric substrate. The specific system studied consists of silver (Ag) nanospheres of radius a arranged in either square or rectangular two‑dimensional lattices with lattice constants bₓ and b_y (bₓ ≤ b_y) on an alumina (Al₂O₃) substrate (dielectric function ε⁻(ω)). The surrounding medium is vacuum (ε⁺ = 1). The analysis is confined to the sub‑wavelength regime (λ ≫ bₓ, b_y, a) where the quasistatic approximation (∇²ψ = 0) is valid, allowing the electromagnetic response to be described entirely by an electrostatic potential ψ(r).

The authors employ a multipole expansion of the scalar potential for each sphere, retaining terms up to a finite order L_max (typically 5–7). Bloch–Floquet periodicity is imposed, leading to the compact relation ψ_{ij}(r_{ij}) = ψ_{00}(r_{ij}) exp(i k·ΔR_{ij}), where ΔR_{ij} = (i bₓ, j b_y, 0) and k is the in‑plane component of the incident wavevector. In the sub‑wavelength limit k → 0, the phase factor reduces to unity for the purpose of calculating the collective modes. The presence of the substrate is accounted for by introducing image multipoles; the image coefficients are related to the real‑particle coefficients through the factor (ε⁺ − ε⁻)/(ε⁺ + ε⁻) multiplied by (−1)^{ℓ+m}. This ensures continuity of both potential and normal electric field at the z = 0 interface.

A linear system coupling all multipole coefficients A_{ℓm} is assembled by enforcing the boundary conditions on each sphere and on the substrate. The lattice sums required for inter‑particle and particle‑image interactions are evaluated directly in real space over a finite number of unit cells (N = 10) because the image contributions break the translational symmetry needed for a Fourier‑space treatment. A small separation h (≈0.01 a) between the sphere centers and the substrate is introduced to avoid singularities in the spherical‑harmonic expansion; the results are shown to be insensitive to the exact value of h.

From the solved coefficients the dimensionless dipole moment (\bar{p}(ω) = p(ω)/(a^{3} ε_{0} E_{0})) is extracted; it is directly proportional to the ℓ = 1 coefficients A_{1m}. Although only the dipole term appears in the far‑field response, the coupling of higher‑order multipoles into the linear system endows (\bar{p}) with information about the full collective spectrum. The authors then compute the reflectivity R and the polarization state of the reflected beam as functions of frequency, incident angle, and lattice geometry.

Key findings include:

1. Red‑shifted collective plasmon bands – The isolated Ag sphere exhibits a Mie resonance near 3.5 eV (ultraviolet). When placed on Al₂O₃ and coupled to neighboring spheres, the resonance is red‑shifted into the visible (≈2–2.5 eV), forming dispersive plasmonic bands whose exact position depends on bₓ, b_y, and a.

2. Geometry‑controlled polarization selectivity – In a square lattice (bₓ = b_y) the coupling is isotropic; TE (electric field parallel to the lattice) and TM (electric field perpendicular) modes are nearly degenerate, leading to weak polarization dependence of the reflected light. In a rectangular lattice (bₓ < b_y) the stronger coupling along the short axis splits the modes: the TE‑like mode appears at lower frequencies, while the TM‑like mode resides at higher frequencies. Consequently, for a given frequency the reflected beam can be strongly polarized even when the incident light is unpolarized.

3. Angle‑independence in the sub‑wavelength limit – Because λ ≫ bₓ, b_y, only the specular (mirror‑like) reflected beam survives; Bragg diffraction orders are evanescent. The reflectivity therefore depends primarily on frequency and polarization, not on the in‑plane wavevector component.

4. Effect of substrate‑induced image charges – The image multipoles produce an additional red‑shift and modify the strength of inter‑particle coupling. The magnitude of this effect is governed by the contrast (ε⁺ − ε⁻)/(ε⁺ + ε⁻); for Al₂O₃ (ε⁻ ≈ 3) the shift is moderate but non‑negligible.

5. Computational efficiency – The multipole‑expansion approach, combined with Bloch periodicity, yields results comparable to full‑wave discrete‑dipole approximation (DDA) simulations while requiring far fewer resources, provided that L_max is chosen appropriately.

The authors discuss potential applications: (i) nanoscale polarizers that exploit the frequency‑dependent polarization conversion, (ii) color‑changing surfaces where the reflected hue can be tuned by lattice geometry, and (iii) enhanced light‑trapping layers for photovoltaic devices where the collective plasmon band can be aligned with the solar spectrum. They also note that extending the model to non‑spherical particles, non‑periodic arrangements, or incorporating size‑dependent corrections to the dielectric function would bring the theory closer to experimental realizations.

In summary, the paper establishes a clear theoretical framework for predicting and tailoring the optical response of nanoparticle lattices on dielectric substrates. By systematically varying lattice constants, particle size, and substrate material, one can engineer the position of collective plasmon resonances and the associated polarization characteristics of reflected light, opening pathways for compact, tunable photonic components.
