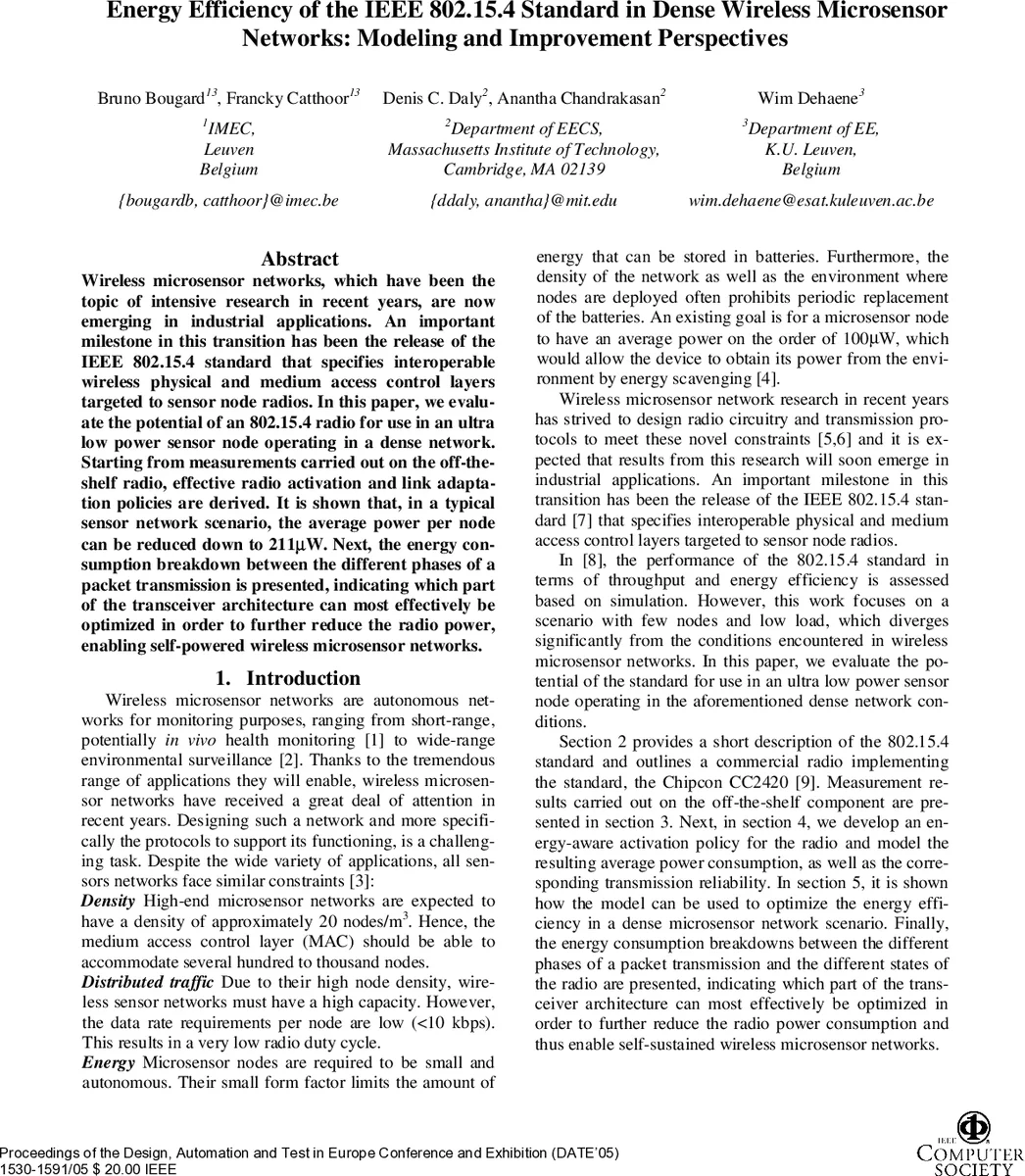

Energy Efficiency of the IEEE 802.15.4 Standard in Dense Wireless Microsensor Networks: Modeling and Improvement Perspectives

Wireless microsensor networks, which have been the topic of intensive research in recent years, are now emerging in industrial applications. An important milestone in this transition has been the release of the IEEE 802.15.4 standard that specifies interoperable wireless physical and medium access control layers targeted to sensor node radios. In this paper, we evaluate the potential of an 802.15.4 radio for use in an ultra low power sensor node operating in a dense network. Starting from measurements carried out on the off-the-shelf radio, effective radio activation and link adaptation policies are derived. It is shown that, in a typical sensor network scenario, the average power per node can be reduced down to 211m mm mW. Next, the energy consumption breakdown between the different phases of a packet transmission is presented, indicating which part of the transceiver architecture can most effectively be optimized in order to further reduce the radio power, enabling self-powered wireless microsensor networks.

💡 Research Summary

The paper investigates the energy efficiency of IEEE 802.15.4 radios in dense wireless microsensor networks, focusing on a commercially available Chipcon CC2420 transceiver. After a concise overview of the 802.15.4 PHY (2.4 GHz ISM band, O‑QPSK, DSSS, 250 kbps) and MAC (beacon and non‑beacon modes, super‑frame structure, CSMA/CA), the authors present detailed measurements of the four operating states of the radio: shutdown (80 nA, ~144 nW), idle (396 µA, ~712 µW), receive (19.6 mA, ~35 mW) and transmit (current ranging from 8.4 mA at –25 dBm to 17 mA at 0 dBm, corresponding to 2.5–28 mW). Transition between states incurs a non‑negligible energy cost of about 6.6 µJ and a latency of roughly 1 ms, which is critical for duty‑cycled operation.

Using these measurements, the authors devise an “energy‑aware activation” policy. Because the beacon must be heard before any uplink transmission, the radio cannot remain in shutdown during the entire super‑frame; a 1 ms pre‑wake‑up is required to bring the device to idle before the first CCA. Keeping the radio in idle (rather than repeatedly shutting down and waking) reduces the average power to 211 µW in a typical scenario where the duty cycle is below 5 %. The paper shows that the idle current dominates the power budget (over 70 % of total consumption), indicating that further reductions must target the idle state.

Link adaptation is addressed by measuring the received power during the beacon and selecting a transmit power level that keeps the bit‑error rate below 10⁻⁶. An empirical relationship between received power and BER is derived, and a simple path‑loss model (P_Tx = P_Rx + A) is used to switch among discrete transmit power steps (–25 dBm to 0 dBm). This dynamic adaptation maintains high reliability while avoiding unnecessary high‑power transmissions.

The MAC overhead analysis reveals that, in dense deployments (≈20 nodes / m³), the CSMA/CA contention procedure (two mandatory clear‑channel assessments per transmission, random backoff with BE limited to 0–2) leads to frequent collisions and increased energy consumption. The “Battery Life Extension” mode, which limits the backoff exponent, actually worsens collision rates under high load. The authors suggest that reservation‑based TDMA or polling could alleviate this overhead.

Finally, the paper breaks down the energy consumption per packet phase (preamble, SFD, header, payload, ACK) and identifies the transceiver components where optimization yields the greatest gains: reducing idle current, shortening state transition times, and improving MAC scheduling. The authors conclude that, with proper activation and link‑adaptation policies, IEEE 802.15.4 can achieve average node power around 200 µW even in dense networks, but hardware improvements (low‑power idle mode, fast wake‑up circuitry) and MAC redesign are essential for reaching the sub‑100 µW targets required for self‑powered sensor nodes.
