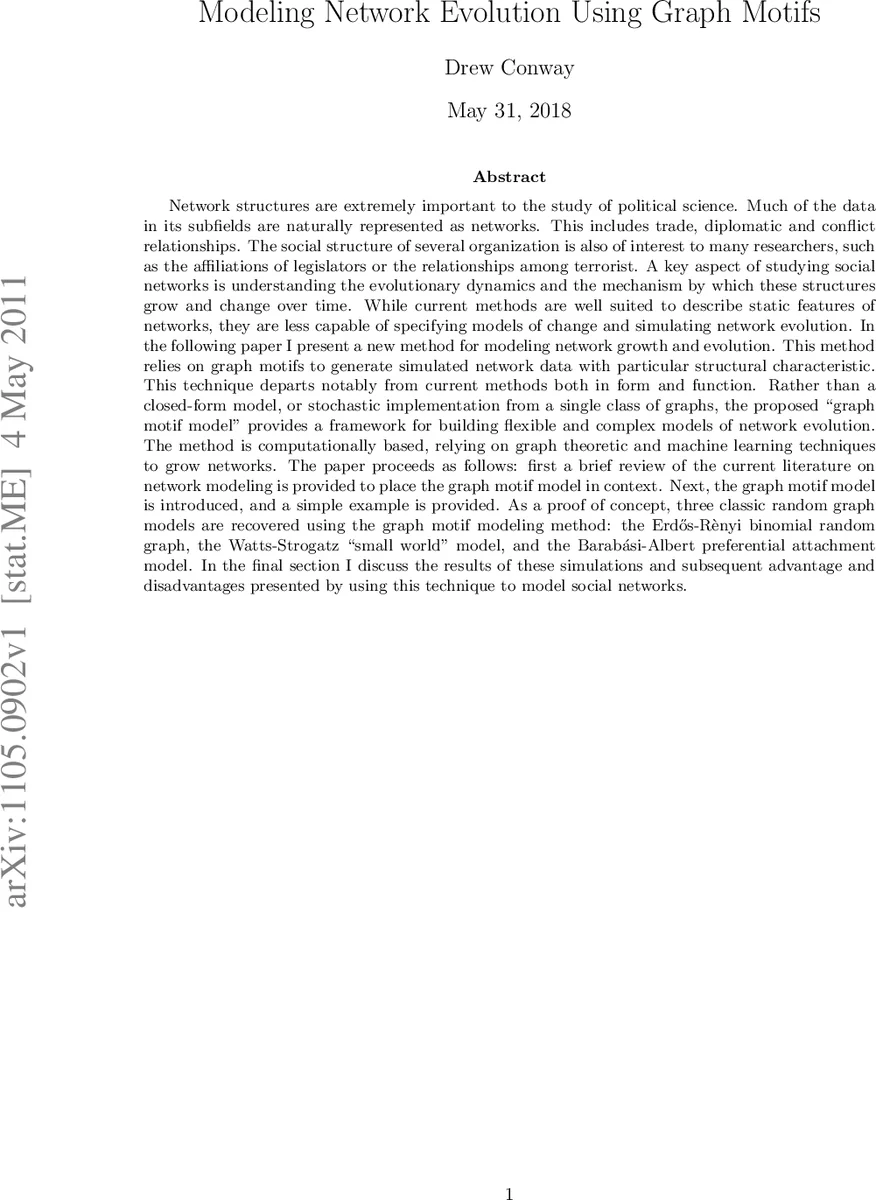

Modeling Network Evolution Using Graph Motifs

Network structures are extremely important to the study of political science. Much of the data in its subfields are naturally represented as networks. This includes trade, diplomatic and conflict relationships. The social structure of several organization is also of interest to many researchers, such as the affiliations of legislators or the relationships among terrorist. A key aspect of studying social networks is understanding the evolutionary dynamics and the mechanism by which these structures grow and change over time. While current methods are well suited to describe static features of networks, they are less capable of specifying models of change and simulating network evolution. In the following paper I present a new method for modeling network growth and evolution. This method relies on graph motifs to generate simulated network data with particular structural characteristic. This technique departs notably from current methods both in form and function. Rather than a closed-form model, or stochastic implementation from a single class of graphs, the proposed “graph motif model” provides a framework for building flexible and complex models of network evolution. The paper proceeds as follows: first a brief review of the current literature on network modeling is provided to place the graph motif model in context. Next, the graph motif model is introduced, and a simple example is provided. As a proof of concept, three classic random graph models are recovered using the graph motif modeling method: the Erdos-Renyi binomial random graph, the Watts-Strogatz “small world” model, and the Barabasi-Albert preferential attachment model. In the final section I discuss the results of these simulations and subsequent advantage and disadvantages presented by using this technique to model social networks.

💡 Research Summary

The paper addresses a notable gap in political‑science network research: while many studies rely on static descriptions or on exponential random graph models (ERGMs) and dynamic maximum‑likelihood estimators, these approaches do not adequately capture how new actors bring pre‑existing structural information into a network. To fill this void, the author proposes the Graph Motif Model (GMM), a flexible, algorithmic framework that builds evolving networks by repeatedly inserting small, empirically‑derived subgraphs (motifs) into an existing graph.

The GMM workflow consists of three stages. First, a base network is analyzed to extract frequently occurring motifs of size three to five nodes; their frequencies are turned into a probability distribution. Second, during each simulation step a motif is sampled according to this distribution. Third, the sampled motif is attached to the current network using a user‑specified rule (e.g., random attachment, preferential attachment, or rewiring). This process explicitly models the idea that a newcomer arrives with a “micro‑structure” that immediately reshapes the larger system.

To demonstrate the expressive power of GMM, the author reconstructs three classic random‑graph models. For the Erdős–Rényi binomial graph, motifs are chosen uniformly and inserted without bias, reproducing the characteristic Poisson degree distribution and low clustering. For the Watts–Strogatz small‑world model, motifs are first added locally and then a fraction of edges are rewired, yielding high clustering together with short average path lengths. For the Barabási–Albert preferential‑attachment model, the motif‑selection probability is made proportional to the degree of existing nodes, generating a heavy‑tailed degree distribution and a clear hub structure. In each case, visualizations and basic statistics (clustering coefficient, average path length, degree distribution) show that GMM can faithfully emulate the target models.

The discussion highlights several strengths of the motif‑based approach. It is highly modular: researchers can define any motif set and attachment rule, allowing the simulation of networks that reflect domain‑specific processes (e.g., terrorist recruitment, diffusion of political opinions). Because the method is algorithmic rather than closed‑form, it can be extended to heterogeneous data, sparse observations, or networks where actors possess rich attribute information. Moreover, GMM bridges a conceptual gap between pure graph‑theoretic models and agent‑based simulations, offering a middle ground that captures both structural regularities and node‑level agency.

Limitations are also acknowledged. The choice of motif library and attachment policy introduces subjectivity; without systematic guidelines, different researchers may obtain divergent results from the same data. The current implementation relies heavily on random sampling, so incorporating substantive social mechanisms (e.g., homophily, institutional constraints) requires additional modeling layers. Computational scalability is a concern: as the network grows, motif detection and insertion can become costly, especially for larger motif sizes. Finally, the validation presented is largely qualitative; more rigorous statistical comparisons between GMM‑generated graphs and the original models would strengthen the claim of equivalence.

In conclusion, the Graph Motif Model offers a promising new tool for studying network evolution in political and social contexts. By treating motifs as the atomic building blocks that new actors contribute, it captures a realistic aspect of network growth that traditional ERGM or static methods overlook. Future work should focus on data‑driven motif selection, integration of node attributes and exogenous shocks, efficient large‑scale implementations, and thorough empirical validation against real‑world longitudinal network data. The paper thus opens a pathway toward more nuanced, flexible, and theoretically grounded simulations of social‑political networks.
