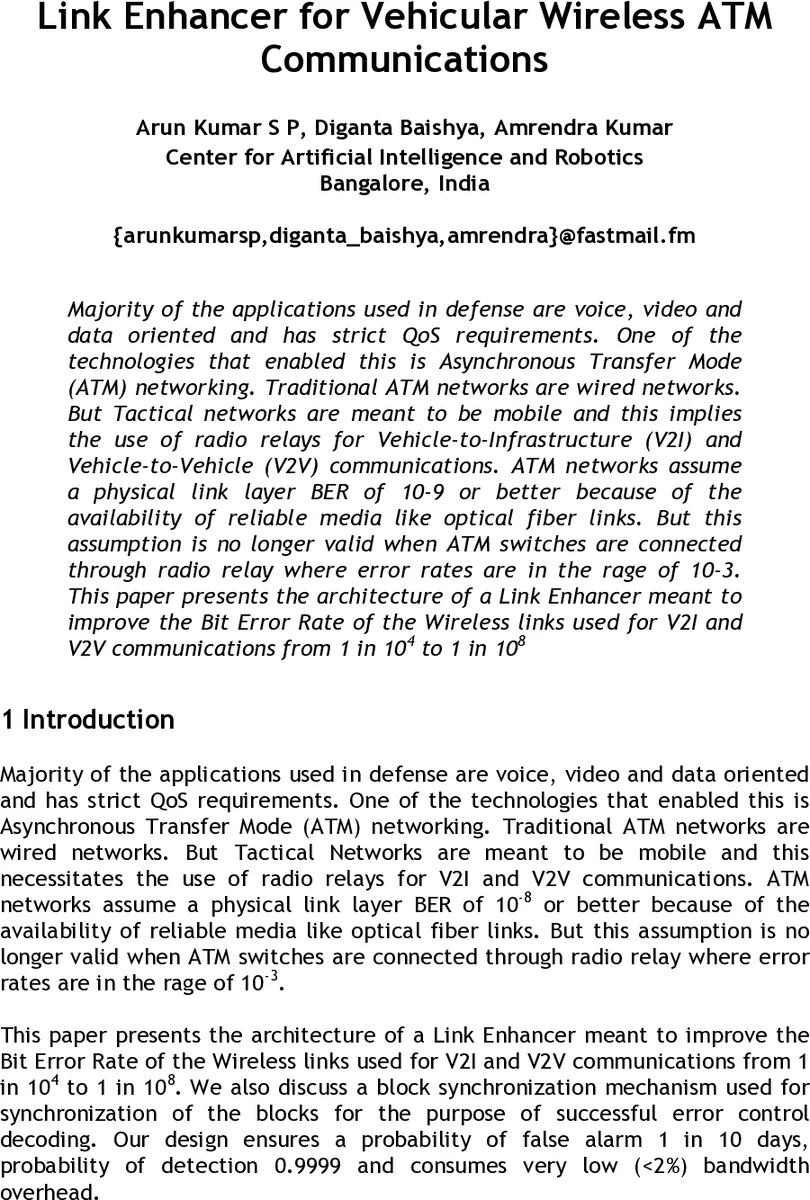

Link Enhancer for Vehicular Wireless ATM Communications

Majority of the applications used in defense are voice, video and data oriented and has strict QoS requirements. One of the technologies that enabled this is Asynchronous Transfer Mode (ATM) networking. Traditional ATM networks are wired networks. But Tactical networks are meant to be mobile and this necessitates the use of radio relays for Vehicle-to-Infrastructure (V2I) and Vehicle-to-Vehicle (V2V) communications. ATM networks assume a physical link layer BER of 10^-9 or better because of the availability of reliable media like optical fiber links. But this assumption is no longer valid when ATM switches are connected through radio relay where error rates are in the rage of 10^-3. This paper presents the architecture of a Link Enhancer meant to improve the Bit Error Rate of the Wireless links used for V2I and V2V communications from 1 in 10^4 to 1 in 10^8

💡 Research Summary

The paper addresses a critical reliability gap in tactical vehicular networks that employ Asynchronous Transfer Mode (ATM) over wireless radio relays. While traditional ATM assumes a physical‑layer bit error rate (BER) of 10⁻⁸ or better—feasible on fiber or other highly reliable media—radio links in Vehicle‑to‑Infrastructure (V2I) and Vehicle‑to‑Vehicle (V2V) scenarios typically exhibit BERs on the order of 10⁻³. Such error levels would cause intolerable cell loss and corruption for ATM switches, breaking the strict QoS guarantees required for voice, video, and data services in defense applications.

To bridge this gap, the authors propose a “Link Enhancer” that sits transparently between an ATM switch and the wireless radio interface. The device is implemented as a System‑on‑Programmable‑Chip (SOPC) solution on a single Altera Cyclone II FPGA, thereby keeping latency and power consumption low while providing the necessary processing bandwidth.

Key technical components are:

1. Cell Delineation and Idle‑Cell Management – ATM cells are 53 bytes long; when no user payload is present the switch inserts idle cells. The Link Enhancer removes idle cells before forward‑error‑correction (FEC) encoding, freeing bandwidth for the redundancy bits, and re‑inserts an equivalent number of idle cells after decoding to preserve cell timing and delineation at the remote switch.

2. Reed‑Solomon (255,235) FEC – An 8‑bit symbol RS code is selected after extensive simulation of various block codes. The (255,235) configuration adds 20 bytes of parity, allowing correction of up to 10 symbol errors per block. This code is well‑suited to burst‑error channels typical of wireless links and provides the required BER improvement from 10⁻³ to better than 10⁻⁸.

3. Block Synchronization Scheme – Because RS operates on fixed‑size blocks, the receiver must locate block boundaries. A unique synchronization pattern is prefixed to each encoded block; a dedicated pattern‑search circuit in the FPGA detects it with a false‑alarm probability of less than one per ten days and a detection probability of 0.9999.

4. FPGA‑Based Architecture – The high‑level block diagram includes separate media interfaces (E1 line cards conforming to ITU‑T G.703/G.704), cell delineation logic, idle‑cell drop/insert modules, RS encoder/decoder, and sync insertion/detection units. Timing constraints are satisfied through pipelining, and the overall bandwidth overhead stays below 2 %.

The authors evaluate the system using ITU‑T O.191 cell‑error tests and a laboratory channel simulator that emulates the 10⁻³ error environment. Two test configurations—without and with the Link Enhancer—are compared under full‑duplex and half‑duplex conditions. Measured results show:

• BER/CER Reduction – Input BER of 10⁻³ is reduced to an effective BER of ~10⁻⁸, corresponding to a cell error ratio (CER) drop from ~0.32 to ~3.8 × 10⁻⁶.
• Cell Loss Ratio – Cell loss falls from 1.28 × 10³ cells (0.000476) to 53 cells (≈2 × 10⁻⁵) over the test interval.
• Latency Impact – The added processing latency is on the order of tens of microseconds, negligible for real‑time voice and video services.
• Bandwidth Overhead – The combination of idle‑cell removal and RS parity consumes less than 2 % of the 2.048 Mbps E1 link, confirming that the scheme can coexist with existing traffic without requiring additional spectrum.

Theoretical calculations of CER from BER (using the relationship CER = 1 − (1 − BER)³⁸⁴) match the experimental data closely, validating the analytical model. The authors conclude that the RS(255,235) code, together with the custom synchronization and idle‑cell handling, provides an efficient, low‑latency solution that enables commercial ATM switches to operate reliably over harsh wireless links.

Limitations and future work are acknowledged: the current design uses a fixed code rate and block size, which may be sub‑optimal when channel conditions vary rapidly. Adaptive coding, interleaving, or multi‑layer FEC could further improve robustness. Additionally, long‑term field trials in actual vehicular environments are needed to assess reliability under mobility‑induced fading and interference.

In summary, the paper delivers a practical, FPGA‑based Link Enhancer that raises wireless ATM link reliability from BER 10⁻³ to BER 10⁻⁸, with minimal latency and bandwidth penalty, thereby preserving the QoS guarantees of defense‑grade voice, video, and data services in tactical vehicular networks.
