Mobile Agents for Content-Based WWW Distributed Image Retrieval

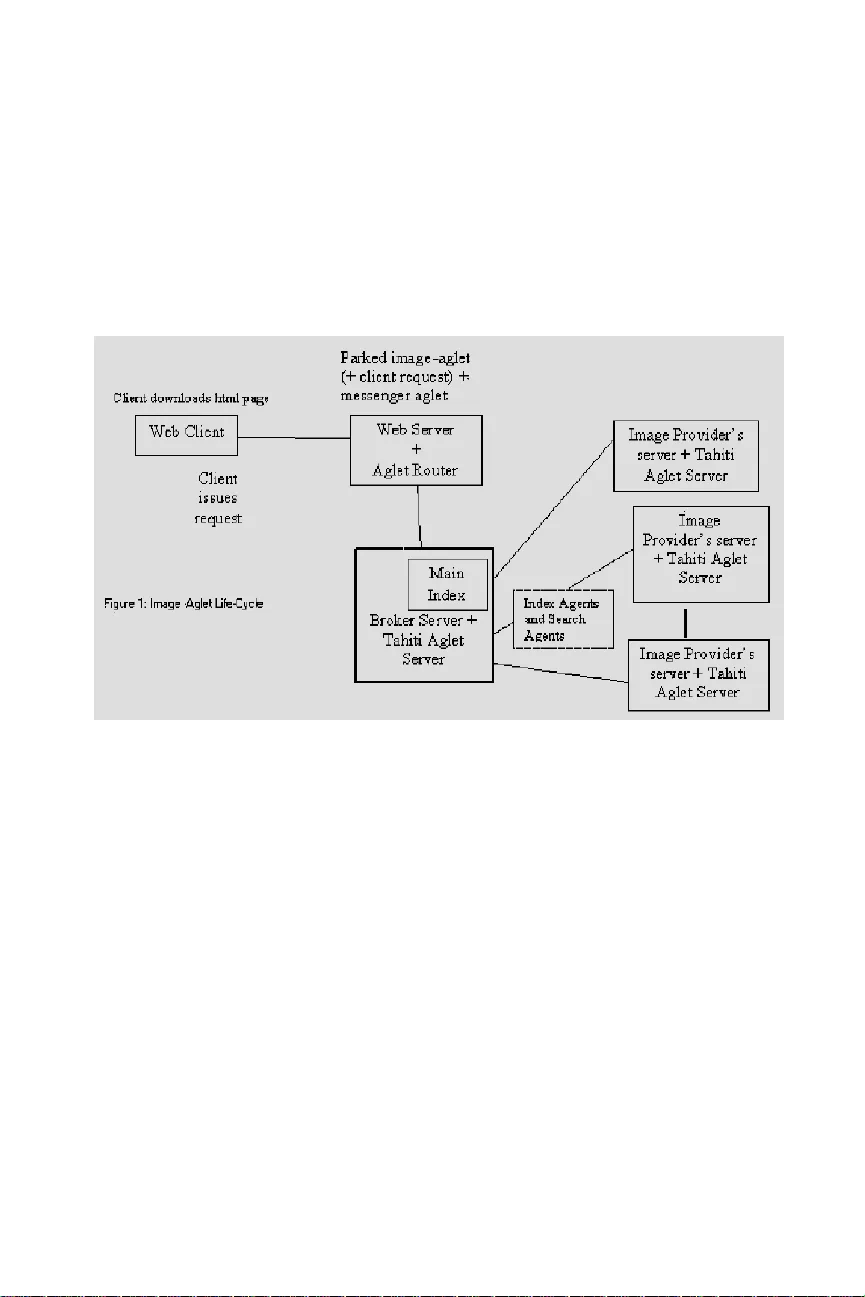

ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 MOBILE AGENTS FOR CONTENT -BASED WWW DISTRIBUTED IMAGE RETRIEV AL Sabu .M Thampi 1 , Dr. K. Chandra Sekaran 2 1 Assistant Professor, L.B.S College of Engineering, Kasaragod, Kerala, Indi a {smlbs@y ahoo.co.in} 2 Professor & Head, National Institute o f Technology Karnataka, India {kch@nitk.ac.in} Abstract: At present, the de-facto stan dard for providin g contents in the Internet is the World Wide Web. A technolo gy, which is now emerging on the Web, is Content-Based Image Retrieval (CBIR). CBIR applies methods and algorithms from computer science to analyse and index images based on their visual content. Mobile agents push the flexibility of distribu ted system s to their limits since not only computations are dynamically distributed but also the code that performs them. The current commercial applet-based methodologies for accessing image database system s offer limited flexibility, scalability and robustness. In this paper the author propo ses a new framework for content-based WWW distributed image retrieval based on Java-based mobile agents. The implem entation of the fram ework shows that its performance is comparable to, and in some cases outp erforms, the current approach. INTRODUCT ION During the last decade, we have seen a rapid increase in the size of digital image collections. As the computational power of both hardware and software have increased, the ability to store more complex data types in databases, such as video, audio and images has been drastically improved. These new media types offer other challenges, and demand a different treatment than pure text. Research in this area started in the 70’s, based on traditional inform ation retrieval, and is today both an active and important field in information and data managem ent. The World Wide Web is rapidly being accepted a universal access mech anism for netw ork information. The popularity of Web suggests that web browsers may offer a compelling end-user interface for a large class of applications including Image Retrieval. A technology, w hich is now emerging on the Web, is Content Based Retrieval, CBR. A content-based query matches examples or proto types to known instances of a certain media type based on a measu re of sim ilarity. For efficiency , similarity measures are frequently computed on sets of discriminant features (so called feature vectors) being extracted a-priori from stored media. The present appro aches towards supporting a market of digital images suff er from a num ber of disadvantages. All images have to be transferred across the network to some indexing process. Image gatherers request images using HTT P requests. Therefore , the ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 gatherer needs to w ait between requests, which increases the time required for requesting and receiving an image. This time is identified as a performance bottleneck. Hence an alternative architecture is pro posed for distributed indexation and searching of images. This combines Content Based Image Retrieval technology , mobile agent technology and digital water marking. The widespread use of Java in network centric computing, attributed mainly to its global portab ility and security control system , gives Java the lead in Client/ Server programming and m obile computing. The prop osed framework, called the Image-Aglet framew ork utilizes the newest technology of mobile agents and CBIR and demonstrates its effectiveness over a specific application context (i.e. Image Retrieval). The main advantage of the framew ork is it frees the remote client to perform other more essential tasks. The implem entation of the framew ork show s that the performance of the sy stem is comparable to current appro aches. MOBILE AGENTS The term software agents refer to programs that perform certain tasks on behalf of the user. Softw are agents can be classified as static agents and mobile agents. Static agents achieve the goal by executing on a single machine. On the other hand, mobile agents mig rate from one computer to another and executes on several machines. Mobility increases the functionality of th e mobile agent. A mobile agent consists of the program code and the program execution state. Initially a mobile agent resides on a computer called the home machine. The agent is then dispatched to execute on a remote computer called a mobile agent host. When a mobile agent is dispatched the entire code of the mobile agent and the execution state of the mobile agent is transferred to the host. The host provides a suitable execution environm ent for the mobile agent to execute. Another feature of mobile agent is that it can be cloned to execute on several hosts. Upon completion, the mobile agent delivers the results to the sending client or to another server. Aglet Technology is a framew ork for programming mobile netw ork agents in Java developed by the IBM Japan research group. The IBM’s mobile agent is called ‘Aglet’, is a lightw eight Java obj ect. One of the main differences between an aglet and the simple mobile code of Java applets is the itinerary or travel plan that is carried along with the aglet. By having a travel plan, aglets are capable of roaming the Internet collecting information from m any places. An aglet can be dispatched to any remote host that supports the Java Virtual Machine. This requires from the remote host to pre-install Tahiti, a tiny aglet server program implem ented in Java and provided by the Aglet Framew ork. To allow aglets to be fired from within applets, the IBM Aglet team provided the so-called “FijiApplet”, an abstract applet class that is part of a Java package called “Fiji Kit”. FijiApplet maintains ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 some kind of an aglet context. From within this context, aglets can be created, dispatched from and retracted back to the Fij iApplet. CONTENT -BASED IMAGE RETRIEV AL (CBIR) Digital images and videos have an increasingly important role in today’s telecomm unication and our everyday life in information society. The past few years witnessed a proliferation of content-based image retrieval techniques. The key issue in CBIR is how to match tw o images accord ing to computationally extracted features. Typically, the content of an image can be characterized by a variety of visual pr operties know n as features. Most CBIR techniques fall into two categories: manual and computational. In manual appro aches, a hum an expert may identify and annotate the essence of an image for storage and retrieval, computational appro aches, on the other hand, typically rely on feature-extraction and pattern-recognition algorithms to match two images. CBIR using Gabor Texture features This section describes an image retrieval technique based on Gabor texture features. Texture is an important feature of natural images. Gabor filter (or Gabor wavelet) is widely adopted to extract texture features from the images for image retrieval and has been shown to be very efficient. Basically, Gabor filters are a group of wavelets, with each wavelet capturing energy at a specific frequency and a specific direction. Expanding a signal using this basis pro vides a lo calized frequency description, therefore capturing local features/energy of the signal. Texture features can then be extracted from this group of energy distributions. The scale (frequency) and orientation tunable property of Gabor filter makes it especially useful for texture analysis. A rotation normalization method that achieves rotation invariance by a circular shift of the feature elements so that all images have the same dominant direction is proposed here. Texture representation After applying Gabor filters on the image w ith different orientation at different scale, we obtain an array of magnitudes: These magnitudes represent the energy content at different scale and orientation of the image. The main purpose of texture-based retrieval is to find images or regions with similar texture. It is assumed that we are interested in imag es or regions that have homogenous texture, therefore the following mean  mn and standard deviation σ mn of the magnitude of the transformed coefficients are used to represent the homogenous texture feature of the region: ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 A feature vector f (texture representation) is created using  m,n and σ mn as the feature components. Five scales and 6 orientations are used in common implementation and the feature vector is given by: Rotation invaria nt similarity measurem ent The texture similarity measurement of a query image Q and a target image T in the database is defined by: Since this similarity measurement is not rotation invariant, similar texture images with different direction may be missed out from the retrieval or get a low rank. A simple circular shift on the feature map is sufficient to solve the rotation variant problem associated with Gabor texture features. Specifically, we calculate total energy for each orientation. The orientation with the highest total energy is called the do minant orientation/direction. We then move the feature elements in the dominan t direction to be the first elements in f. The other elements are circularly shifted accord ingly. For example, if the original feature vector is "abcde f" and " c" is at the dominant direction, then the normalized feature vector will be "cdefa b". T his normalization method is b ased on the assumption that to compare similarity between two images/textures they should be rotated so that their do minant directions are the same. THE IMAGE – AG LET FRAMEWORK Specifically, the following components are needed to support Image-Aglet framew ork:  An Im age-applet The Image-applet is responsible for forming a graphical client database interface that user can utilise to enter image requests. T he Image-applet is an extension of the abstract FijiApplet class.  An Im age-Aglet ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 The Image-Aglet is created within the context of the Image-applet and is responsible for carrying the users request to the Broker server through the Web server, executing it, and returning the results back to the Image-applet context. The Image-Aglet is a Java- based extension of the Aglet class. Other components associated with the sy stem are image-index agent, imag e-search agent, parked agent and messenger agent. Demonstrating the Web-based Image-Aglet Framework In this framew ork an extension of the client/server model, called the client/agent/server model is used. An agent is placed on the path from the client to the server. Any comm unication between the client and the server goes through the agent. T his agent is a service-specific surrogate of the client, which is parked at the Broker Server, and it is maintained there for the duration of the application. Between the parked aglet and the remote client, another aglet carries requests and results back and forth. A web-based Image-Aglet infrastructure has been set up to demonstrate the system (see Figure 1). The Image-applet and Image- Aglet are programmed and included in an HTML page at the web server machine. Aglet router is installed at the Web server machine. Additionally the Tahiti Aglet servers are installed in the Broker server as well as in the image Providers’ servers. To demonstrate first download at the Client host the html page containing the imag e- applet and the Image-Aglet. Through the image-applet’s GUI a query is entered. Two Image-Aglets are fired from the Aglet- applet. The first one is called parked Image- Aglet . The parked Image-Aglet carries the following message directions:  The address of the URL where the broker server is located.  Query to be executed at the broker server.  The approp riate certificates for the aglet to b e trusted at the broker server. The role of the parked agent is to camp at the broker server’s agent context, subm it the client’s request, load the appropriate drivers and collect the answer for the query. The second Image-Aglet is called the messenger aglet. The mess enger aglet is responsible for carrying the result back to the Image-Aglet (see figure 1). Any subsequent requests are transmitted via the m essenger aglet to the parked Image-Aglet. As soon as the Broker server receives user request it sends imag e-index agents to the image providers’ servers. Multiple copies of index agents may be created to visit servers of image providers. T he index a gents transport the texture feature extraction and collection algorithms. Index agents may compute and collect indexes of multiple images archives, w hich are sent back and merged to the bro ker’s m ain index. ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 The client receives a list of image descriptor s of imag es matching the query in the order of similarity. Each image descriptor consists at least of a thumbnail, the image identifier of that image (unique within the domain of the image provider), a measure of “sim ilarity” to the original query image, and the URL of the Provider’s agent server from which the imag e can be retrieved. The image themselves must be retrieved from the providers. This ensures that providers may identify customers and may apply digital watermarks to retrieved images. While retrieving thumbnails is free, retrieving full images is subject to access control. In accordance to agreements between brokers and providers, index agents are authorised to rea d full images for the purpose of indexing. Figure 1 : Image-Aglet L ife-Cy cle After viewing the thum bnails of images, user can send requests to retrieve the images through the applet. The messenger aglet carries these requests to the Web server. The broker server creates a new type of mobile agents called search agents. Multiple copies of search agents are created to visit Provide rs’ sites. Search agents are allowed to retrieve full images only if appro priate licenses were purchased beforehand. Digital watermarks are attached with the retrieved images. Search agents utilises the data kept in the main index of the Broker server. Refining Image-Aglet Framework The time required for the messenger aglet to travel between the image-applet and the parked Image-Aglet carrying results to the one way and new queries to the other create an overhead to the proposed system . Replacing the messenger aglet with two types of messages can eliminate this overhead. The first kind of message is delivered from the Image-Aglet to the image-applet contains the results of last query. The other message from the image-applet to Image-Aglet contains new client query. This method outperforms the traditional applet appro ach for retrieving images. ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 PERFORMANCE EVAL UATION The performance evaluation compares the total time required by a web client to access and query imag e databases between the traditional applet-based and Image- Aglet methodologies. For each meth odolo gy the client is accessing the Web server via a 64 kbps dial-up connection to an ISP (BSNL). The tests were performed several times with m ore than 100 queries. Figure 2: Mean times f or 64 kbps client connectivity The first step of data analysis was to perform a descriptive statistical analysis. This analysis gave information about the behaviour of the data sets involved in the statistical analysis, including a description of the mean, the median, and the standard deviation. In particular, a comparison of the means and standard deviations has b een per formed. This indicated that the most efficient methodology seems to be “parked Image-Aglet with messages” for the first query and the traditional applet method for subsequent queries. This is shown in Figure 2. However, the marginal difference between the performances of the three methods for subsequent queries is compensated by the significant difference in the performance for first queries, suggesting that the parked Image- Aglet with messages could be considered as the most efficient methodology for all cases of client connectivity . CONCLUSIONS AND FUTURE WORK In this p aper a new appr oach for developing client/server applications on the Web using Java mobile agents for Image retrieval is introduced. The mobile agent appro ach has a num ber of ad vantages. Image indexing is decentralized . It is computed “near” the image database by index agents migrating to the server of image providers. Images m ust not be transported across netw orks for index generation any more. Retrieved images can be personalized b y w atermarking them with identity of the purchaser. ICHMI 200 4 - Internatio nal Conference on Human Mac hine Interfaces 20-23, Dec. 2004 The system can be further improved by extending the CBIR algorithm to extract more complex features of the images. This includes identification of obj ects and scenes from images. REFERENCES 1. John P. Eakins and Margaret E. Graham, “Content- based Image Retrieval: A Report to the JISC Technology Applications Program”. http://www.unn.ac.uk/iidr/research/cbir/report.ht ml. 2. H. Tamura, S. Mori, and T. Yamawa ki, “Texture features correspond ing to visual perception,” IEEE Trans. On Systems, Man and Cybernetics. 6(4): 46 0-473 , 1976. 3. B. S. Manjun ath and W. Y. Ma. “Texture features for browsing and r etrieval of large image data,” IEEE Transactions on Pattern Analy sis and Machine Intelligence, (Special Issue on Digital Libraries), Vol. 18 (8 ), August 1996, pp . 837 -842. 4. M. Flickner et. al., “Query by image and video content: The QBIC System ,” IEEE C omputer 28, 9 (Sep. 1 995). 6. Pass, G., Zabih,R.,and Miller, J, “Comparing images using colo r coherence vectors,” In Pro c. ACM Conference on Multimedia (Boston, Massachusetts, U.S.A., November 1996 ). 7. Pentland, A., Picard, R.W.,and Sclaroff, S, “Pho tobo ok: Content– based manipulation of image databases,” International Journal of Computer Vision 1 8, 3 (1996), 233 –254 . 8. RothermeL, K., and Po pescu- Zeletin, R, Eds. Mobile Agents (MA ’9 7), vol. 1219 of Lecture Notes in Computer Science. Springer V erlag, Berlin Heidelberg, 1997. 9. Smith,J.R.,and Chang, S.-F, “VisualSEEk: a fully automated content- based imag e query system ,” In P roc. ACM Multimedia ’96 Conference (Boston, MA, USA, November 1996). 10. VIGNA, G., Ed. Mobil e Agents and Security, vol. 1419 of Lecture Notes in Computer Sci- ence. Springer Verlag, Berlin Heidelberg, 19 98. 11. Vitek,J.,and Jensen,C, Secure Internet Programming: Security Issues for Mobile and Distributed Objects, vol. 1603 of Lecture Notes in Computer Science. Springer- Verlag Inc., New York, NY, USA, 1999. 12. S.Papastavrou, E.Pitoura, and G. Samaras, “Mobile Agents for Distributed Database Access,” Technical Report TR 98-12, Univ. of Cyprus, Computer Science Department, Sept. 9 8. 13. Antenella Di Stefano, “Locating Mobile Agents in a Wide Distributed Environment IEEE TRNS. ON Parallel and Distributed System s,” VOL.13 pp.84 4-863 , Aug. 2002 14. Peter L. Stanchev, David Gree n Jr., and Boyan Dimitrov,"Hig h Level Color Similarity Retrieval,” 28 th International Con ference ICT&P 2003,V arna, Bulgaria. 15. E.Pitoura and G. Samaras, “Locating Objects in Mobil e Computing,” IEEE Trans. Knowledge and Data Eng., vol.13, no .4, Ju ly/A ug 2001.
