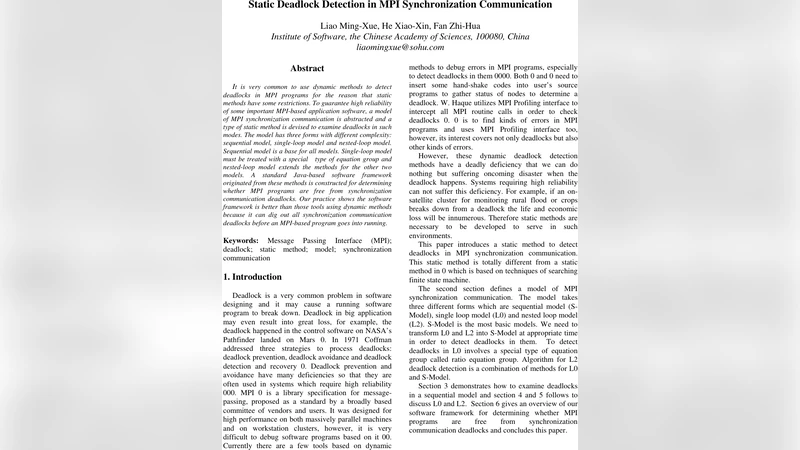

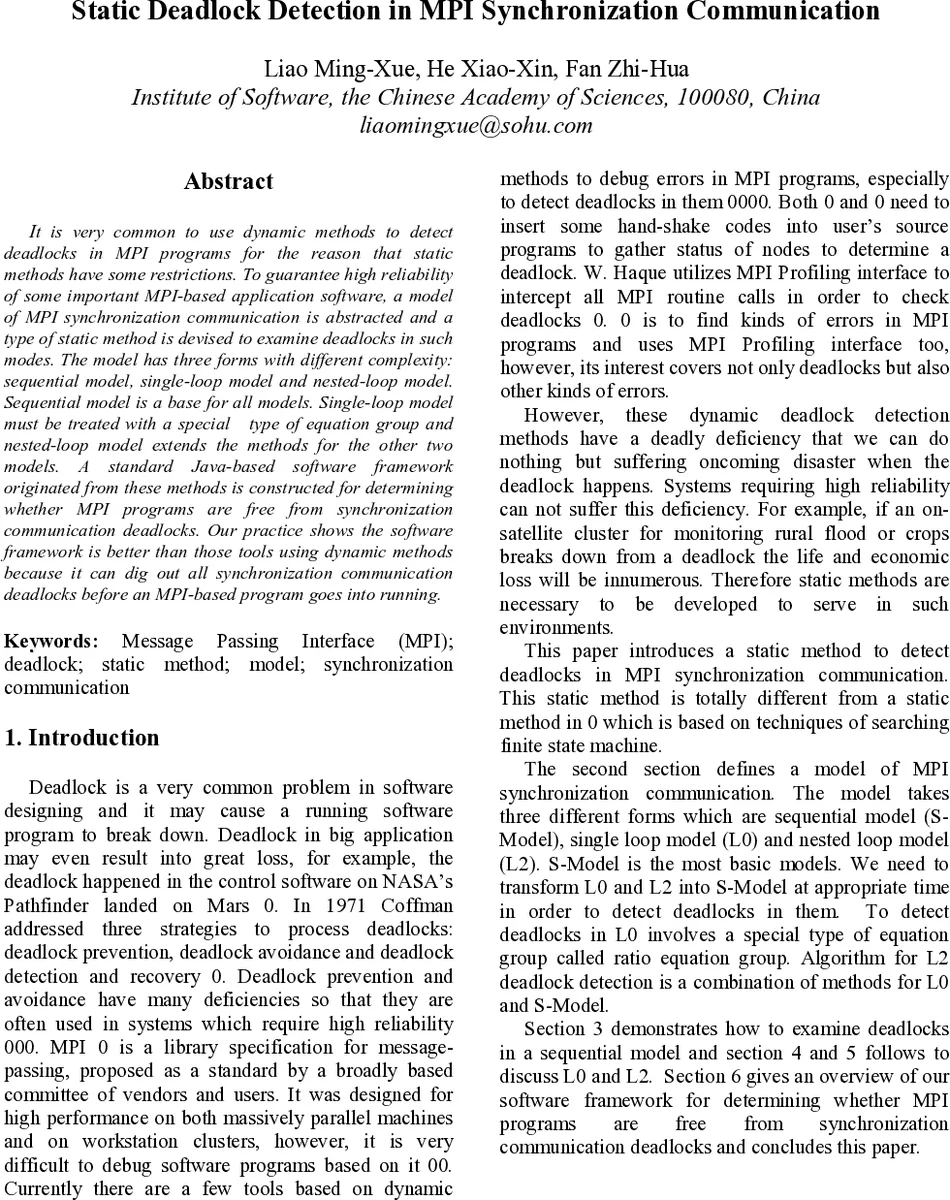

Static Deadlock Detection in MPI Synchronization Communication

It is very common to use dynamic methods to detect deadlocks in MPI programs for the reason that static methods have some restrictions. To guarantee high reliability of some important MPI-based application software, a model of MPI synchronization communication is abstracted and a type of static method is devised to examine deadlocks in such modes. The model has three forms with different complexity: sequential model, single-loop model and nested-loop model. Sequential model is a base for all models. Single-loop model must be treated with a special type of equation group and nested-loop model extends the methods for the other two models. A standard Java-based software framework originated from these methods is constructed for determining whether MPI programs are free from synchronization communication deadlocks. Our practice shows the software framework is better than those tools using dynamic methods because it can dig out all synchronization communication deadlocks before an MPI-based program goes into running.

💡 Research Summary

The paper addresses the problem of detecting deadlocks that arise from synchronization communication in MPI programs, proposing a purely static analysis framework that can identify all such deadlocks before program execution. The authors first formalize MPI programs as collections of node‑programs, each consisting of a node identifier and a sequence of statements that are either simple send/receive operations or loop constructs. Based on this representation they define three increasingly expressive models: the Sequential Model (S‑Model) with no loops, the Single‑Loop Model (L0) that permits exactly one loop per node, and the Nested‑Loop Model (L2) that allows arbitrarily nested loops but forbids conditional statements.

For the S‑Model the authors construct a Message Dependence Graph (MDG) where vertices correspond to individual send or receive events and directed edges capture the temporal ordering imposed by program order and matching of messages. They prove (Theorem 1) that an S‑Model is deadlock‑free if and only if its MDG contains no directed cycles longer than two edges; the length‑two cycles correspond to the natural matching of a send with its corresponding receive and are not considered deadlocks. Because building an MDG and searching for cycles can be expensive, the paper introduces an O(n) algorithm that translates the sequential program into a set of character queues and repeatedly removes matching message pairs; the process halts with a deadlock if no further reductions are possible.

The L0 model introduces the concept of a Ratio Equation Group (REG). For each distinct message type the authors count its occurrences in each node (ignoring loop counts) and formulate equations that express the required ratio of occurrences between nodes. If the system of equations has no solution, the program is immediately declared deadlocked. If a solution exists, the authors check “ratio consistency” (Theorem 2), which ensures that the loop iteration counts of the involved nodes can be scaled to satisfy the ratios. When consistency holds, the loop bounds are scaled to the least common multiple of the solution values, effectively unrolling the loops to a finite size. The resulting unrolled program is then treated as an S‑Model, and Theorem 1 is applied. The combination of ratio solvability, consistency, and S‑Model analysis yields Theorem 3: an L0 program is deadlock‑free exactly when it satisfies the ratio conditions and its derived S‑Model is deadlock‑free.

The most general model, L2, is handled by first converting the program into a set of strings that encode the sequence of send/receive actions together with loop multiplicities. The authors define two reduction operations—Power Reduction (collapsing repeated patterns) and Left‑Prefix Reduction (normalizing leading prefixes)—to obtain a “simplest form”. They then extract the First Power Pool (FPP), the outermost power expressions from each node, and construct a REG for this reduced representation. If the REG has a solution, the FPP is deemed “expansible” and can be expanded; otherwise, the authors attempt to “reduce” the FPP by identifying sub‑structures that correspond to deadlock‑free L0 components. This reduction/expansion loop is formalized in algorithm (19). When the FPP becomes empty, the original L2 program is declared deadlock‑free; otherwise, a deadlock is reported.

All of the above methods are implemented in a Java‑based software framework. The framework automatically parses MPI source code, builds the appropriate model, performs the necessary algebraic and graph‑based analyses, and reports deadlock findings. Experimental evaluation shows that the static framework can uncover deadlocks that dynamic tools miss, because static analysis does not depend on particular execution traces. The authors acknowledge several limitations: the theoretical results are presented without full proofs, the approach does not handle conditional statements, and detailed implementation aspects of the reduction operations are omitted. Nevertheless, the work demonstrates that a systematic static analysis of MPI synchronization communication can provide stronger guarantees of deadlock freedom for high‑reliability parallel applications.
