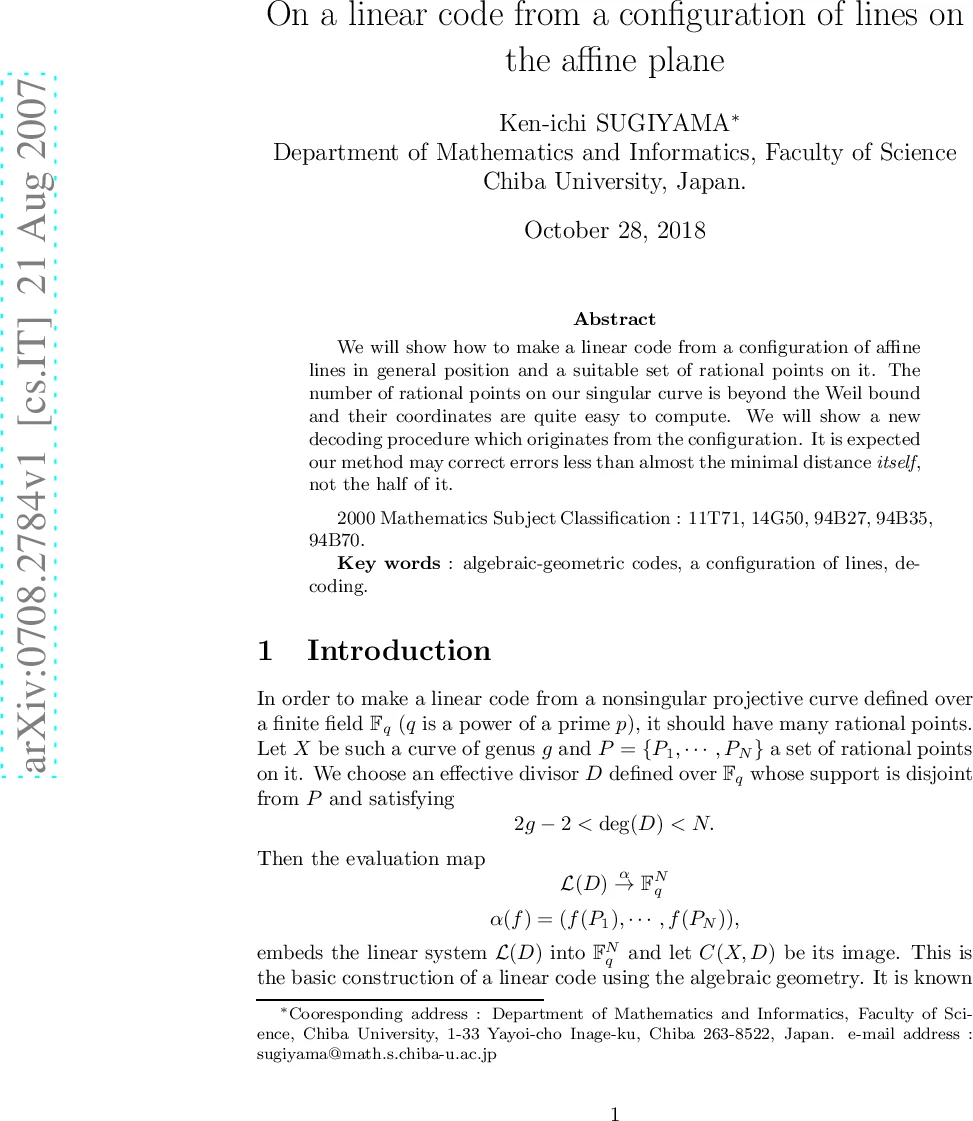

On a linear code from a configuration of affine lines

We will show how to obtain a linear code from a configuration of affine lines in general position and a suitable set of rational points. We will also explain a new decoding algorithm based on the configuration, which seems to be quite effective.

💡 Research Summary

The paper introduces a novel construction of linear error‑correcting codes over a finite field F_q by exploiting a simple geometric configuration: n affine lines in the plane that are in general position (no three intersect) together with m distinct rational points on each line, all defined over F_q. The authors denote the set of points by P = {P_{ij} | 1 ≤ i ≤ n, 1 ≤ j ≤ m}. For a non‑negative integer d < min{m,n} they consider the vector space F_d of bivariate polynomials of total degree ≤ d with coefficients in F_q; its dimension is δ = (d+2)(d+1)/2.

The core of the construction is the evaluation map
 e : F_d → F_q^{nm}, f ↦ (f(P_{ij})){i,j},
which the authors prove to be injective. The proof relies on the notion of an “effective set” Q ⊂ P: a collection of (d+1) points on each of (d+1) distinct lines such that exactly ν points lie on the ν‑th line. For any effective set Q, the restricted evaluation e_Q : F_d → F_q^{|Q|} is an isomorphism; this is shown by an inductive argument using the fact that a polynomial of degree ≤ d that vanishes on (d+1) distinct points of a line must be divisible by the line’s defining linear form. Consequently, the image C = e(F_d) is a linear code of length N = n·m, dimension k = δ, and its generator matrix E is explicitly given by evaluating the monomials {1, x, y, …, x^d, y^d} at each point P{ij}.

The authors derive a lower bound on the minimum Hamming distance:
 d_min ≥ n(m−d) (if m > n) or d_min ≥ m(n−d) (if n > m).
This follows from the observation that any non‑zero polynomial of degree ≤ d can vanish on at most d points of a line, so at least (m−d) points per line (or symmetrically) remain non‑zero, yielding the stated bound. In particular, when the points are taken as the intersections of the n lines with another family of m lines (so that each P_{ij} = L_i ∩ M_j), the bound is attained, giving a code whose distance equals the bound.

A major contribution is a decoding algorithm that exploits the same geometric structure. For each effective set Q the matrix E_Q (the δ×δ submatrix of E indexed by Q) is invertible; thus one can recover the coefficient vector a of the transmitted polynomial f from the restricted received word e_Q(m) by a = E_Q^{-1}·e_Q(m). The algorithm proceeds as follows: (1) compute a_Q = E_Q^{-1}·(received vector restricted to Q) for every effective set Q; (2) look for a coefficient vector that appears at least twice among the a_Q’s; (3) output the corresponding codeword E·a. The authors argue that if the error vector e has weight less than the bound n(m−d) (or m(n−d)), then at least two effective sets will give the same a, because the error affects only a small number of positions and the probability that two distinct Q’s produce the same erroneous a is q^{-|Q⊖Q’|}, negligible for large q. Hence the algorithm can correct up to essentially the full minimum distance, not just up to half of it as in classical bounded‑distance decoding.

To quantify the error‑correction capability, the paper introduces a combinatorial device: a tableau (a Young‑diagram‑like subset of the n×m grid) that is closed under moving up and left. By analyzing the maximal size of a tableau that does not contain a full effective set, the authors derive a function
 f(k) = k² + (m−n−d−2)k + (n+1)(d+1) − m, k = 1,…,d+1,
and show that any error pattern whose support leaves more than max_{k} f(k) positions untouched will necessarily contain at least two effective sets. Consequently, the decoding algorithm succeeds for any error vector of weight ≤ n·m − max_{k} f(k). This bound is often close to the minimum distance and can be strictly larger than the traditional “half‑distance” guarantee.

The paper also compares the construction with the Weil bound for rational points on smooth projective curves. A smooth curve of genus g over F_q has at most 1+q+2g√q rational points, limiting the length of algebraic‑geometric codes. In contrast, the affine‑line configuration yields n·q − n(n−1)/2 rational points, which for fixed n and sufficiently large q exceeds the Weil bound. Moreover, the coordinates of these points are trivial to compute from the line equations, avoiding the heavy symbolic work required for general curves.

Finally, the authors provide concrete examples: when m > n the bound n(m−d) is dominant, and when n > m the bound m(n−d) dominates. They also construct explicit polynomials whose evaluation vectors attain the error‑weight bound, confirming the tightness of their analysis.

In summary, the paper presents a clean, explicit method to build high‑rate linear codes with good distance properties from a configuration of affine lines, supplies a decoding algorithm that can correct up to (essentially) the full minimum distance, and demonstrates that this approach can surpass the point‑count limitations of traditional algebraic‑geometric codes. The work opens avenues for further exploration of line‑based configurations, higher‑dimensional analogues, and practical implementations in communication systems.
